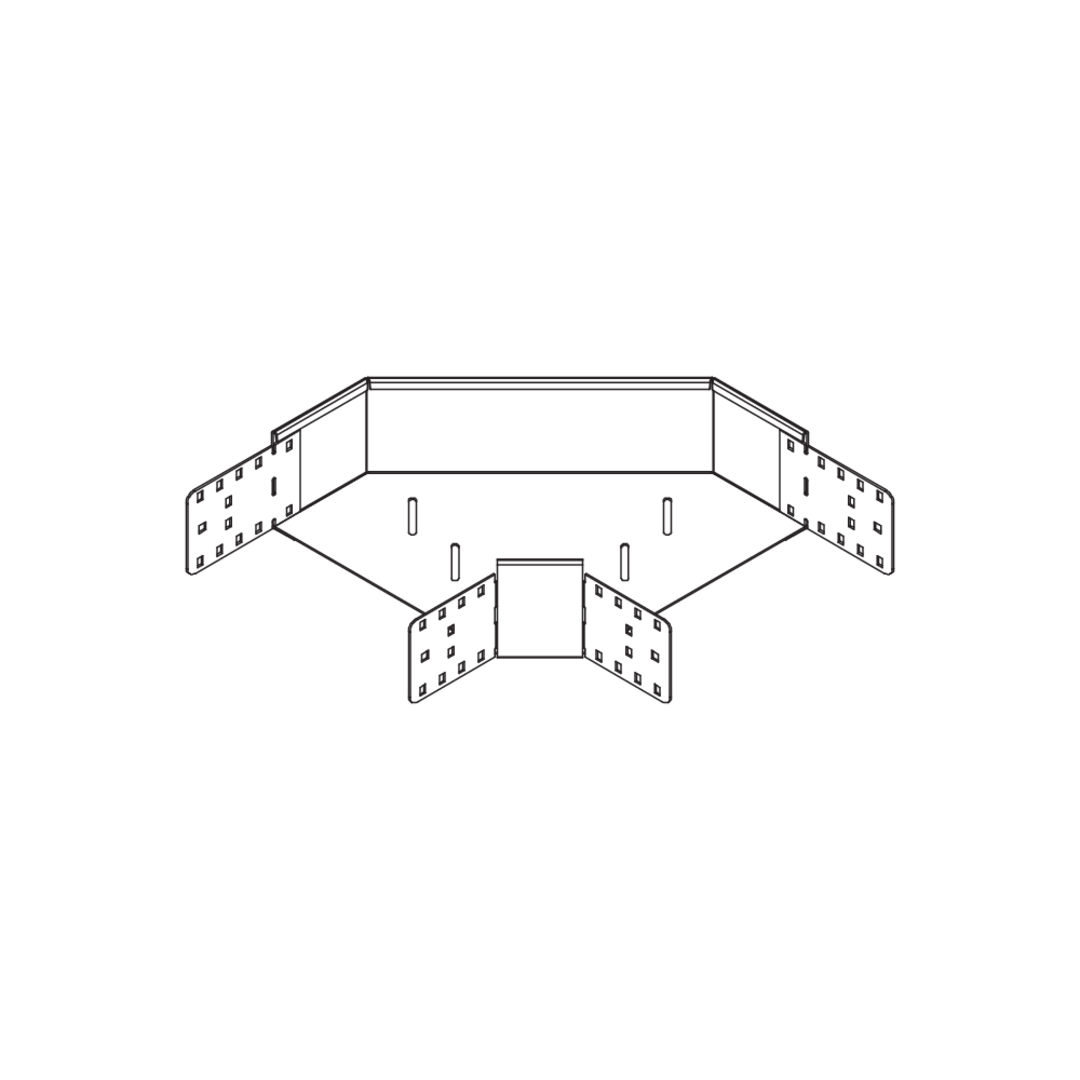

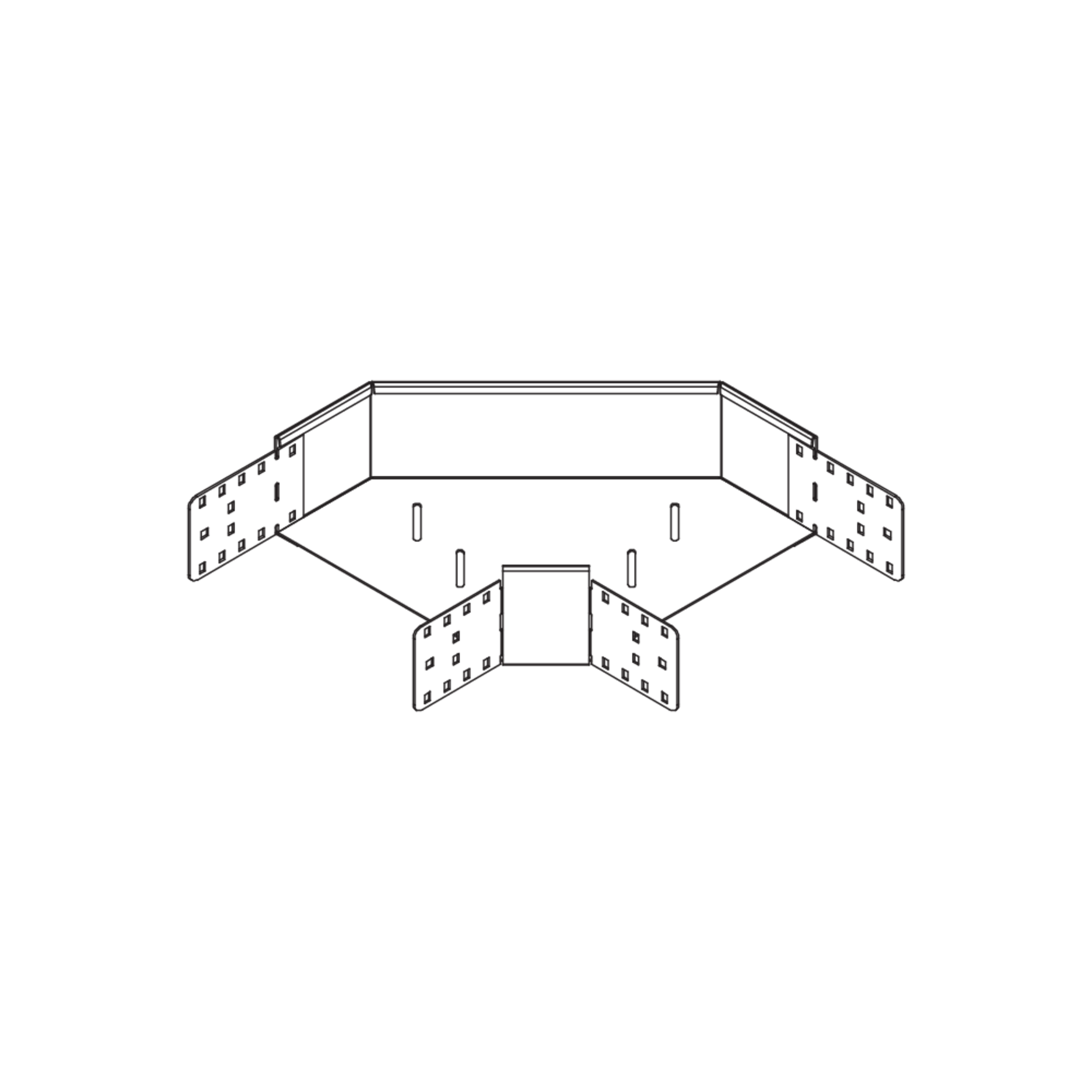

BKB 110

Floor duct bend, height = 110 mm

The floor duct bend BKB 110 with integrated connectors allows the direction of cable routing to be changed horizontally by 90°. It is 110 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The bend is pushed into the floor ducts and then bolted in place.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

t

material thickness

direction

Direction change

W

Angle

G

Weight per storage unit
  • BKB 110-10S
    90° floor duct bend
    height
    110 mm
    width
    100 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    1.891 kg
    Included accessories
    More information
  • BKB 110-15S
    90° floor duct bend
    height
    110 mm
    width
    150 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    2.356 kg
    Included accessories
    More information
  • BKB 110-20S
    90° floor duct bend
    height
    110 mm
    width
    200 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    2.780 kg
    Included accessories
    More information
  • BKB 110-30S
    90° floor duct bend
    height
    110 mm
    width
    300 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    3.920 kg
    Included accessories
    More information
  • BKB 110-40S
    90° floor duct bend
    height
    110 mm
    width
    400 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    5.340 kg
    Included accessories
    More information
  • BKB 110-50S
    90° floor duct bend
    height
    110 mm
    width
    500 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    7.000 kg
    Included accessories
    More information
  • BKB 110-60S
    90° floor duct bend
    height
    110 mm
    width
    600 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    8.930 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction by 90°.
