BK 110

Floor duct, height = 110 mm

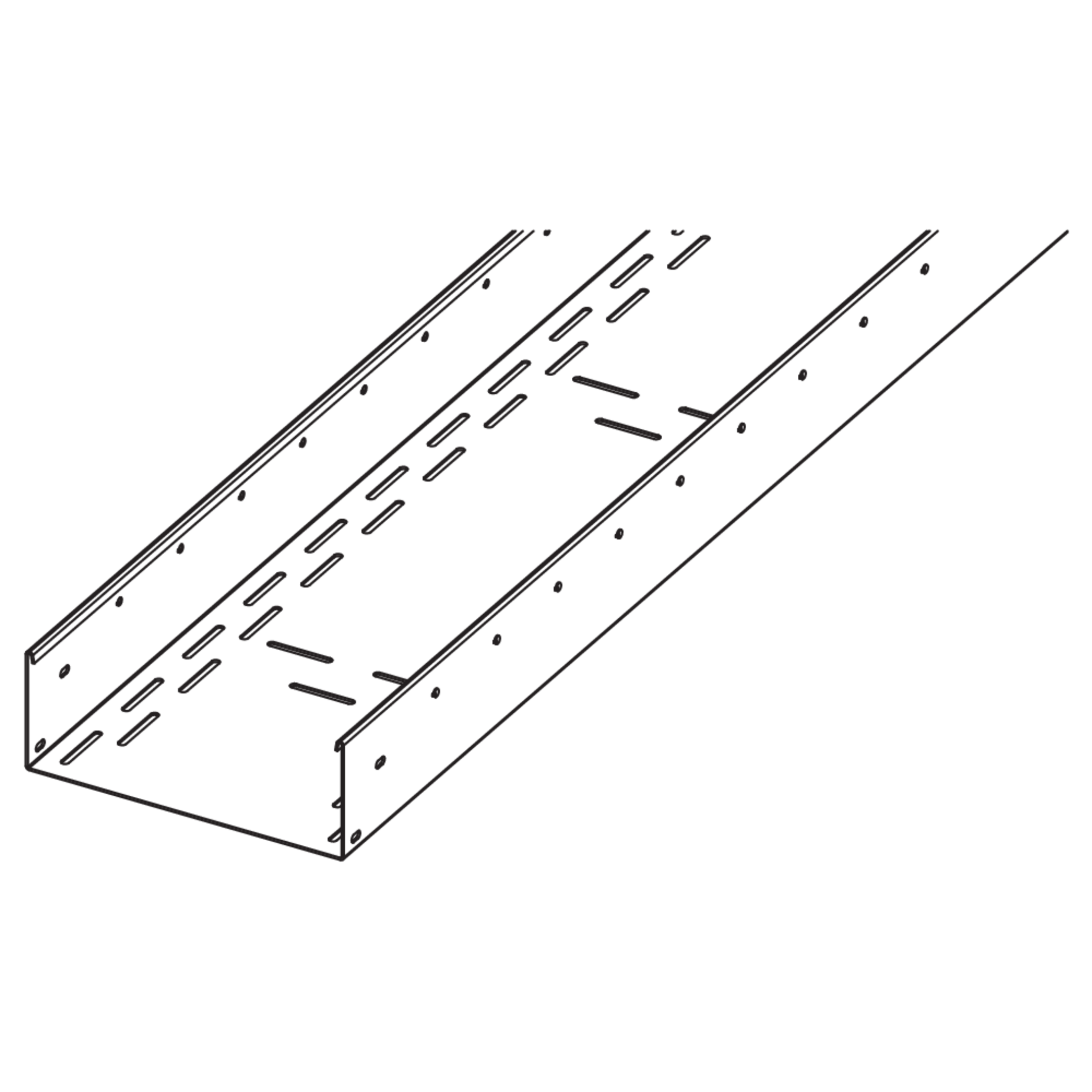

BK 110 floor ducts are made from sendzimir hot-dip galvanised steel and have sides 110 mm high and 100 to 600 mm wide. They are 3000, 1500 or 1000 mm long. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. A maximum compartment size of 200 mm must not be exceeded. BK 110 floor ducts have pre-stamped knock-out slugs on the sides spaced at 100 mm intervals for individual fastening of e.g. a potential equalisation terminal block.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

B

L

t

W

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Rote Mappe - Funktionserhalt Tragkonstruktion DIN 4102-12

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Technical Information for Flush-Mounted Duct Systems

    Technische Information

    PDF, 6 MB

    de en

  • Floor ducts - Assembly instructions

    Montageanleitung

    PDF, 2 MB

    de en

  • Electrical conductivity (BK 100)

    Certificate, according to DIN EN 61537 Pkt. 11.1

    PDF, 278 KB

    de en

Included accessories
