BKEB 110

Floor duct end plate, height = 110 mm

The floor duct end plate BKEB 110 is pushed into the floor duct and bolted to the two connection straps. It forms the flush end of a floor duct and serves as a stop edge for covers. It can also be used for mounting a reducer. The BKEB 110 floor duct end plate is 100 to 600 mm wide corresponding to the floor duct, 110 mm high and is made of sendzimir hot-dip galvanised steel.

Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

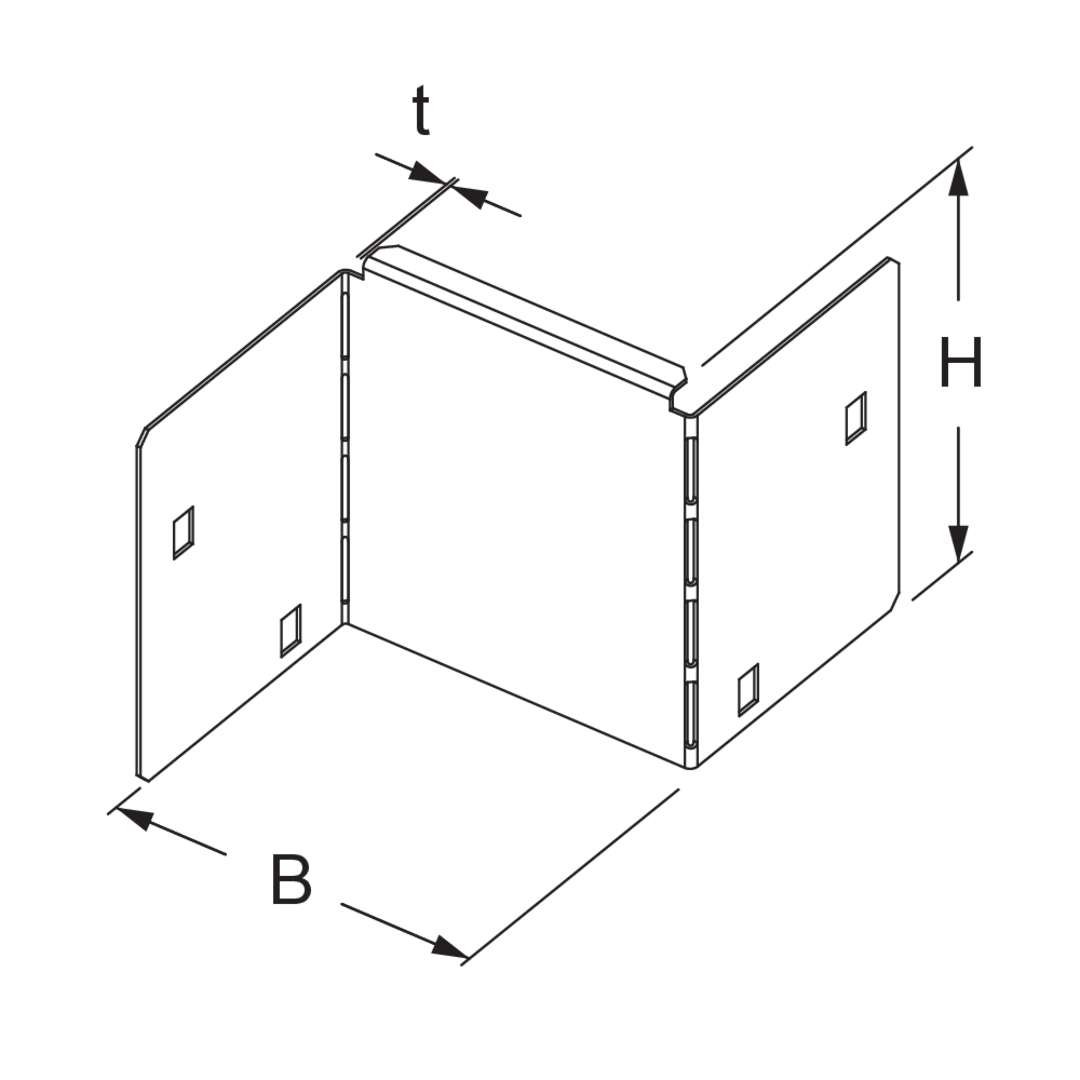

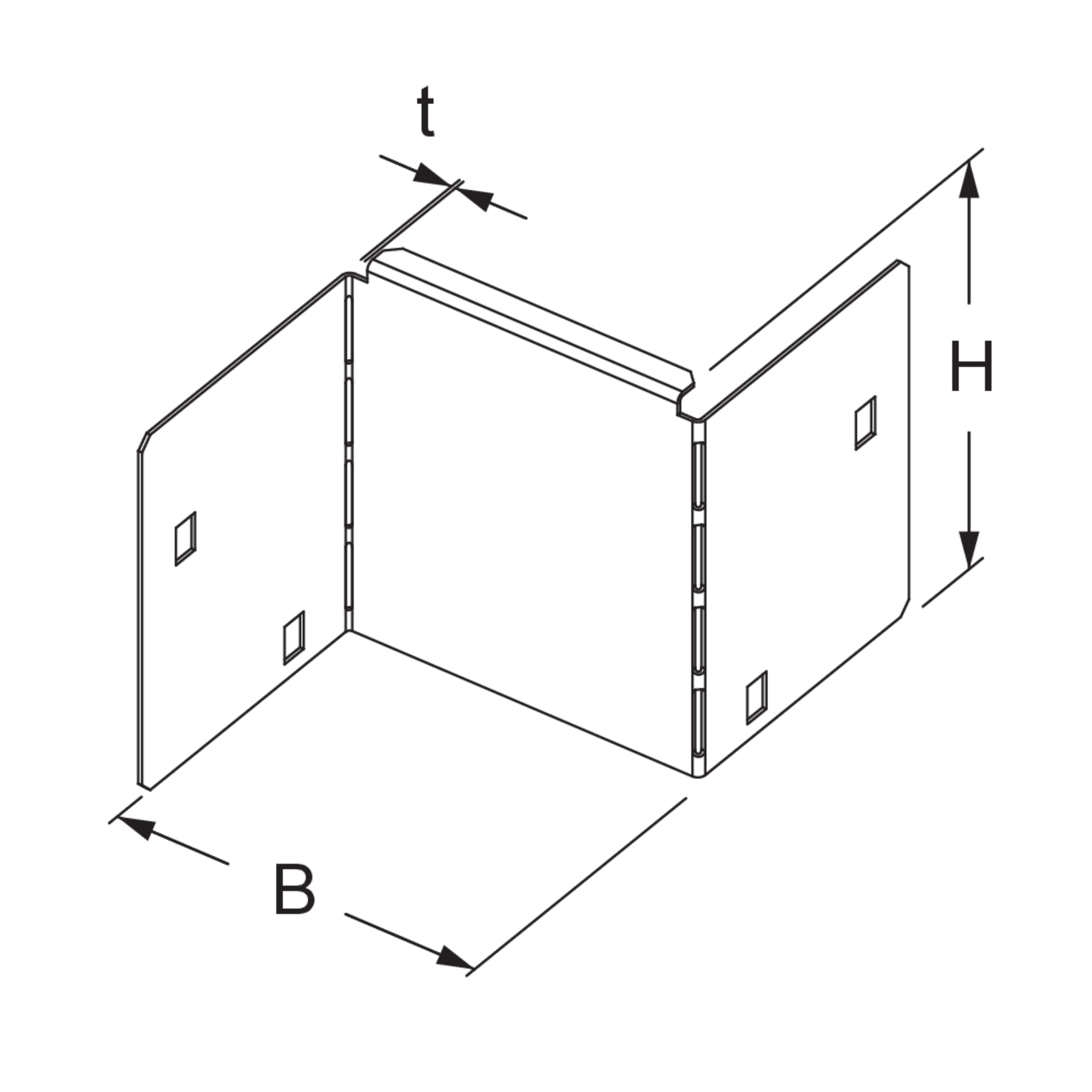

Article

H

B

t

W

Included accessories

  • BKEB 110-10S
    Floor duct end plate
    105 mm
    100 mm
    1.00 mm
    0.238 kg
    Included accessories
    More information
  • BKEB 110-15S
    Floor duct end plate
    105 mm
    150 mm
    1.00 mm
    0.278 kg
    Included accessories
    More information
  • BKEB 110-20S
    Floor duct end plate
    105 mm
    200 mm
    1.00 mm
    0.328 kg
    Included accessories
    More information
  • BKEB 110-30S
    Floor duct end plate
    105 mm
    300 mm
    1.00 mm
    0.418 kg
    Included accessories
    More information
  • BKEB 110-40S
    Floor duct end plate
    105 mm
    400 mm
    1.00 mm
    0.508 kg
    Included accessories
    More information
  • BKEB 110-50S
    Floor duct end plate
    105 mm
    500 mm
    1.00 mm
    0.598 kg
    Included accessories
    More information
  • BKEB 110-60S
    Floor duct end plate
    105 mm
    600 mm
    1.00 mm
    0.698 kg
    Included accessories
    More information
