Variants
steel, batch/hot-dip galvanized
H
height
B
width
L
length
G
Weight per storage unit
-

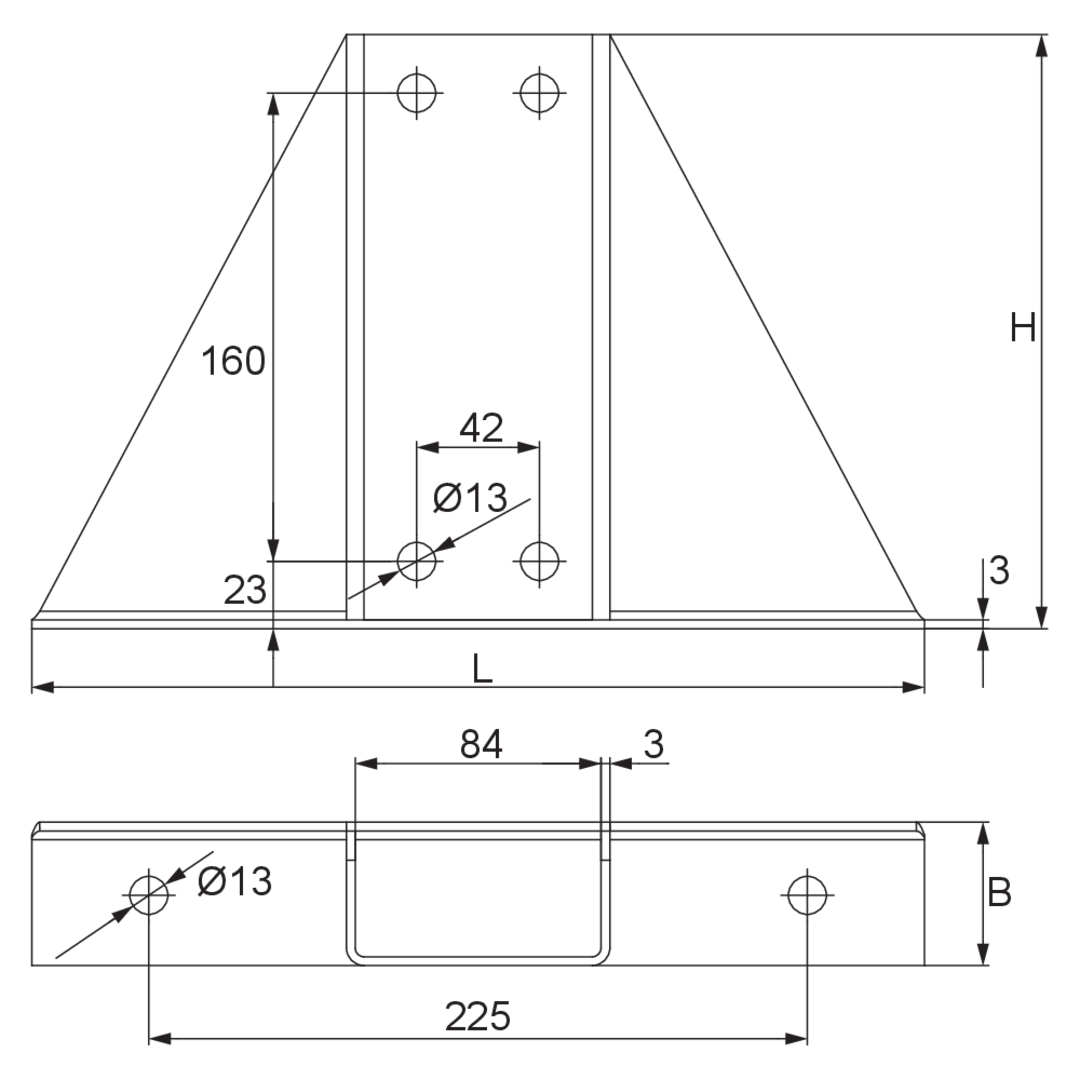

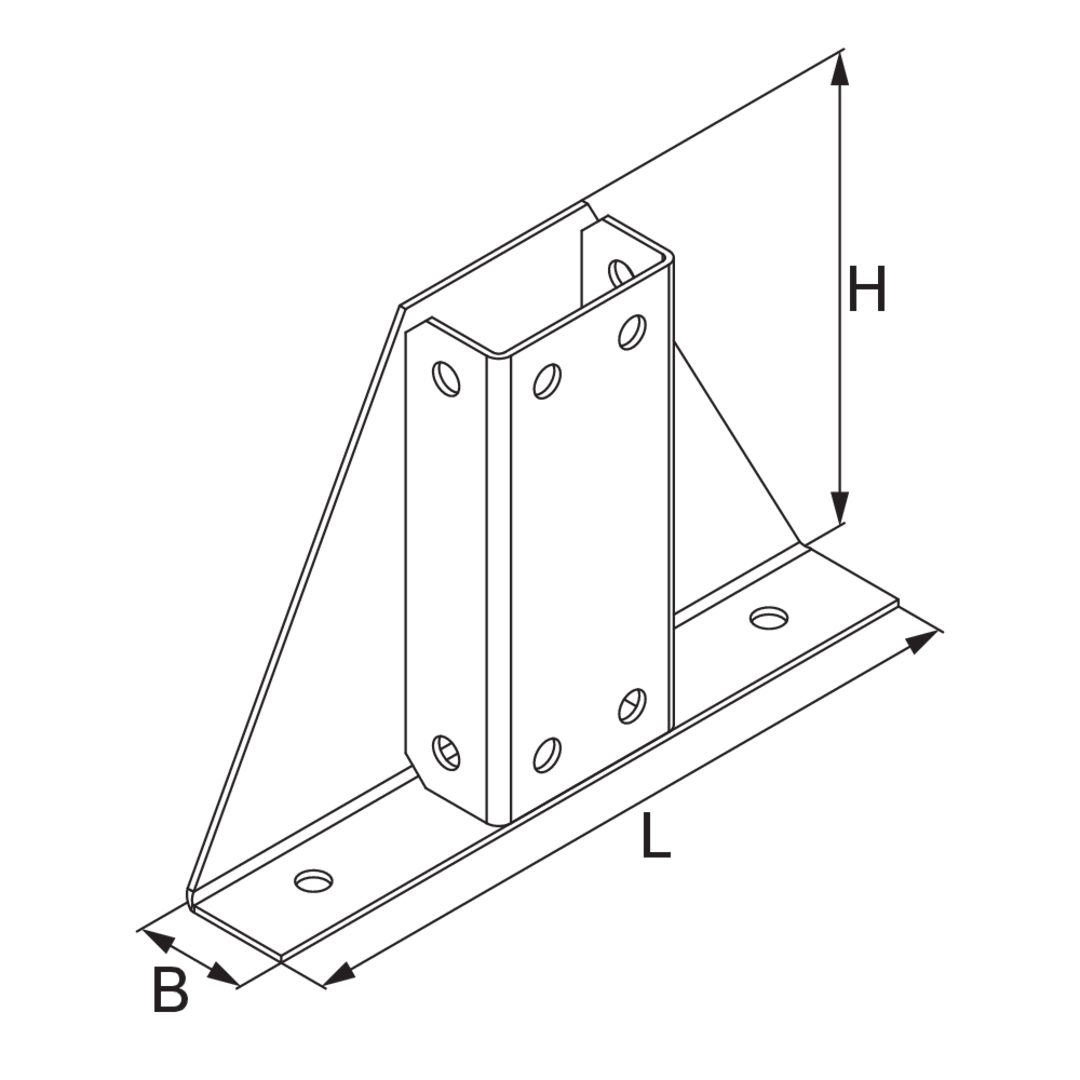

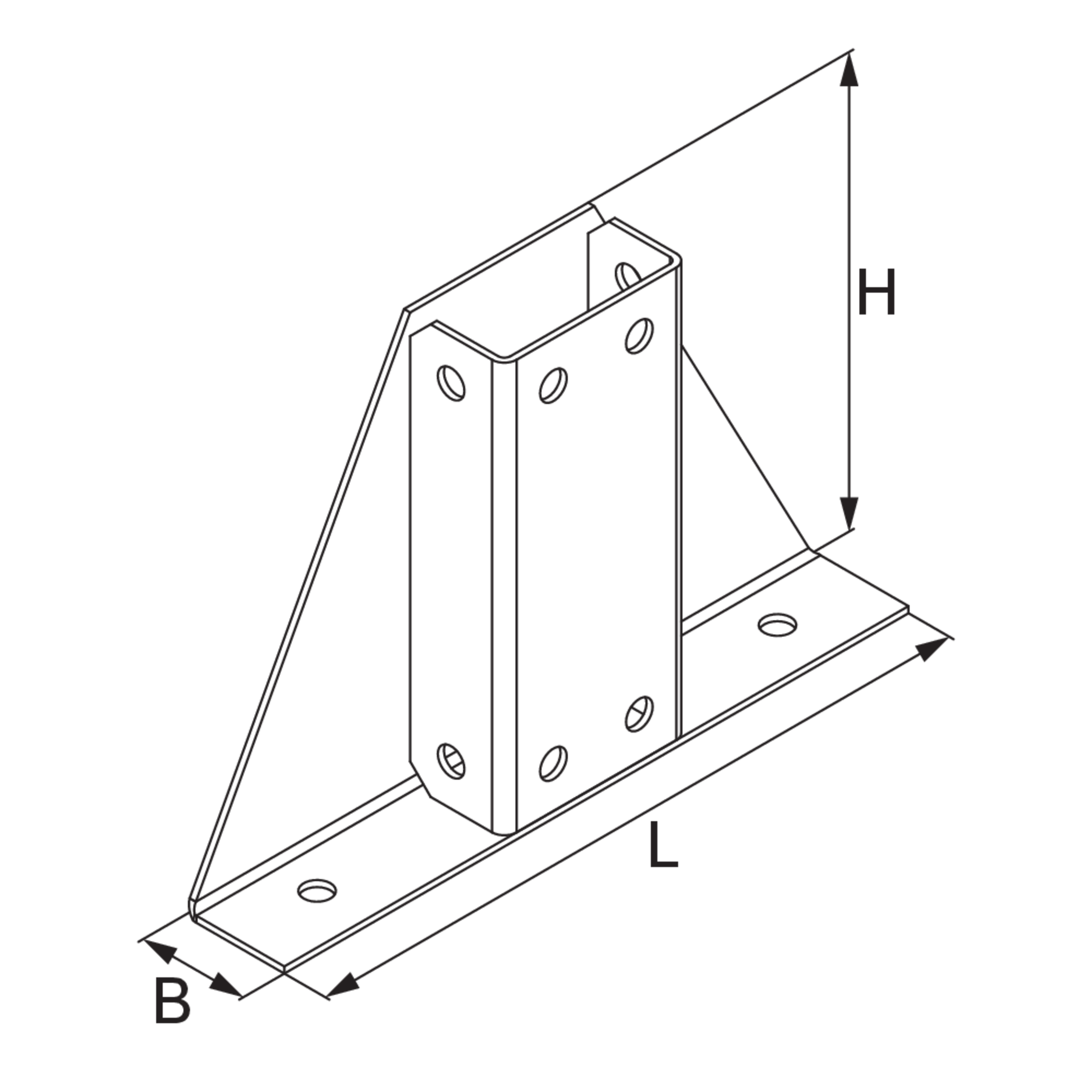

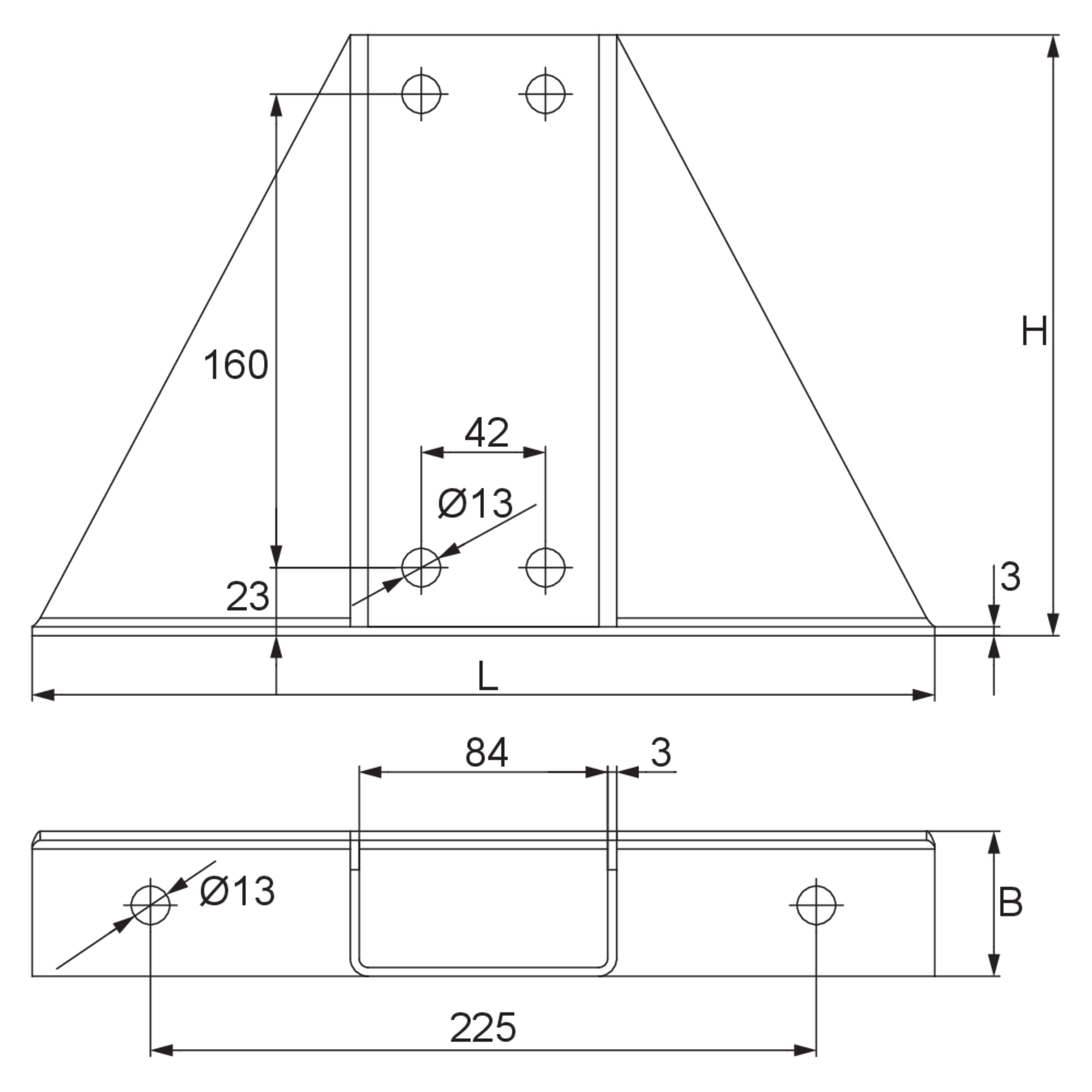

BGF 82F
Head plate203 mm49 mm305 mm2.440 kg
Screw-on head plate, KHA 82

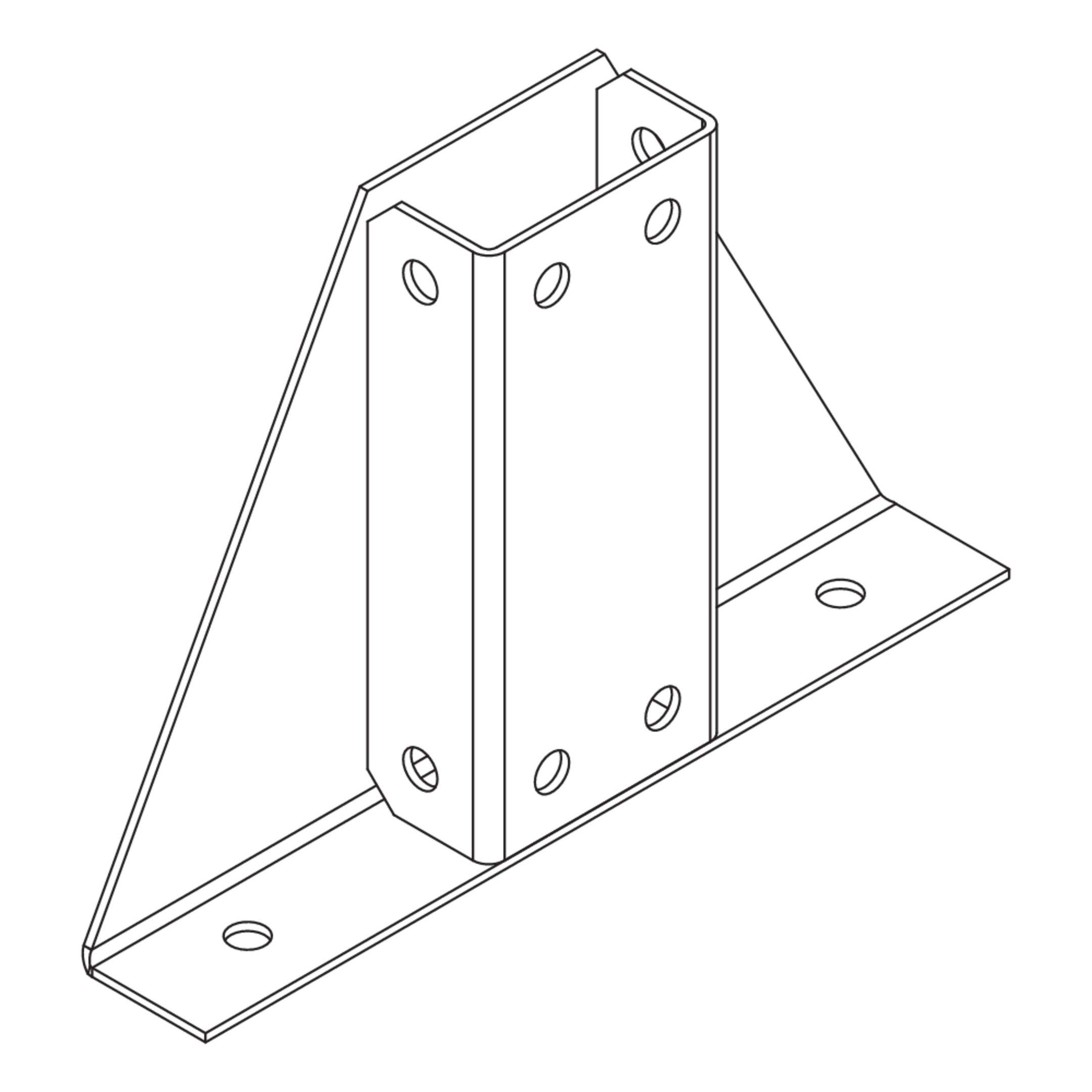

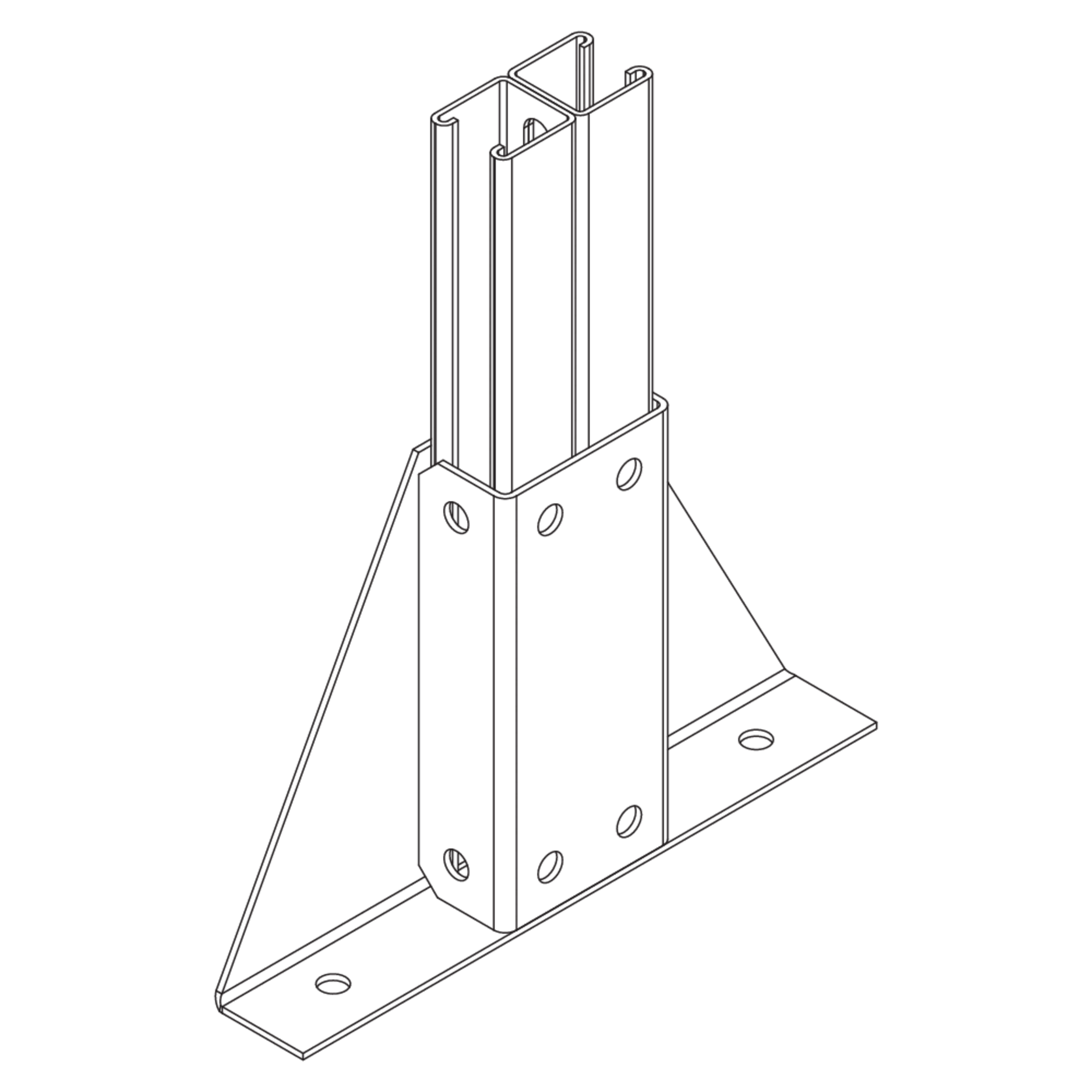

The BGF 82 head plate is used to attach mounting channels (KHA 82). It is screwed to these and dowelled to the ceiling or floor. It is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.
H
height
B
width
L
length
G
Weight per storage unit
