BGF 41

Screw-on head plate, KHA 41

The top plate BGF 41 is used to attach mounting channels (A 41, KHA 41, KHAL 41).It is screwed to these and dowelled to the ceiling or floor. It is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

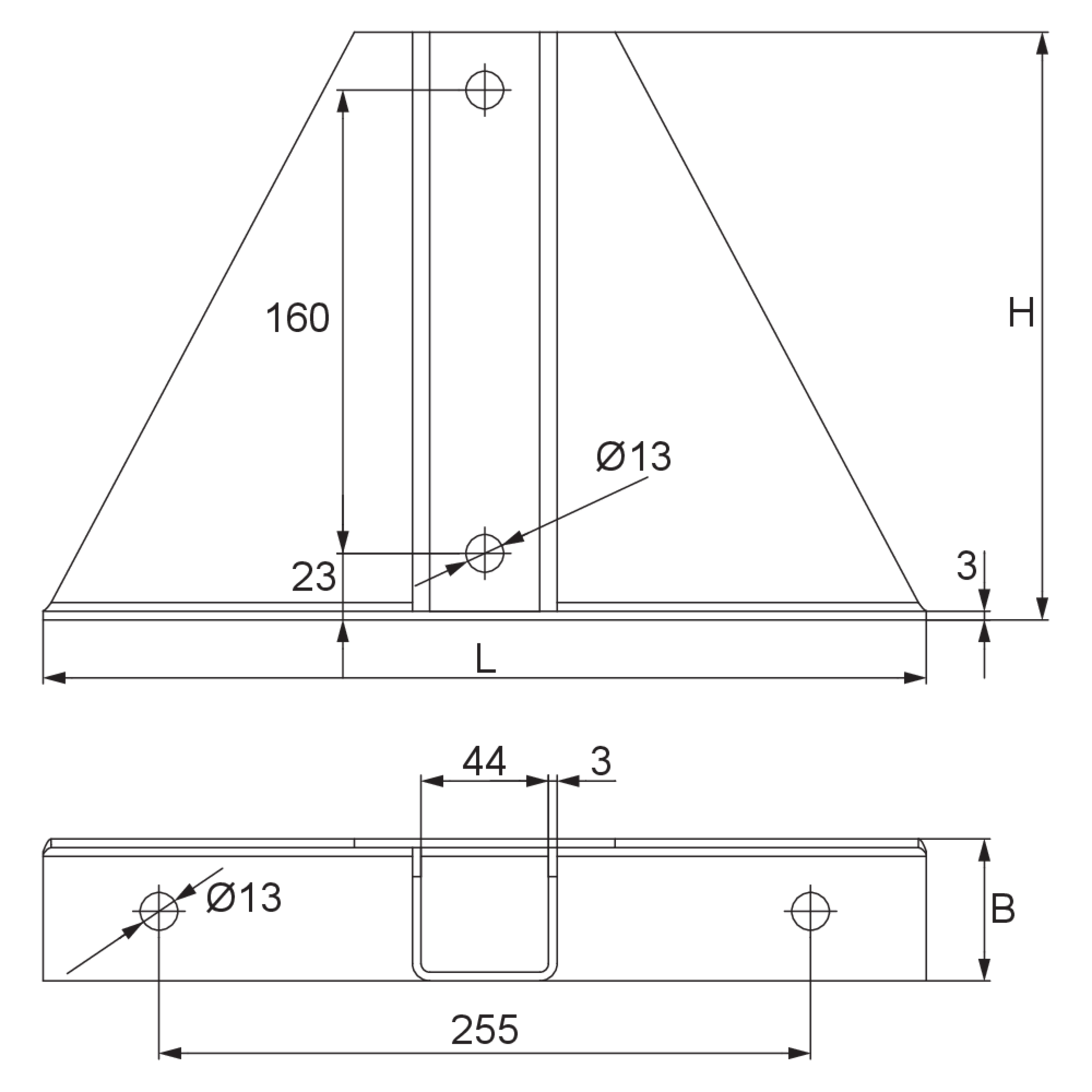

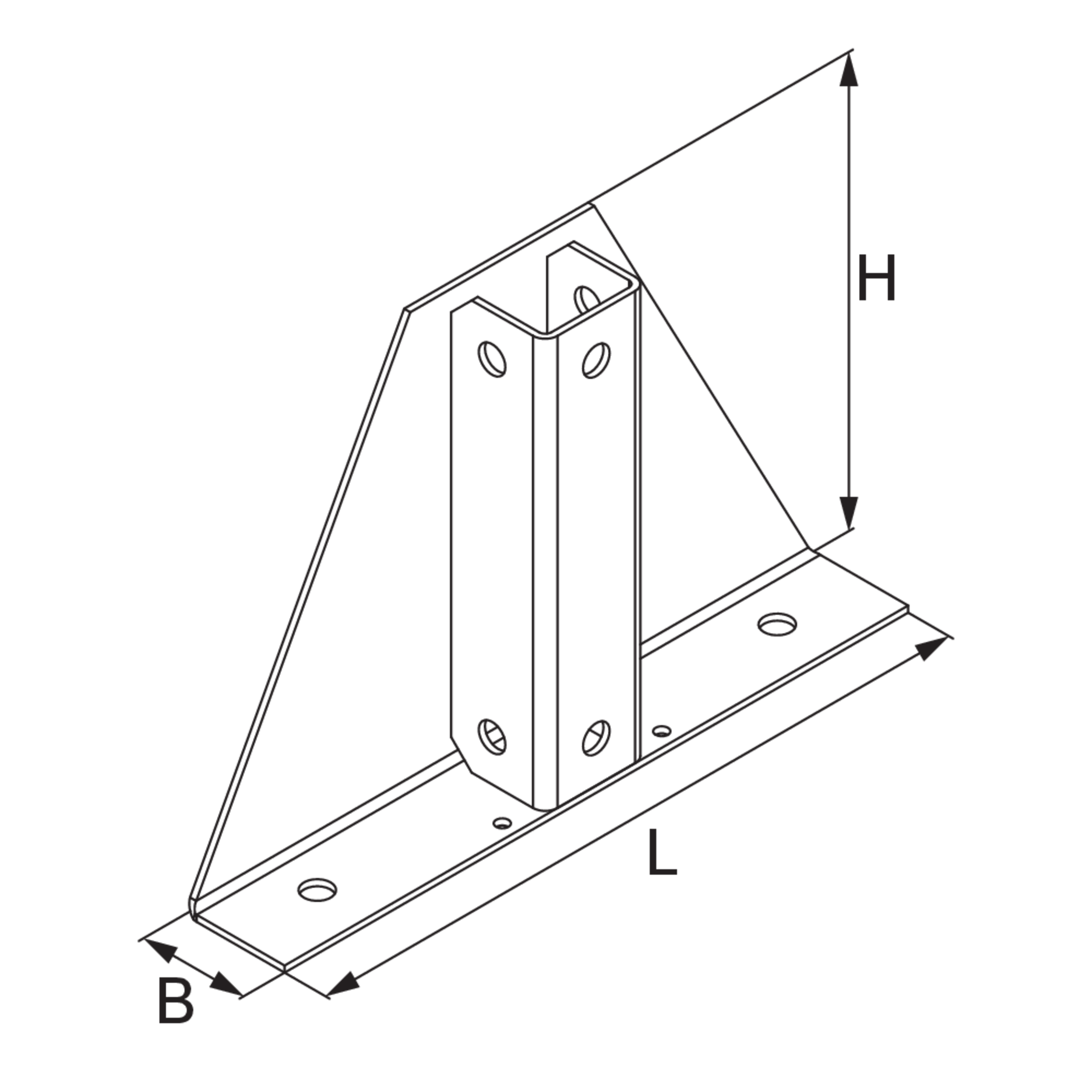

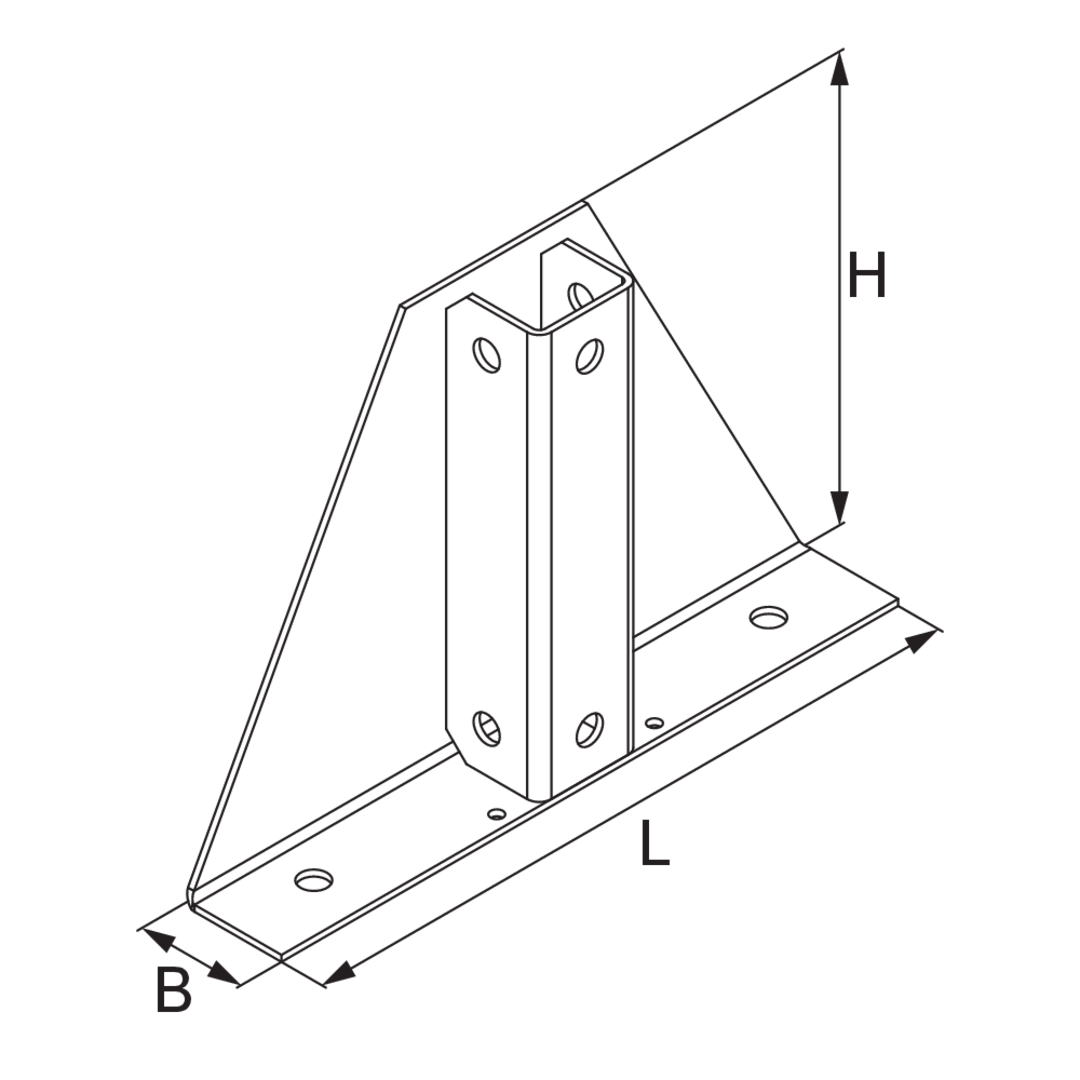

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • BGF 41F
    Kopfplatte
    Höhe
    203 mm
    Breite
    49 mm
    Länge
    305 mm
    Gewicht je Lagermengeneinheit
    2.210 kg

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en
  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en
  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en
