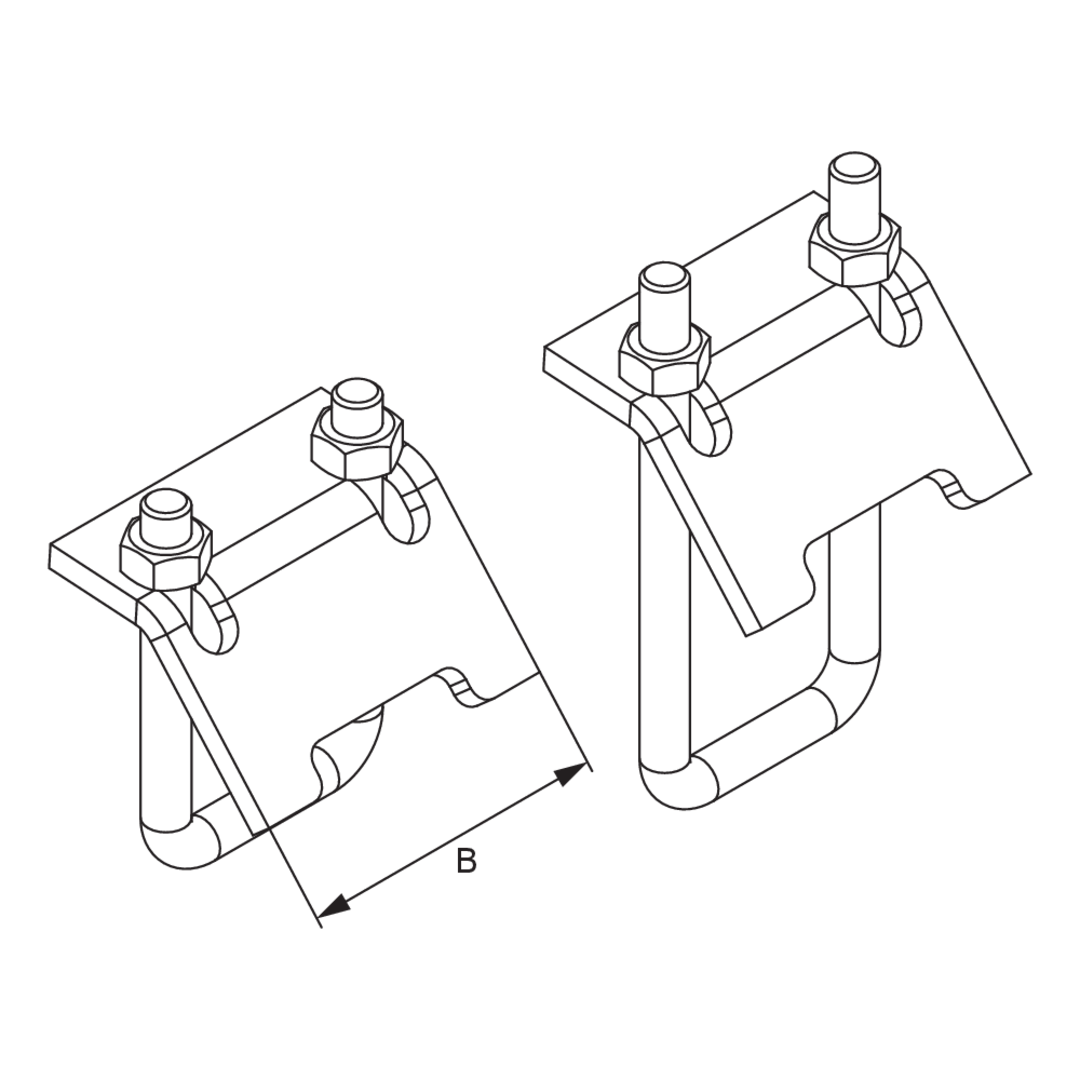

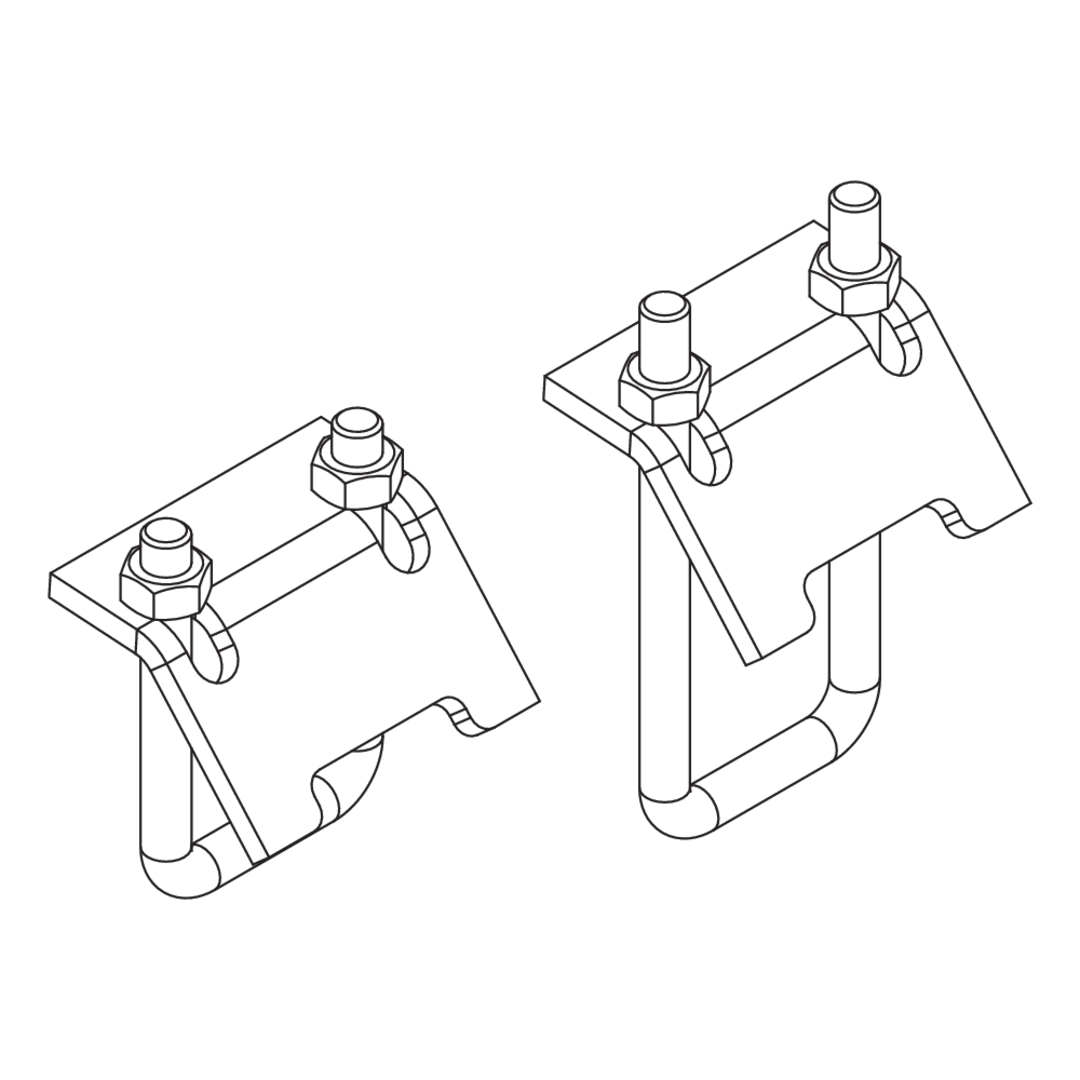

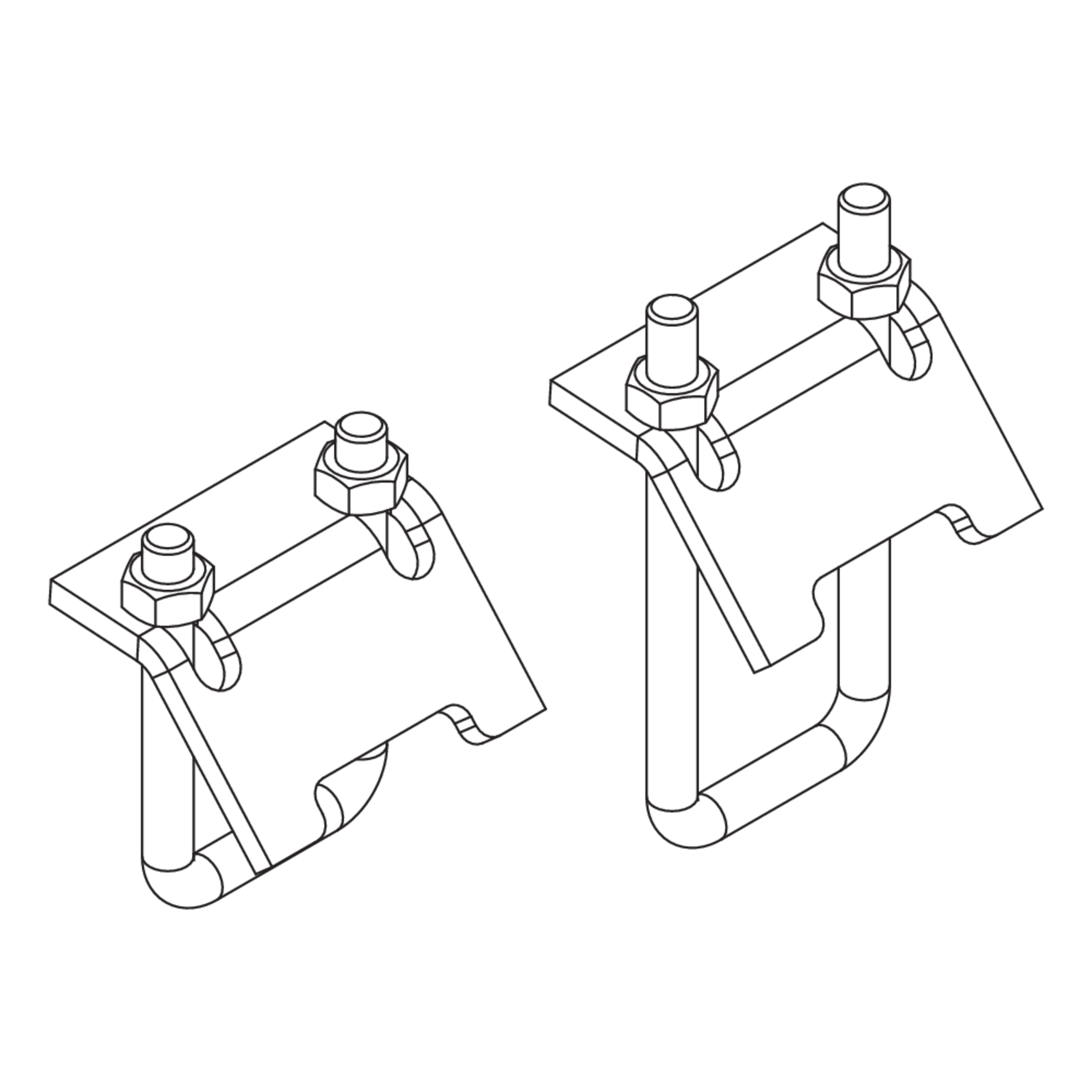

AVSKGB

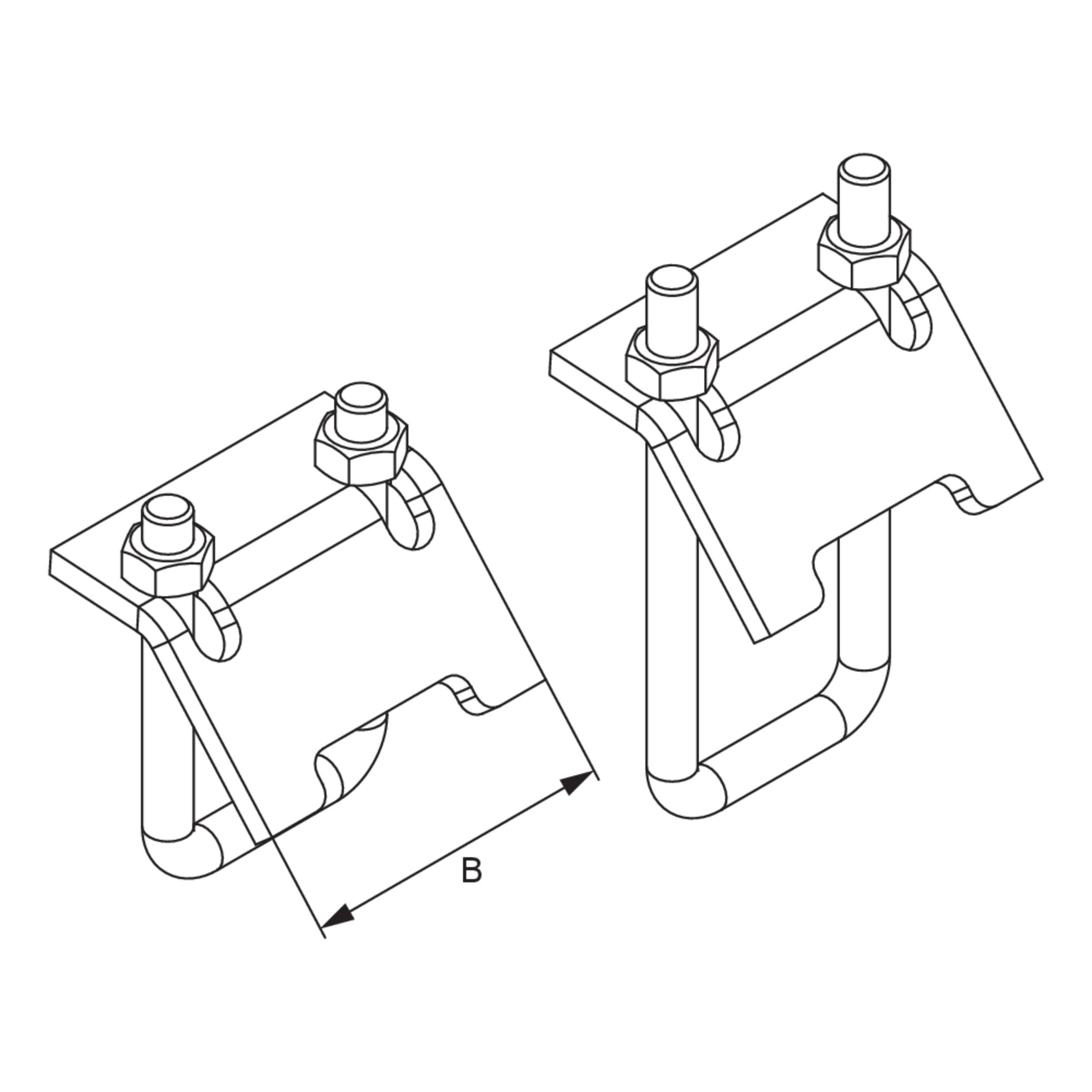

Beam clamp for mounting channel

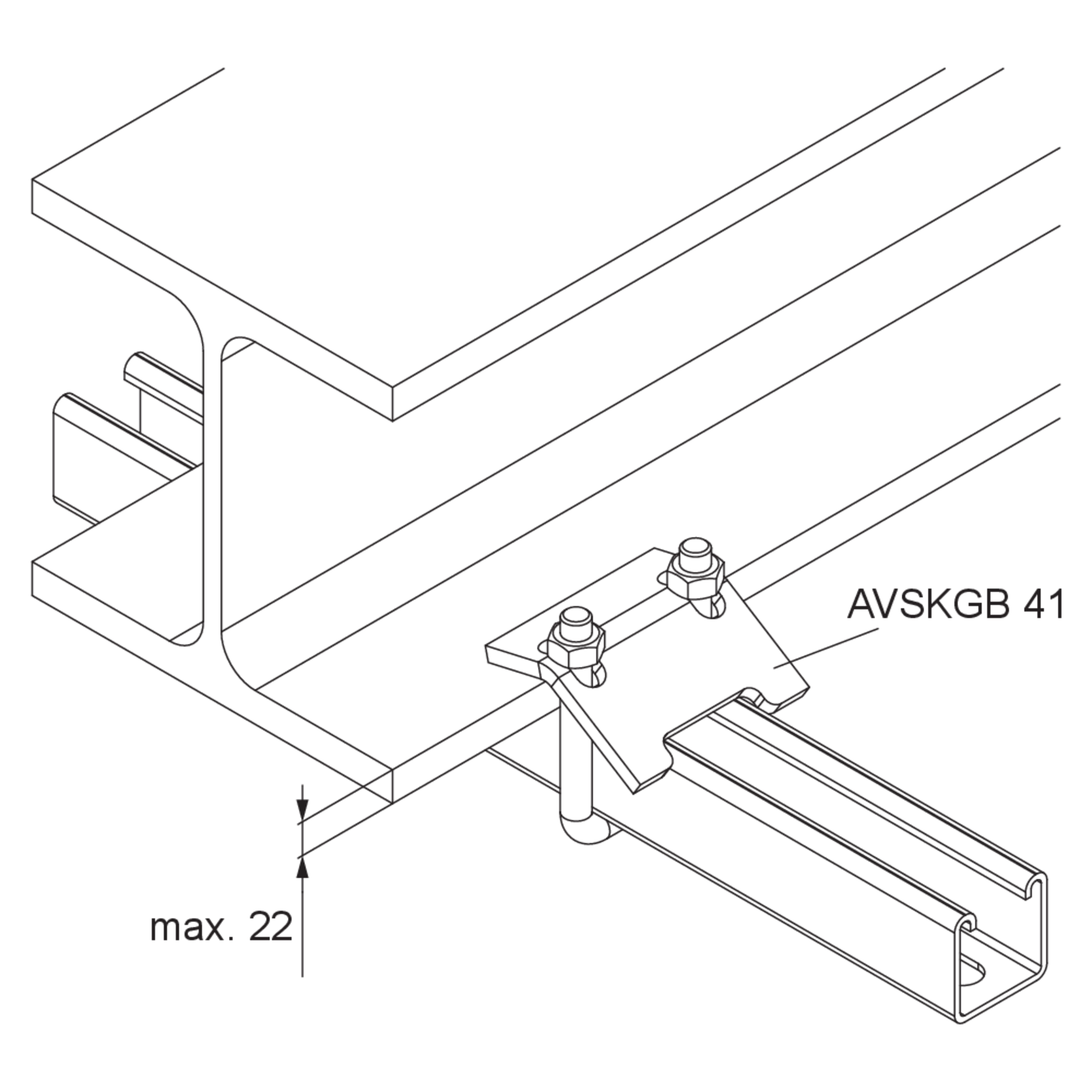

The AVSKGB 41 beam clamp is used to attach mounting channels (A 41, KHA 41, KHAL 41, KHA 42) to horizontal steel beams.

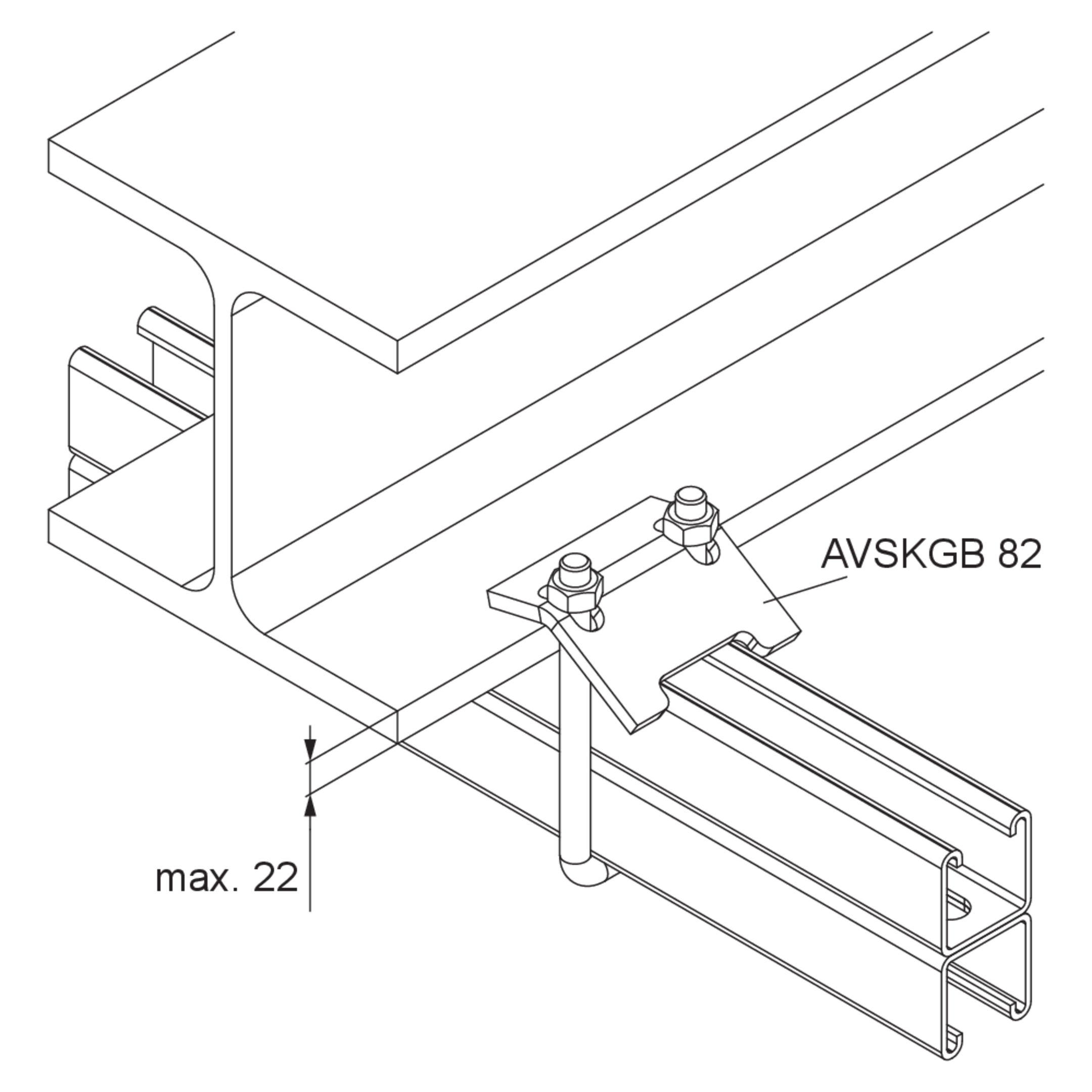

The AVSKGB 82 beam clamp is used to fasten mounting channels (KHA 82) to horizontal steel beams.

The maximum flange thickness of the steel beam to be fastened is 22 mm. It is made of hot-dip galvanised steel.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

B

Breite

L

Länge

t

Materialstärke

k

Klemmbereich

G

Gewicht je Lagermengeneinheit

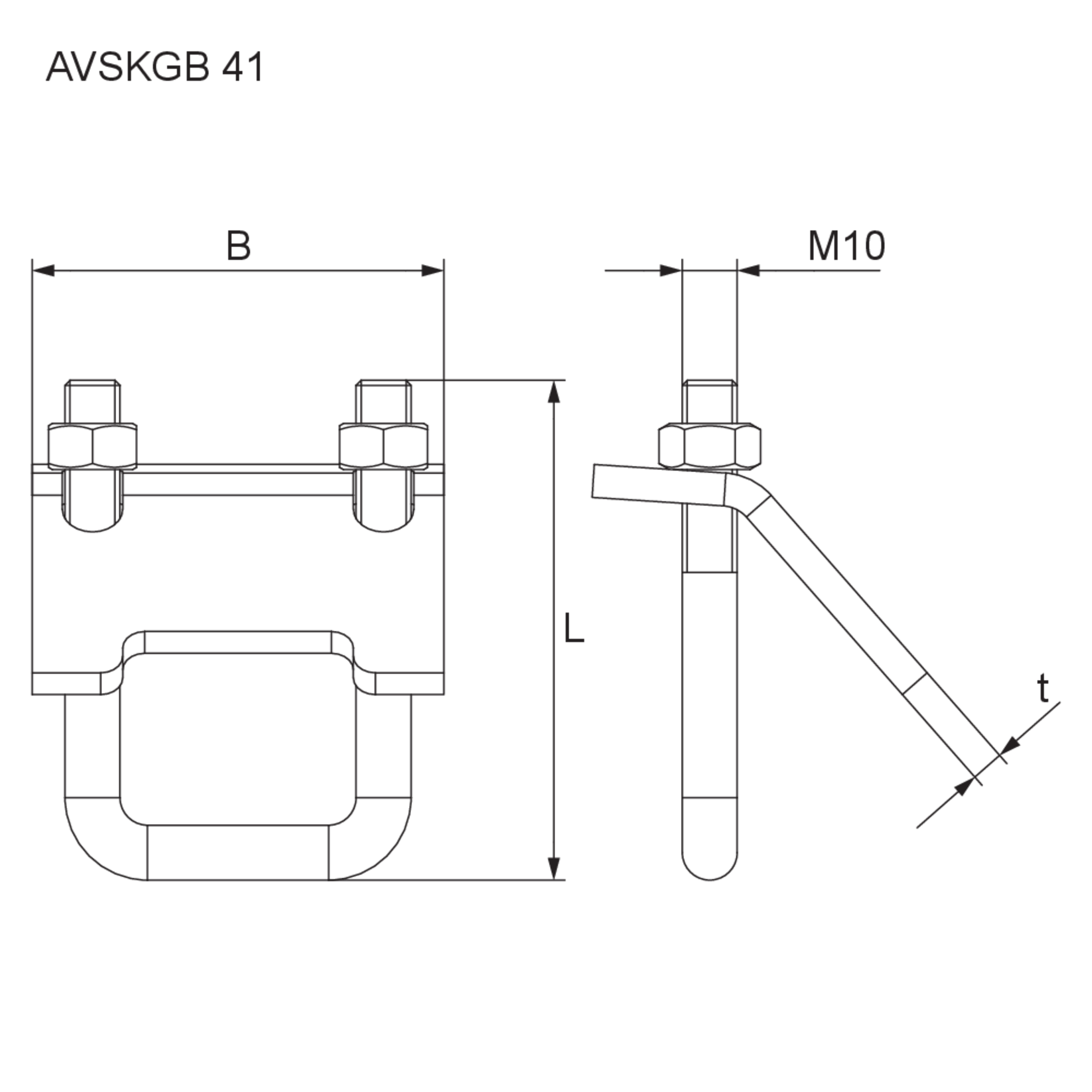

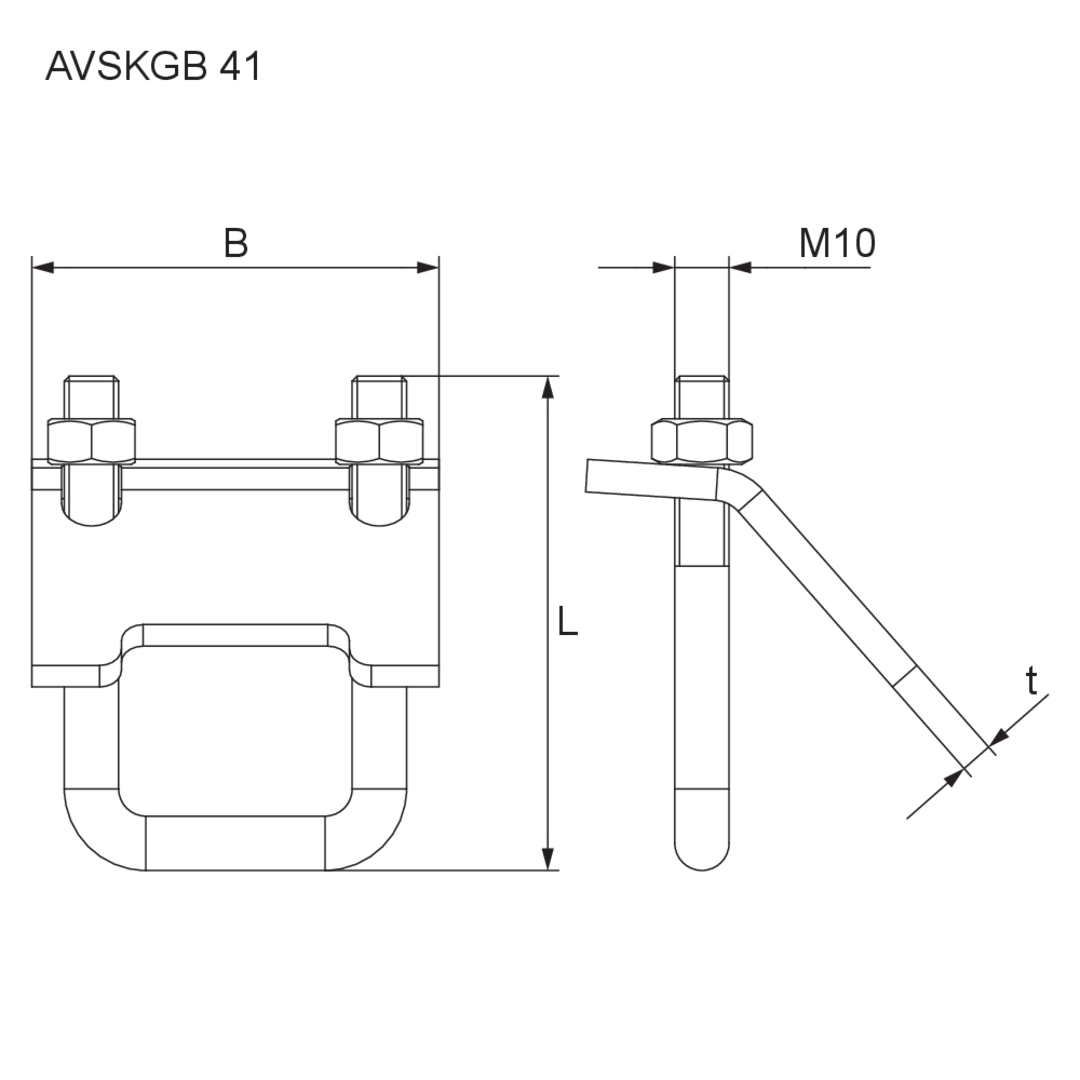

  • AVSKGB 41F
    Trägerklemme für KHA 41
    Breite
    75 mm
    Länge
    73 mm
    Materialstärke
    6 mm
    Klemmbereich
    22 mm
    Gewicht je Lagermengeneinheit
    0.360 kg
    Included accessories
    More information

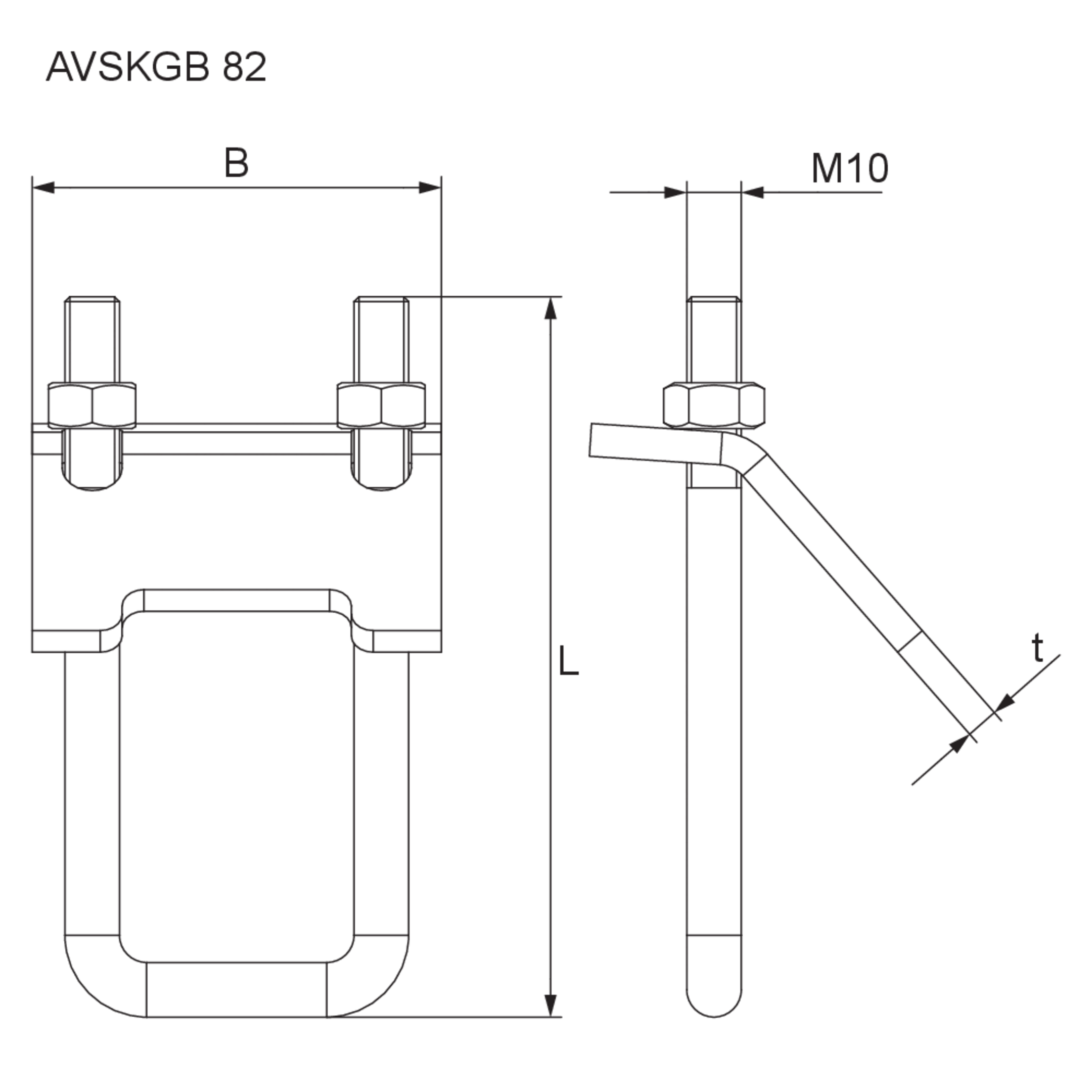

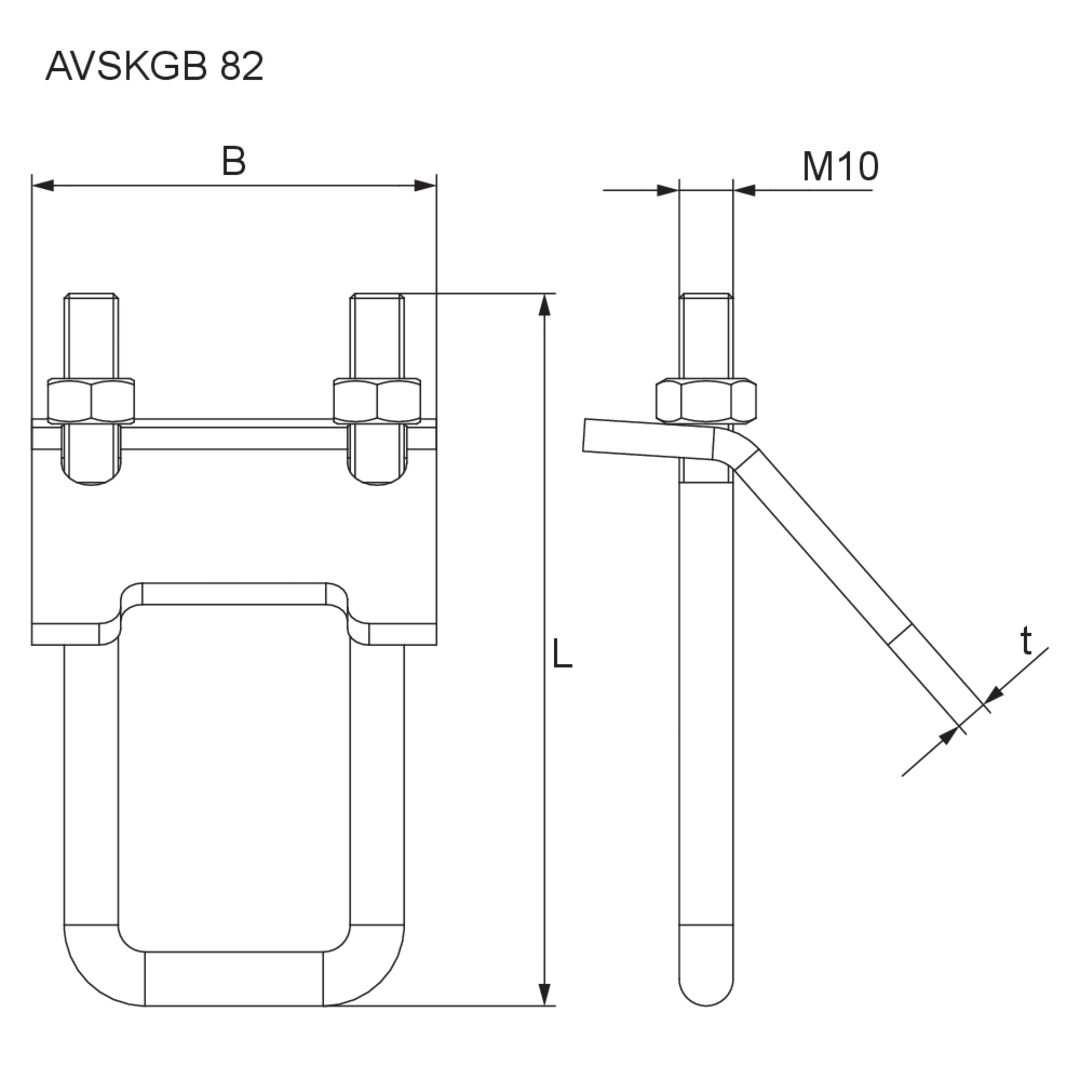

  • AVSKGB 82F
    Profilklemme
    Breite
    75 mm
    Länge
    132 mm
    Materialstärke
    6 mm
    Klemmbereich
    22 mm
    Gewicht je Lagermengeneinheit
    0.583 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en
