AVSK

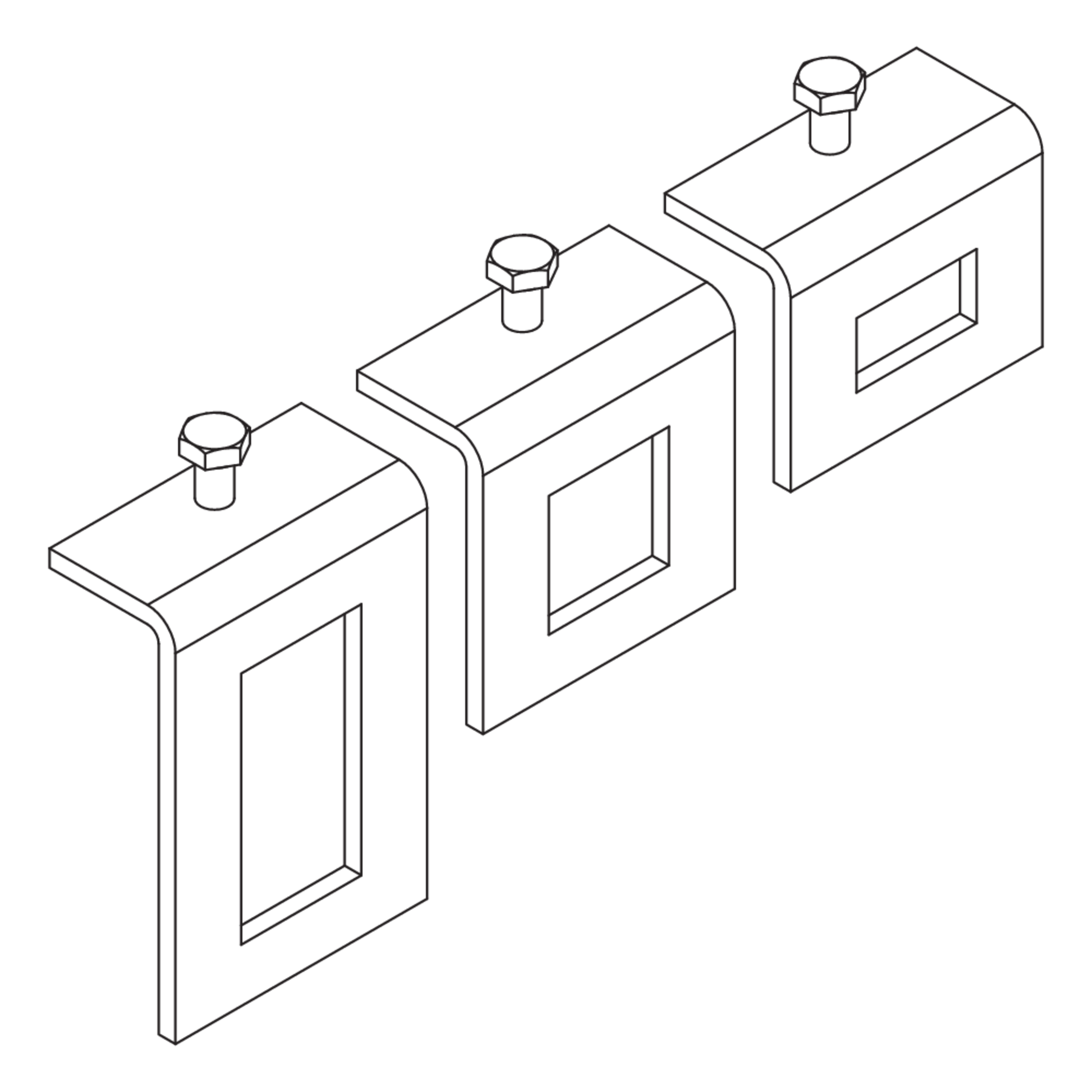

Beam clamp for mounting channels

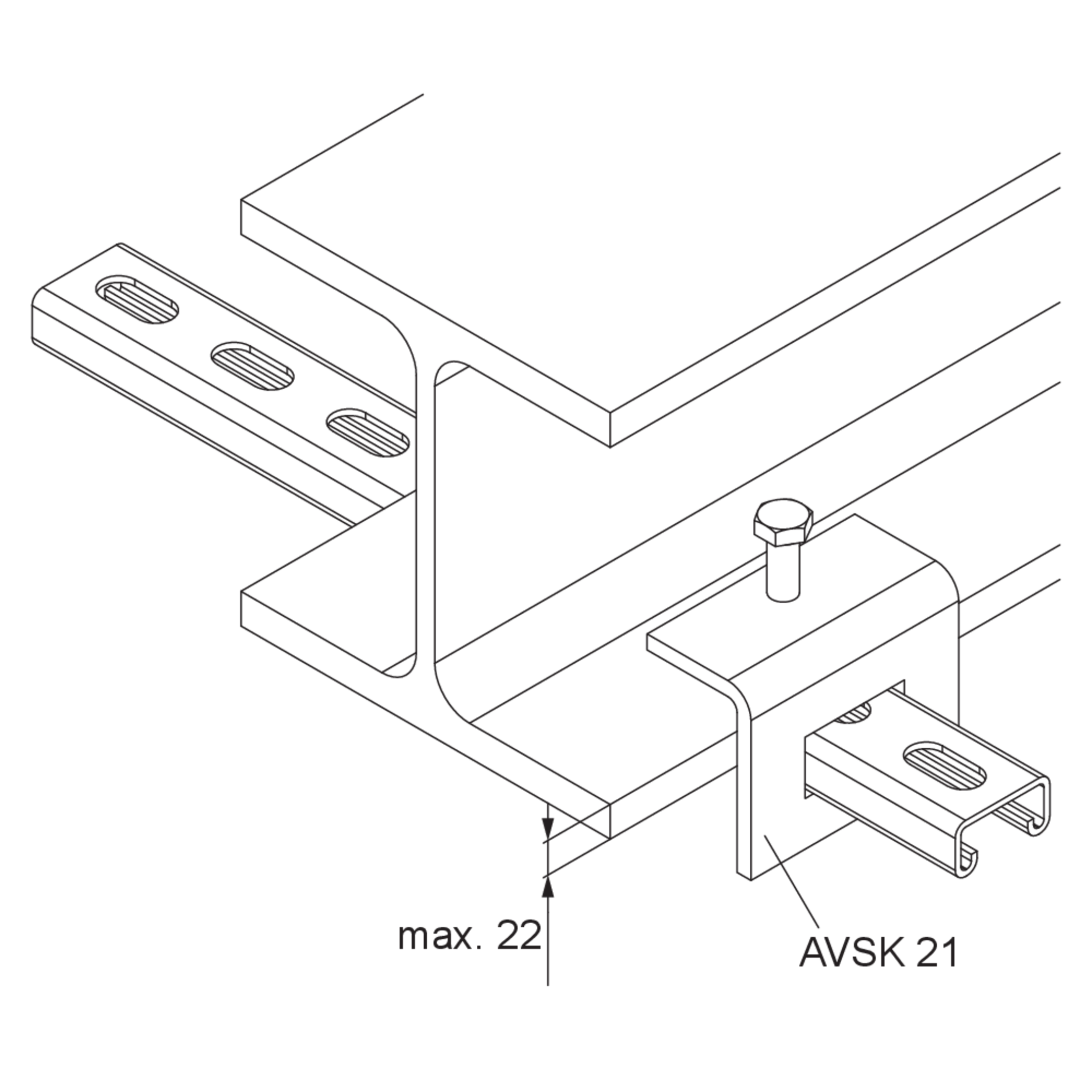

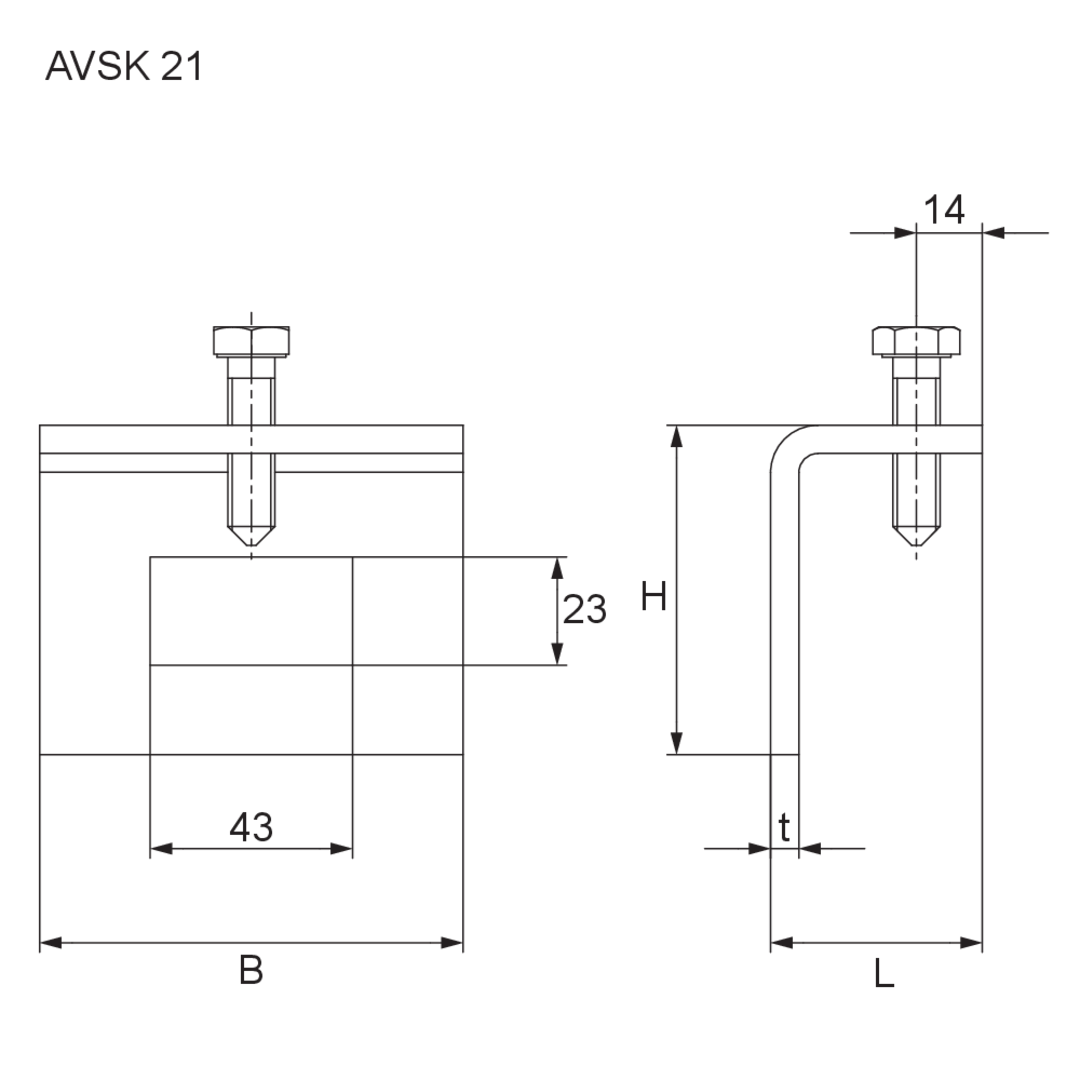

The AVSK 21 beam clamp is used to attach flat mounting channels (A 7, A 8, KHA 7, KHA 8, KHA 21) with a profile height of 22 mm to horizontal steel beams.

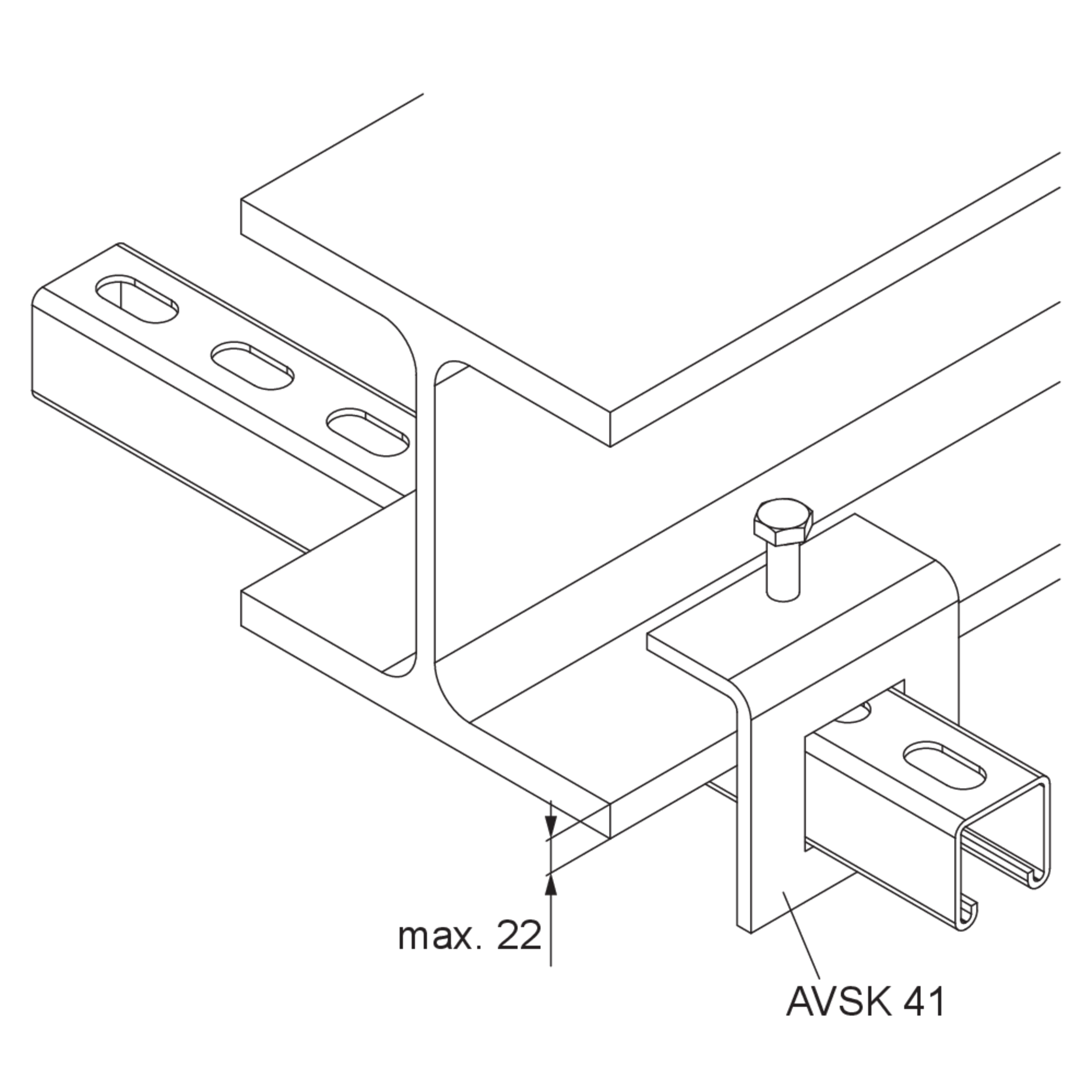

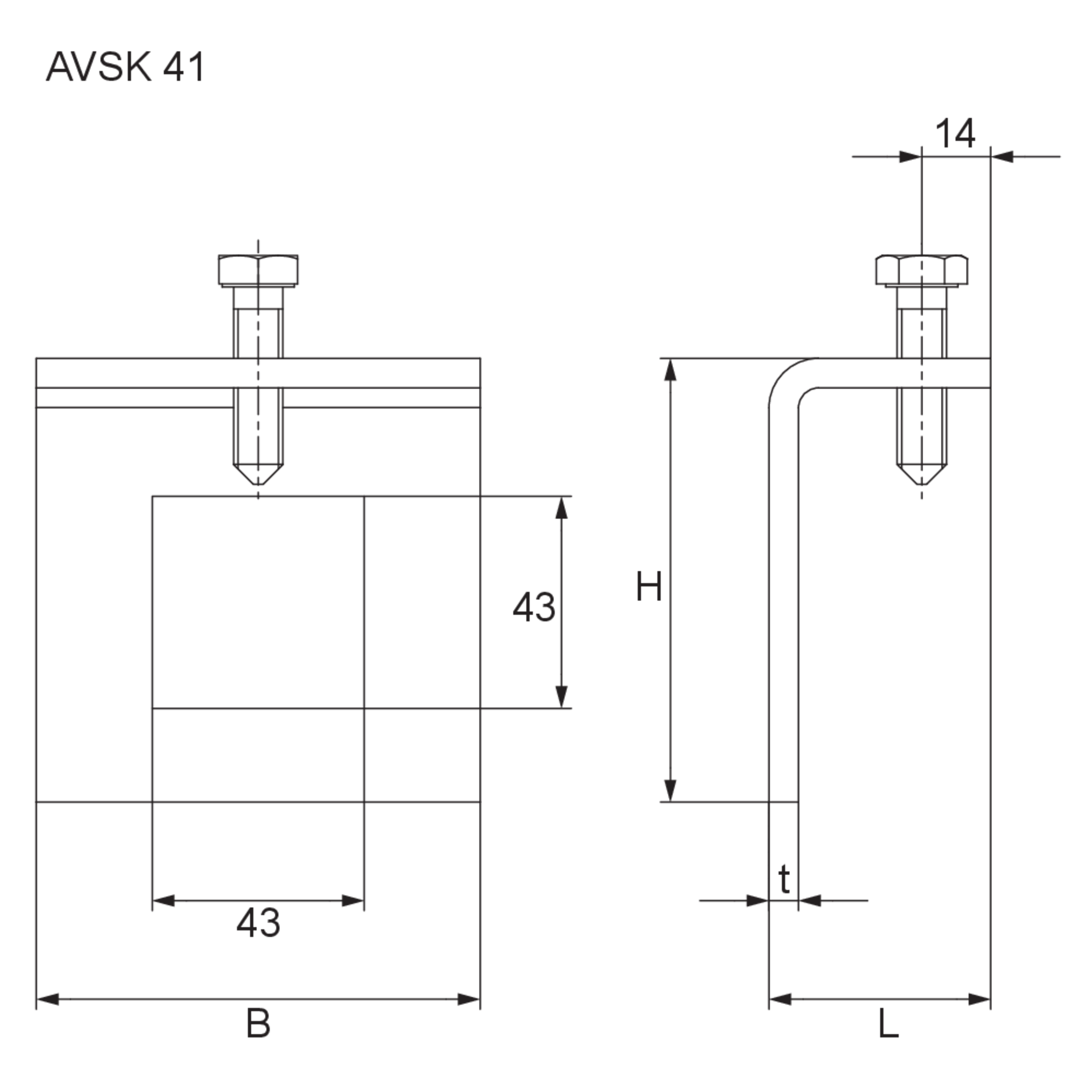

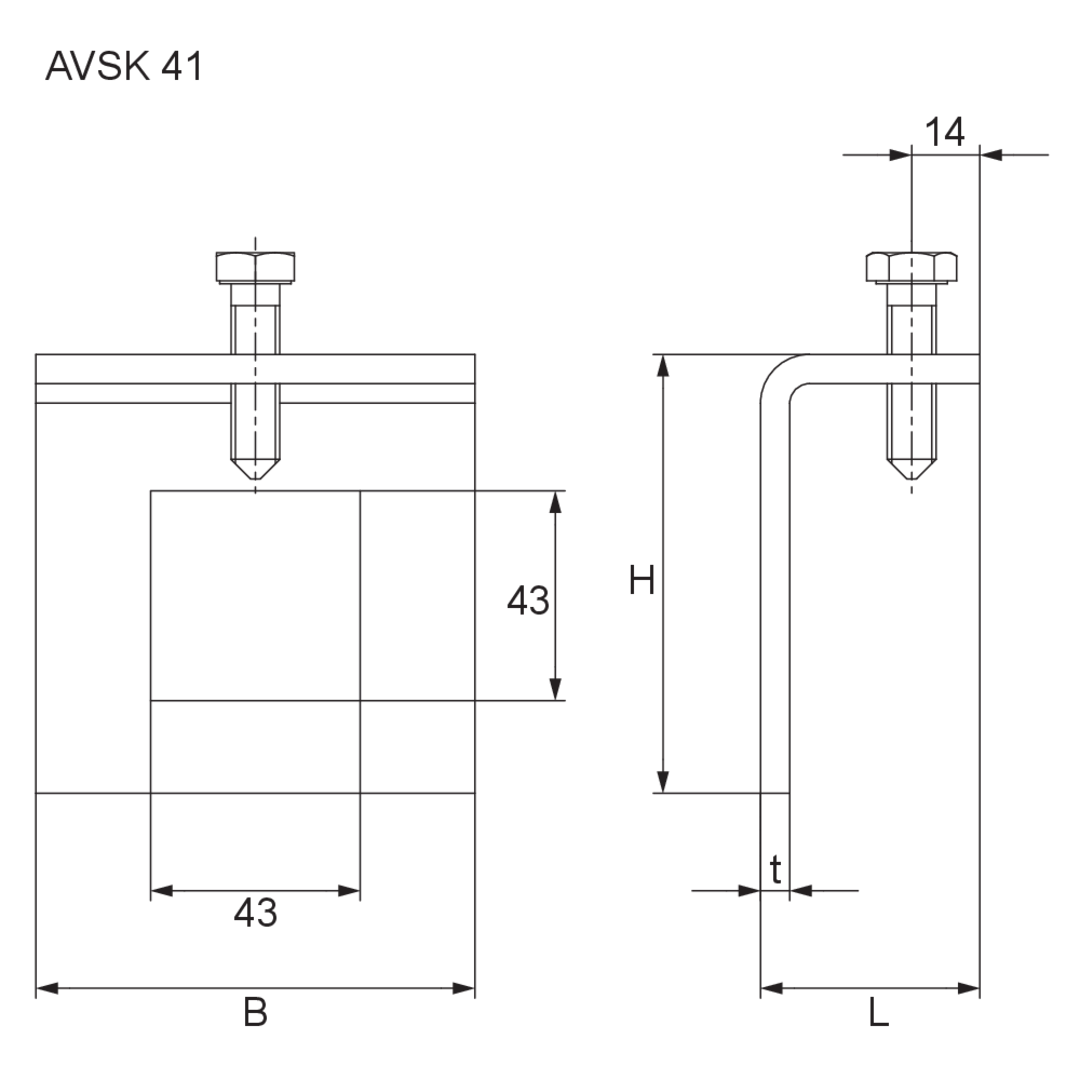

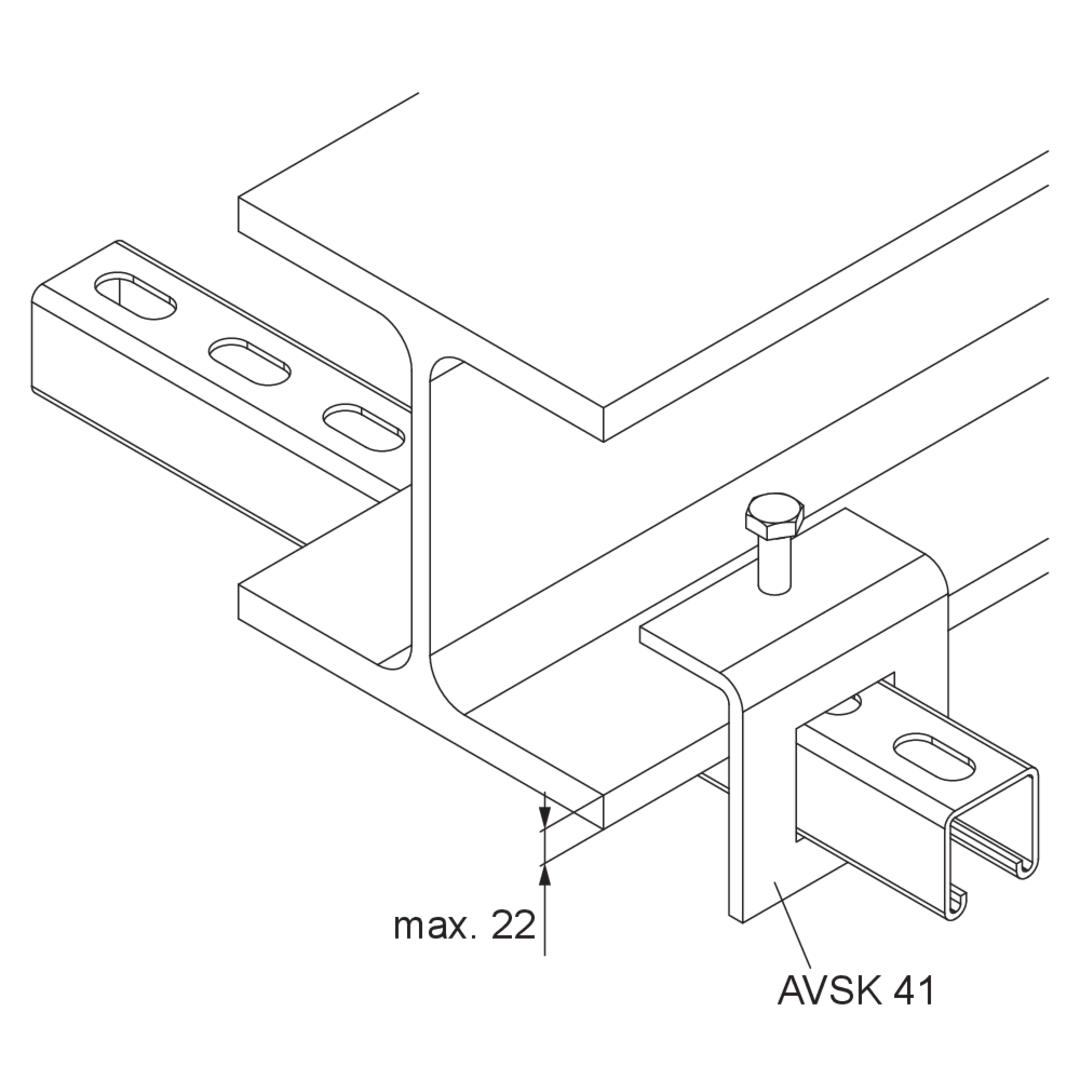

The AVSK 41 beam clamp is used to attach mounting channels (A 41, KHA 41, KHAL 41, KHA 42) with a profile height of 42 mm to horizontal steel beams.

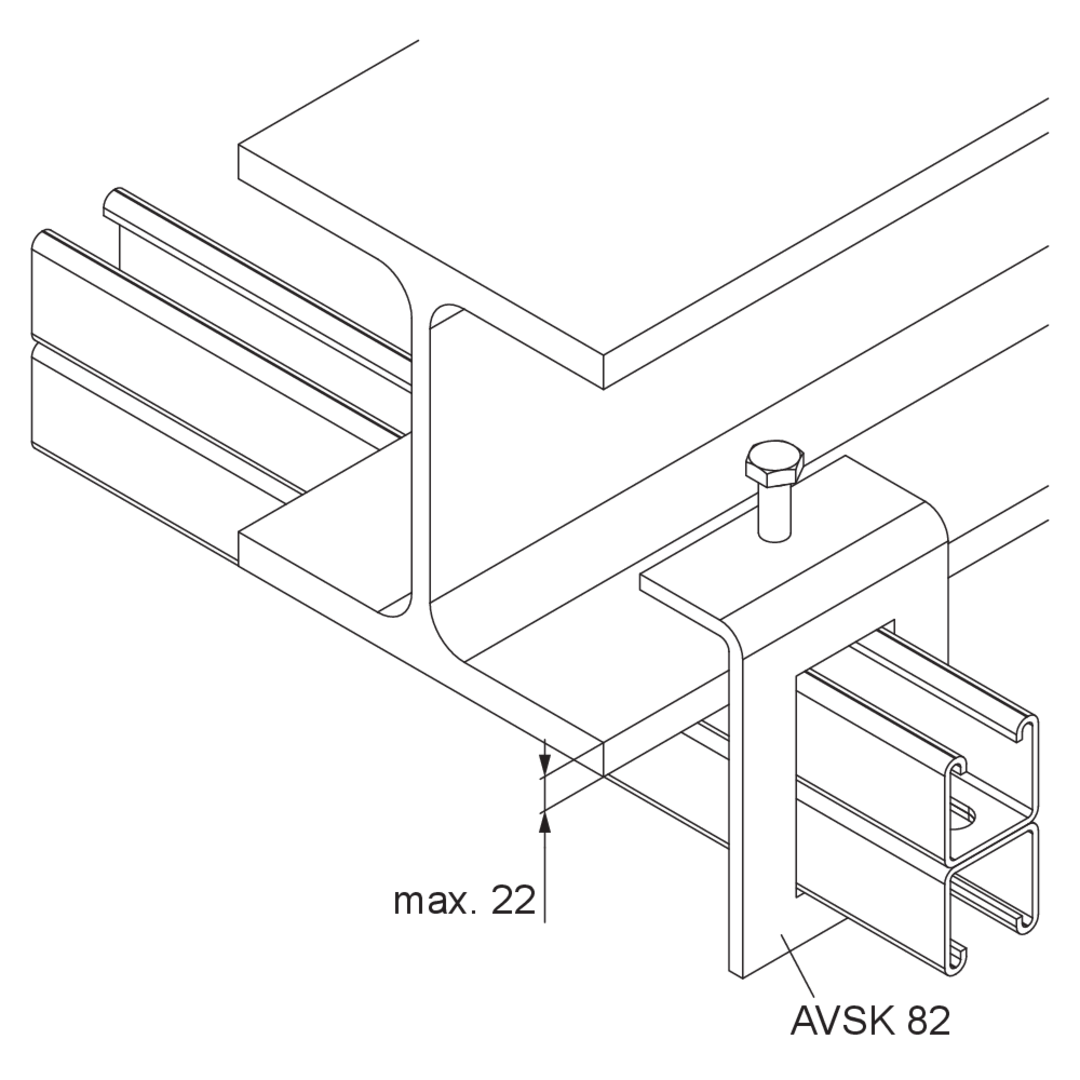

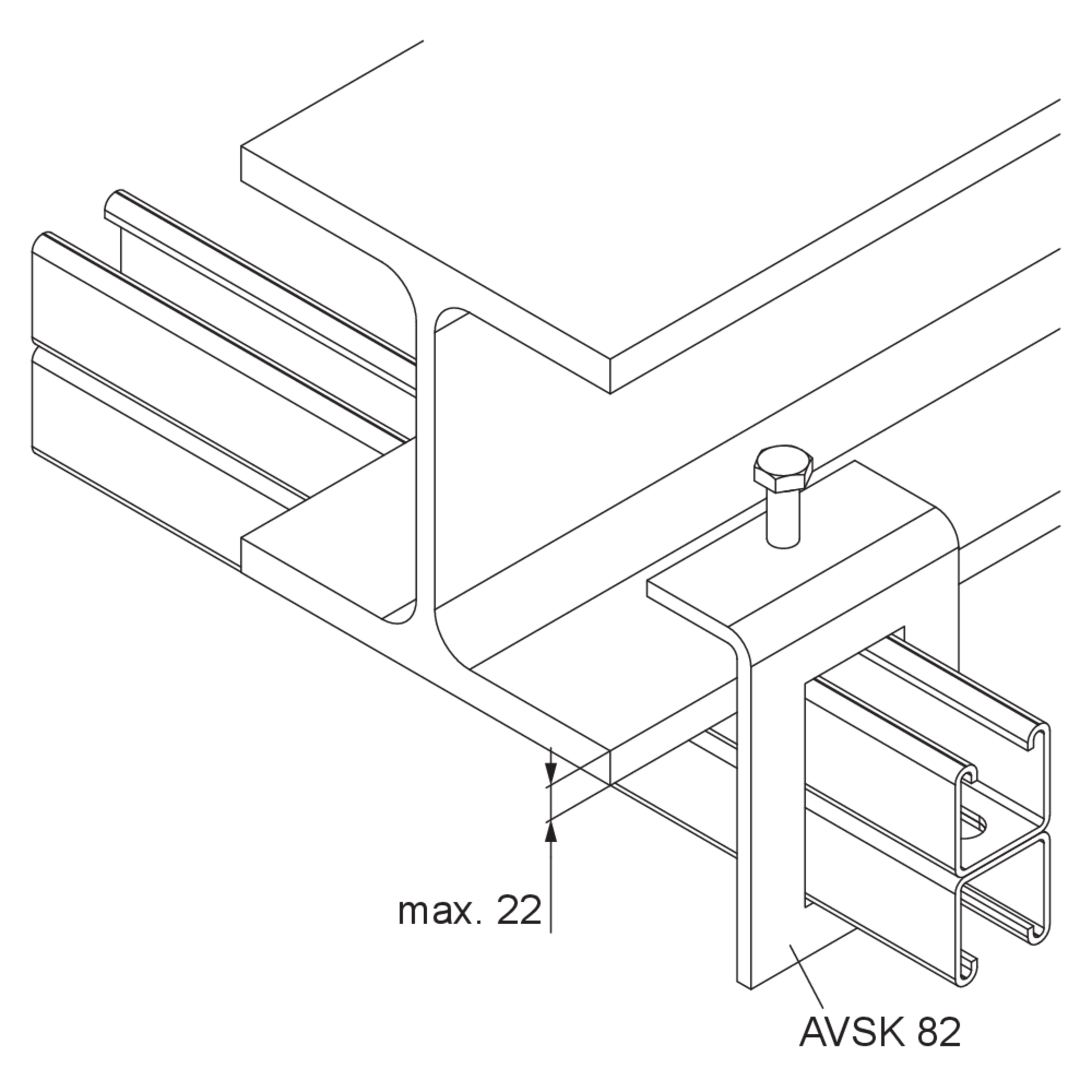

The AVSK 82 beam clamp is used to fasten double mounting channels (KHA 82) with a profile height of 82 mm to horizontal steel beams.

The maximum flange thickness of the steel beam to be fastened is 22 mm. The beam clamp is made of hot-dip galvanised steel. The screw is included in the scope of delivery.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

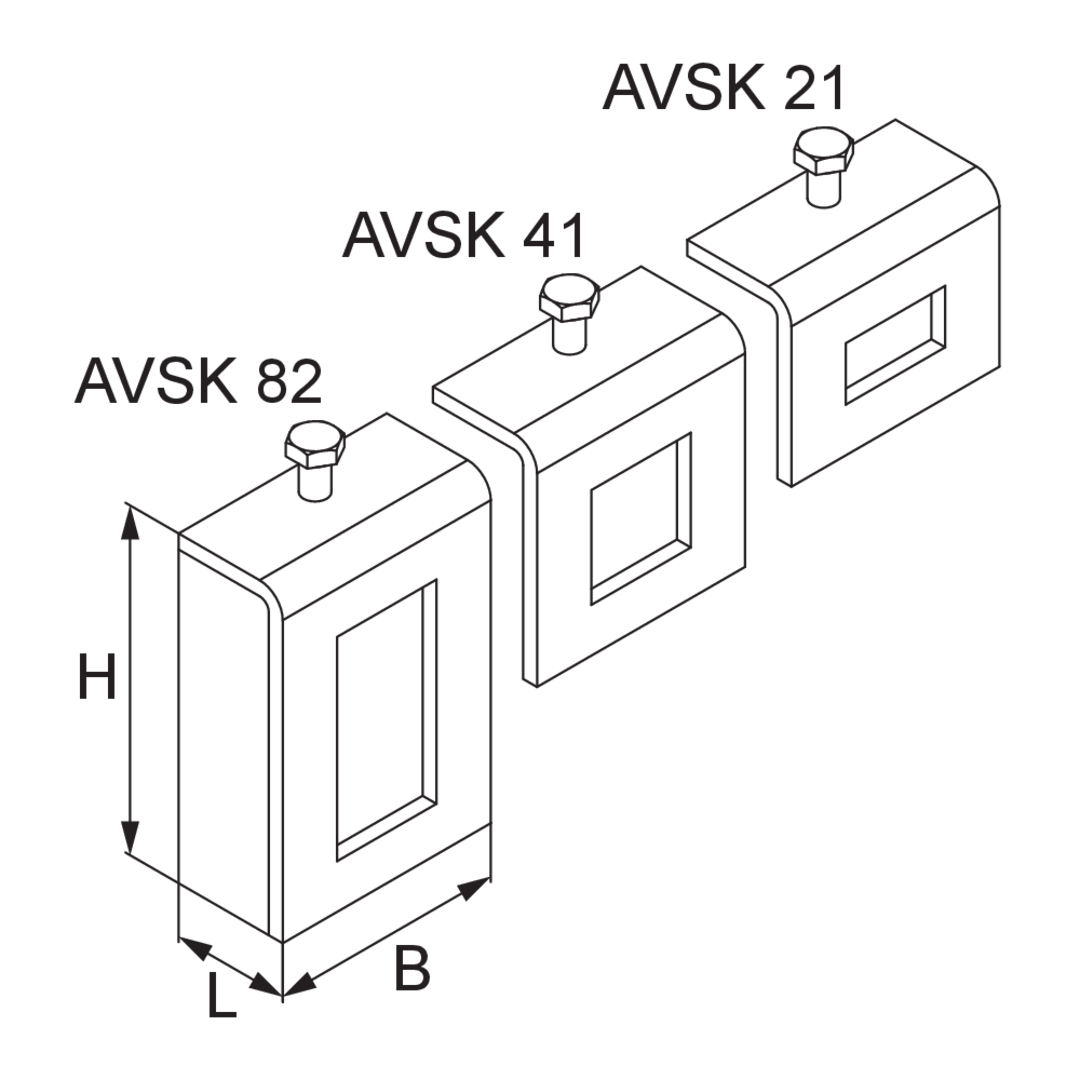

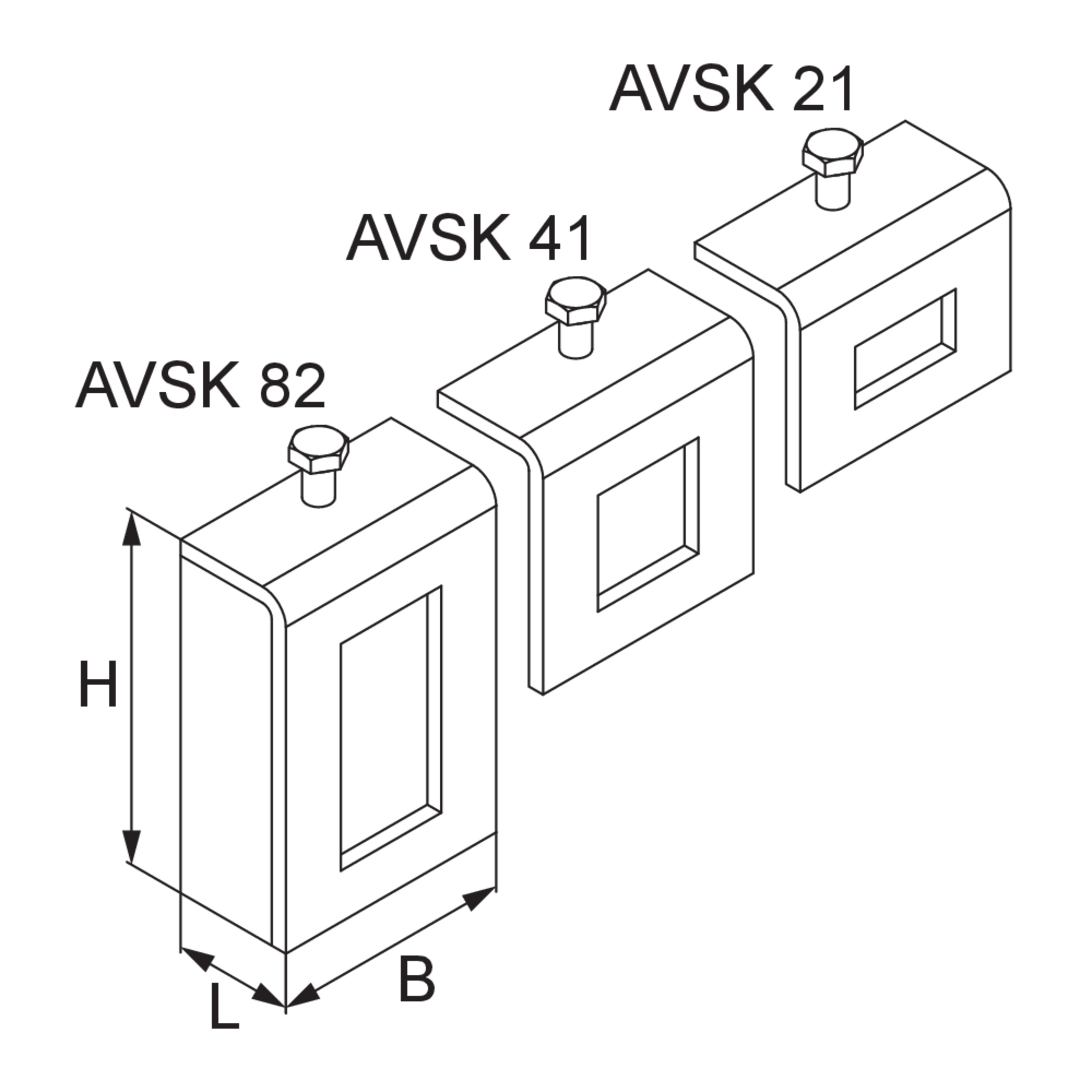

Article

H

height

B

width

L

length

t

material thickness

k

clamping range

G

Weight per storage unit

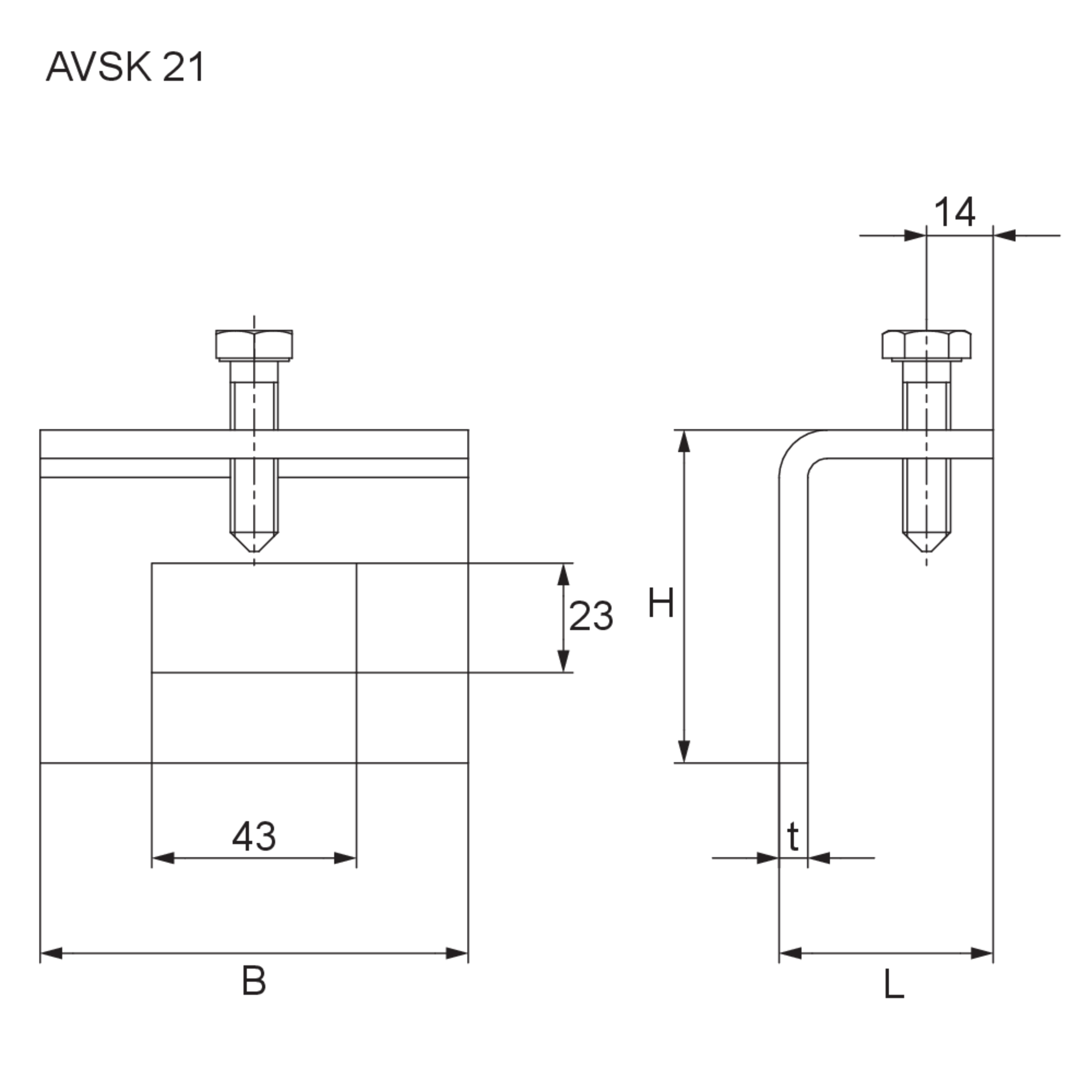

  • AVSK 21F
    Profile clamp
    height
    70 mm
    width
    90 mm
    length
    45 mm
    material thickness
    6 mm
    clamping range
    22 mm
    Weight per storage unit
    0.461 kg
    Included accessories
    More information
  • AVSK 41F
    Profile clamp
    height
    90 mm
    width
    90 mm
    length
    45 mm
    material thickness
    6 mm
    clamping range
    22 mm
    Weight per storage unit
    0.463 kg
    Included accessories
    More information

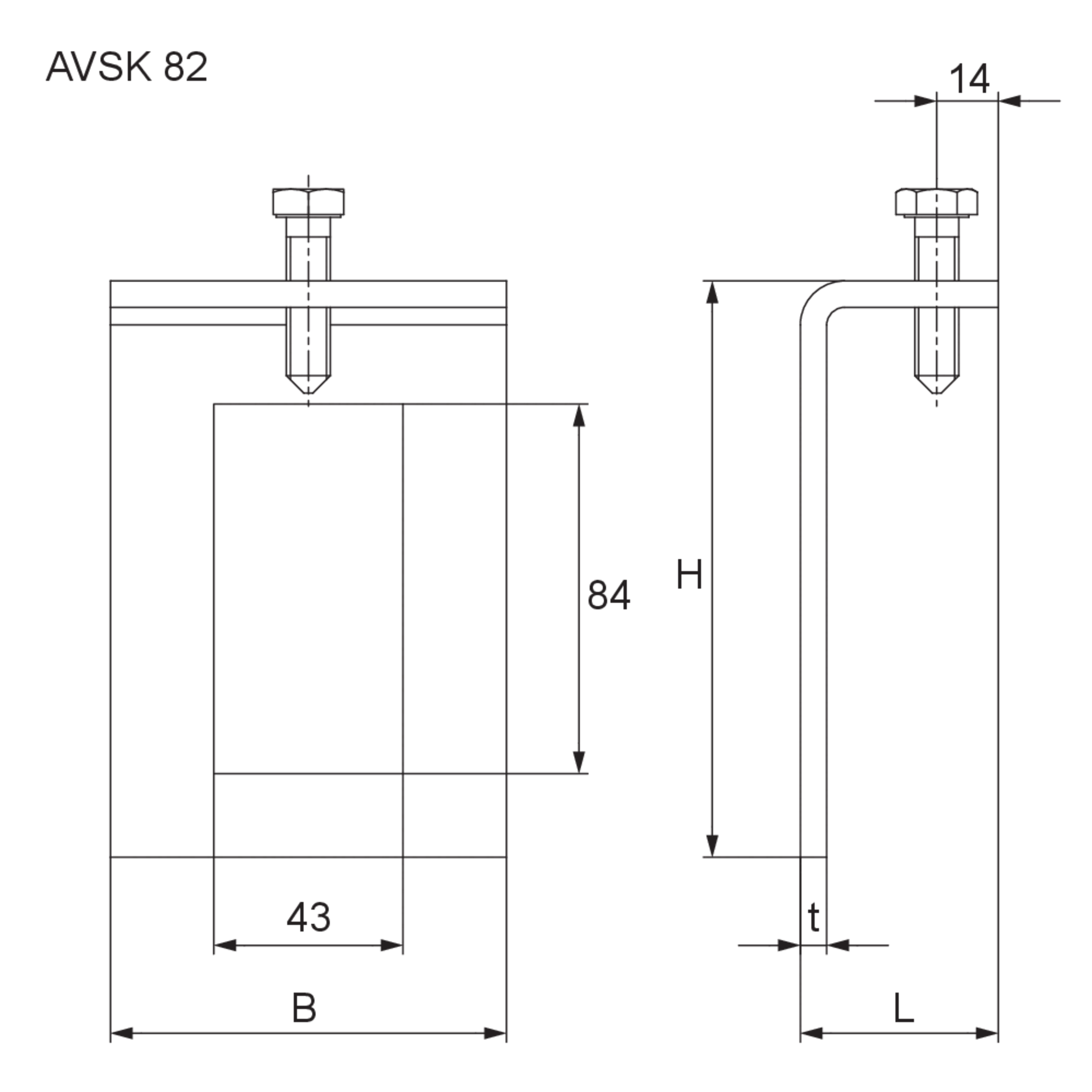

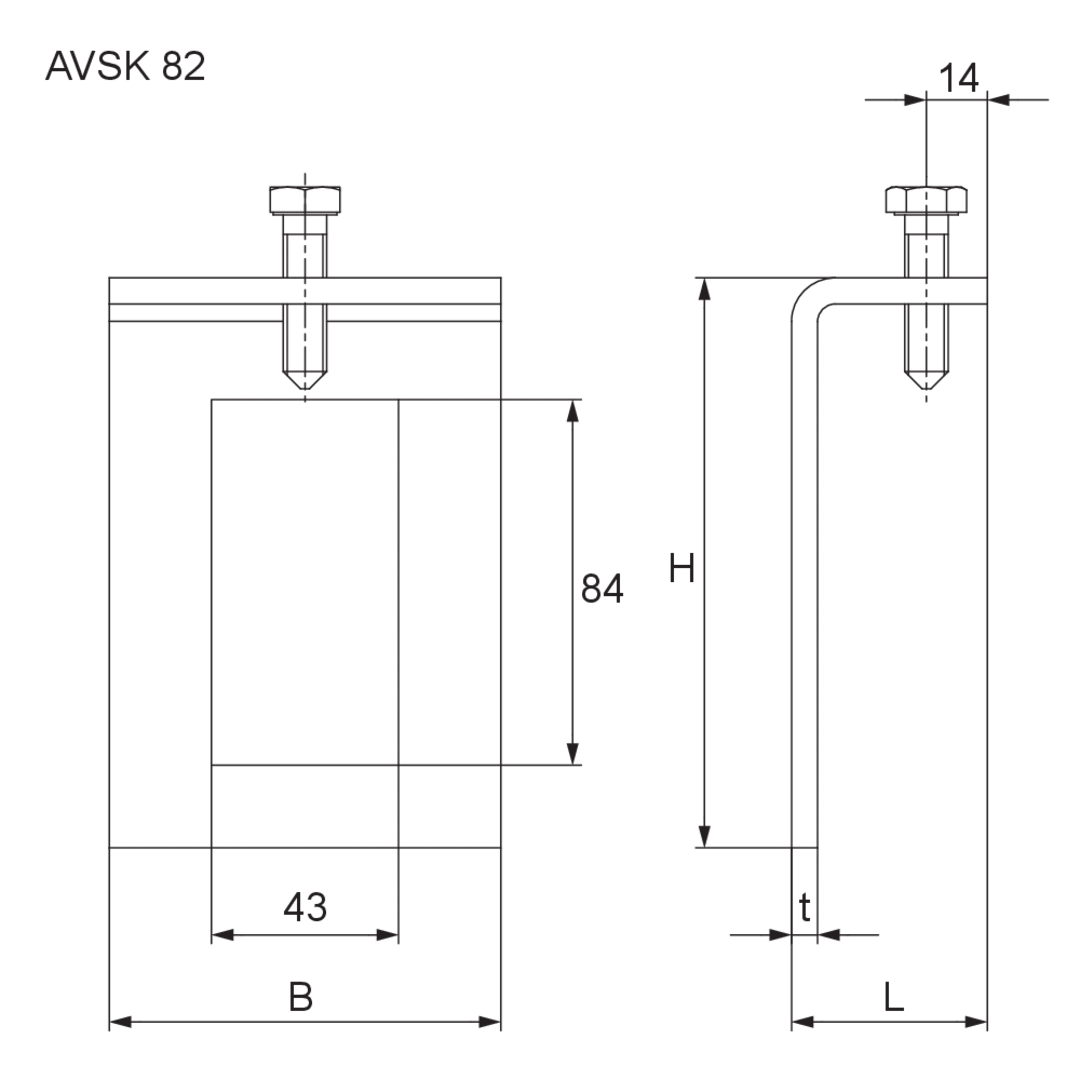

  • AVSK 82F
    Profile clamp
    height
    131 mm
    width
    90 mm
    length
    45 mm
    material thickness
    6 mm
    clamping range
    22 mm
    Weight per storage unit
    0.605 kg
    Included accessories
    More information
