AVLWBL

Channel joint connector

slide 1 of 4

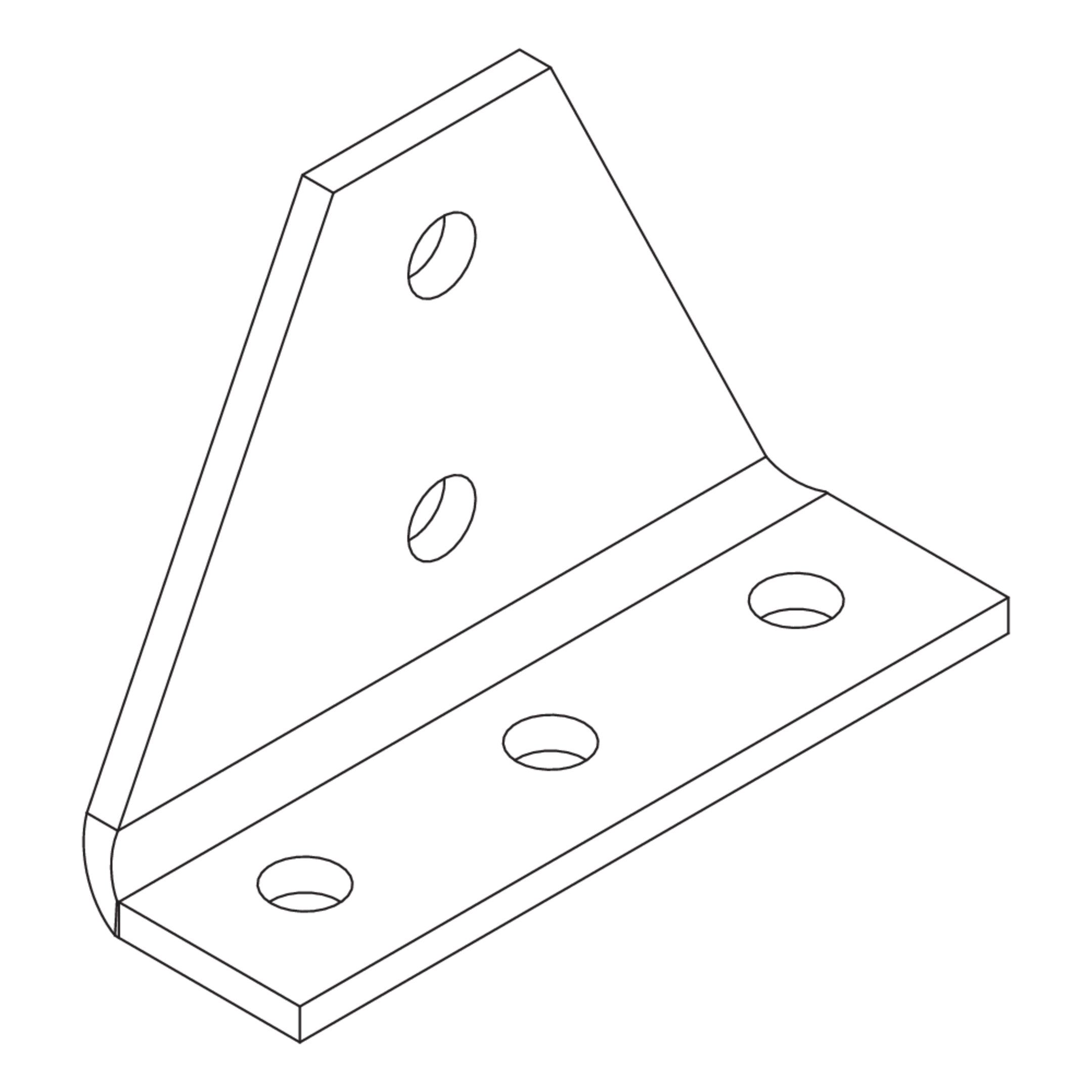

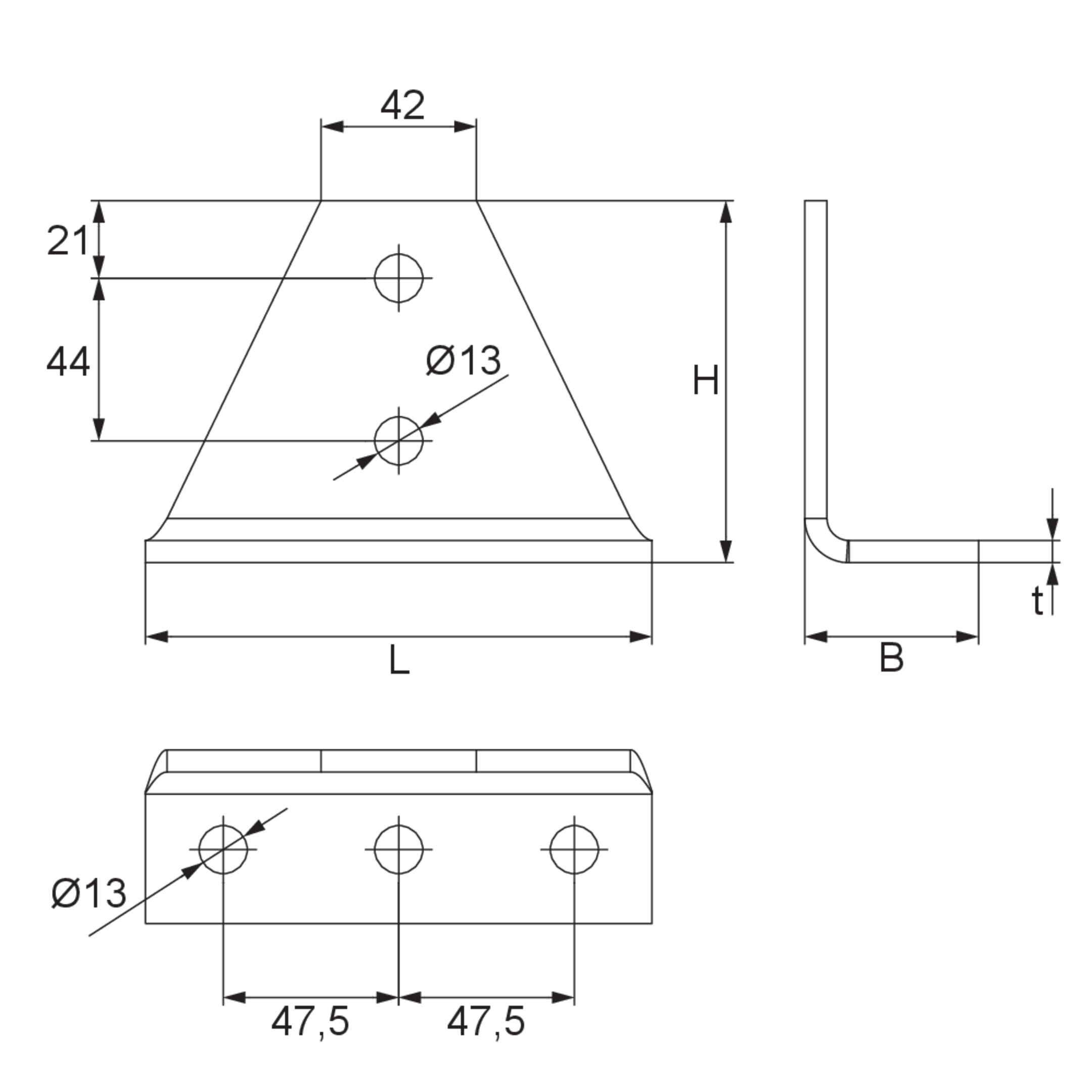

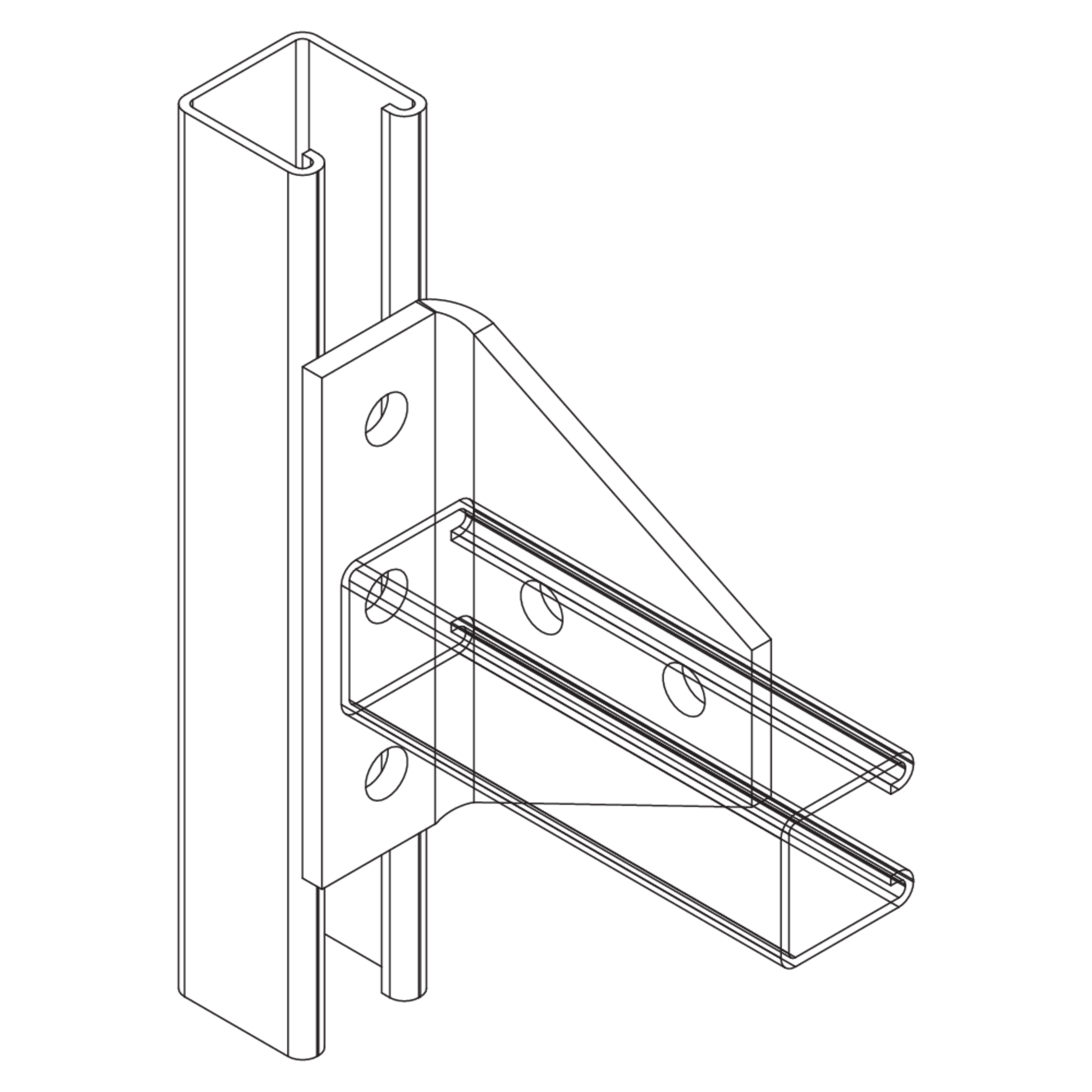

The channel joint connector AVLWBL is used to rigidly connect two mounting channels (A 41, KHA 41, KHAL 41) in a T-joint. It has Ø 13 mm fixing holes and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

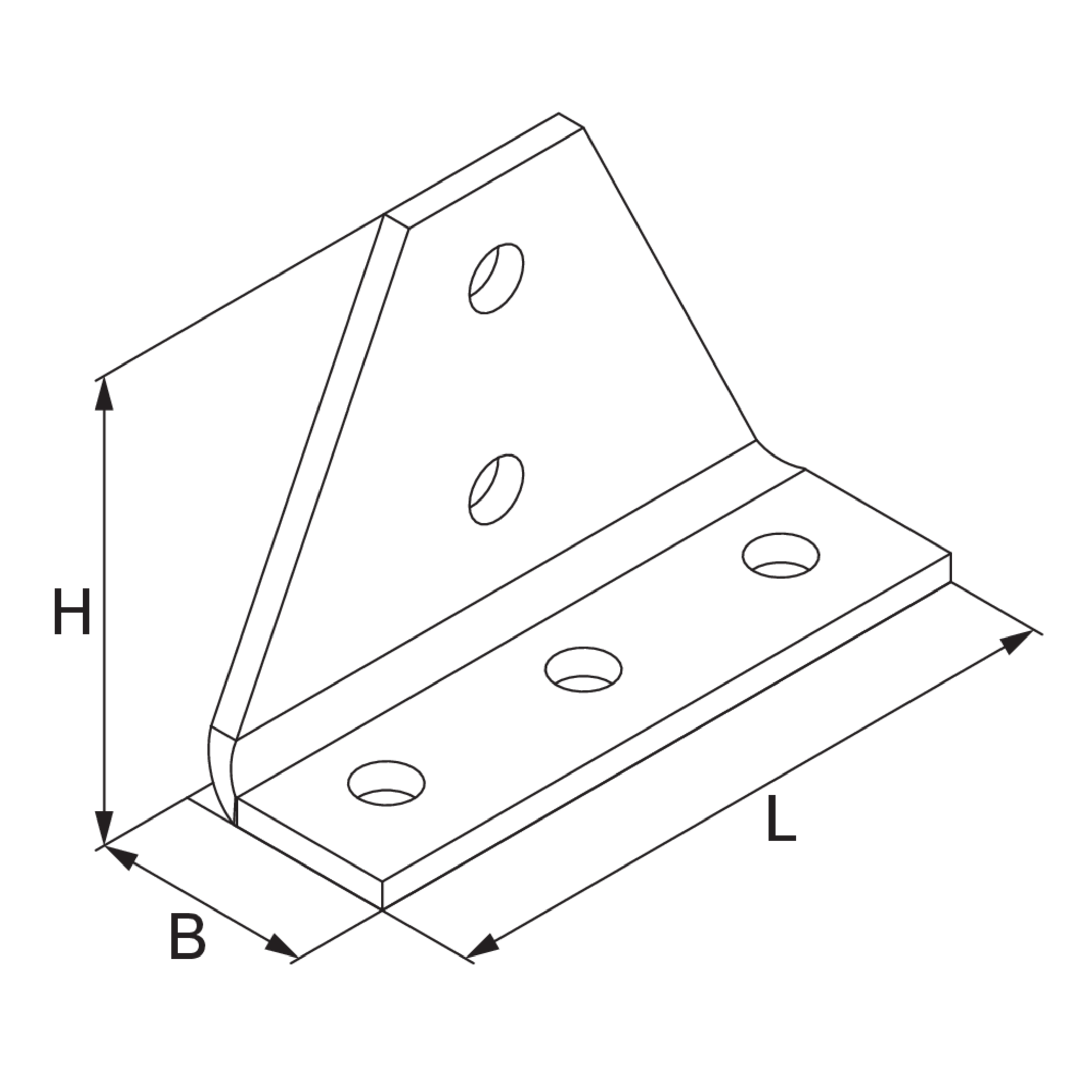

H

B

L

t

W

W

  • AVLWBL 1-2F
    Profile rail connector
    98 mm
    47 mm
    137 mm
    6 mm
    90°
    0.650 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en

Included accessories
