Channel joint connector

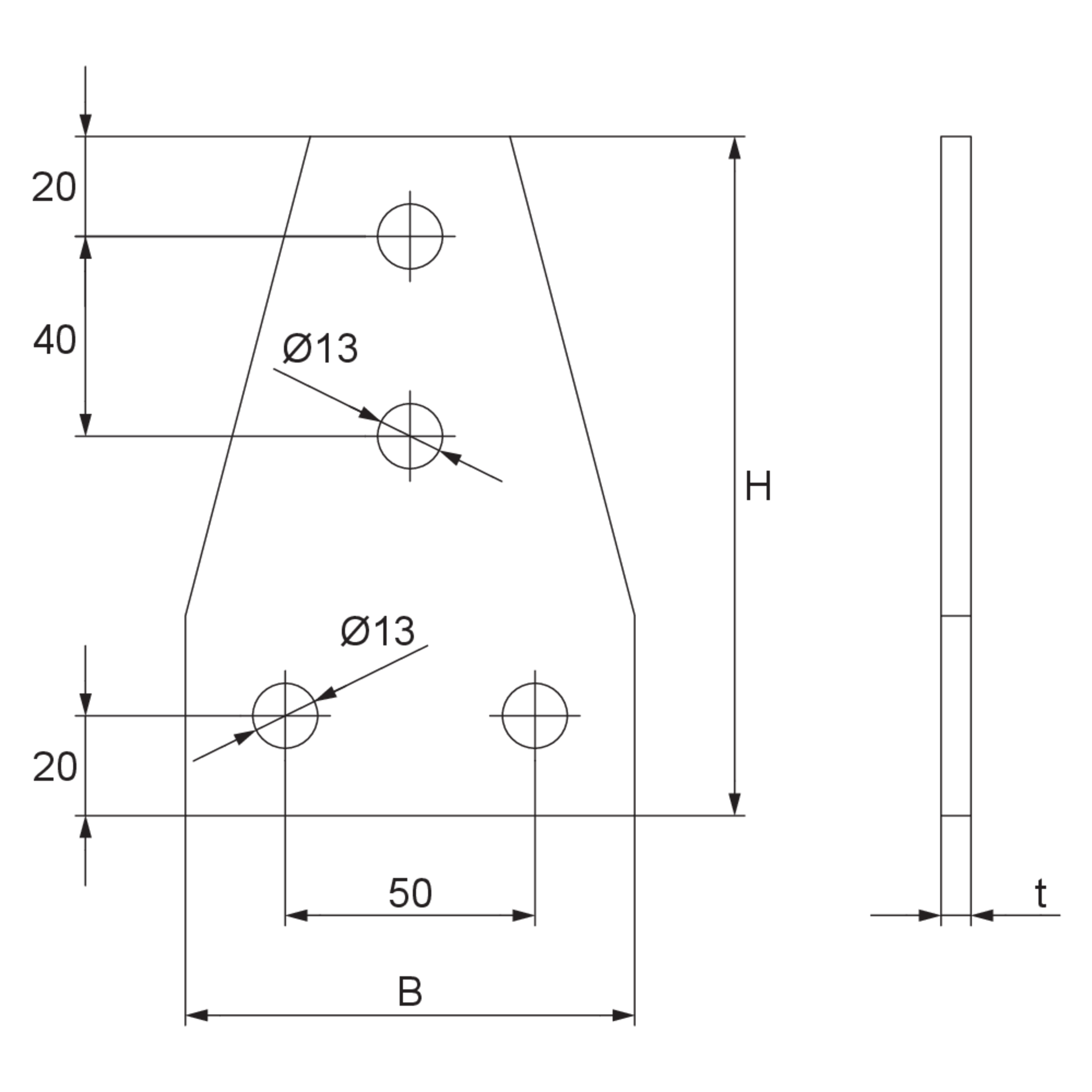

The channel joint connector AVLWBF is used to rigidly connect two mounting channels (KHA 41, KHAL 41) in a T-joint. It has Ø 13 mm fixing holes and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

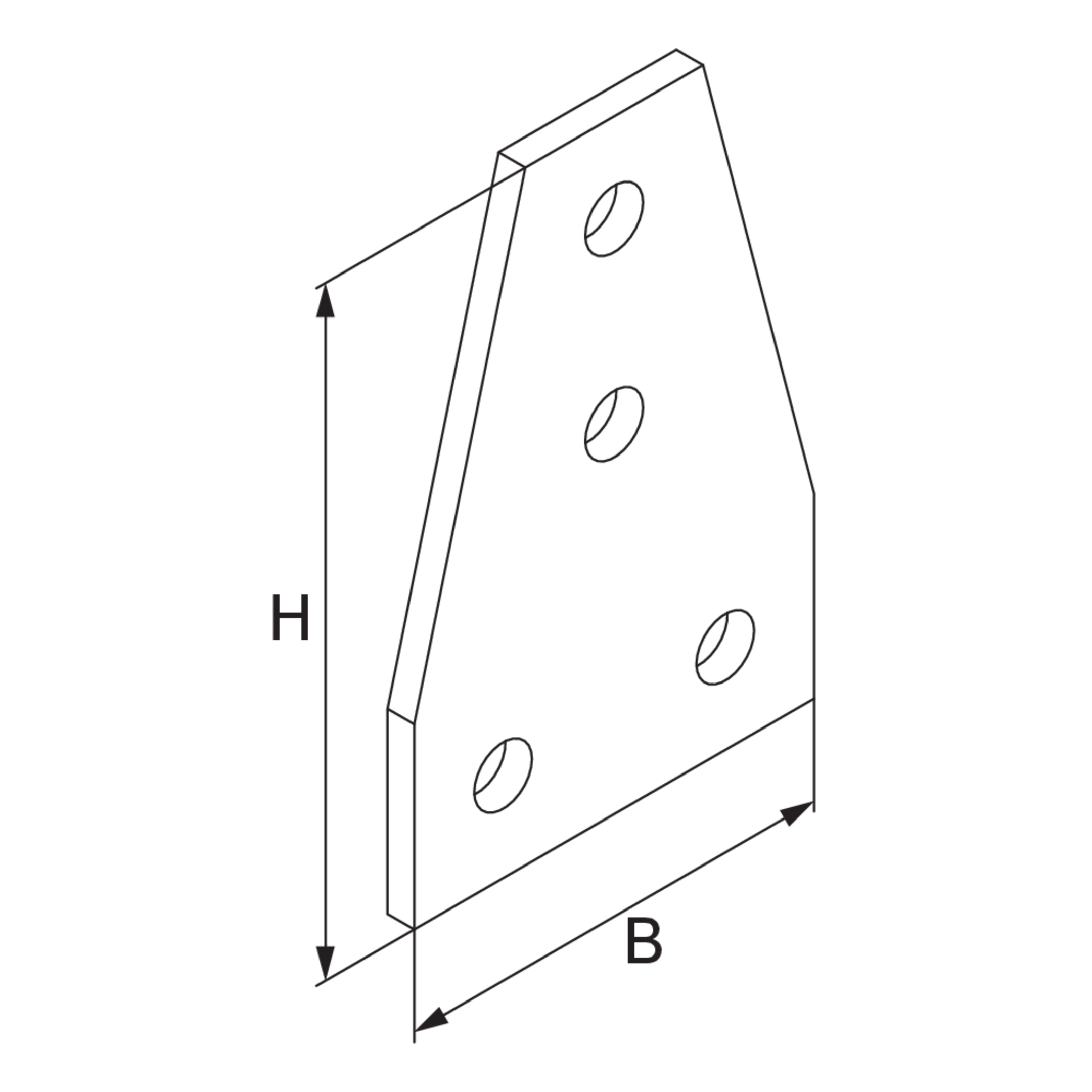

H
height
B
width
t
material thickness
G
Weight per storage unit
