AVLWB

Channel connector

The channel connector AVLWB is used to rigidly connect two intersecting mounting channels. It has Ø 13 mm fixing holes and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

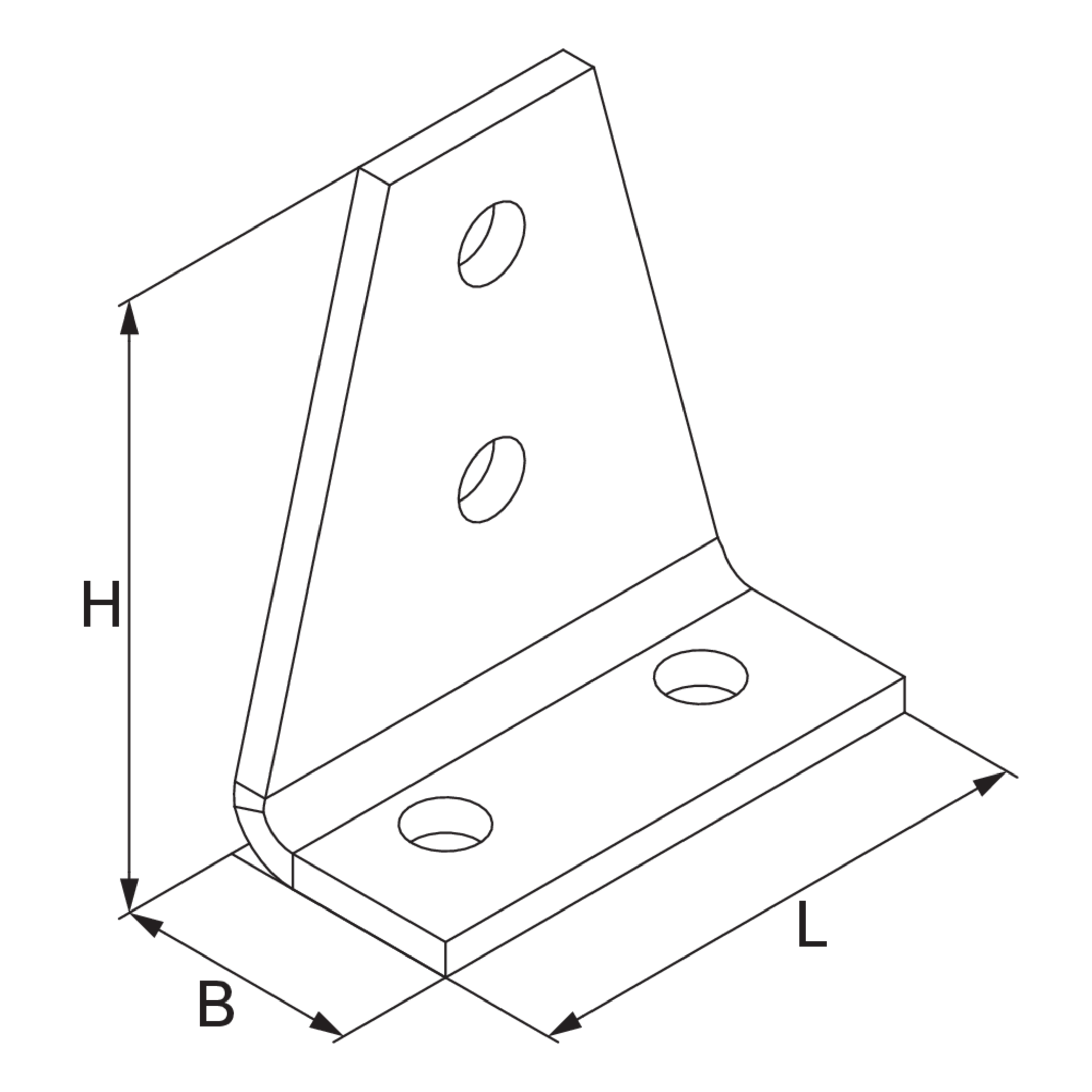

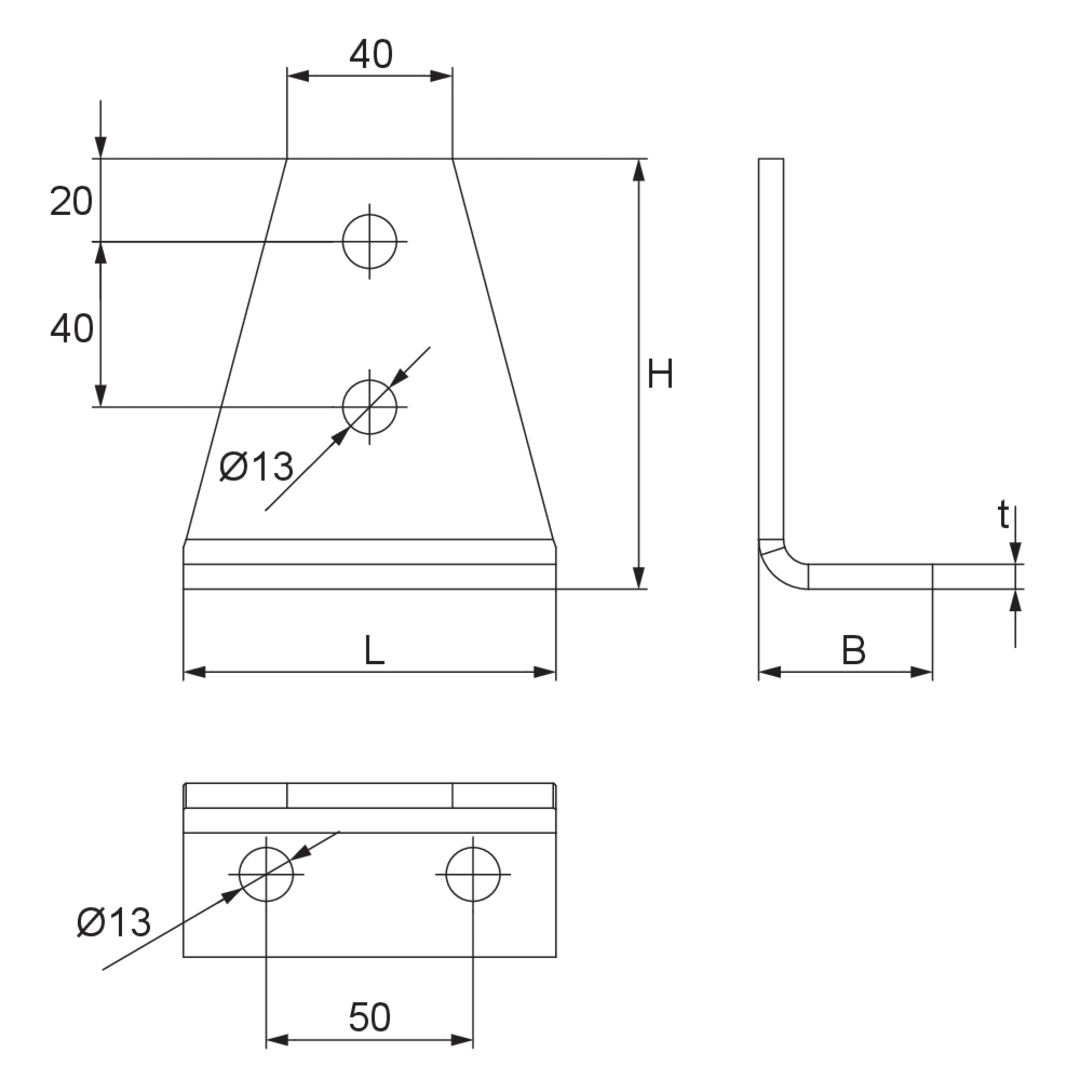

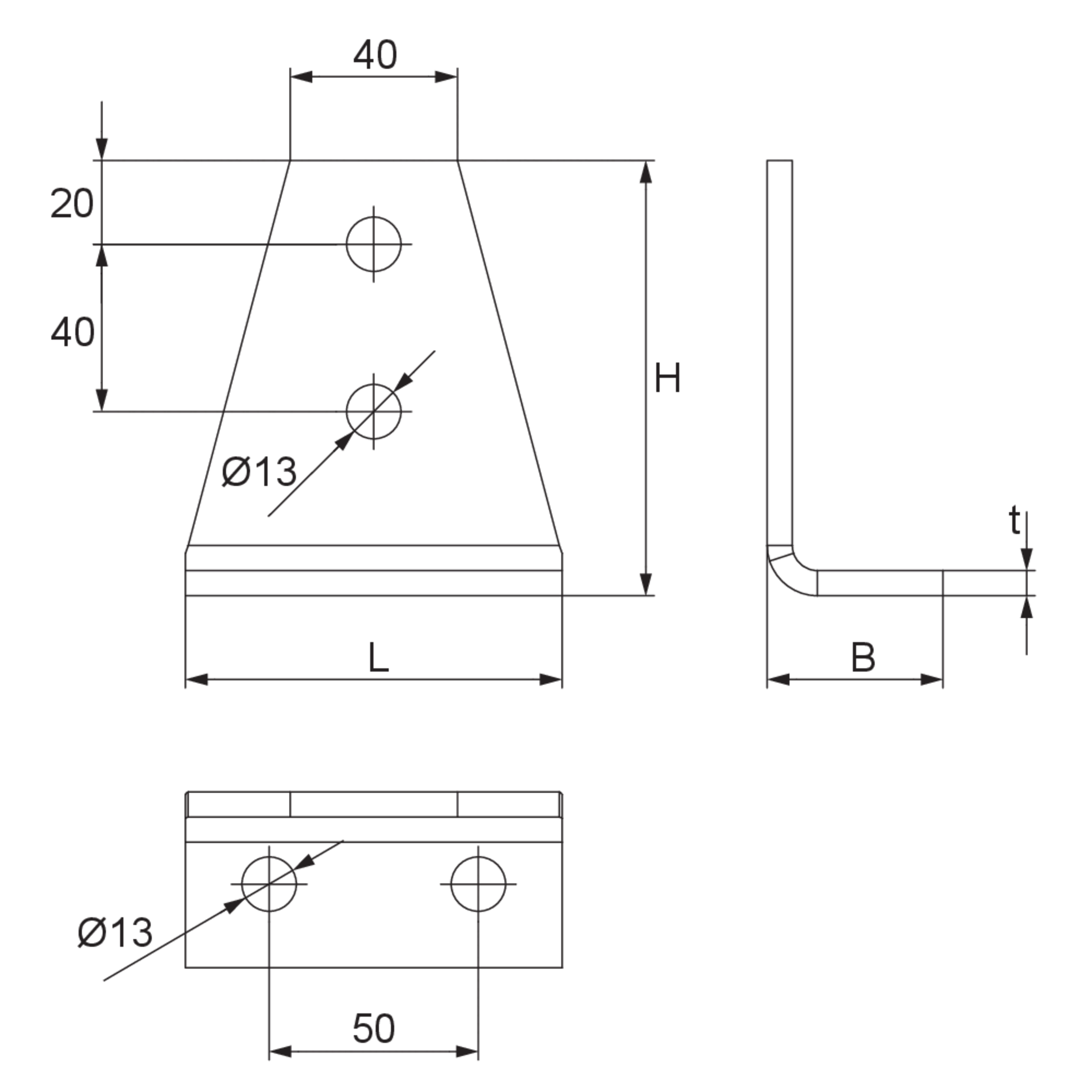

Article

H

height

B

width

L

length

t

material thickness

W

Winkel

G

Weight per storage unit
  • AVLWB 1-2F
    Profile rail connector
    104 mm
    42 mm
    90 mm
    6 mm
    90°
    0.450 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en
