AVLW 45

Channel connector, 45°

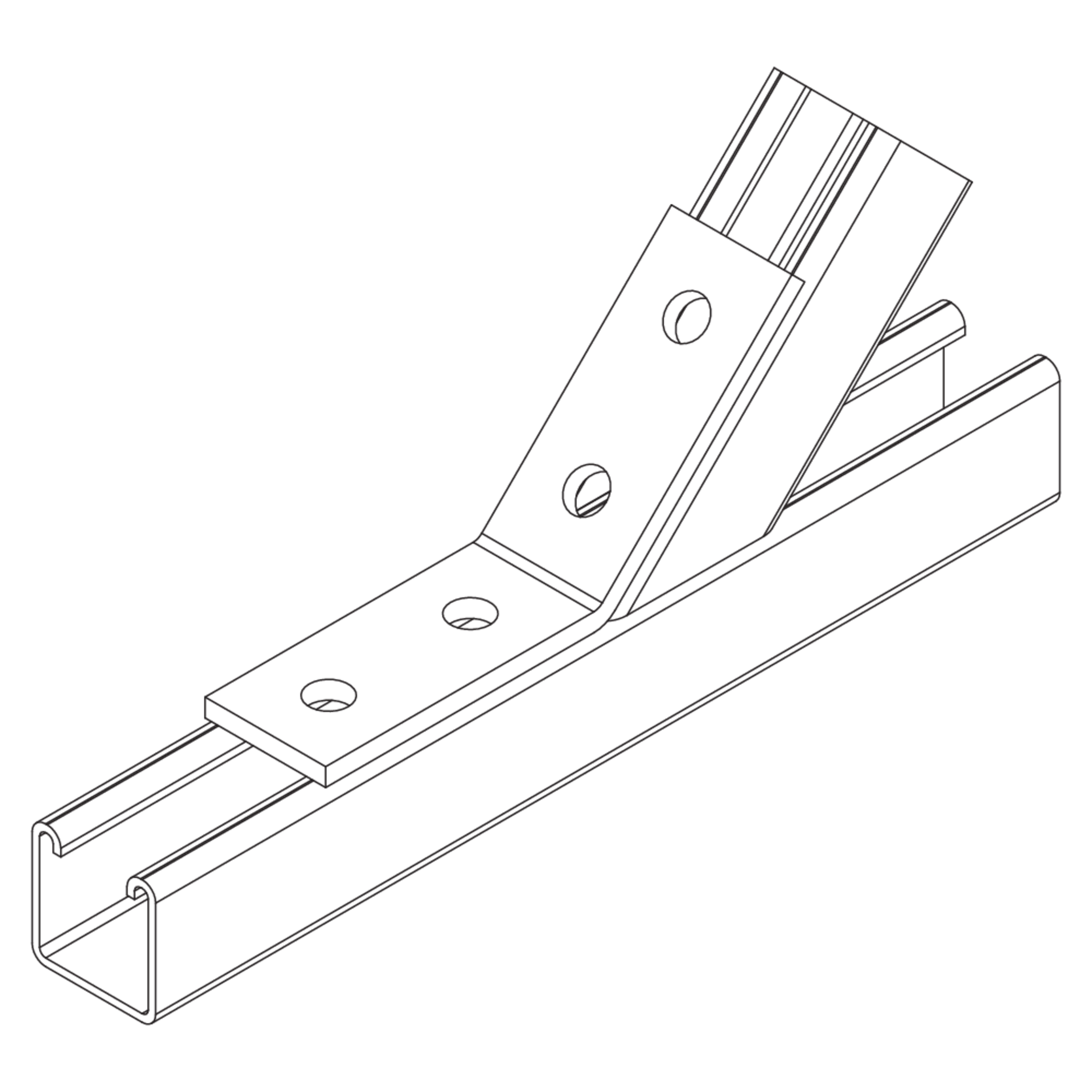

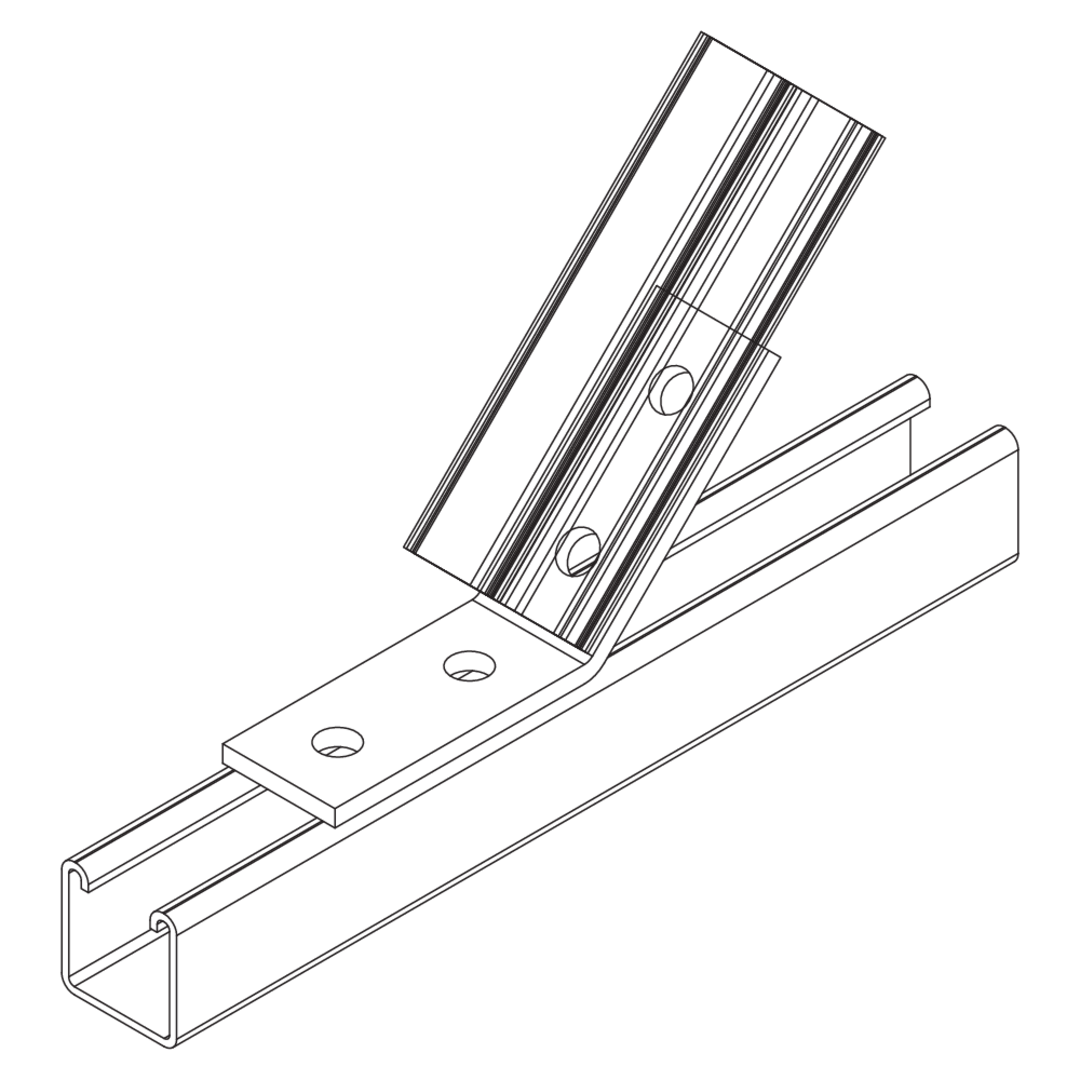

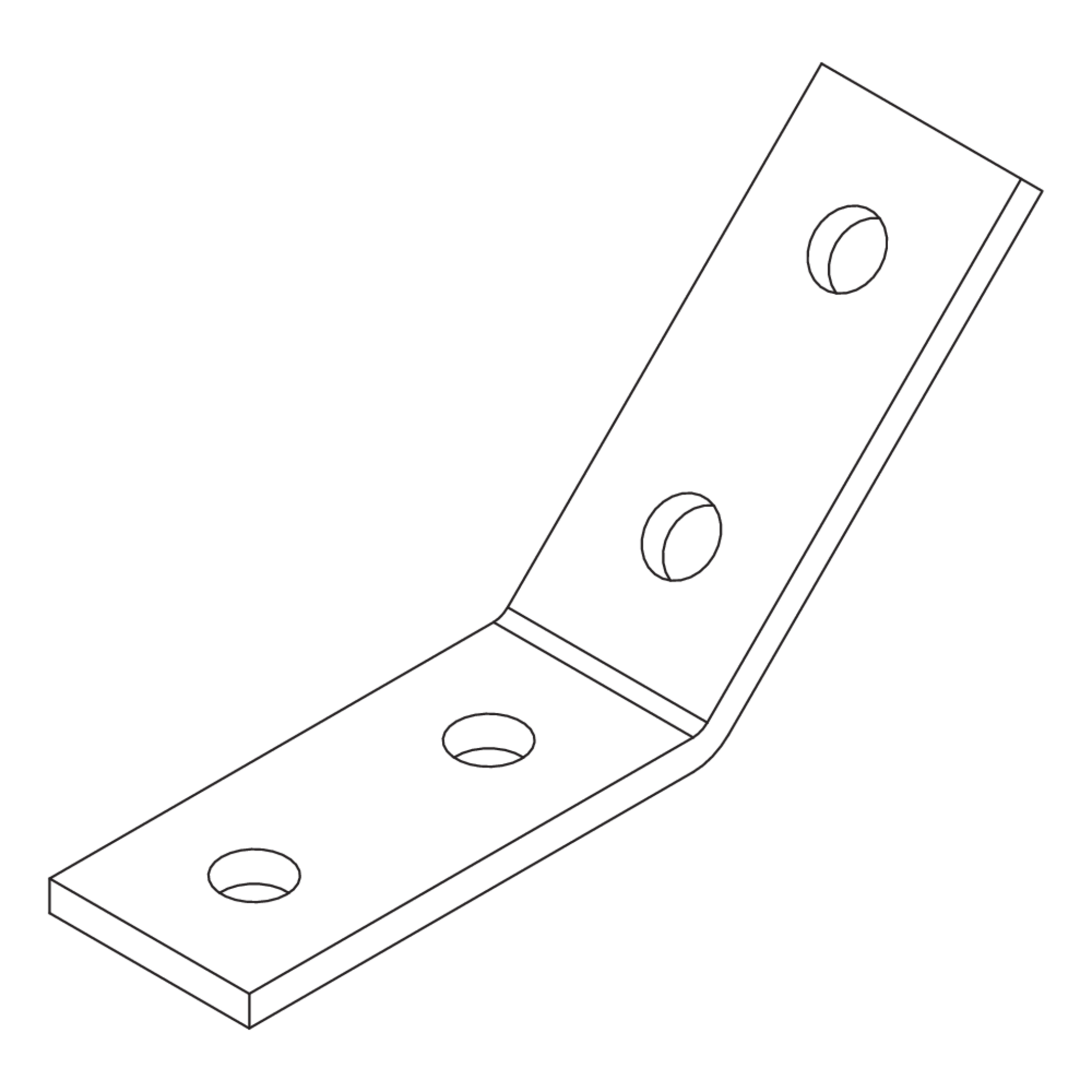

The channel connector AVLW 45 is a corner connector with an angle of 45° with 2-2 perforation. It connects mounting channels as a junction or branch and is made of hot-dip galvanised steel.

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

W

Winkel

G

Gewicht je Lagermengeneinheit

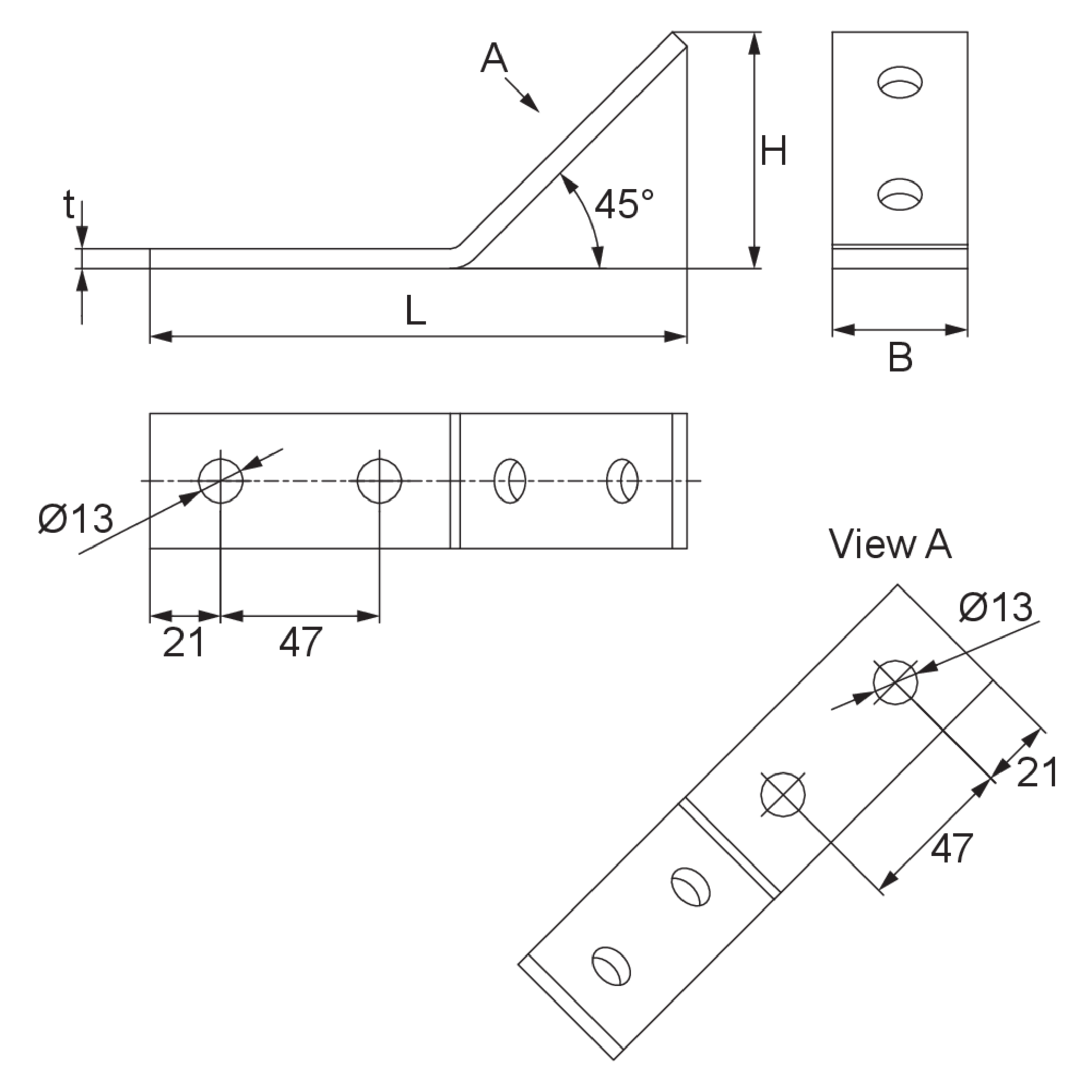

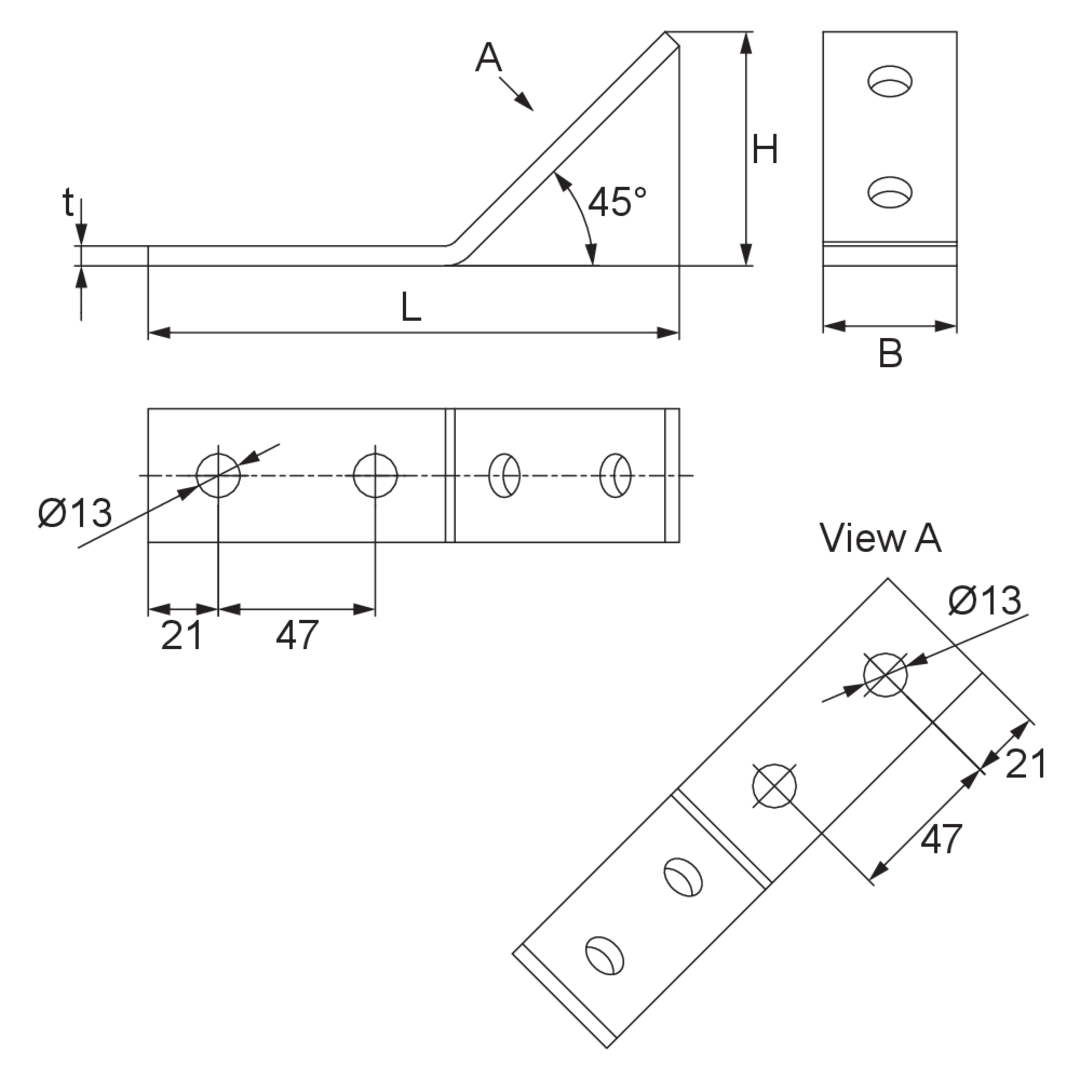

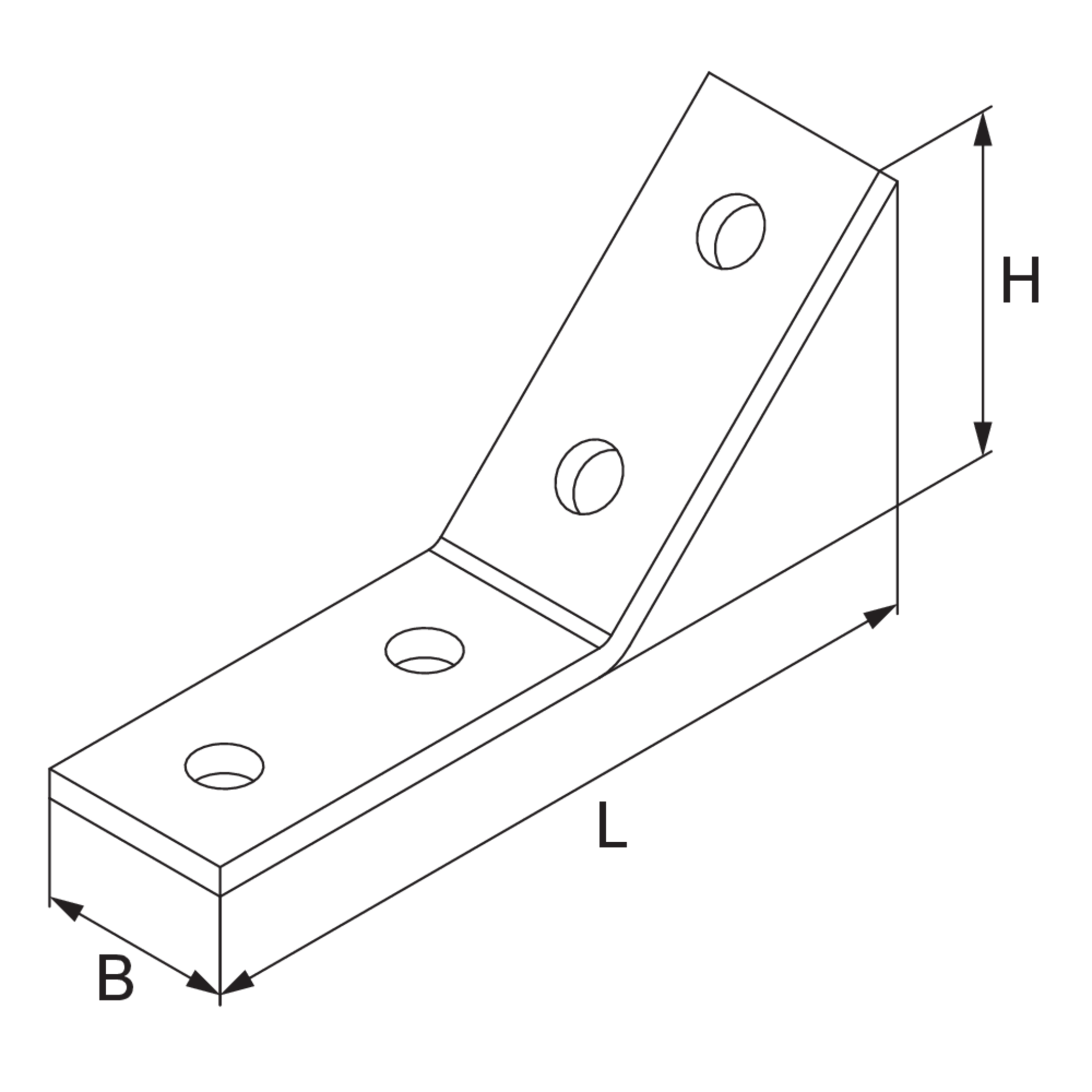

  • AVLW45 2-2F
    Profilschienenverbinder 45°
    Höhe
    70 mm
    Breite
    40 mm
    Länge
    159 mm
    Materialstärke
    6.00 mm
    Winkel
    45°
    Gewicht je Lagermengeneinheit
    0.340 kg
