Channel joint connector

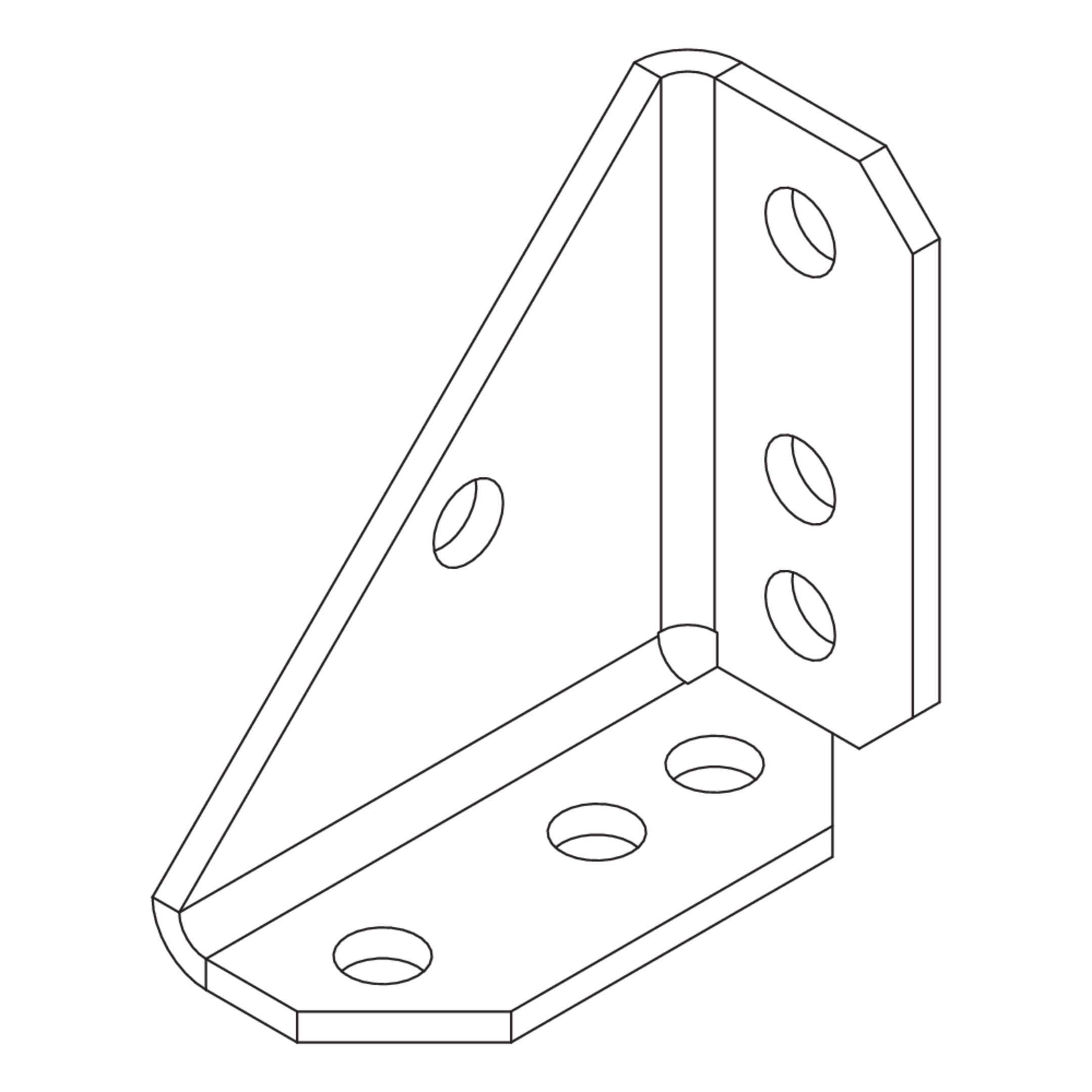

The channel joint connector AVLK is used to connect three mounting channels (A 41, KHA 41, KHAL 41), two continuous channels and one in a T-joint. The T-joint is perpendicular to both continuous channels. It has Ø 13 mm fixing holes and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

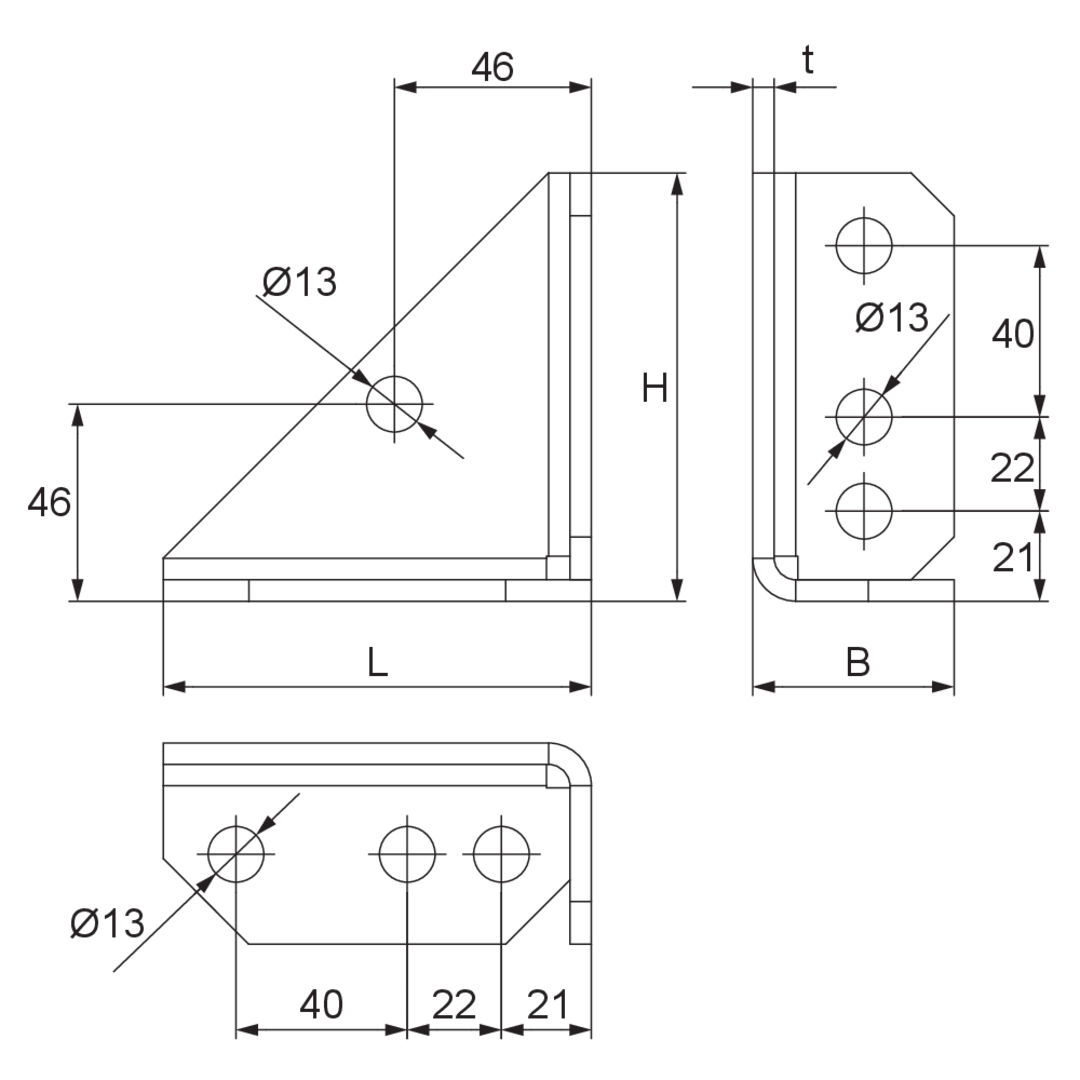

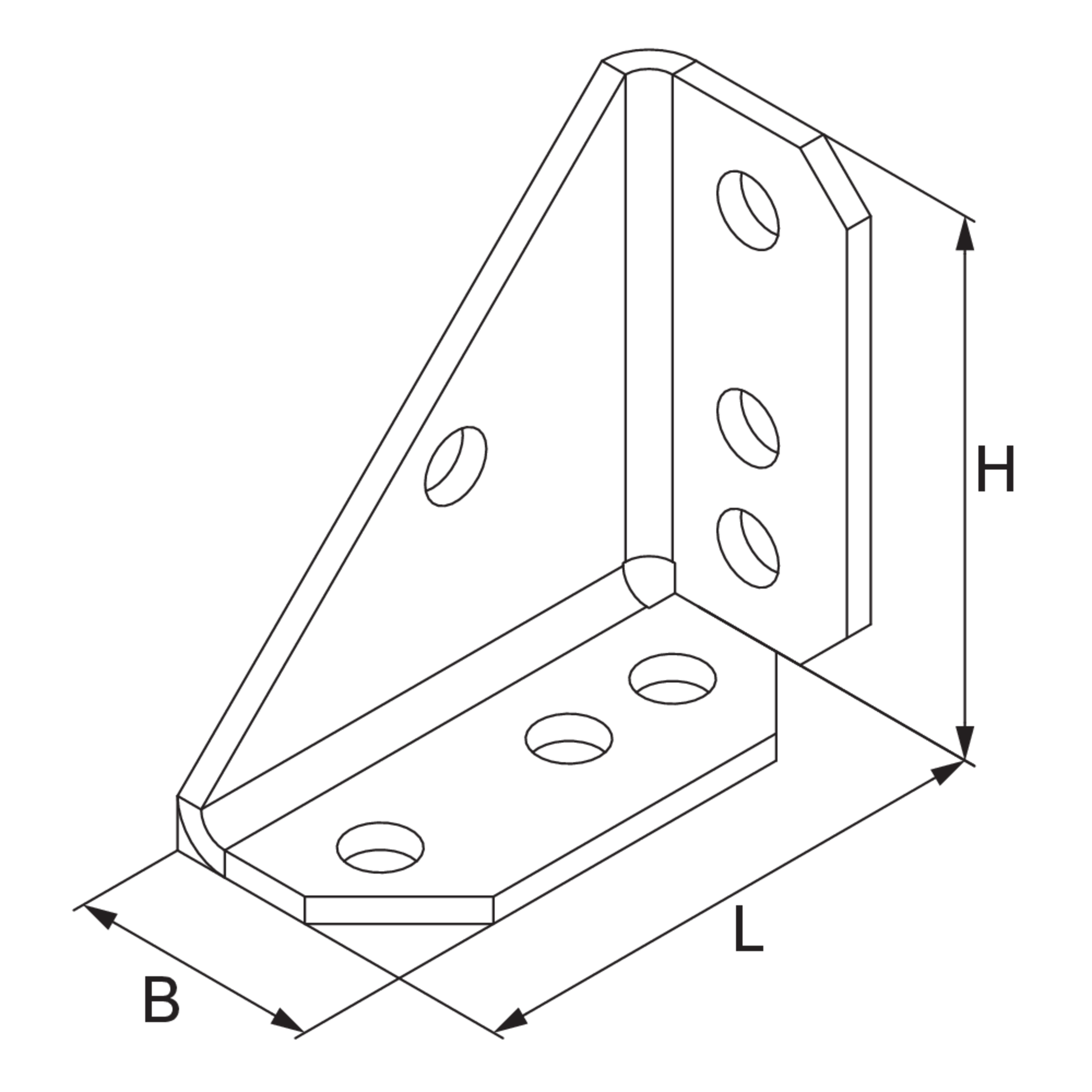

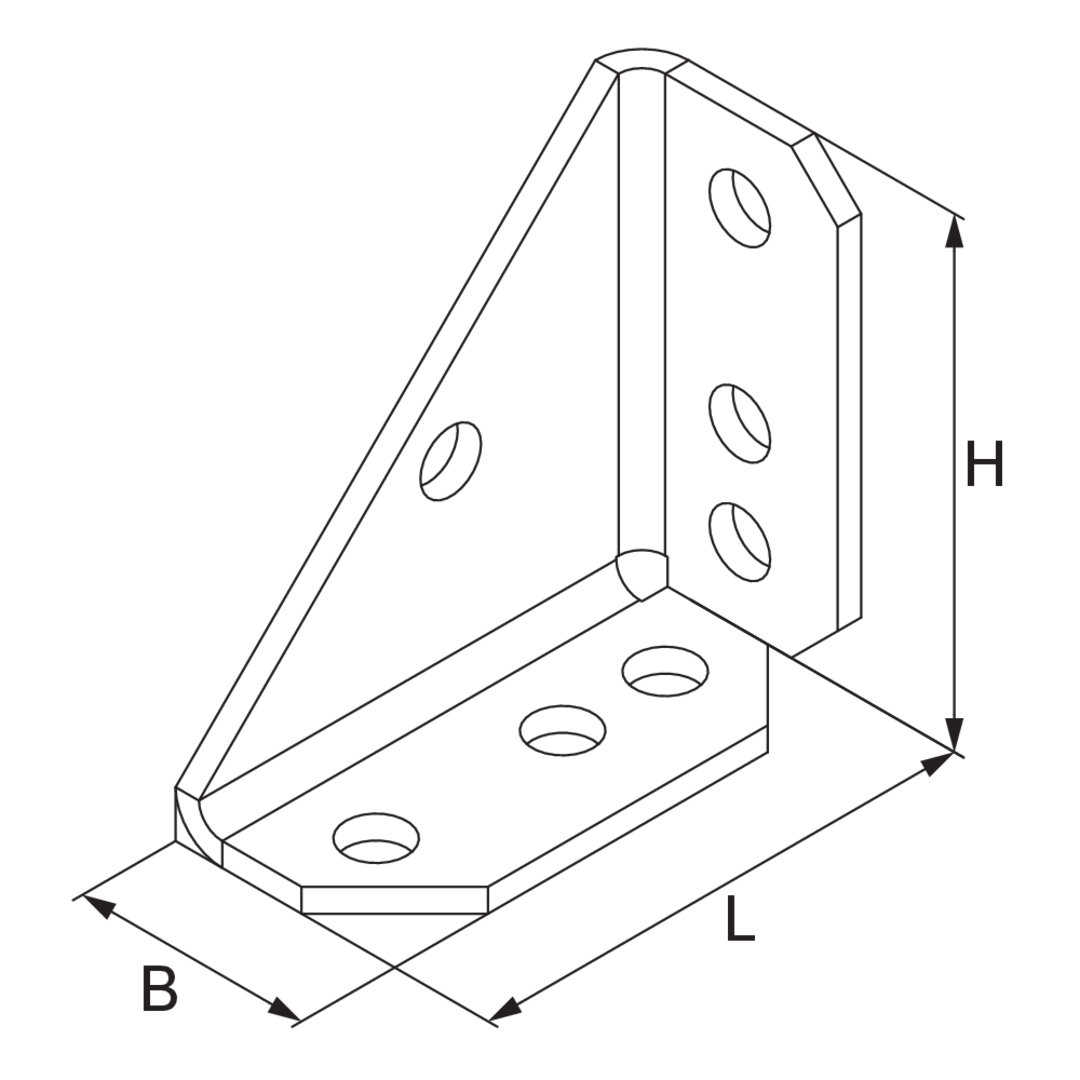

H
height
B
width
L
length
t
material thickness
W
Angle
G
Weight per storage unit
