Art.-Nr. AVL-5-60F

Rail coupler bracket AVL-5F

Channel connector, 60°

The channel connector AVL 60 is a corner connector with an angle of 60° with 1-3 perforation. It connects mounting channels as a junction or branch and is made of hot-dip galvanised steel.

Art.-Nr.
AVL-5-60F
height
44 mm
width
40 mm
length
211 mm
material thickness
6.00 mm
Angle
60°
Weight per storage unit
0.430 kg
Get in touch Download datasheet

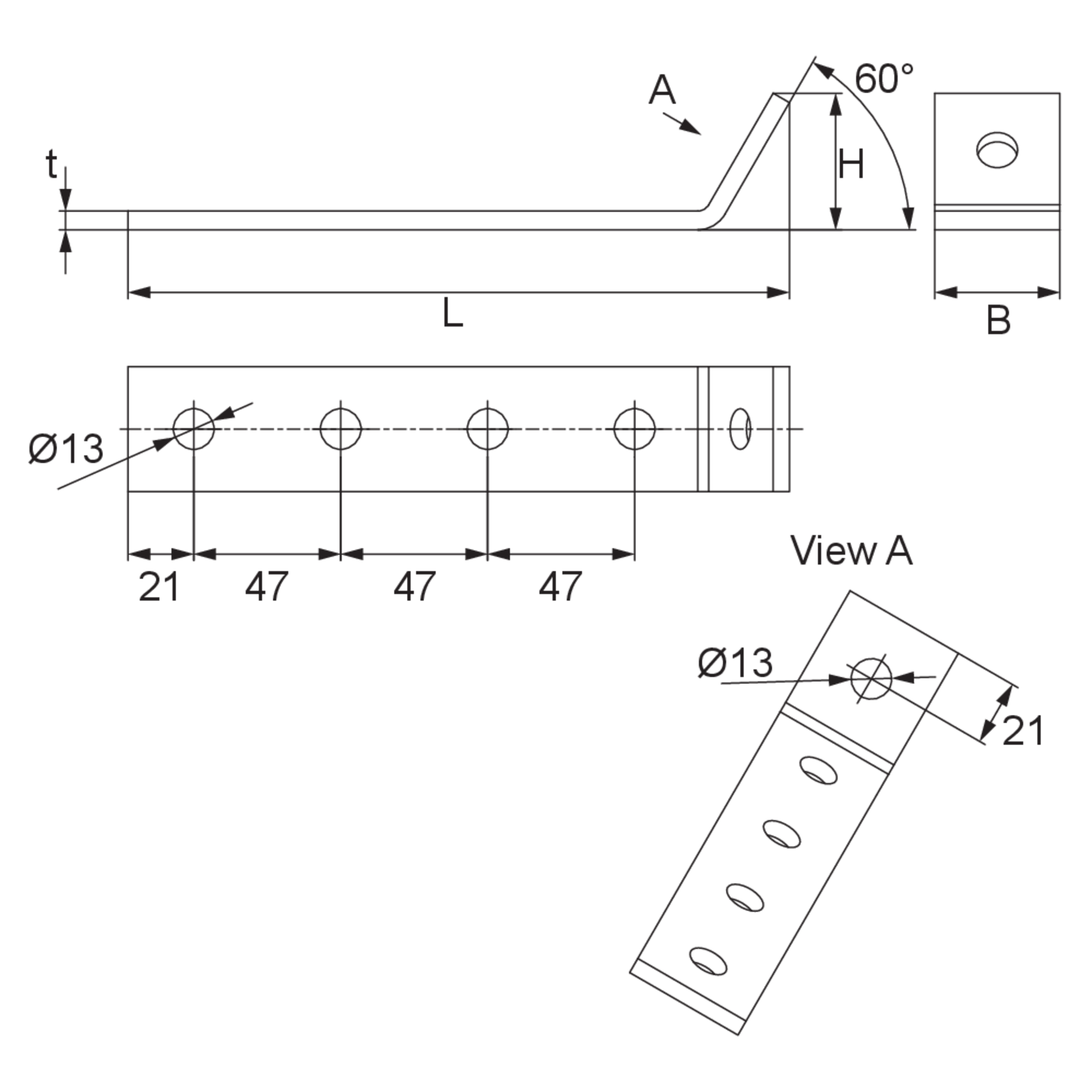

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

W

Winkel

G

Gewicht je Lagermengeneinheit
  • AVL-5-60F
    Profilschienenverbinder 60°
    Höhe
    44 mm
    Breite
    40 mm
    Länge
    211 mm
    Materialstärke
    6.00 mm
    Winkel
    60°
    Gewicht je Lagermengeneinheit
    0.430 kg
