AVBLA

Channel joint connector

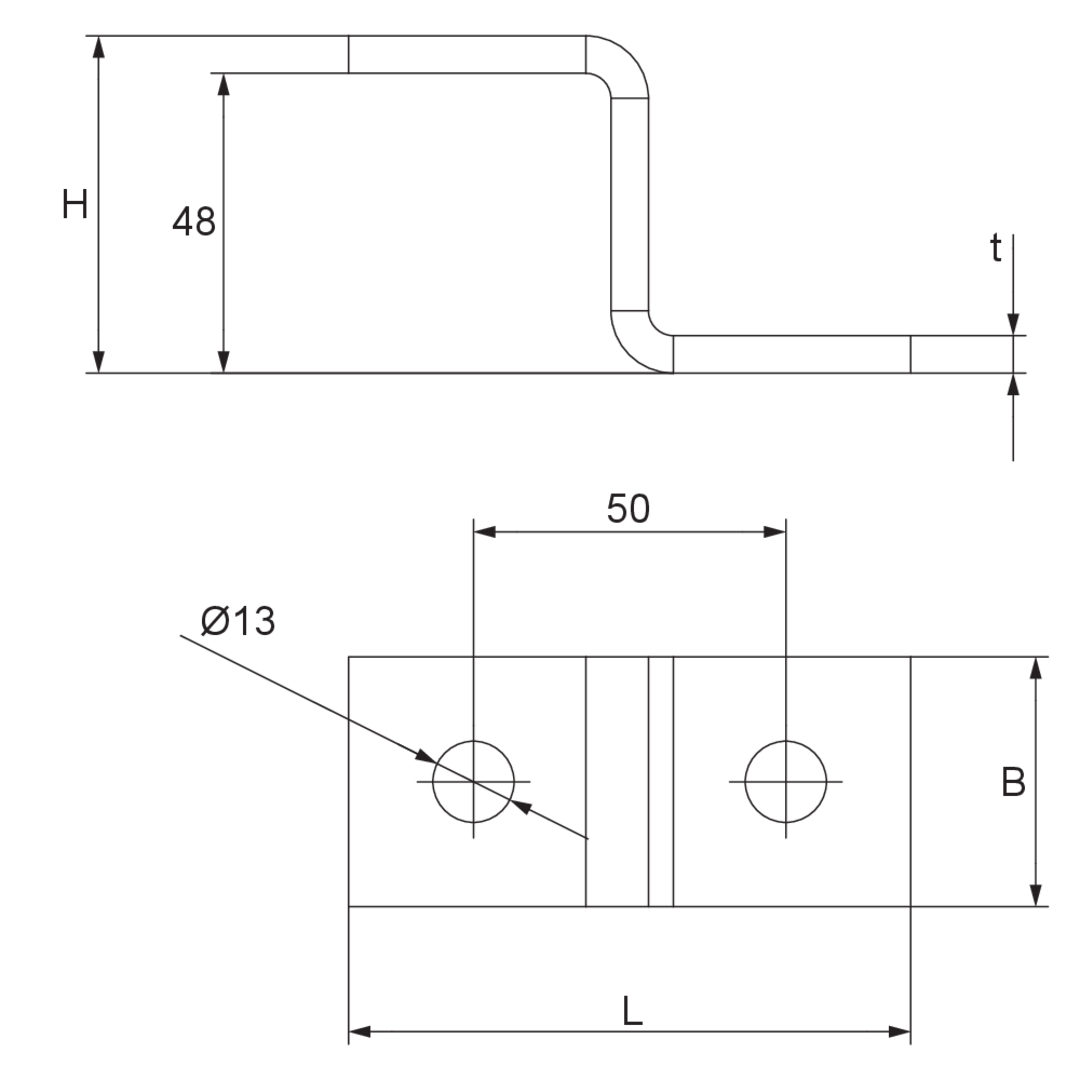

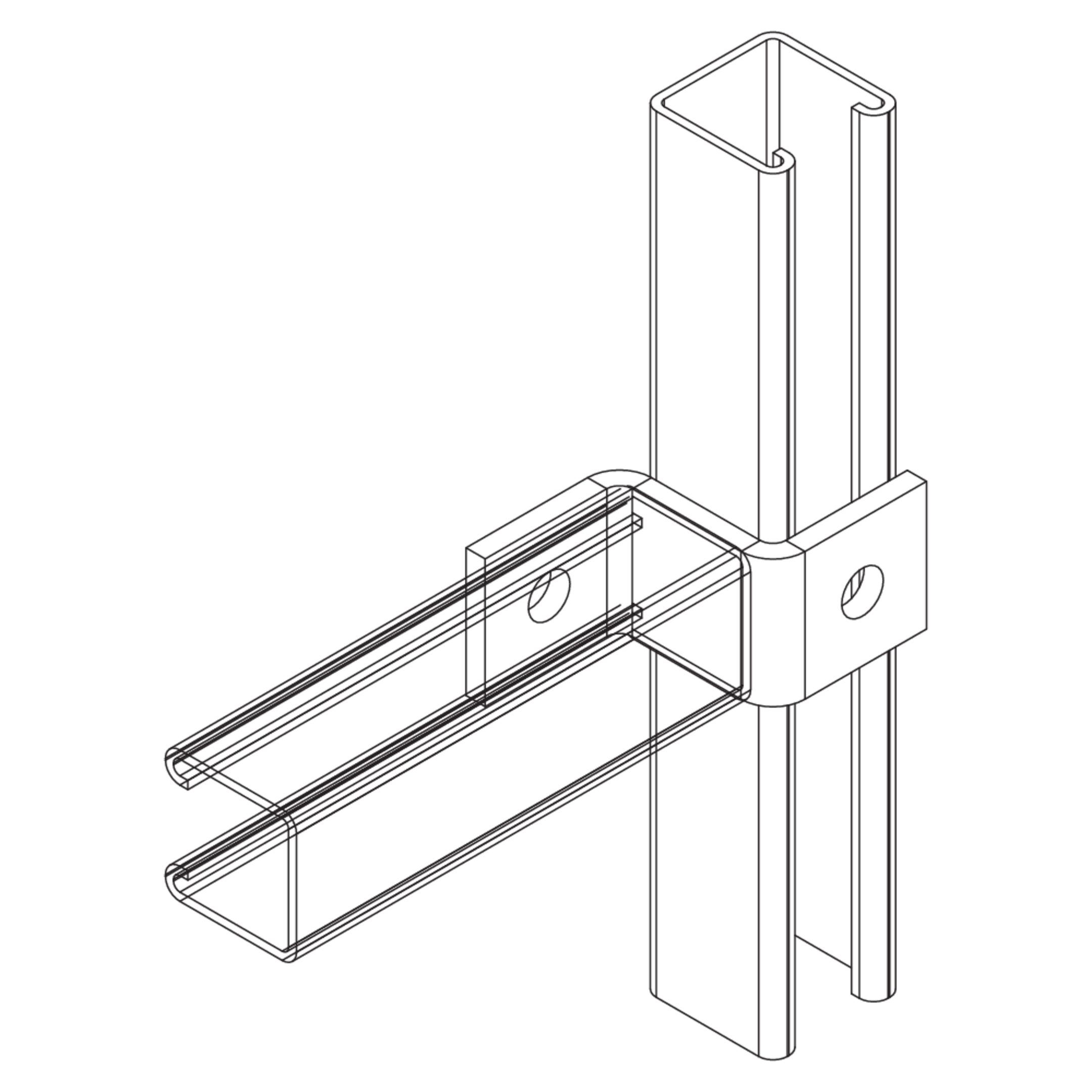

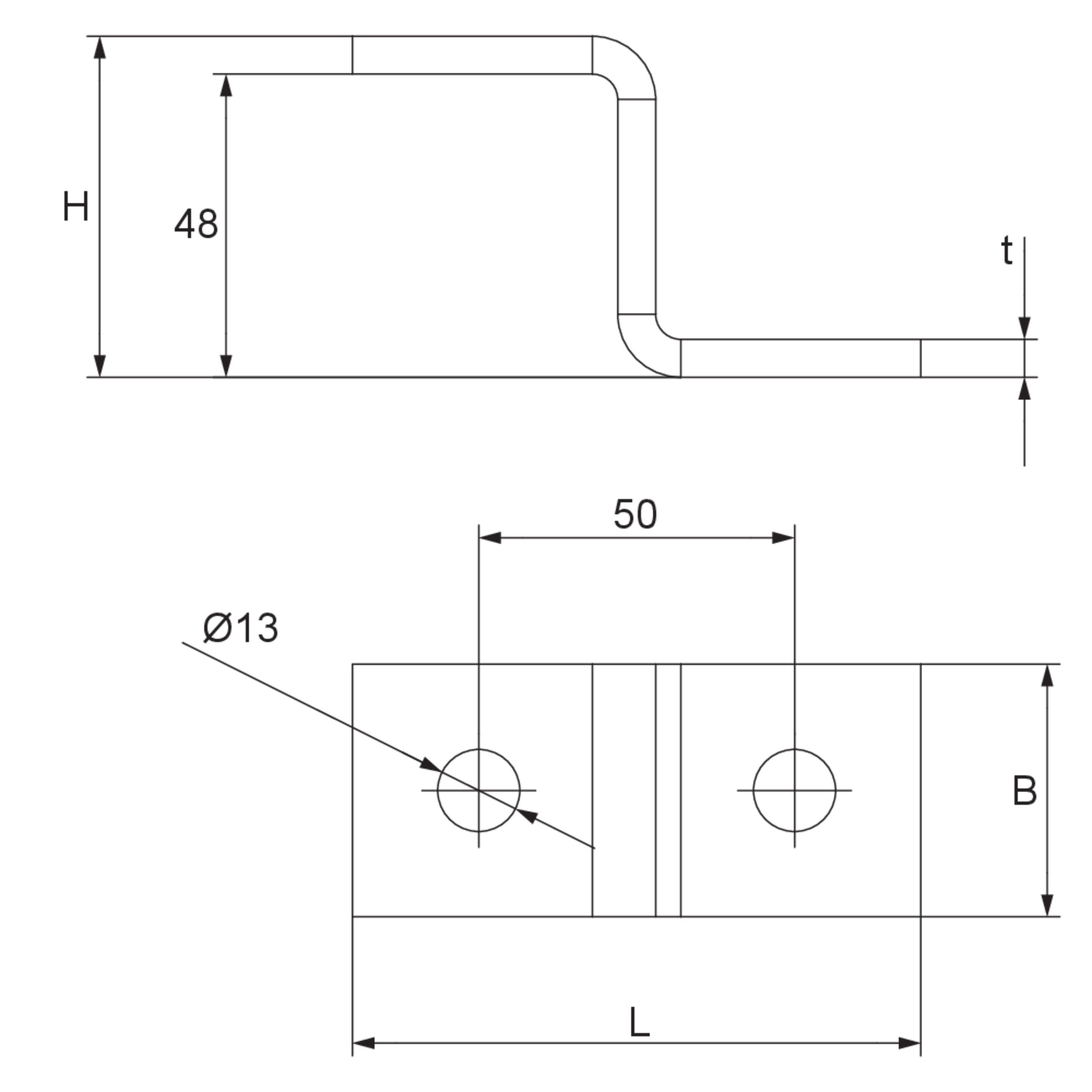

The channel joint connector AVBLA is used to connect two mounting channels (A 41, KHA 41, KHAL 41) in a T-joint. It has fixing holes with Ø 13 mm and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

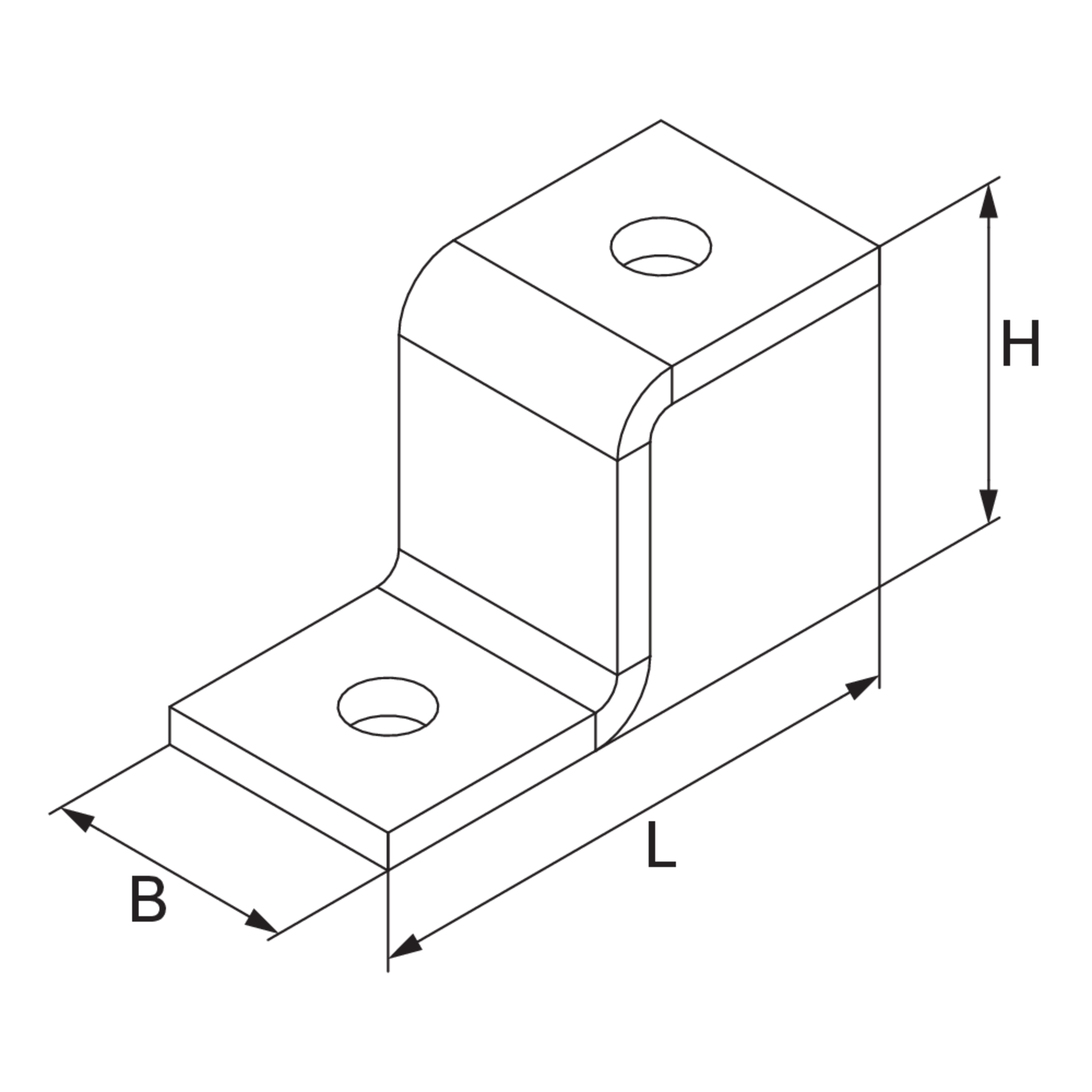

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • AVBLA 41F
    Profile rail connector
    height
    54 mm
    width
    40 mm
    length
    90 mm
    material thickness
    6 mm
    Weight per storage unit
    0.240 kg
