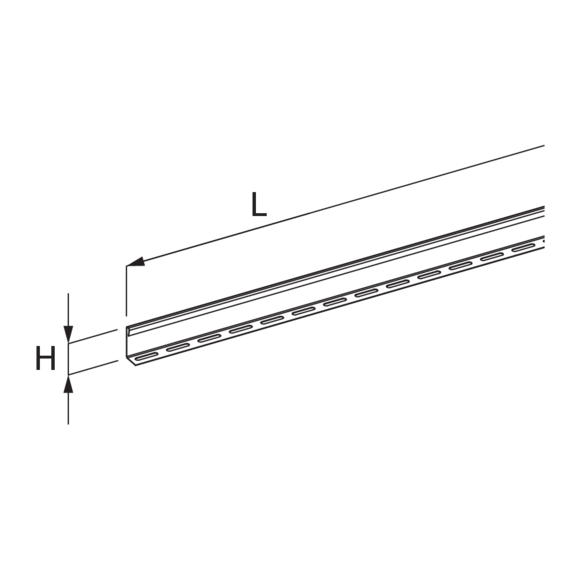

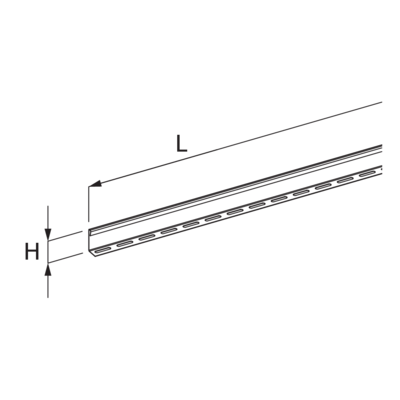

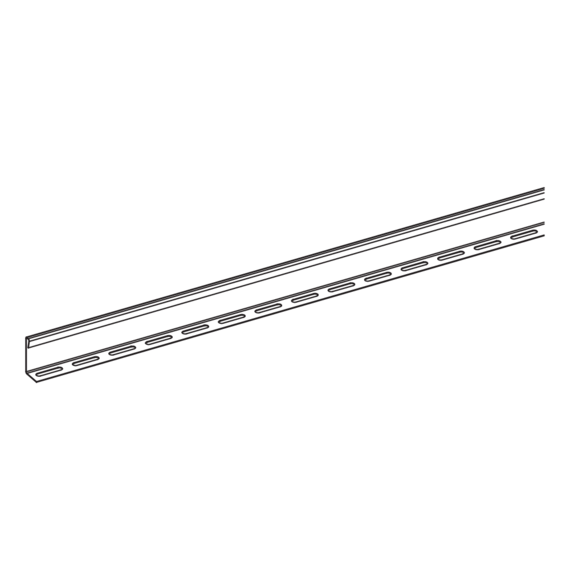

Cables and lines with different functions or voltages can be routed separately from one another in the same vertical ladder using vertical ladder separating strip STR 110. The separating strip is bolted to the ladder three times: in the middle and on the last rungs of the two ends of the separating strip. The separating strip STR 110 is suitable for all vertical ladders with the exception of LGG 60. It is 50 mm high and 3000 mm long. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, continously hot galvanized/Sendzimir process
Products | H height | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
---|---|---|---|---|---|
STR 110S | 50 mm | 3000 mm | 1,603 kg |
steel, batch/hot-dip galvanized
Products | H height | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
---|---|---|---|---|---|
STR 110F | 50 mm | 3000 mm | 1,709 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
Products | H height | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
---|---|---|---|---|---|
STR 110E | 50 mm | 3000 mm | 2,103 kg |
