Art.-Nr. WLKLA F

Clamp WLKLA F

Wide-span cable ladder hold-down clamp

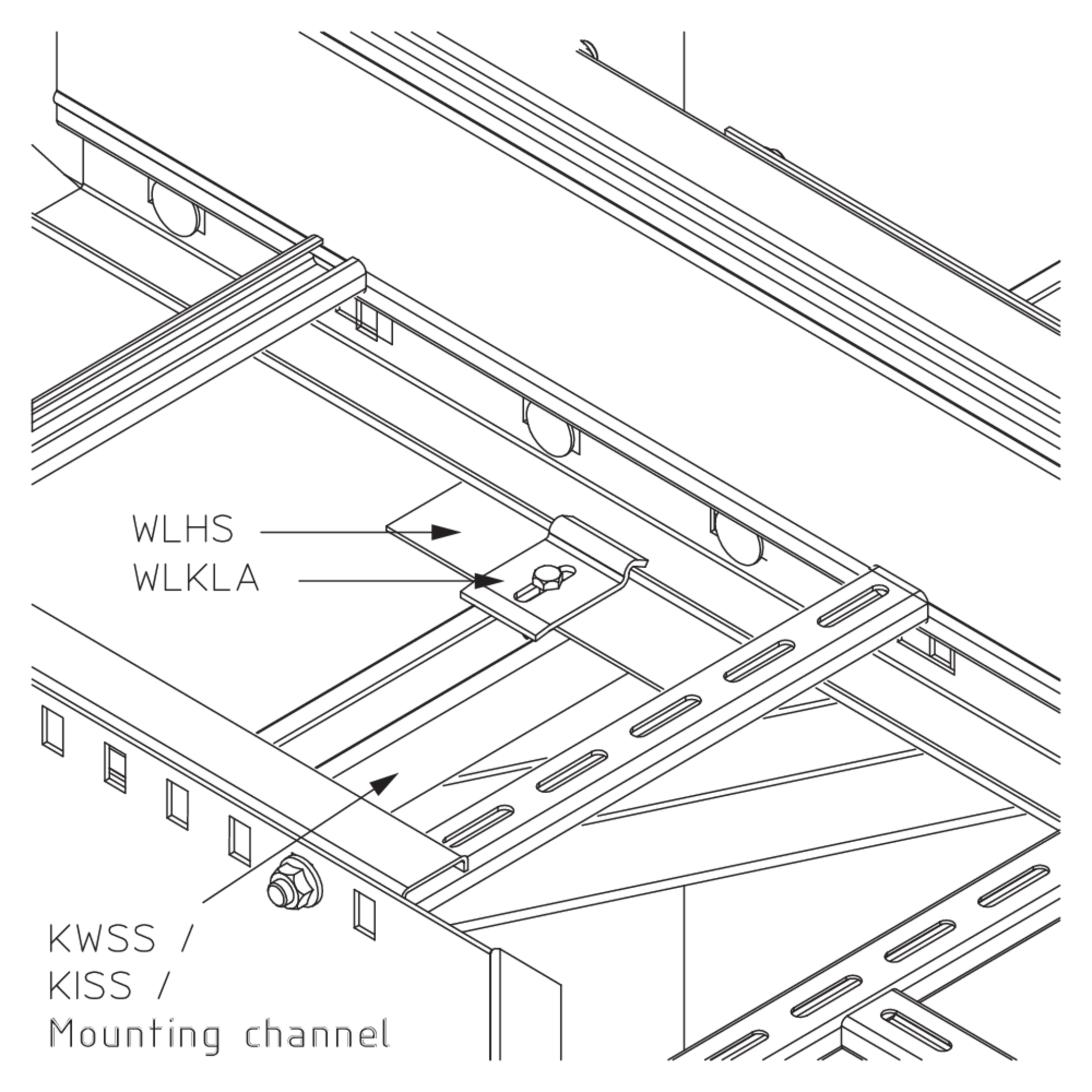

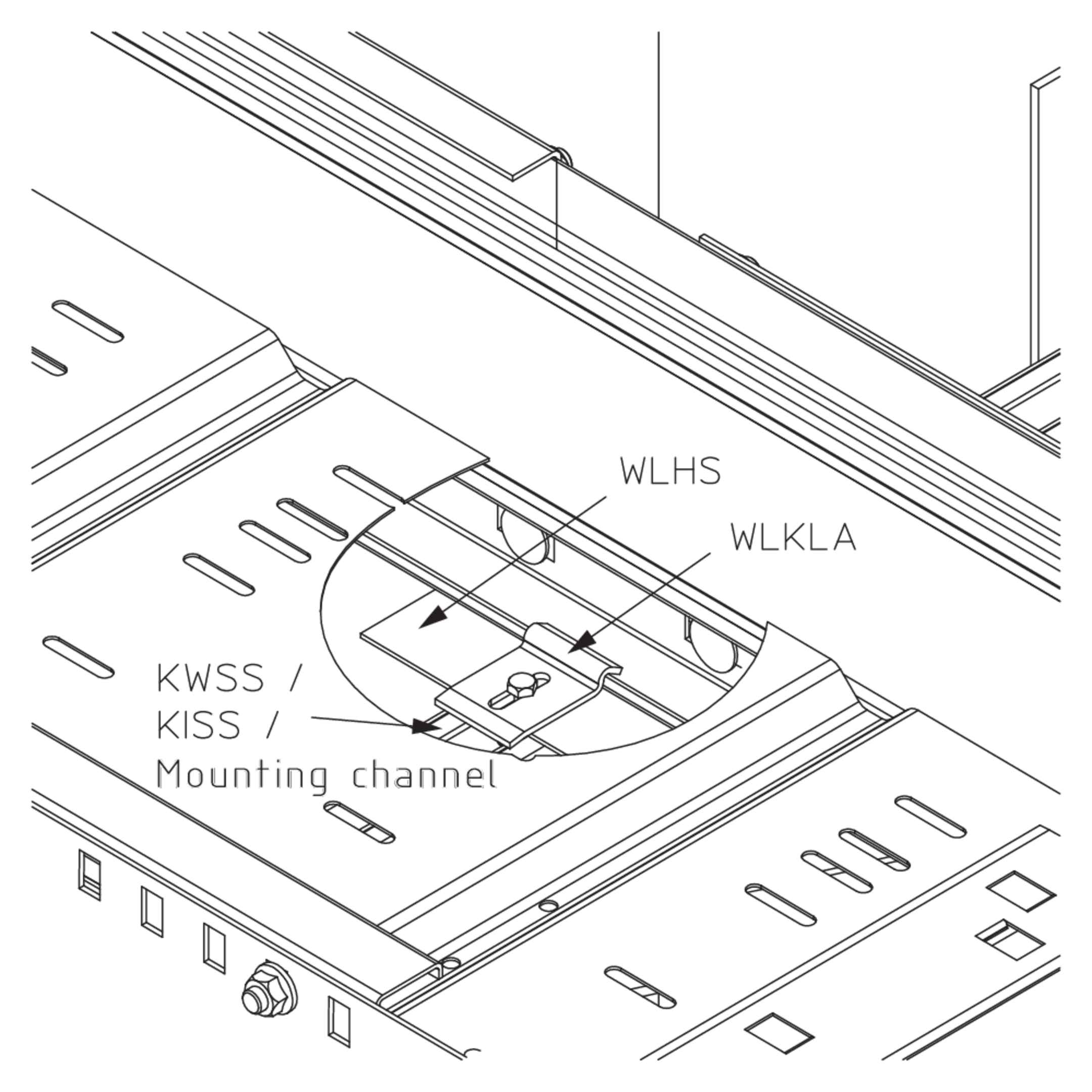

The clamping fastener WLKLA is an accessory part for the WLHS wide-span side rail support if it is used to secure the position of a WL or WLR 200 wide-span tray on profile rails or brackets of type KWSS or KISS. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Art.-Nr.: WLKLA F
height: 11 mm
width: 40 mm
length: 60 mm
material thickness: 3.00 mm
Weight per storage unit: 0.180 kg

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

WLKLA S
Clamp WLKLA S

11 mm

40 mm

60 mm

3.00 mm

0.178 kg

Included accessories

More information

Steel, hot-dip galvanised

WLKLA F
Clamp WLKLA F

11 mm

40 mm

60 mm

3.00 mm

0.180 kg

Included accessories

More information
