WLKAB

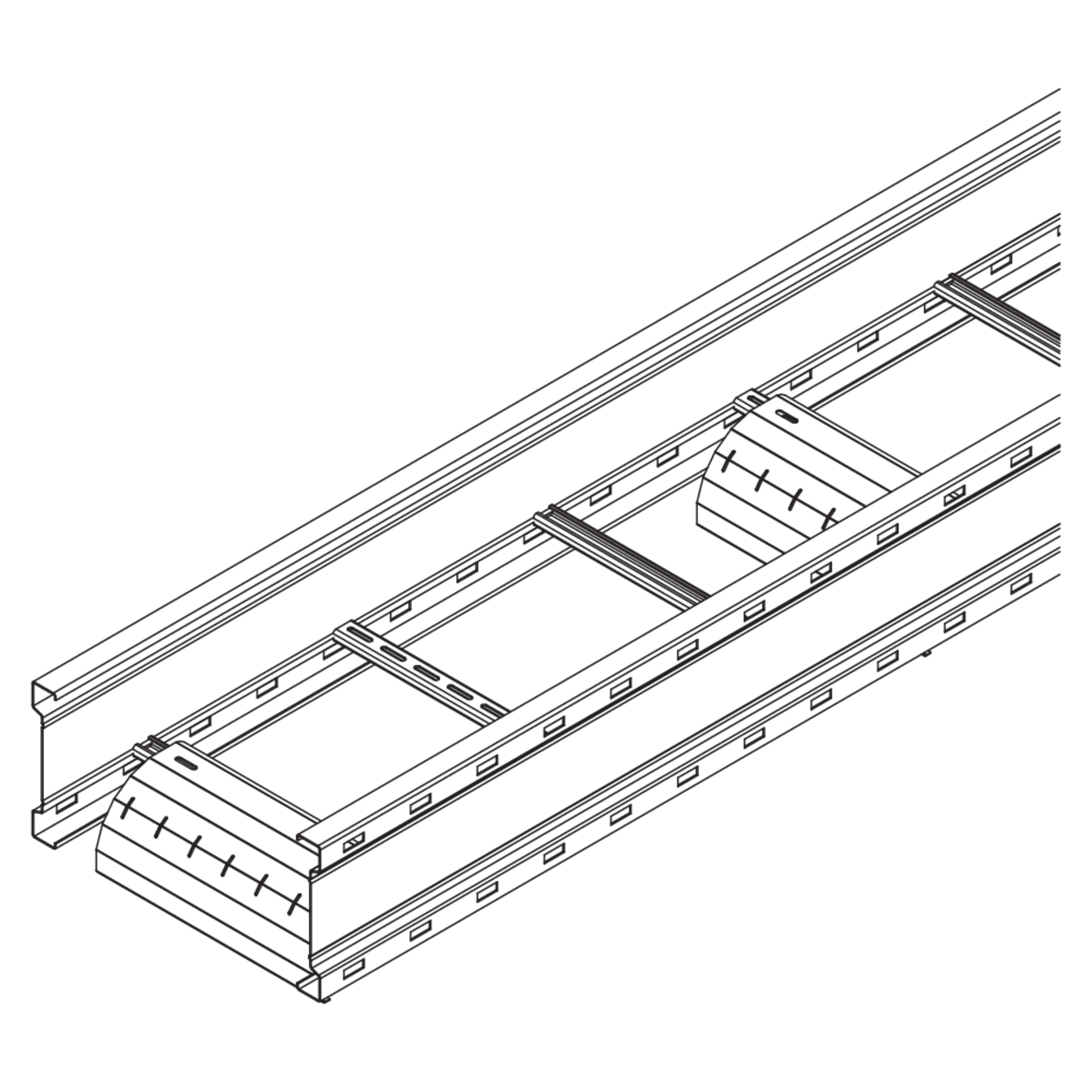

Wide span cable ladder drop-out plate

The WLKAB wide span cable ladder outlet plate is used for the cable-protecting vertical execution of cables from the wide span cable ladder. It has a width corresponding to the cable ladder of 140 to 540 mm. Various materials and surfaces ensure that the corrosion protection requirements of a wide range of applications are met.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

R

radius

G

Weight per storage unit
  • WLKAB 20S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    140 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.372 kg
    Included accessories
    More information
  • WLKAB 30S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    240 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.613 kg
    Included accessories
    More information
  • WLKAB 40S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    340 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.854 kg
    Included accessories
    More information
  • WLKAB 50S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    440 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.112 kg
    Included accessories
    More information
  • WLKAB 60S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    540 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.353 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

R

radius

G

Weight per storage unit
  • WLKAB 20F
    Cable ladder end plate
    height
    110 mm
    width
    140 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.393 kg
    Included accessories
    More information
  • WLKAB 30F
    Cable ladder end plate
    height
    110 mm
    width
    240 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.651 kg
    Included accessories
    More information
  • WLKAB 40F
    Cable ladder end plate
    height
    110 mm
    width
    340 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.909 kg
    Included accessories
    More information
  • WLKAB 50F
    Cable ladder end plate
    height
    110 mm
    width
    440 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.183 kg
    Included accessories
    More information
  • WLKAB 60F
    Cable ladder end plate
    height
    110 mm
    width
    540 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.440 kg
    Included accessories
    More information
