UKEF160 V

Stainless steel hinged cover compact single outlet, 4-way, angular, flat

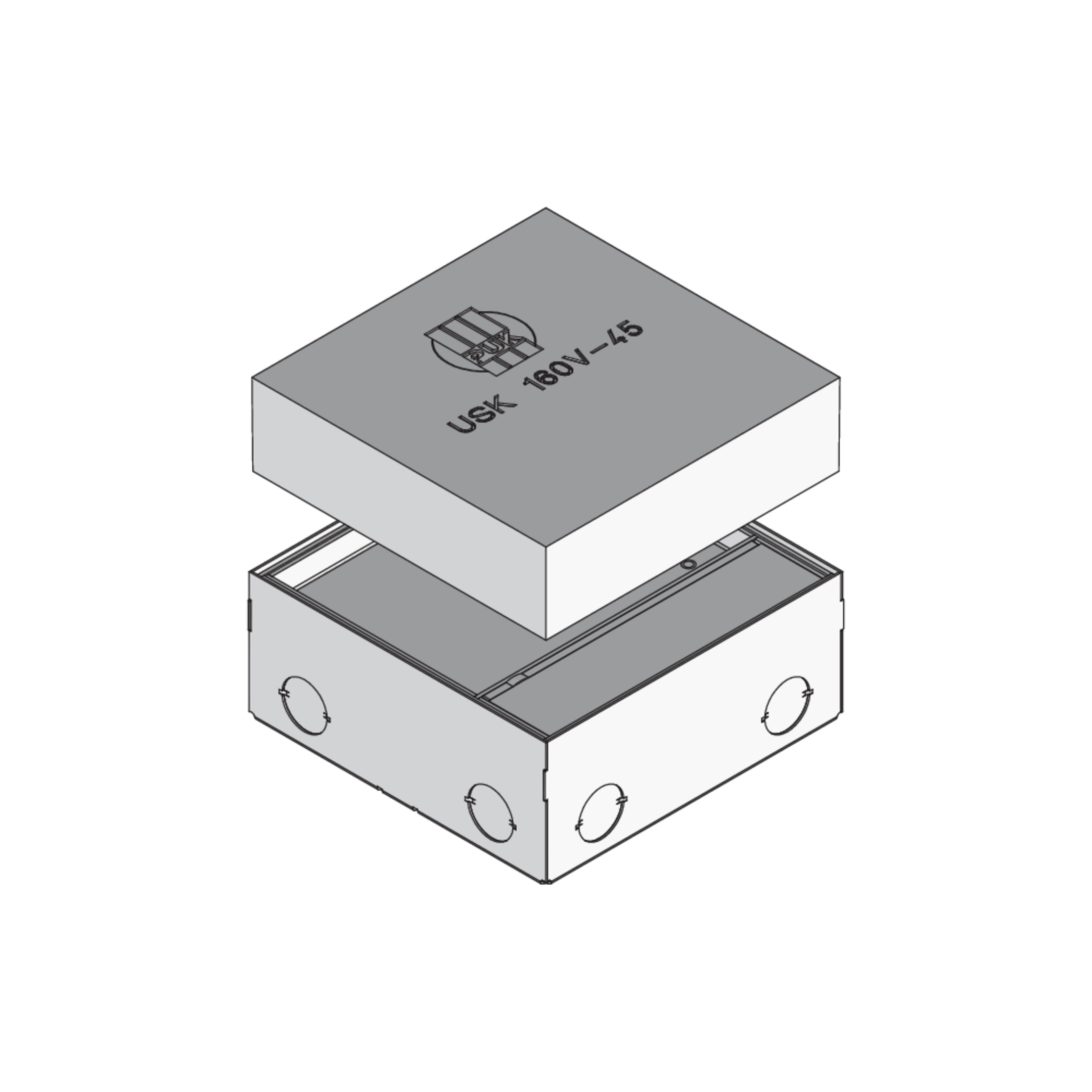

UKEF160 V are hinged cover compact single outlets consisting of a floor socket, a height-adjustable single outlet and a formwork body. The square components are inserted directly into the screed and are used to accommodate up to two installation devices. In addition, M25 pipes can be routed through the perforated side walls of the floor socket. The single outlets are made of stainless steel (V2A) and are suitable for use in dry-cleaned and damp-cleaned rooms with office traffic loads. They are available with installation dimensions of 166 x 166 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

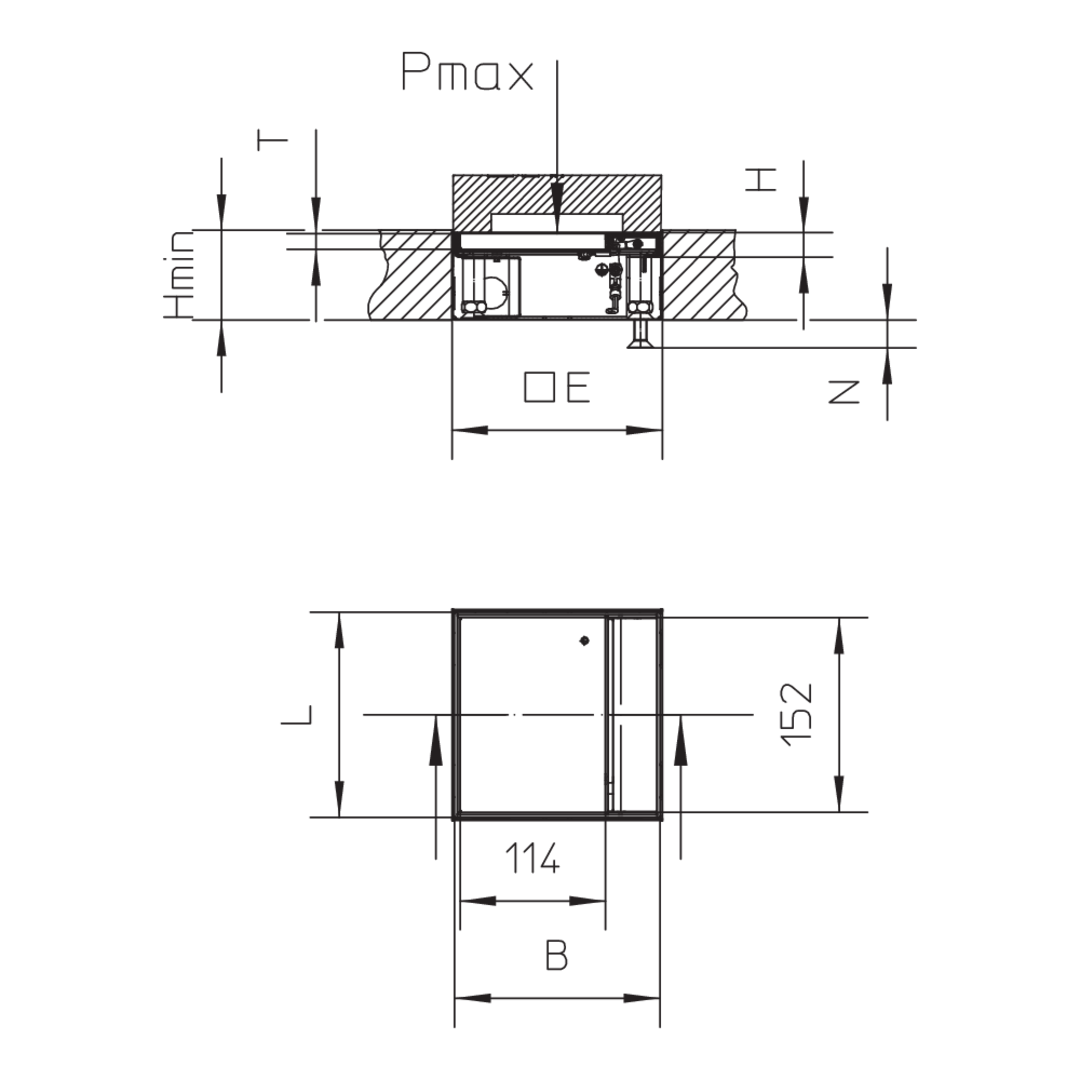

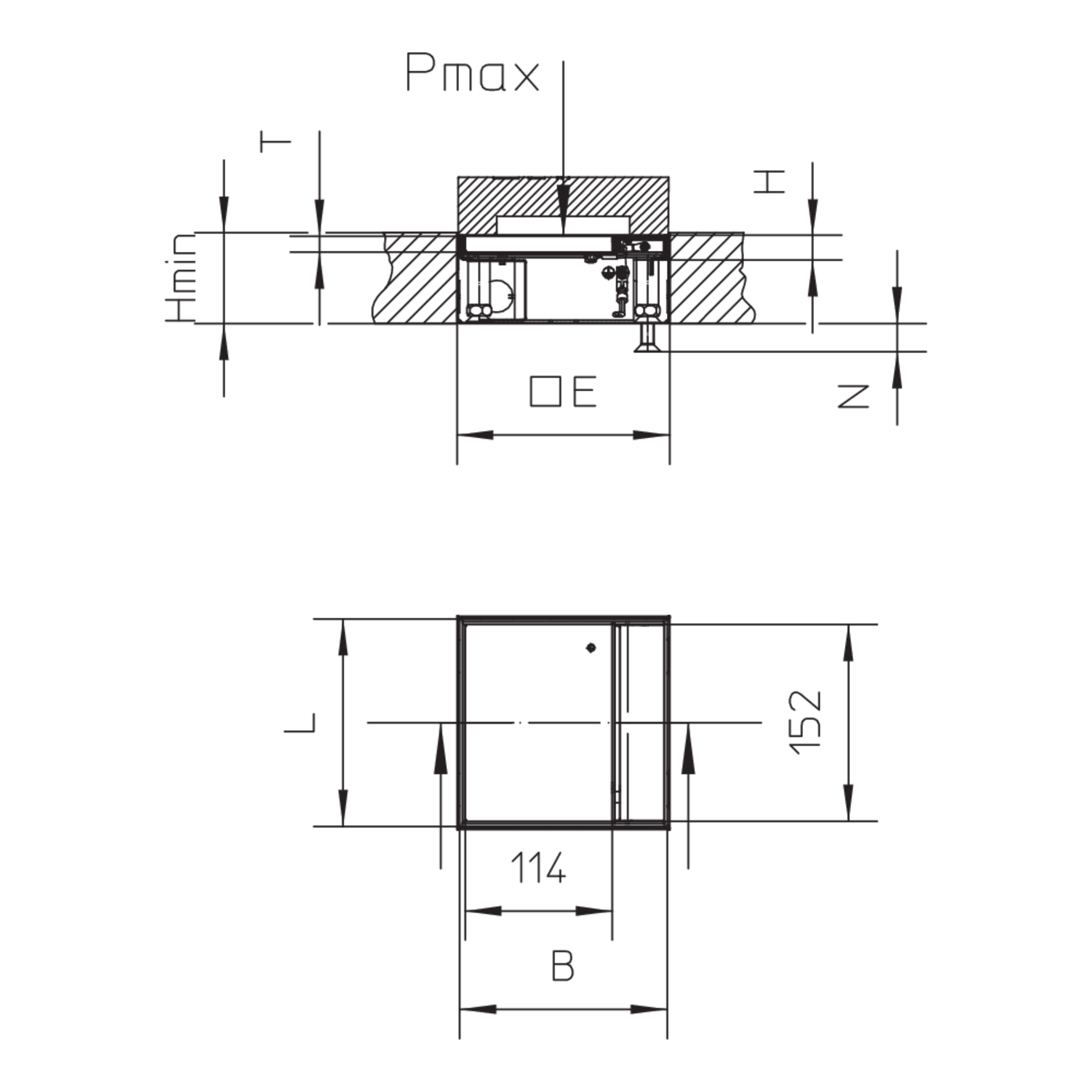

H

height

Hmin

minimum installation height

B

width

L

length

N

levelling range

Pmax

maximum load

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit
  • UKEF160 15-V E
    Dummy single-outlet cartridge,
    19 mm
    70 mm
    160 mm
    160 mm
    20 mm
    2.00 kN
    166 x 166 mm
    IP 20
    IP 30
    2.025 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
