UKE160 VP WD

Stainless steel tube cover compact single outlet, 4-way, angular

The UKE160 VP WD are tube cover compact single outlets consisting of a floor socket, a height-adjustable single outlet and a formwork body. The square components are inserted directly into the screed and are used to accommodate up to four installation devices. In addition, M25 pipes can be routed through the perforated side walls of the floor socket. The outlets are made of flat stainless steel (V2A) and are suitable for use in wet-cleaned rooms with high traffic loads. They are available with installation dimensions of 166 x 166 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

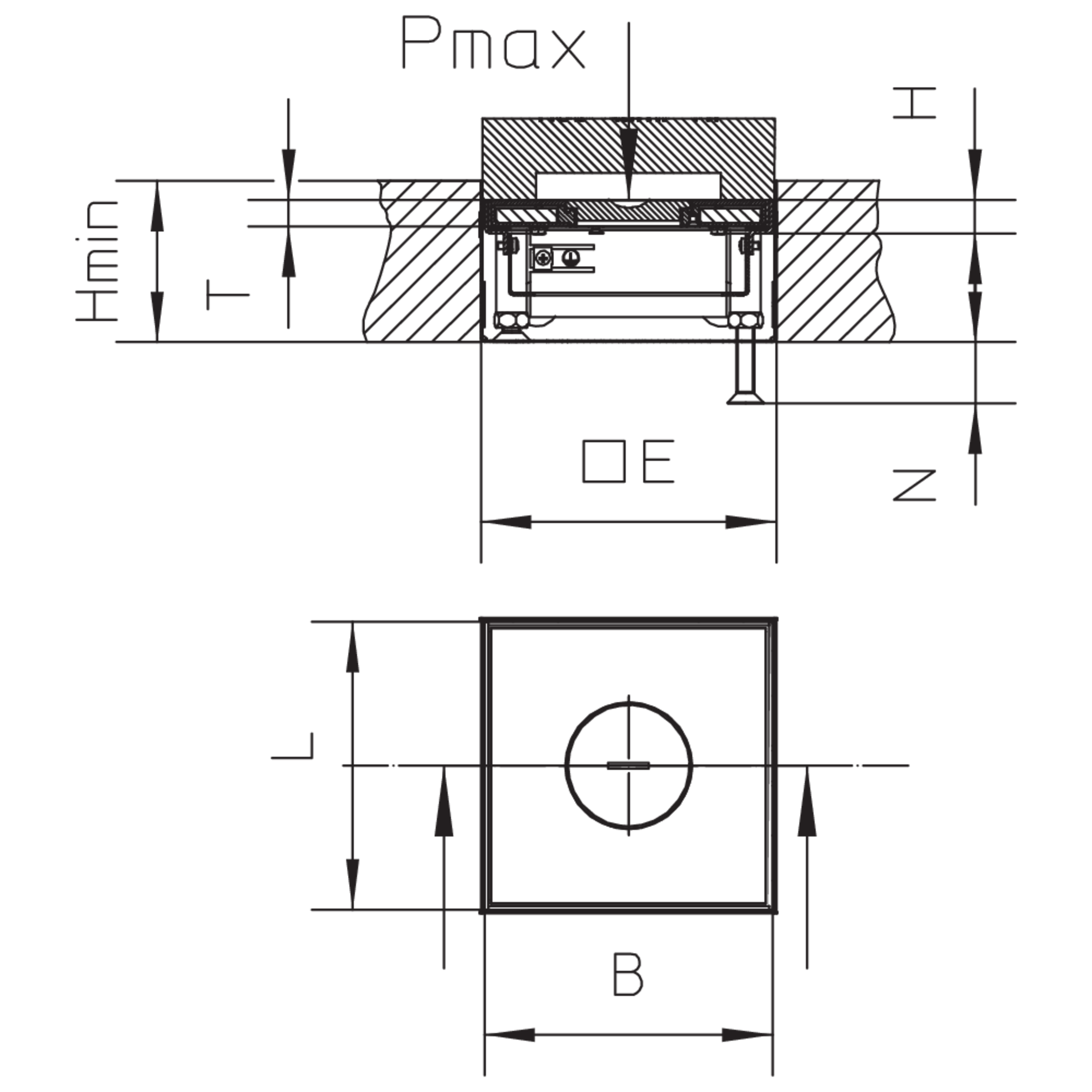

Article

H

Hmin

B

L

N

Pmax

E

IPg

IPn

W

  • UKE160 15-VP-WD
    Compact single outlet
    19 mm
    90 mm
    160 mm
    160 mm
    35 mm
    20.00 kN
    166 x 166 mm
    IP 22
    IP 54
    3.912 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
