UKE125 V

Stainless steel hinged cover compact single outlet, 2x, angular

UKE125 V are hinged cover compact single outlets consisting of a floor socket, a height-adjustable single outlet and a formwork body. The square construction elements are inserted directly into the screed and are used to accommodate up to two installation devices and individual data jacks. In addition, M25 pipes can be routed through the perforated side walls of the floor socket. The single outlets are made of stainless steel (V2A) or brass and are suitable for use in dry-cleaned and damp-cleaned rooms with office traffic loads. They are available with installation dimensions of 131 x 131 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

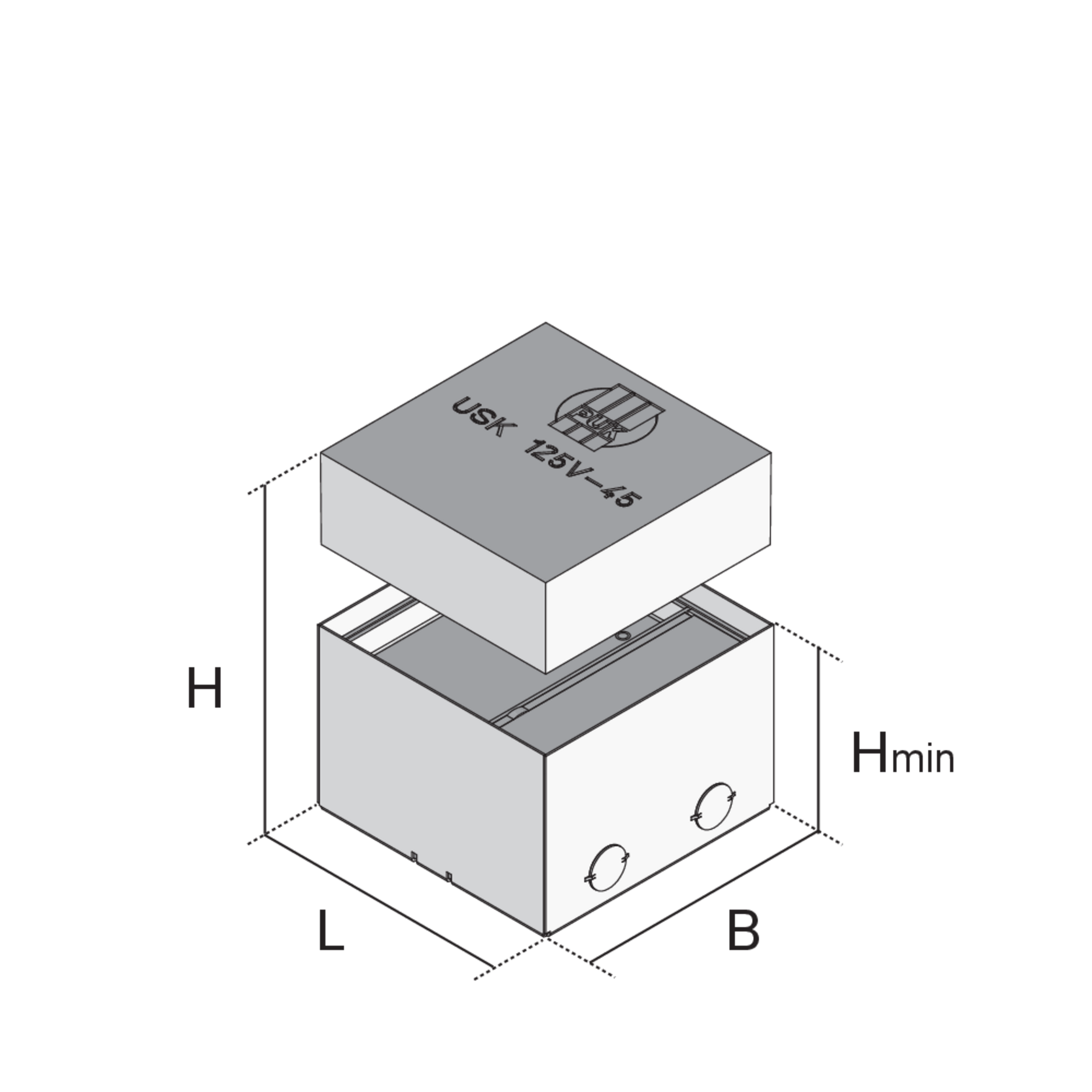

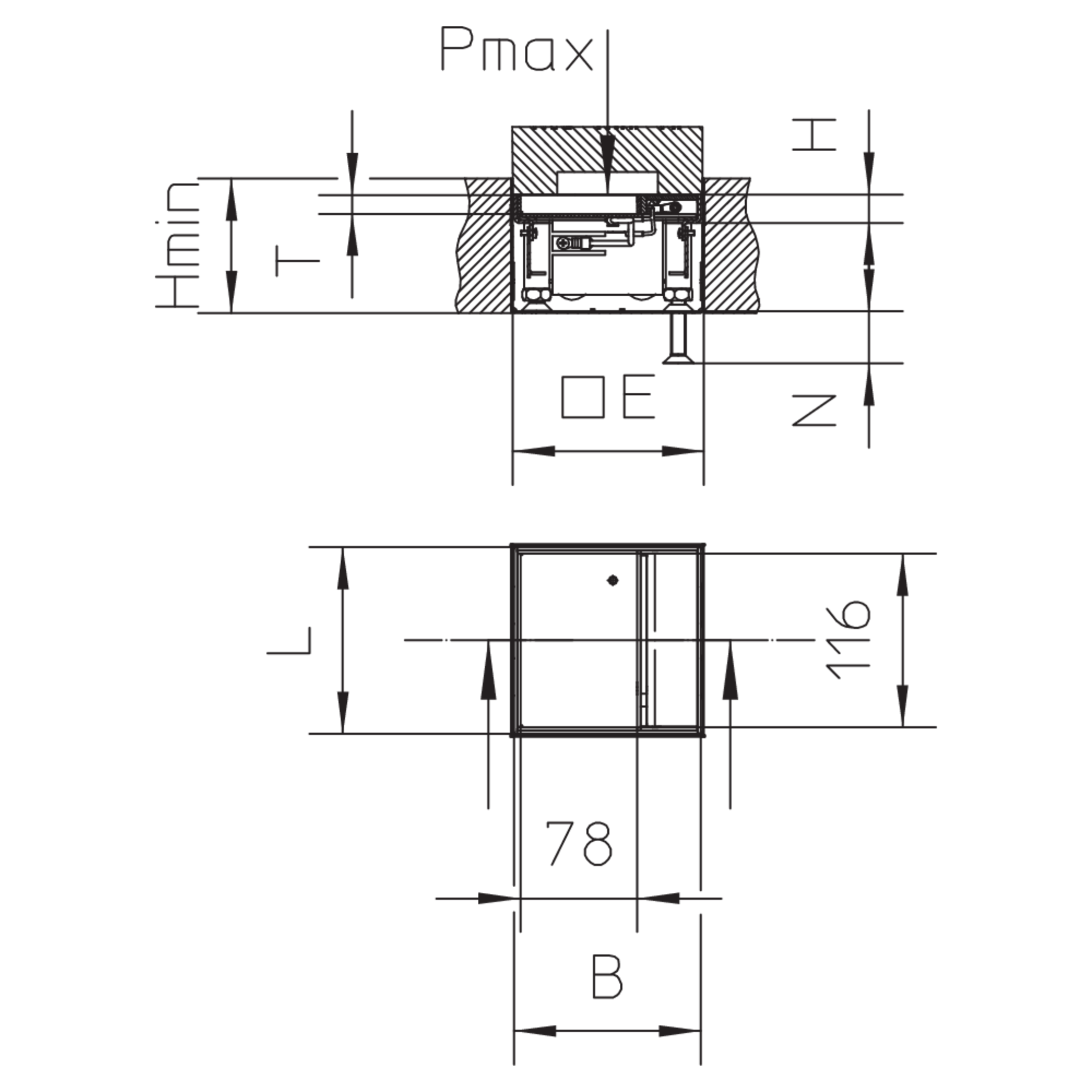

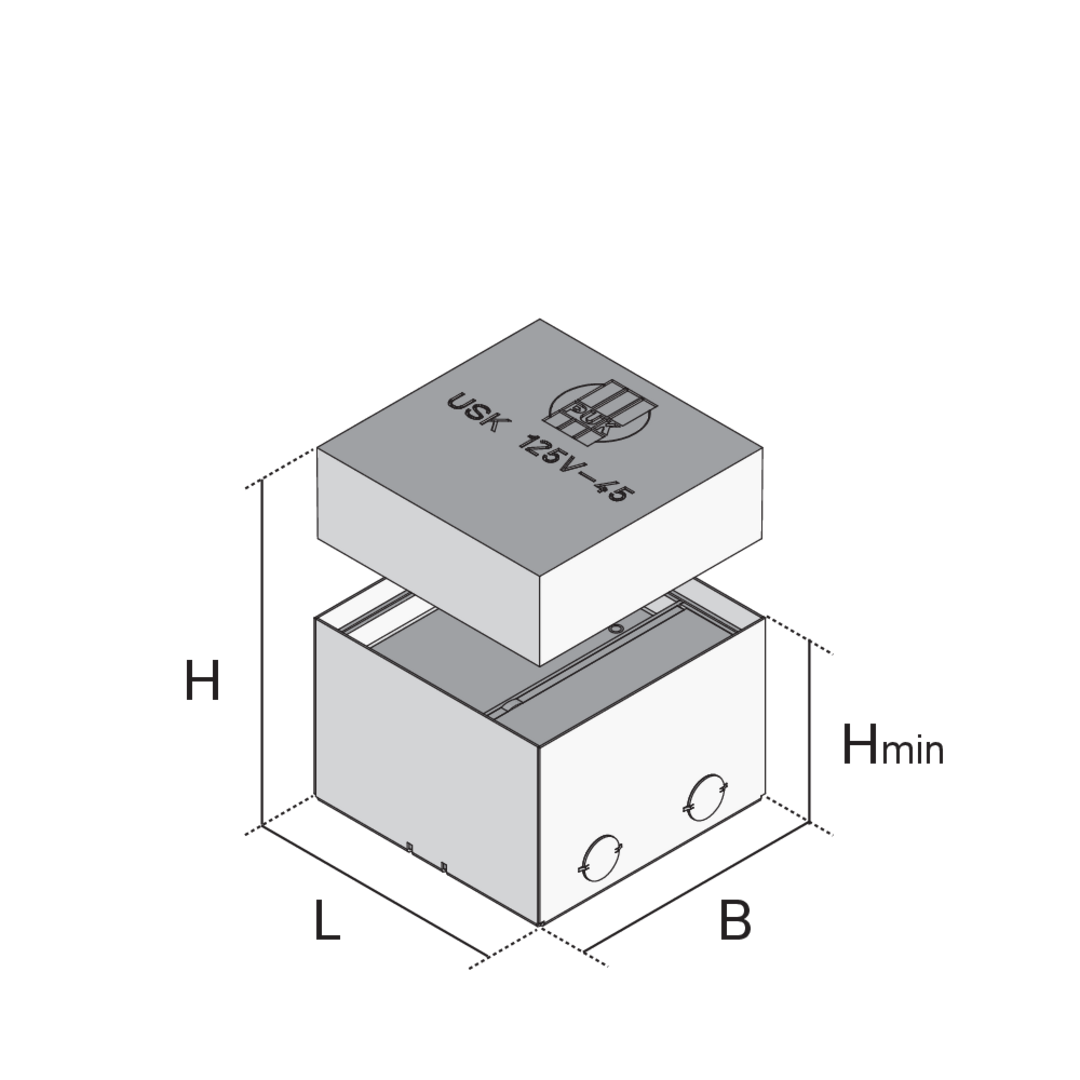

Article

H

Höhe

Hmin

min. Einbauhöhe

B

Breite

L

Länge

N

Nivellierbereich

Pmax

max. Belastung

E

Einbaumaß

IPg

IP-Schutzgrad im genutzten Zustand

IPn

IP-Schutzgrad im nicht genutzten Zustand

G

Gewicht je Lagermengeneinheit
  • UKE125 15-V E
    Kompakteinzelauslass,
    Höhe
    19 mm
    min. Einbauhöhe
    90 mm
    Breite
    125 mm
    Länge
    125 mm
    Nivellierbereich
    35 mm
    max. Belastung
    2.00 kN
    Einbaumaß
    131 x 131 mm
    IP-Schutzgrad im genutzten Zustand
    IP 20
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Gewicht je Lagermengeneinheit
    1.627 kg
    More information
  • UKE125 25-V E
    Kompakteinzelauslass,
    Höhe
    29 mm
    min. Einbauhöhe
    100 mm
    Breite
    125 mm
    Länge
    125 mm
    Nivellierbereich
    35 mm
    max. Belastung
    2.00 kN
    Einbaumaß
    131 x 131 mm
    IP-Schutzgrad im genutzten Zustand
    IP 20
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Gewicht je Lagermengeneinheit
    1.845 kg
    More information
  • UKE125 25-V MS
    Kompakteinzelauslass,
    Höhe
    29 mm
    min. Einbauhöhe
    100 mm
    Breite
    125 mm
    Länge
    125 mm
    Nivellierbereich
    35 mm
    max. Belastung
    2.00 kN
    Einbaumaß
    131 x 131 mm
    IP-Schutzgrad im genutzten Zustand
    IP 20
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Gewicht je Lagermengeneinheit
    2.123 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
