UGWIS-FILS16A

Mounting box pre-assembled with RCCB switch, 16 A, Wieland

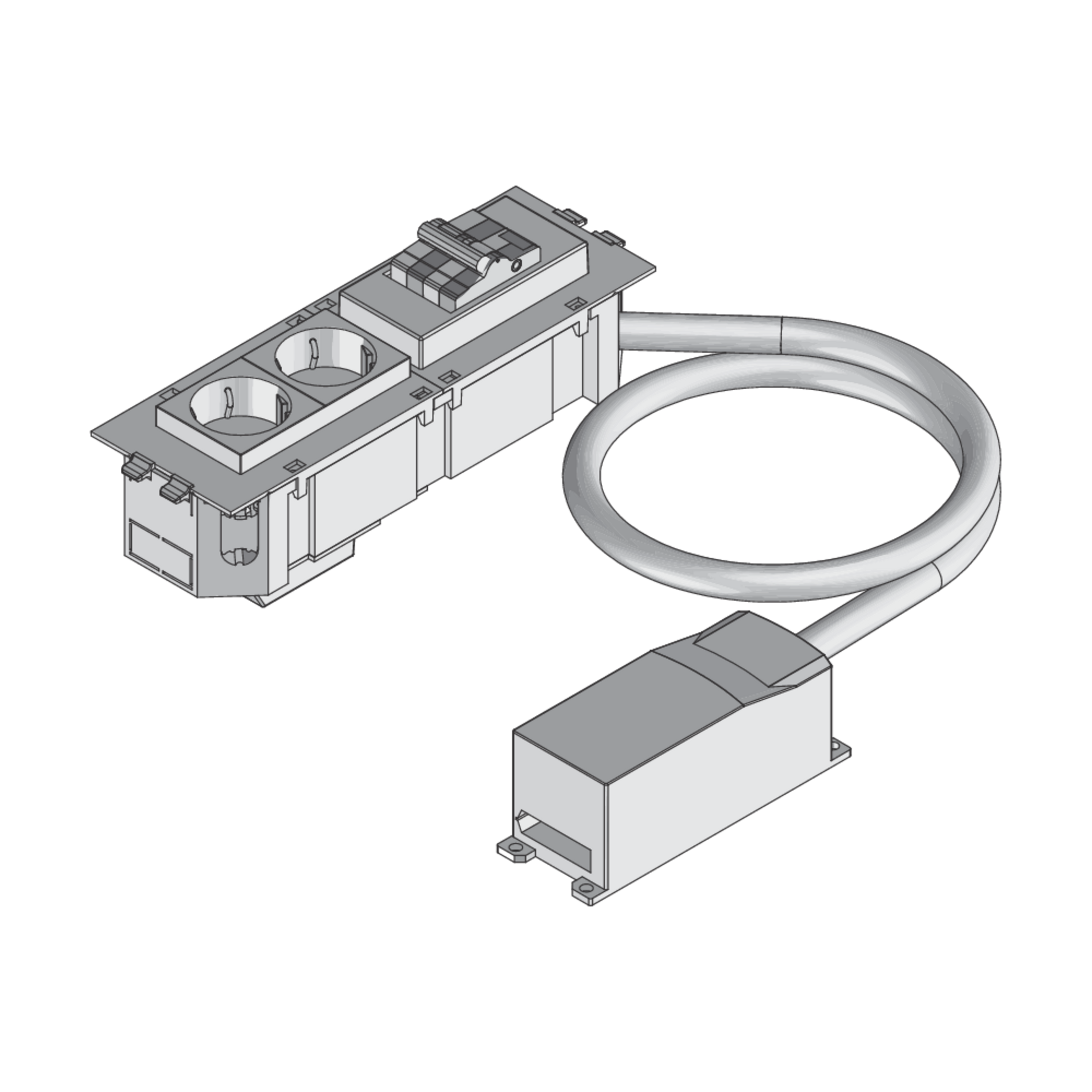

UGWIS-FILS16A components are pre-assembled mounting boxes with a type 6 KA, 1 p + N, 16 A/30 mA residual current circuit breaker. The mounting boxes are connected by a 2000 to 3000 mm long connecting cable with a 4 mm² cable cross-section and a 400 V/32 A flat cable adapter. This connects the 5G10 mm² flat cable, programmed to phase selection L1. They are completed by the addition of a 3-pin Wieland device socket under the mounting box and a 2-way socket. They are made of ABS copolymer.

Get in touch Download datasheet

Variants

Article

H

height

B

width

L

length

connection cable

Colour of Snap-in

KQ

Cable cross-section

G

Weight per storage unit
  • UGWIS-O2FILS16A-200
    device cup pre-assembled
    height
    46 mm
    width
    74 mm
    length
    225 mm
    connection cable
    2000 mm
    Colour of Snap-in
    white
    Cable cross-section
    4 mm2
    Weight per storage unit
    1.669 kg
    More information
  • UGWIS-O2FILS16A-300
    device cup pre-assembled
    height
    46 mm
    width
    74 mm
    length
    225 mm
    connection cable
    3000 mm
    Colour of Snap-in
    white
    Cable cross-section
    4 mm2
    Weight per storage unit
    1.929 kg
    More information
  • UGWIS-W2FILS16A-200
    device cup pre-assembled
    height
    46 mm
    width
    74 mm
    length
    225 mm
    connection cable
    2000 mm
    Colour of Snap-in
    black
    Cable cross-section
    4 mm2
    Weight per storage unit
    1.669 kg
    More information
  • UGWIS-W2FILS16A-300
    device cup pre-assembled
    height
    46 mm
    width
    74 mm
    length
    225 mm
    connection cable
    3000 mm
    Colour of Snap-in
    black
    Cable cross-section
    4 mm2
    Weight per storage unit
    1.929 kg
    More information
