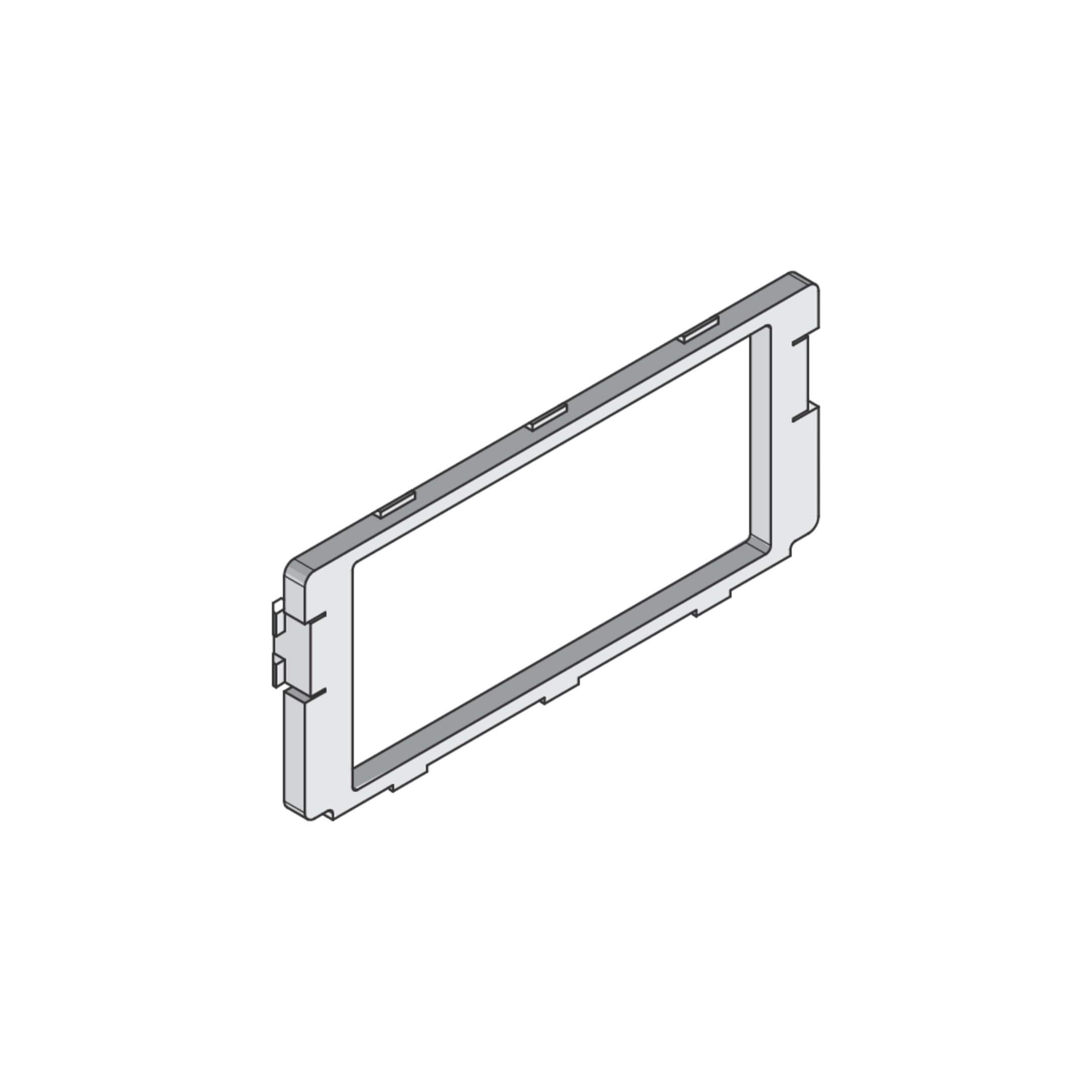

UGEE 2 UST S

Device panel, power technology

The UGEE 2 UST S components are device panels for power technology. They are snapped into a service outlet from the front and are used to accommodate up to two protective sockets with dimensions of 45x45 mm. The panels are made of high-quality polyamide in black (similar to RAL 9011).

Get in touch Download datasheet

Variants

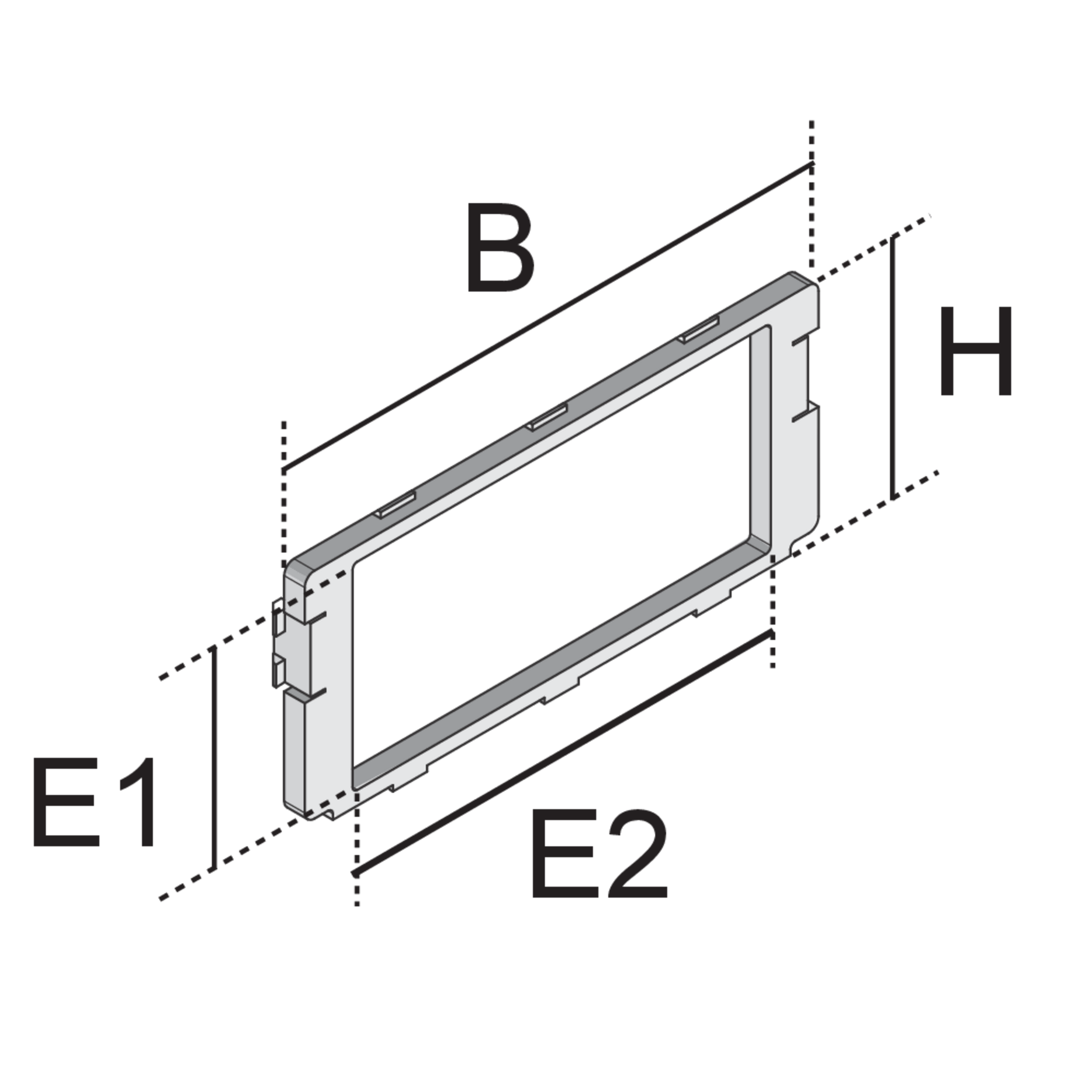

Article

H

height

B

width

E1

fitting dimension E1

E2

fitting dimension E2

colour

color

G

Weight per storage unit

Installation devices

Max. number of installation devices
  • UGEE-2-UST-S
    device screen
    height
    46 mm
    width
    105 mm
    fitting dimension E1
    40.5 mm
    fitting dimension E2
    85.5 mm
    color
    RAL 9011 (graphite black)
    Weight per storage unit
    0.007 kg
    Max. number of installation devices
    2
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

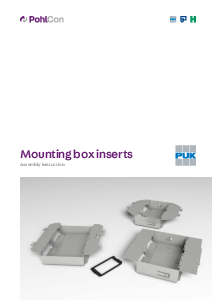

  • Assembly instruction for device installation cups and installation devices
