UGE3 VRK

Mounting box insert, 3x, for plastic units

The UGE3 VRK components are service outlets with side panels that can be bolted into plastic installation units. The inserts can be equipped with up to four installation devices measuring 45x45 mm and up to 6 single data jacks. They are made of sendzimir hot-dip galvanised sheet steel.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

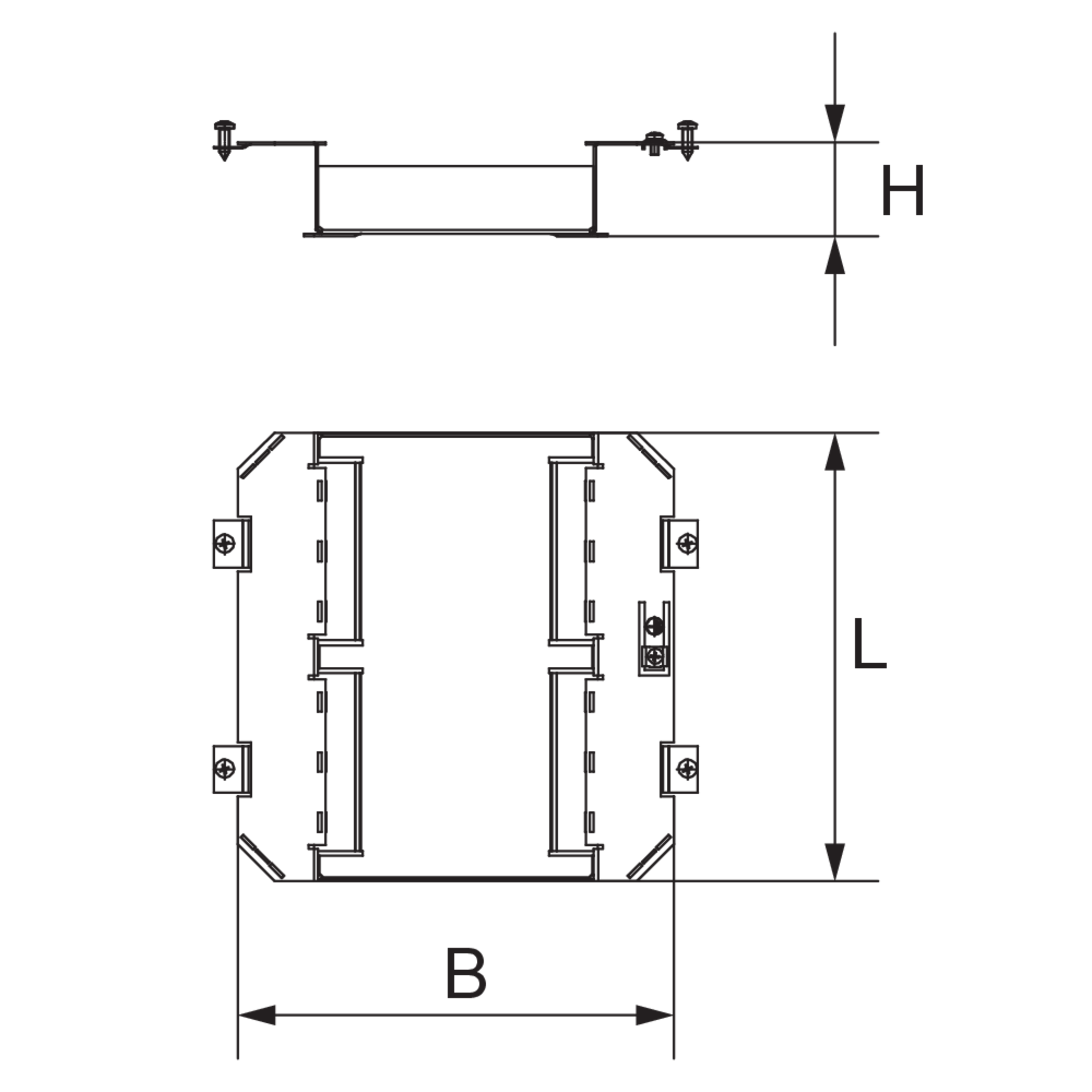

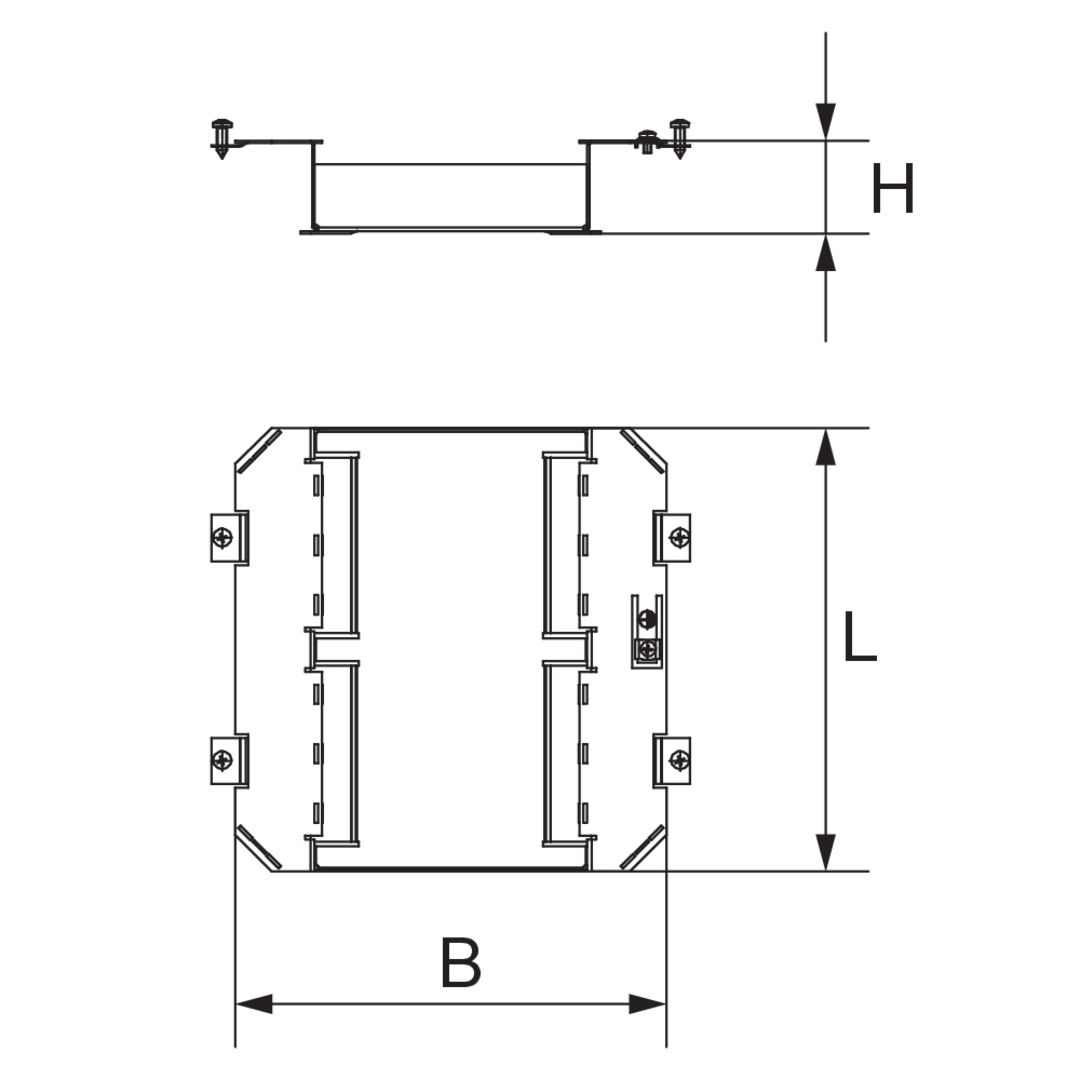

H

Höhe

Hmin

min. Einbauhöhe

B

Breite

L

Länge

Datenjacks

max. Anzahl installierbarer Datenjacks

E1

Einbaumaß E1

E2

Einbaumaß E2

G

Gewicht je Lagermengeneinheit

Installationsgeräte

max. Anzahl Installationsgeräte
  • UGE3-VRK 4
    Geräteeinsatz,
    Höhe
    48 mm
    min. Einbauhöhe
    64 mm
    Breite
    222 mm
    Länge
    231 mm
    max. Anzahl installierbarer Datenjacks
    6
    Einbaumaß E1
    90 mm
    Einbaumaß E2
    46 mm
    Gewicht je Lagermengeneinheit
    0.552 kg
    max. Anzahl Installationsgeräte
    4x 45x45 mm
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
