UGE3 VE

Mounting box insert, 3x, for stainless steel units, angular

The UGE3 VE components are service outlets with side panels that can be bolted into square stainless steel installation units suitable for up to three mounting boxes. The inserts can be equipped with up to four installation devices measuring 45x45 mm and up to 6 single data jacks. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

H

height

Hmin

minimum installation height

B

width

L

length

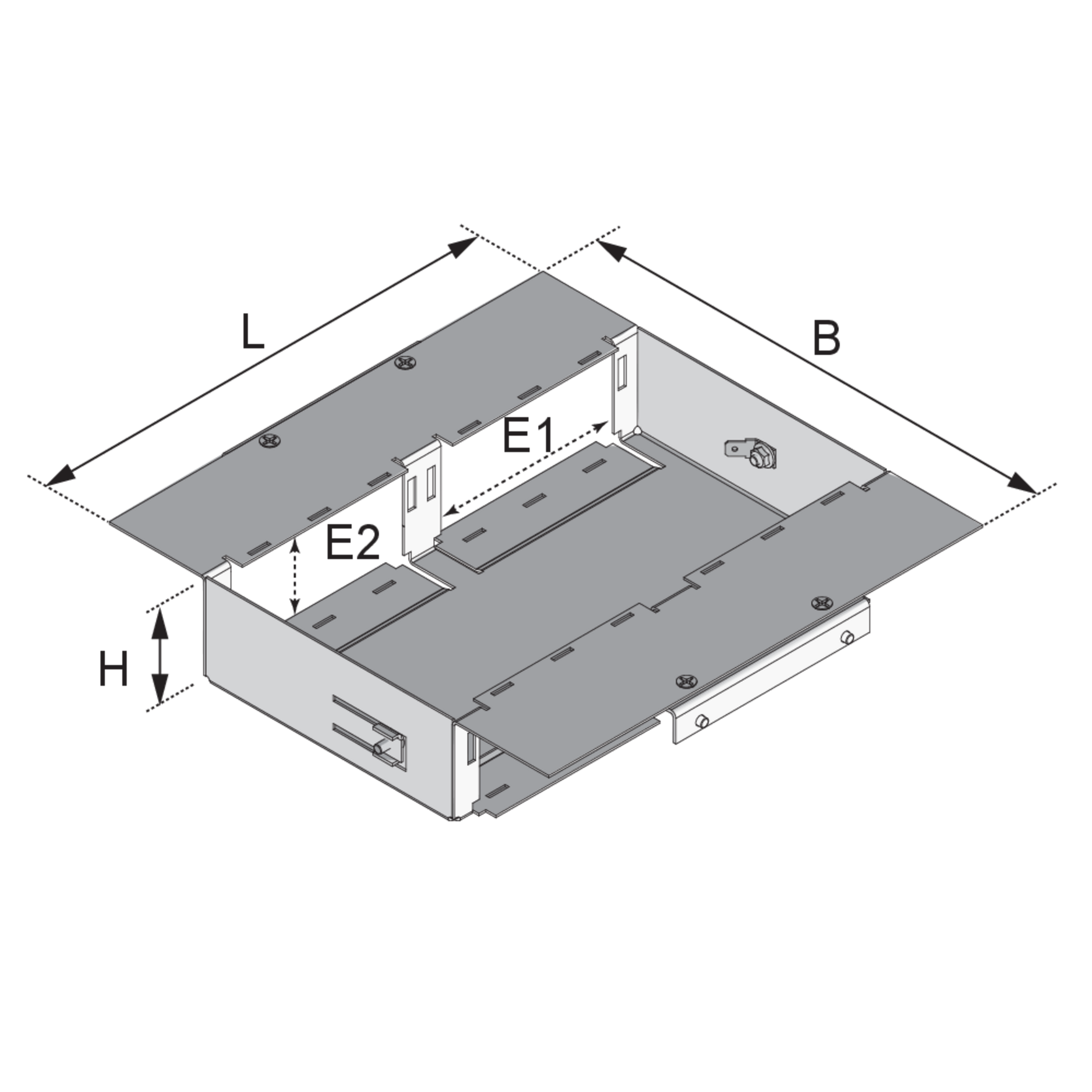

data jacks

Max. number of installable data jacks

E1

fitting dimension E1

E2

fitting dimension E2

G

Weight per storage unit

Installation devices

Max. number of installation devices

  • UGE3-VE 4
    device insert UGE3-VE 8, for triple
    height
    47 mm
    minimum installation height
    85 mm
    width
    227 mm
    length
    224 mm
    Max. number of installable data jacks
    6
    fitting dimension E1
    90 mm
    fitting dimension E2
    46 mm
    Weight per storage unit
    0.626 kg
    Max. number of installation devices
    4x 45x45 mm
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Declaration

    PDF, 106.06 KB

    • de

    Download

    EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    • de

    • en

    Underfloor Systems - Catalogue

    Catalogue

    • de

    • en

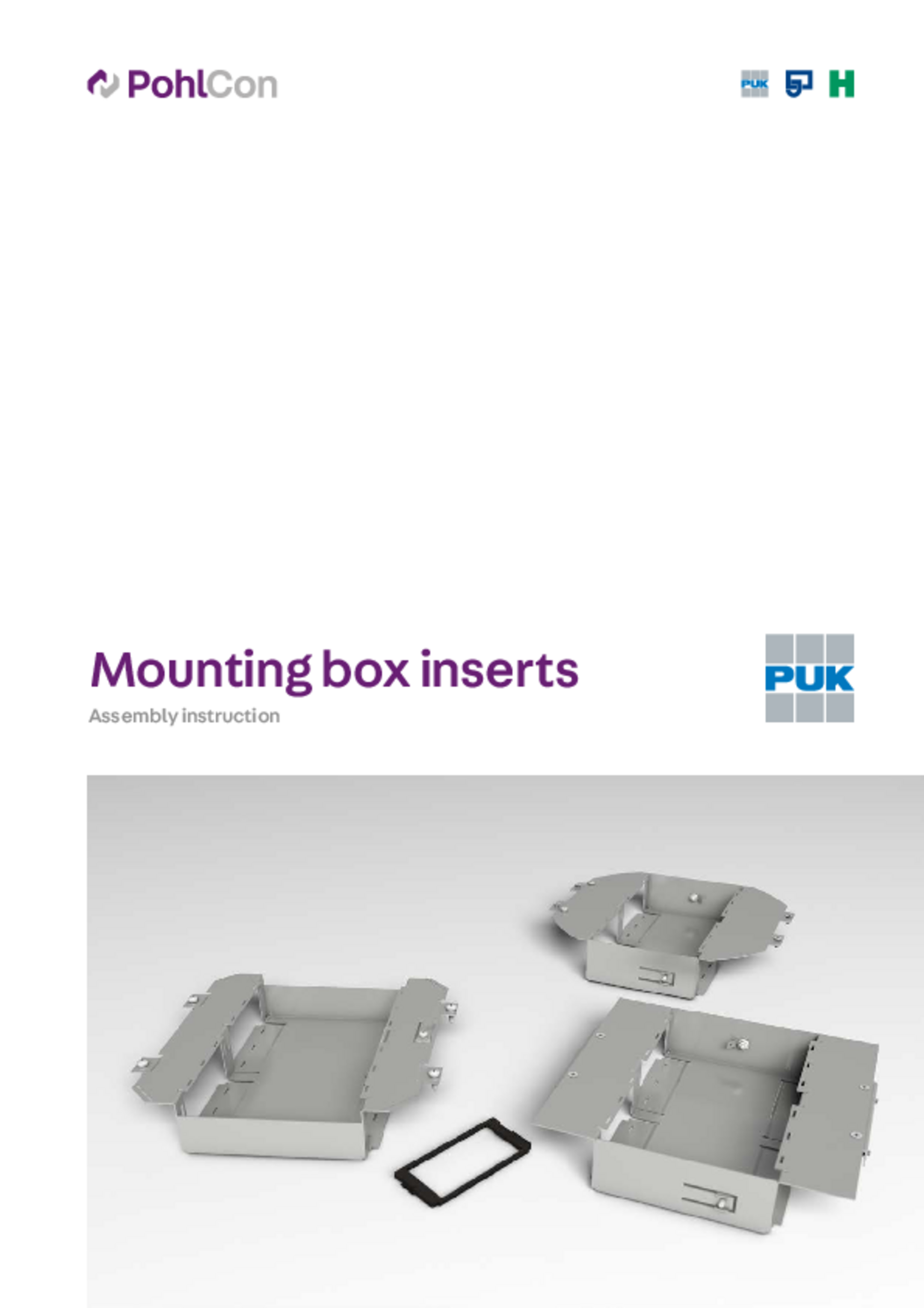

    Assembly instruction for device installation cups and installation devices
