Variants
Article

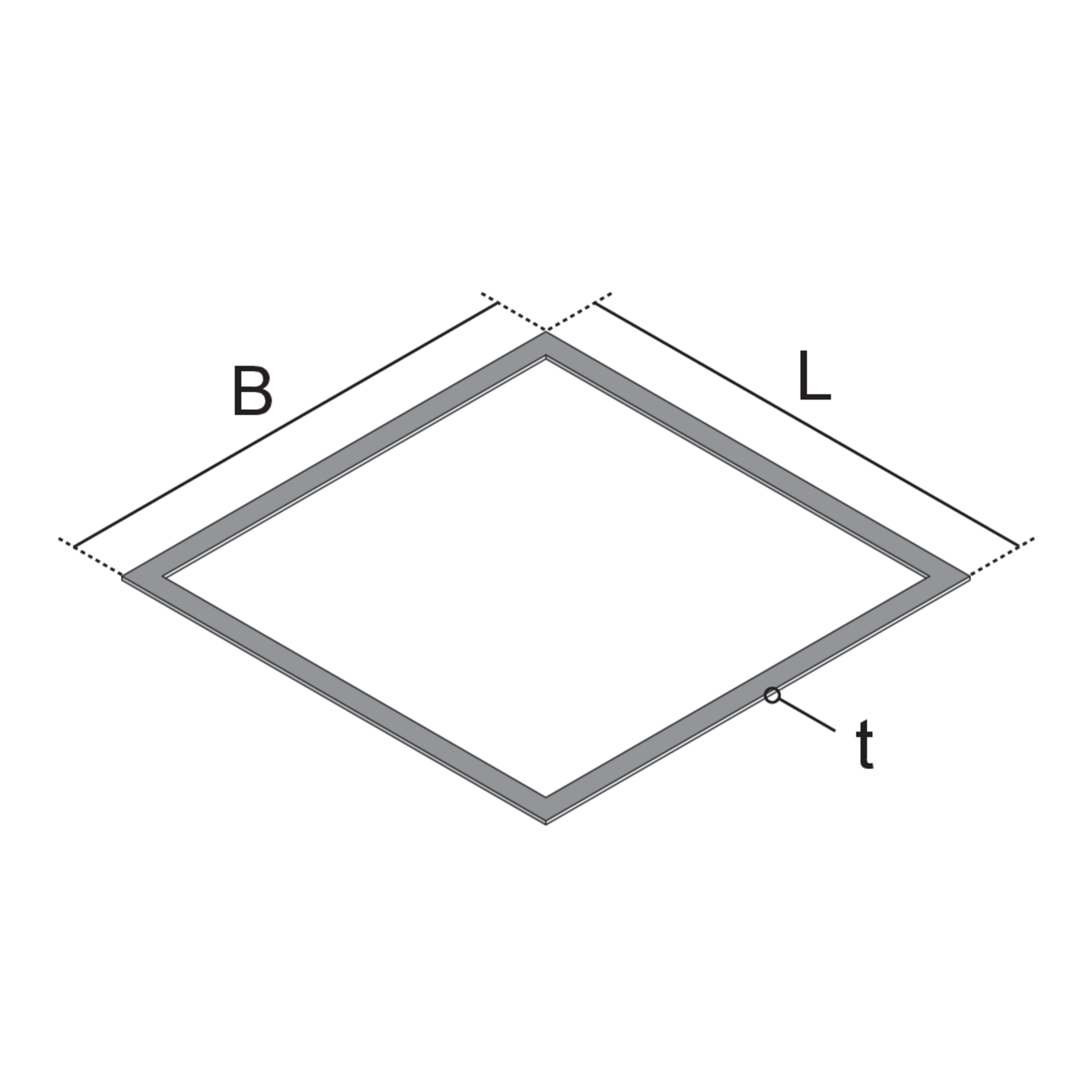

B
width
L
length
t
material thickness
G
Weight per storage unit
- UGD-V 2
rubber seal UGD-V 2width252 mmlength252 mmmaterial thickness2.00 mmWeight per storage unit0.035 kg
UGD V
Rubber seal, square
UGD V components are square rubber seals with a self-adhesive coating on one side. These accessories from the underfloor system range are bonded into stainless steel installation units. They are used to reliably decouple impact sound and securely seal the installation units against dirt and moisture. The product is made of durable rubber. It is 252 mm across and is made from material 2 mm thick.
Tender texts
Accessories
UEKD V E
Stainless steel hinged cover unit, 3x, angular
UEKDD V E
Stainless steel hinged cover cartridge, 3x, angular
UEKDD VP E
Stainless steel hinged cover cartridge, 3x, angular, flat

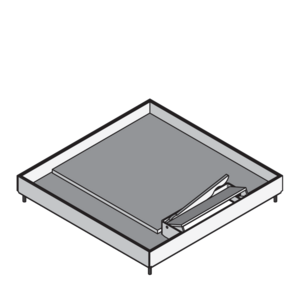

UEKDS V E
Stainless steel hinged cover unit with steel insert, 3x, angular
UEBDD V E
Stainless steel dummy cover cartridge, 3x, angular
