UGD R

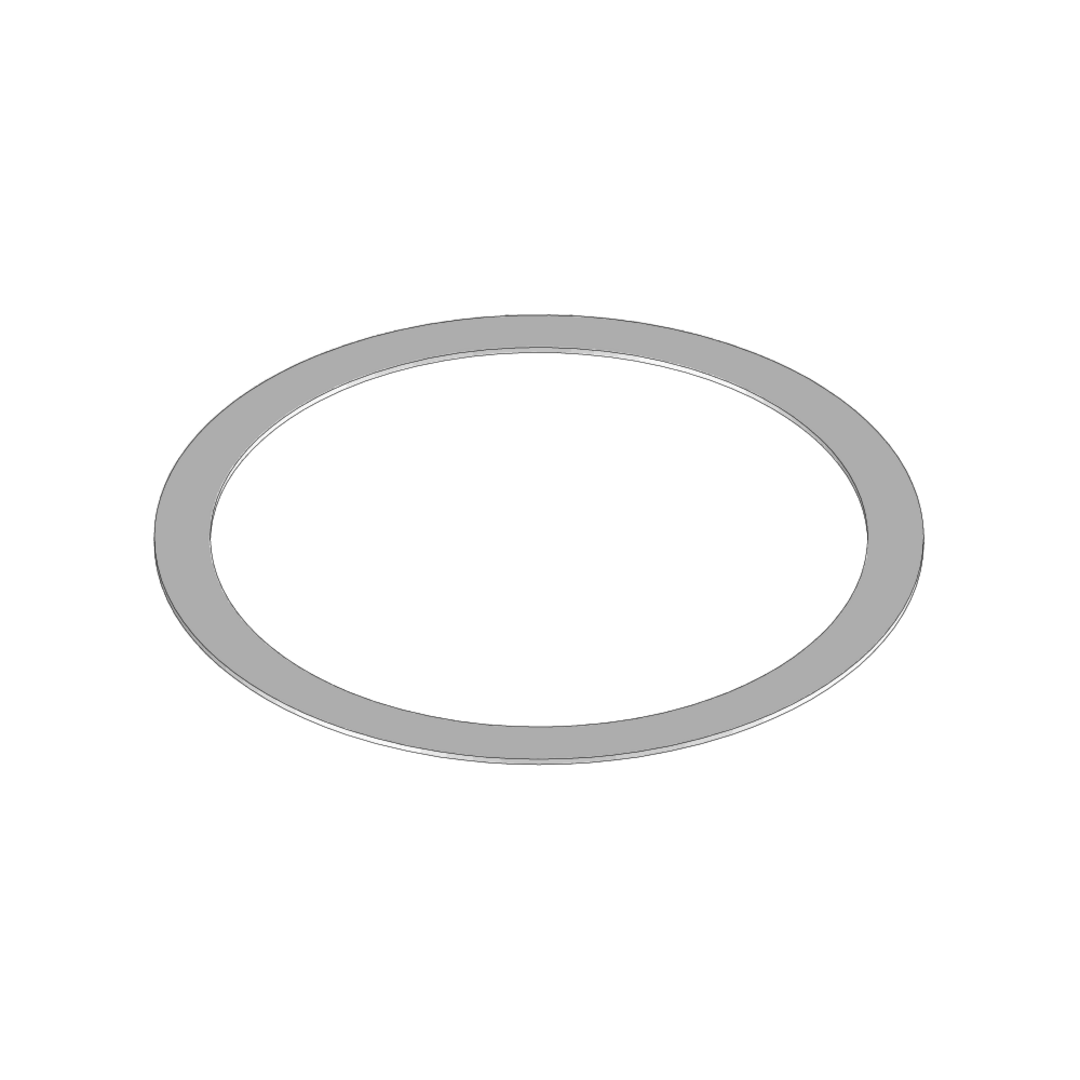

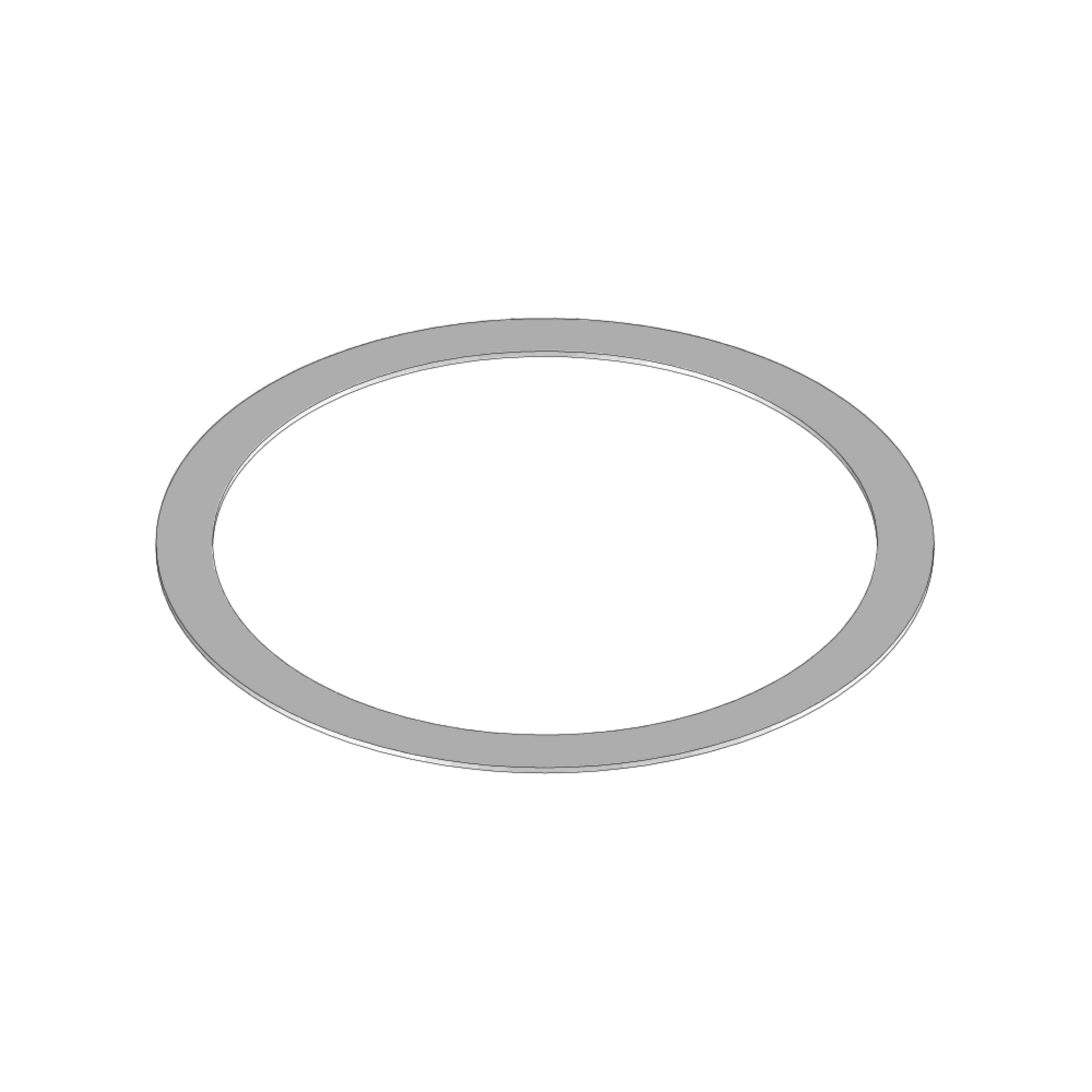

Rubber seal, round

The UGD R components are round rubber seals. These accessories from the underfloor systems range can be placed or bonded onto the frames of various cartridge units. They are used to reliably decouple impact sound and securely seal the installation units against dirt and moisture. The product is made of durable rubber. It is 10 mm wide, mm in diameter and is made from material 2 mm thick.

Get in touch Download datasheet

Variants

Gummi

Article

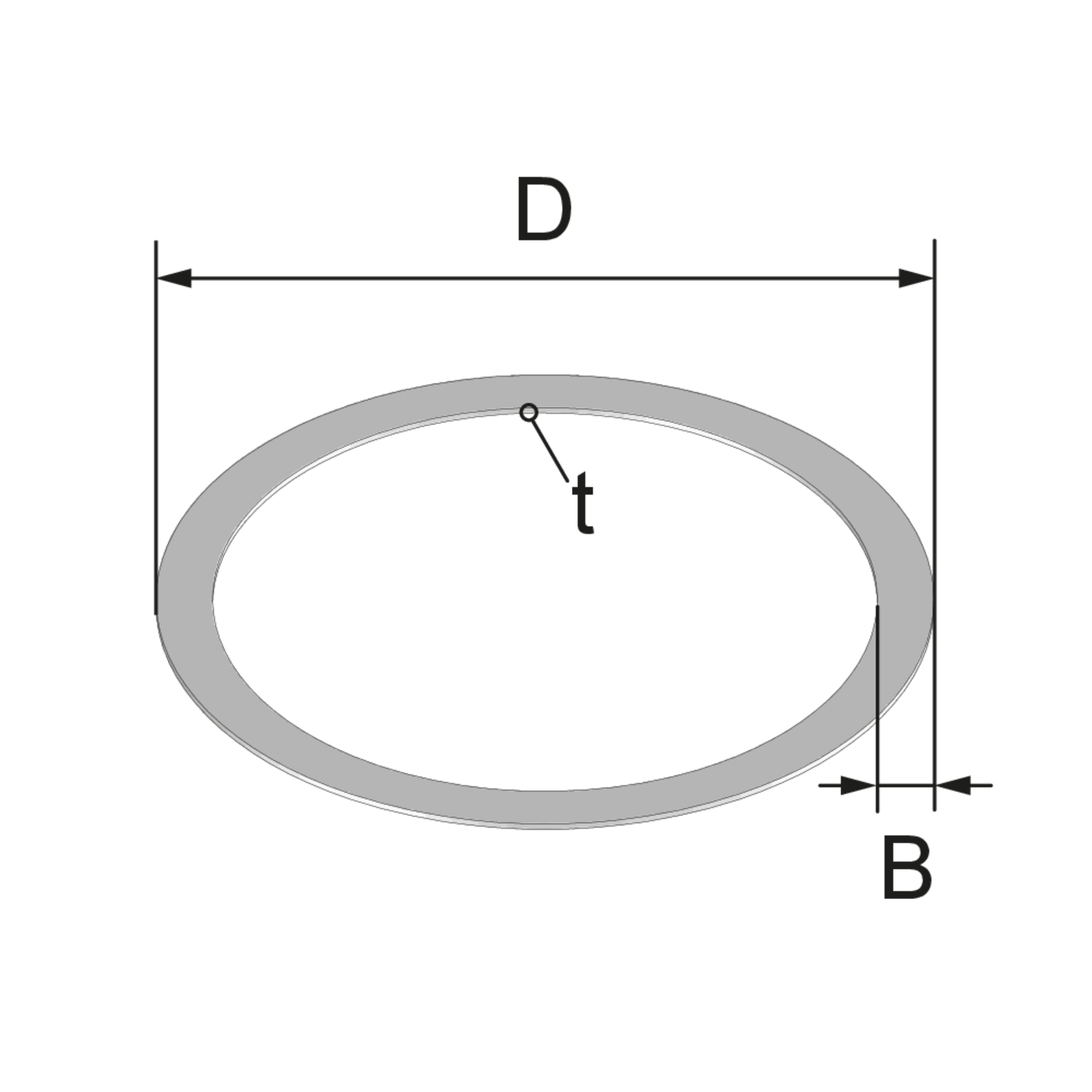

B

Breite

t

Materialstärke

D

Durchmesser

G

Gewicht je Lagermengeneinheit
  • UGD-R 10-2
    Gummidichtung
    Breite
    10 mm
    Materialstärke
    2.00 mm
    Durchmesser
    297 mm
    Gewicht je Lagermengeneinheit
    0.024 kg
    More information
  • UGD-R 10-3
    Gummidichtung
    Breite
    10 mm
    Materialstärke
    3.00 mm
    Durchmesser
    295 mm
    Gewicht je Lagermengeneinheit
    0.047 kg
    More information
  • UGD2-R 10-2
    Gummidichtung
    Breite
    9 mm
    Materialstärke
    2.00 mm
    Durchmesser
    249 mm
    Gewicht je Lagermengeneinheit
    0.018 kg
    More information
