UEBDD R E

Stainless steel dummy cover cartridge, 3x, round

UEBDD R E components are round dummy cover cartridges for the installation of up to three mounting boxes. These installation units consist of a floor covering protection frame with a dummy insert cartridge, a UGD-R rubber seal and the universal fixing claw set UDBS 40-80. They are designed for dry-cleaned or damp-cleaned rooms with office traffic loads and are used in floor sockets, assembly covers and raised or false floor openings. Both the cartridge and the frame are made of stainless steel V2A. They have an IP protection class of IP 30 in an unused condition, an IP protection class of IP 20 when used, an installation dimension of 307 mm, a minimum installation height of 90 or 100 mm and a max. load of 2 kN.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

height

Hmin

minimum installation height

B

width

Pmax

maximum load

mounting box

maximum number of installable device casings

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit
  • UEBDD 15-R E
    cartridge installation unit,
    height
    71 mm
    minimum installation height
    90 mm
    width
    330 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    307 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    12 mm
    Weight per storage unit
    2.177 kg
    Included accessories
    More information
  • UEBDD 25-R E
    cartridge installation unit,
    height
    81 mm
    minimum installation height
    100 mm
    width
    330 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    307 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    22 mm
    Weight per storage unit
    2.437 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

  • VDE Certificate 40035723 Stainless Steel Units

    Zertifikat

    PDF, 316 KB

    de en

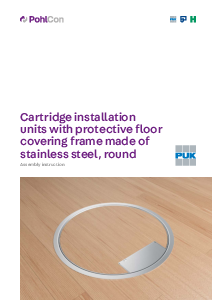

  • Installation Instructions UEKDD R E
