UEKD RP E

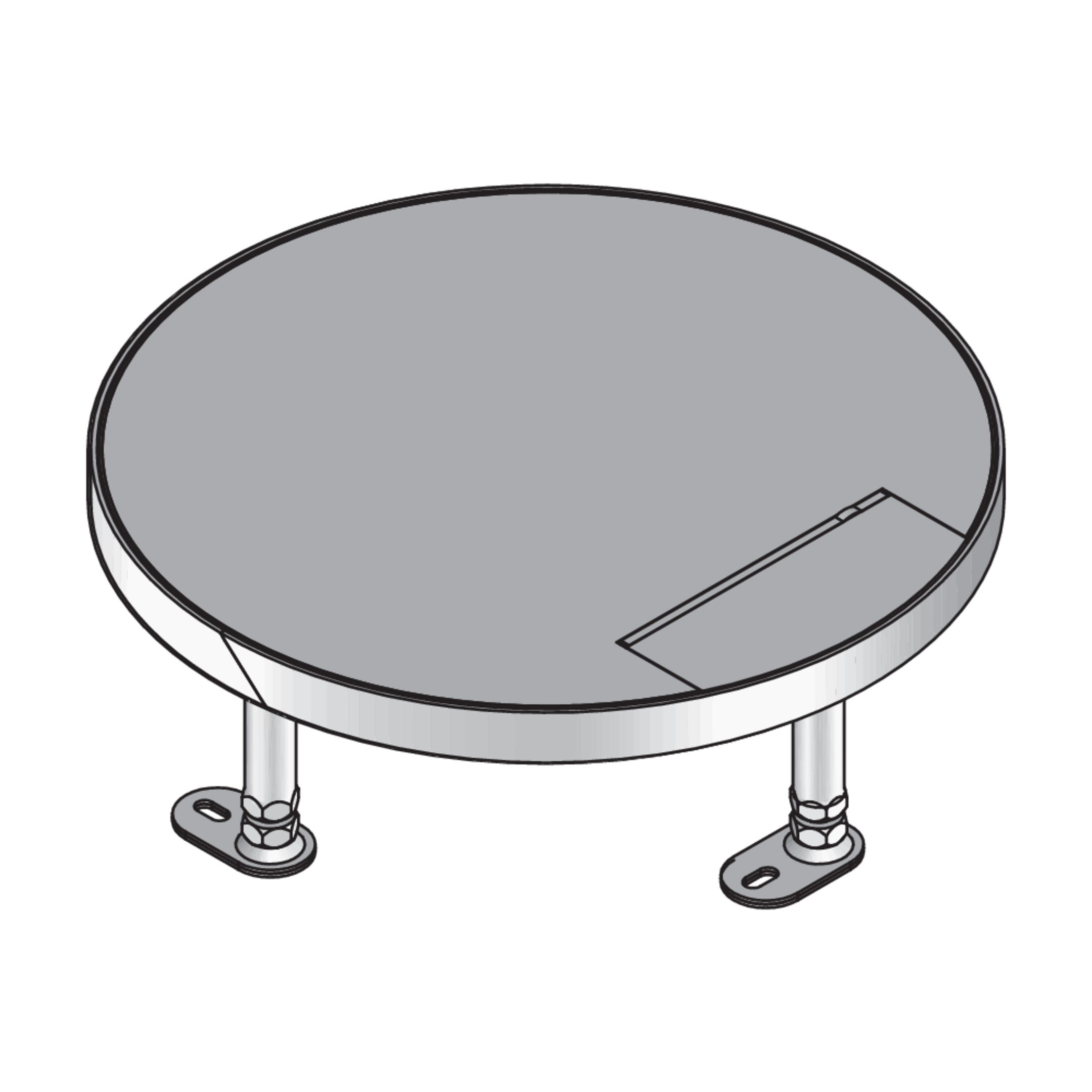

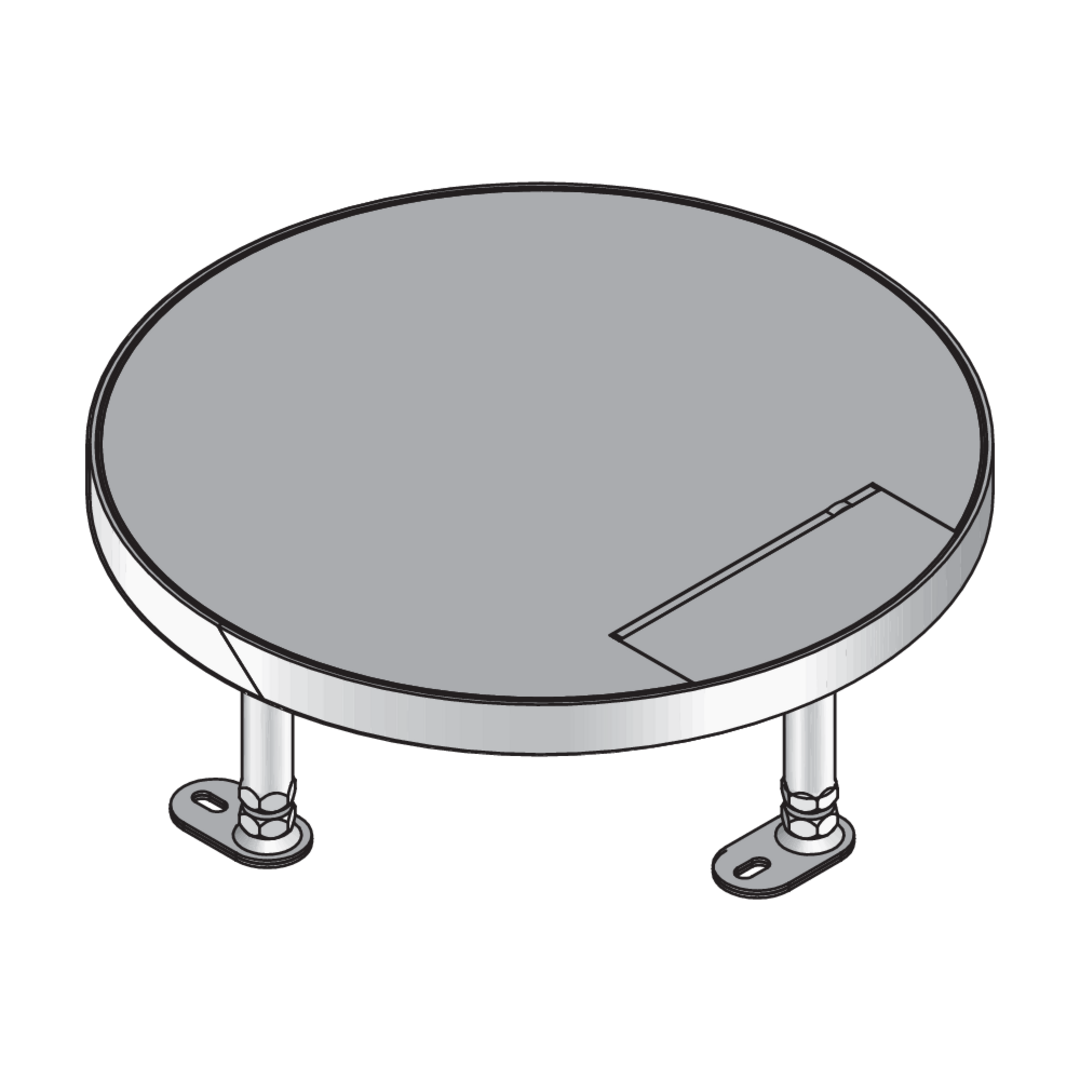

Stainless steel hinged cover unit, 3x, round, flat

UEKD RP E installation units are round dummy cover units with abutting edges. They can accommodate a maximum of three mounting boxes. They consist of height-adjustable cartridge mounting frames with a dummy insert cartridge and a rubber seal and are suitable for dry-cleaned and wet-cleaned rooms with office traffic loads. They are installed in UBDHB floor sockets, assembly covers and raised or false floor openings. The components are made of stainless steel V2A and have a flat, blasted surface. They have an IP protection class of IP 30 in an unused condition, a max. load capacity of 4.00 kN, a levelling range of 55 mm and installation dimensions of 307 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

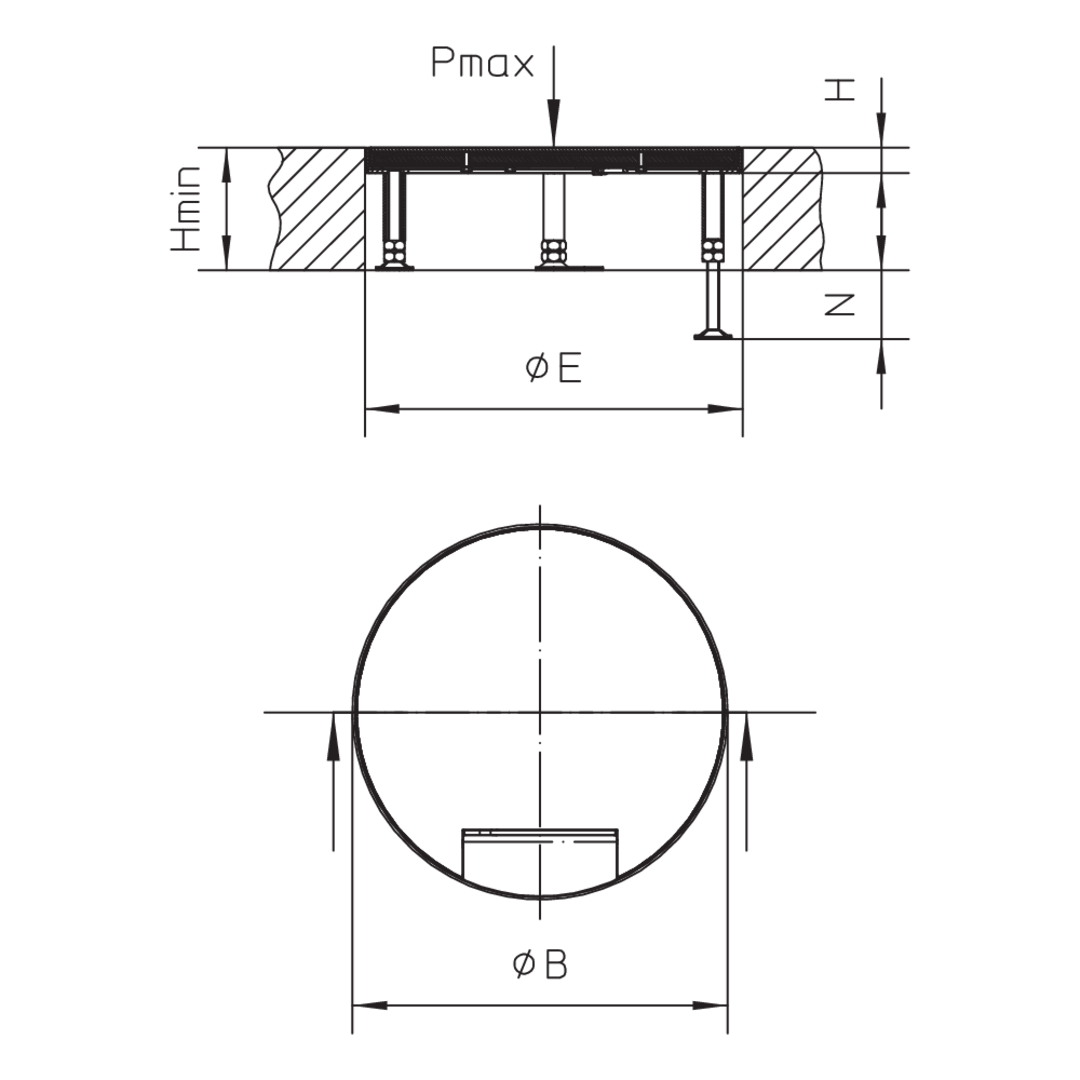

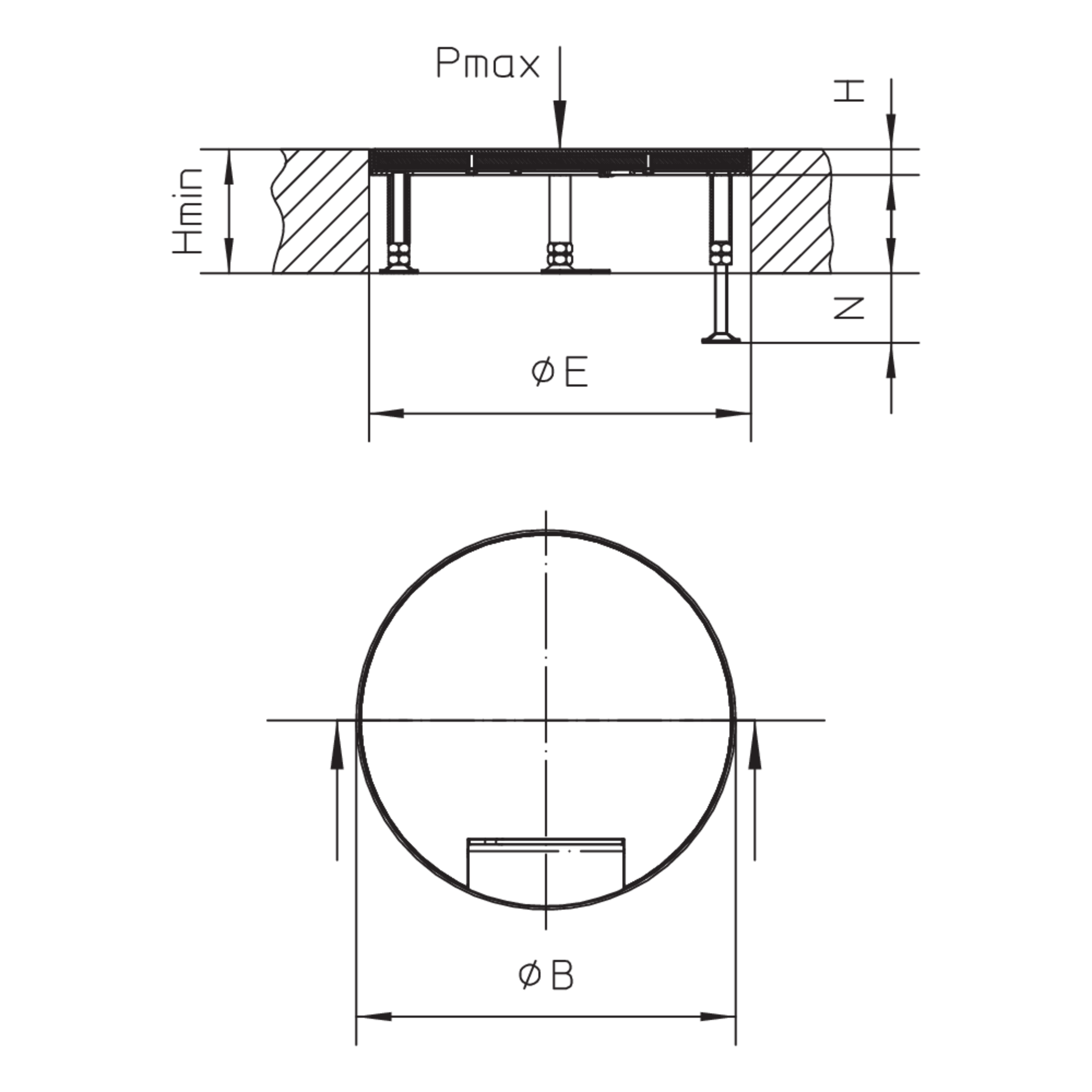

H

Höhe

Hmin

min. Einbauhöhe

N

Nivellierbereich

Pmax

max. Belastung

ØB

Einbaudurchmesser

ØE

Einbaumaß

IPg

IP-Schutzgrad im genutzten Zustand

IPn

IP-Schutzgrad im nicht genutzten Zustand

G

Gewicht je Lagermengeneinheit
  • UEKD 15-RP E
    Kassetteneinheit,
    Höhe
    19 mm
    min. Einbauhöhe
    100 mm
    Nivellierbereich
    55 mm
    max. Belastung
    4.00 kN
    Einbaudurchmesser
    304 mm
    Einbaumaß
    307 mm
    IP-Schutzgrad im genutzten Zustand
    IP 20
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Gewicht je Lagermengeneinheit
    5.656 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
