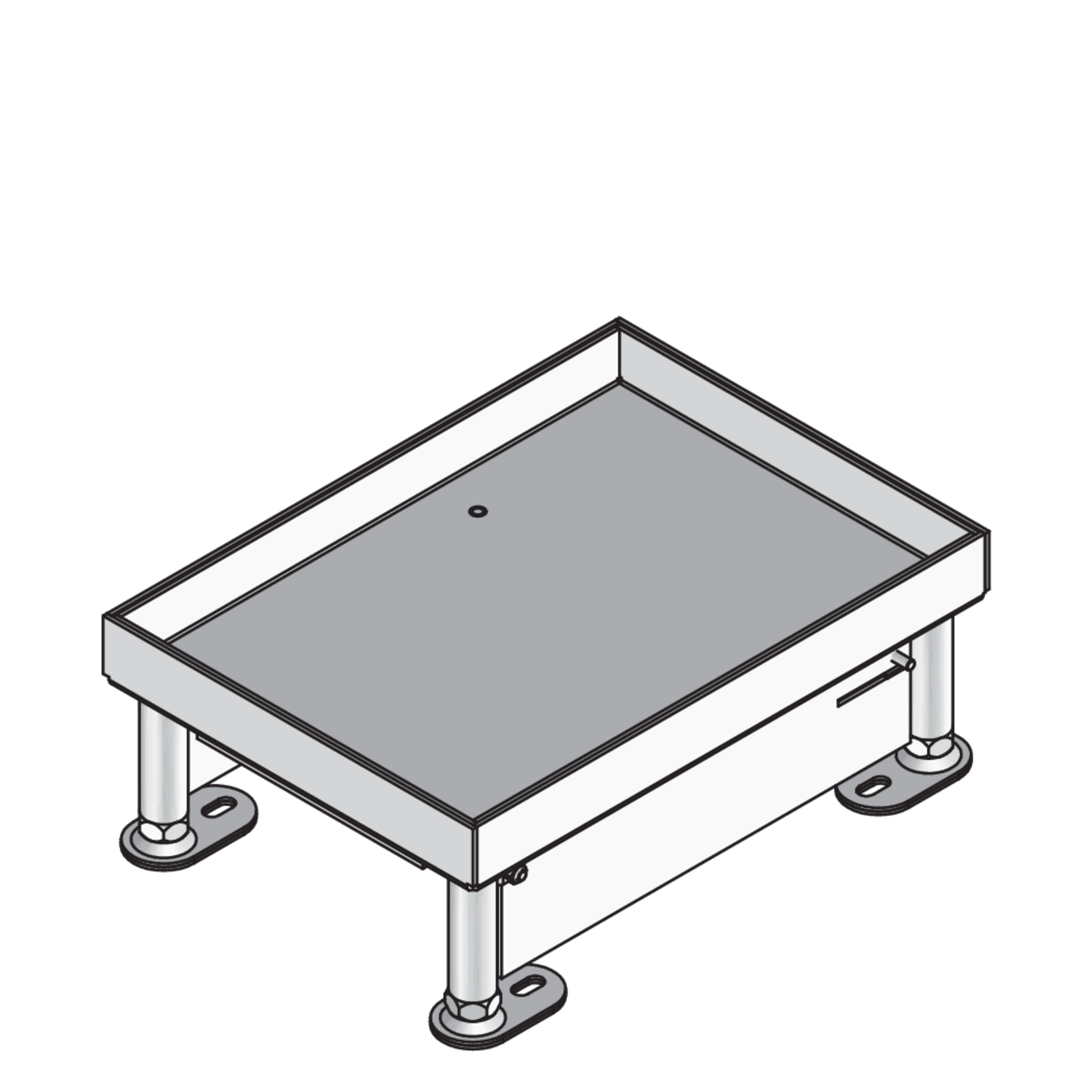

Stainless steel dummy cover unit, 2x, angular

UEBD2 V E components are dummy covers with abutting edges. They consist of a height-adjustable installation unit, a rubber seal and a dummy cartridge for holding a maximum of two mounting boxes. The units are suitable for installation in UBDHB floor sockets and raised or false floor openings in dry-cleaned and wet-cleaned rooms with office traffic loads. They are made of stainless steel V2A. They have an IP protection level of IP 30 in an unused condition, a maximum load capacity of 1.5 kN, an adjustment range of 45 mm, an installation dimension of 261 x 186 mm and a minimum installation height of 90 or 100 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Stainless steel, according to ASTM 304 / BS 304 S 3

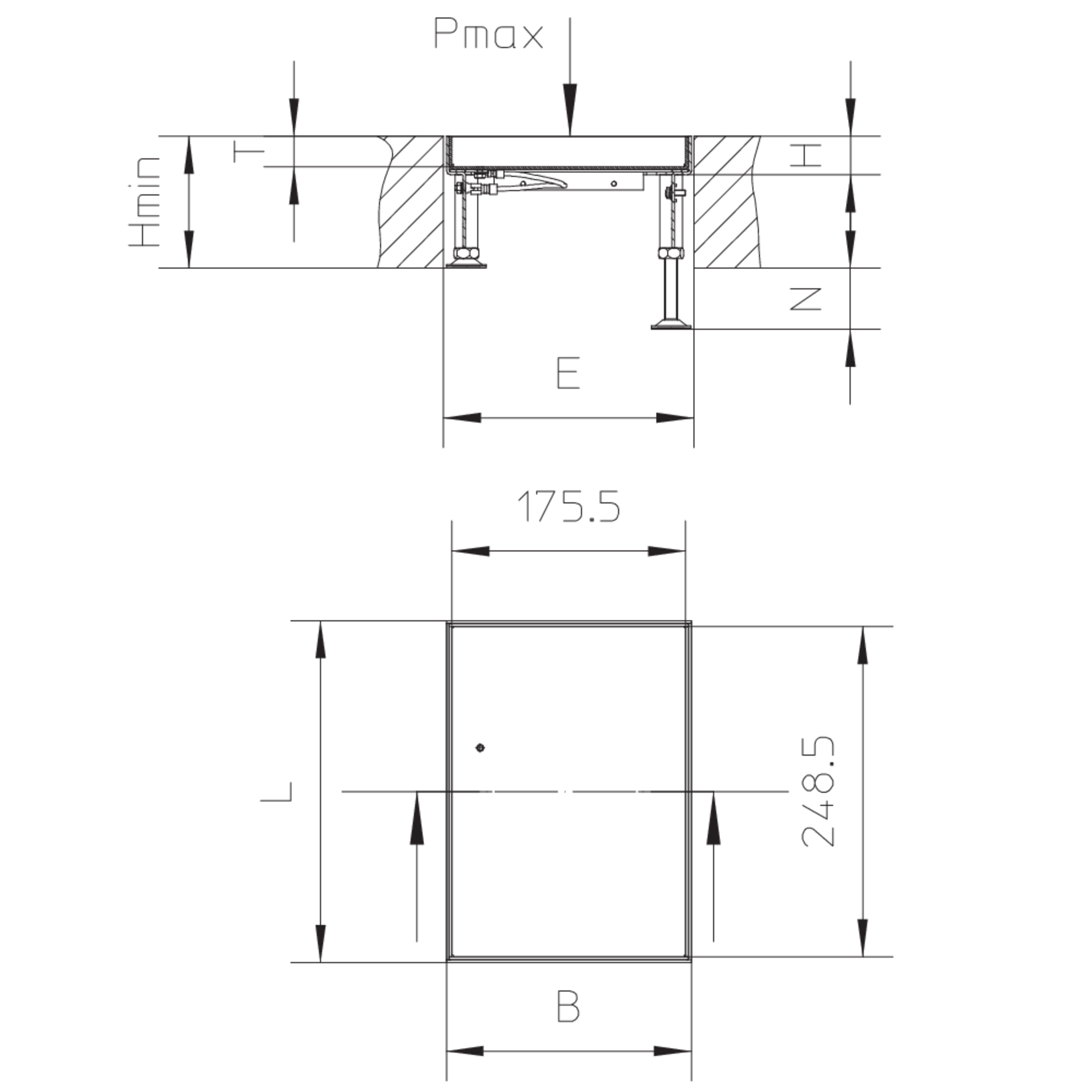

Article

H

Hmin

B

L

N

Pmax

E

IPn

T

W

  • UEBD2 15-V E
    cartridge unit,
    19 mm
    90 mm
    185 mm
    258 mm
    45 mm
    1.50 kN
    261 x 188 mm
    IP 30
    12 mm
    2.217 kg
    More information
  • UEBD2 25-V E
    cartridge unit,
    29 mm
    100 mm
    185 mm
    258 mm
    45 mm
    1.50 kN
    261 x 188 mm
    IP 30
    22 mm
    2.485 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
