UEBD2 R E

Stainless steel dummy cover unit, 2x, round

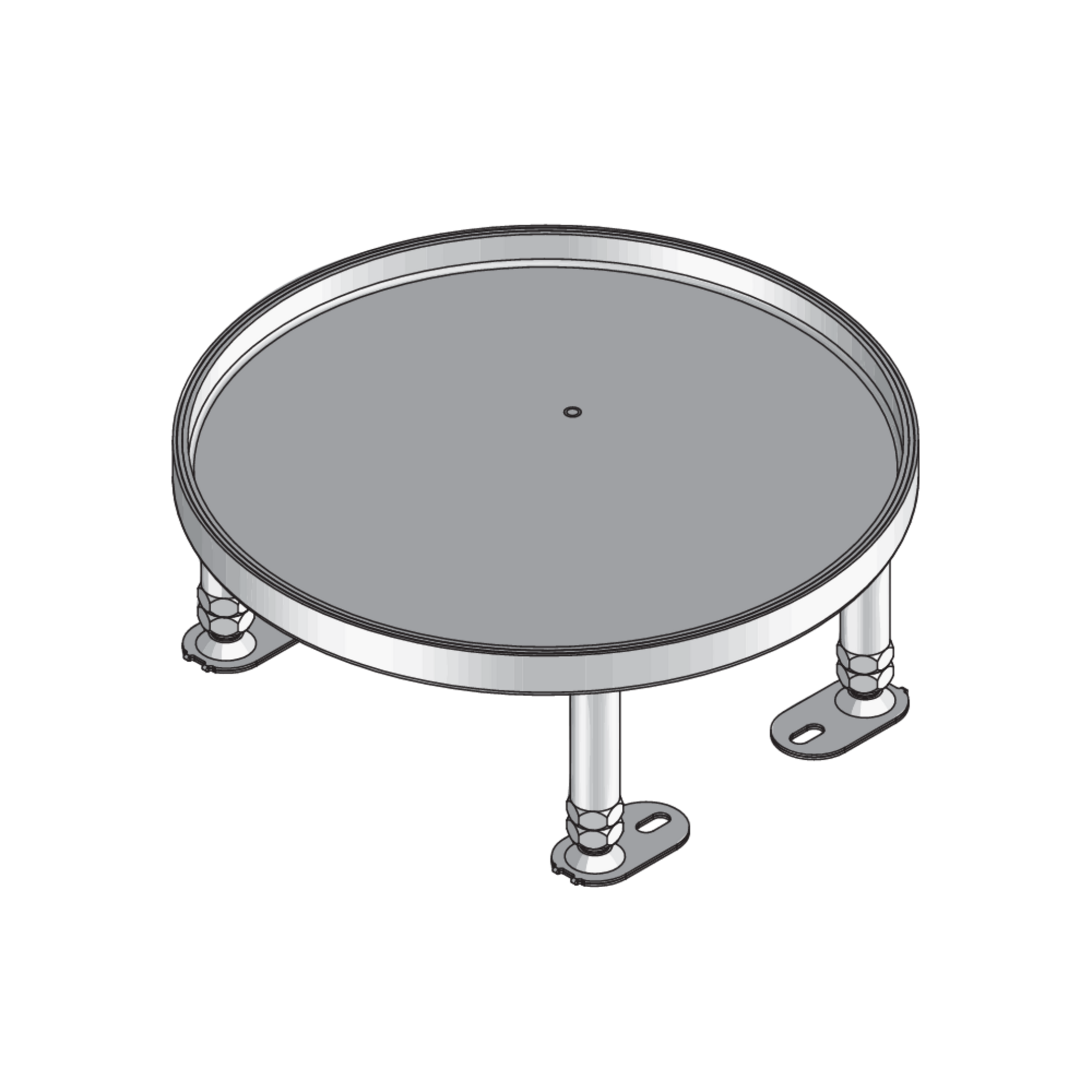

UEBD2 R E components are round dummy cover inserts. They consist of a cartridge mounting frame, a UGEAR-ELS earthing bracket, a rubber seal and a dummy insert cartridge for accommodating a maximum of two mounting boxes. The units are suitable for installation in UBDHB floor sockets, assembly covers and raised or false floor openings in wet-cleaned rooms with office traffic loads. Both the cartridges and the frames are made of stainless steel V2A. The cover units have an IP protection class of IP 54 in an unused condition, a maximum load capacity of 2 kN, an adjustment range of 55 mm, an installation dimension of 260 mm and a minimum installation height of 100 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

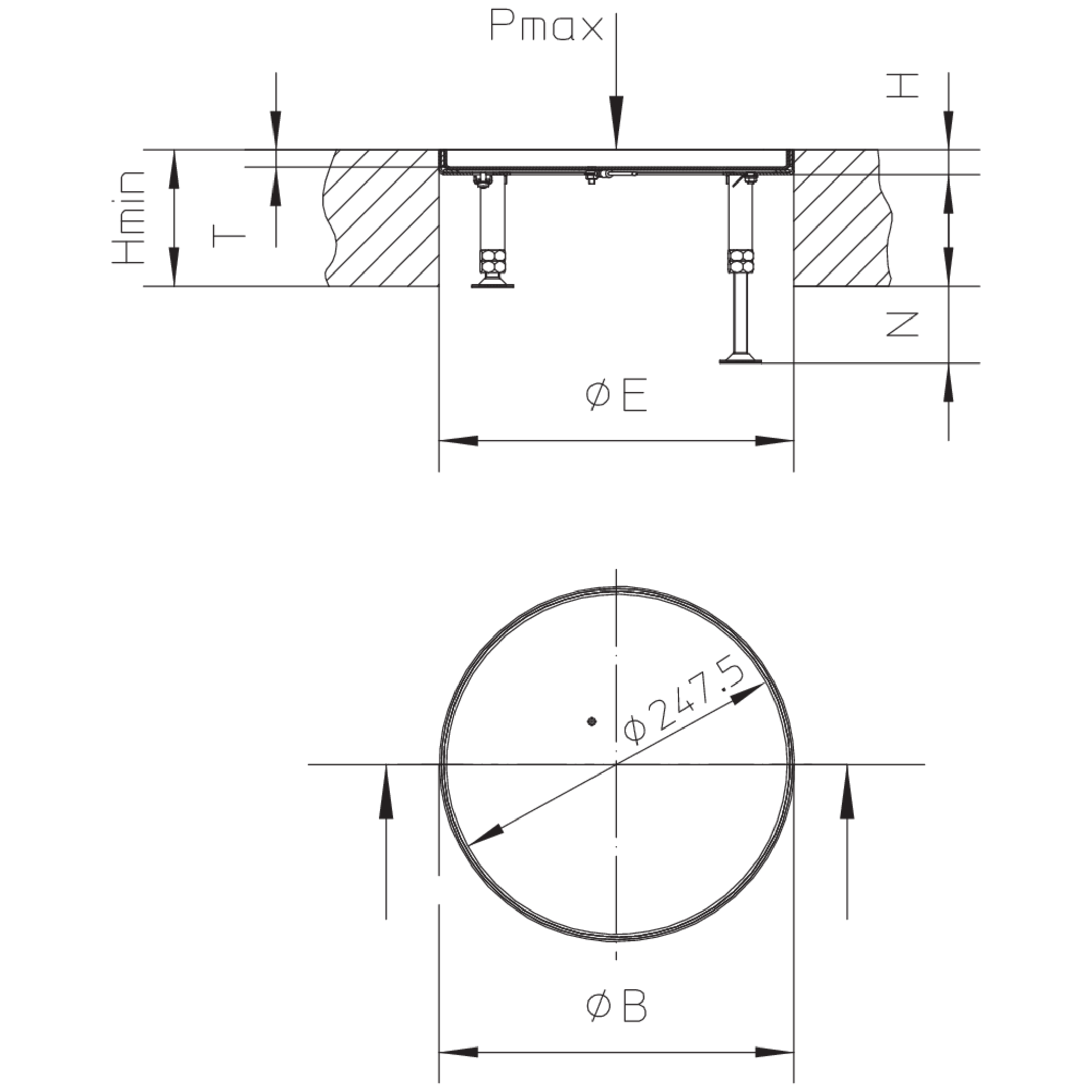

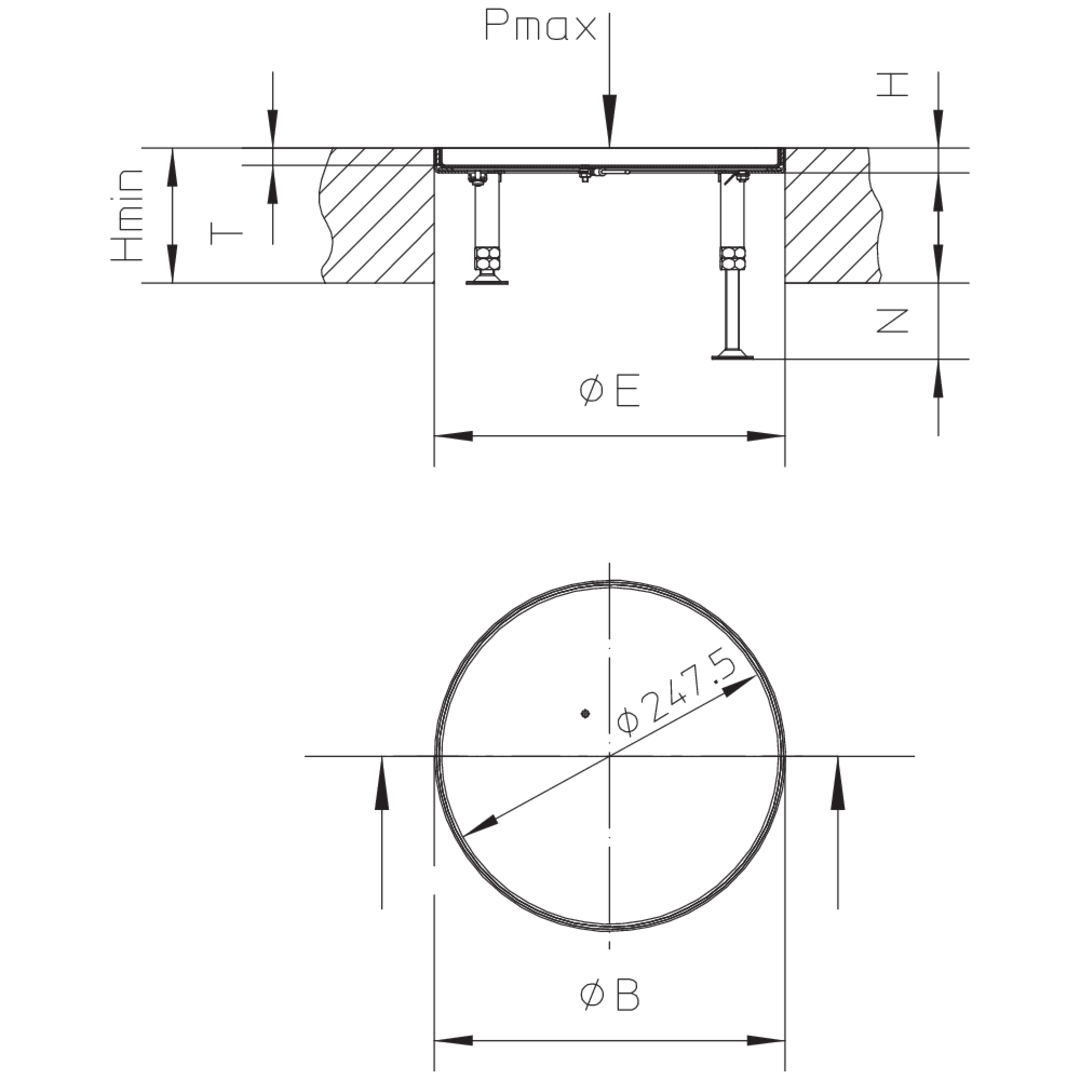

Article

H

Höhe

Hmin

min. Einbauhöhe

N

Nivellierbereich

Pmax

max. Belastung

ØB

Einbaudurchmesser

ØE

Einbaumaß

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit
  • UEBD2 15-R E
    Kassetteneinheit,
    Höhe
    18 mm
    min. Einbauhöhe
    100 mm
    Nivellierbereich
    55 mm
    max. Belastung
    2.00 kN
    Einbaudurchmesser
    258 mm
    Einbaumaß
    260 mm
    IP-Schutzgrad im nicht genutzten Zustand
    IP 54
    Tiefe der Bodenbelagaussparung
    12 mm
    Gewicht je Lagermengeneinheit
    2.032 kg
    Included accessories
    More information
  • UEBD2 25-R E
    Kassetteneinheit,
    Höhe
    28 mm
    min. Einbauhöhe
    110 mm
    Nivellierbereich
    55 mm
    max. Belastung
    2.00 kN
    Einbaudurchmesser
    258 mm
    Einbaumaß
    260 mm
    IP-Schutzgrad im nicht genutzten Zustand
    IP 54
    Tiefe der Bodenbelagaussparung
    22 mm
    Gewicht je Lagermengeneinheit
    2.256 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
