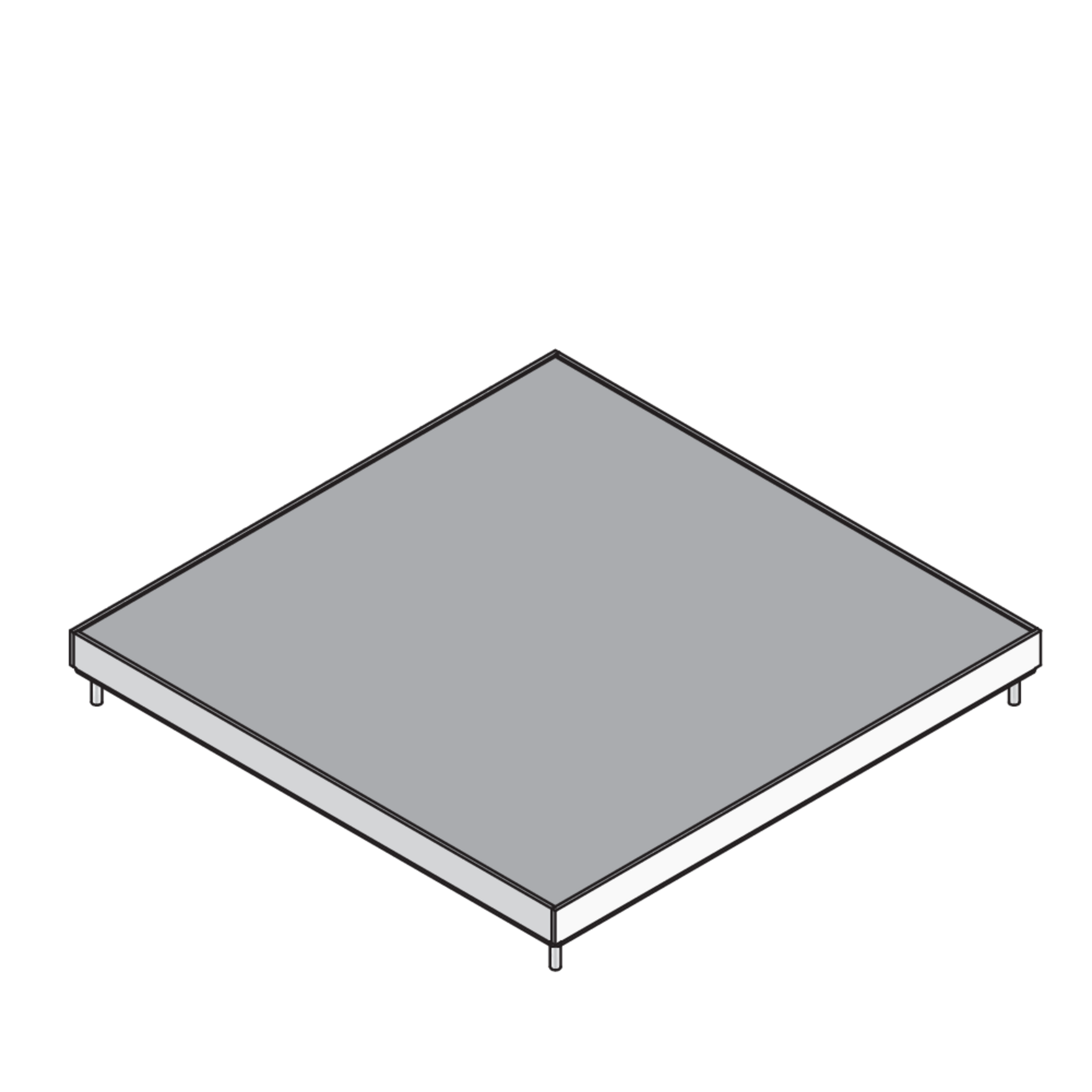

Stainless steel dummy cover unit, 3x, angular, flat
UEBD VP E components are square dummy cover units. They consist of a cartridge mounting frame with a dummy insert cartridge and a rubber seal. The cartridges are mounted on levelling units using UKS M4X16E Phillips screws and can be used with max. 3 mounting boxes in floor sockets, assembly covers and raised or false floor openings in wet-cleaned rooms with office traffic loads. The units are made of stainless steel with a flat surface. They have an IP protection class of IP 54 in an unused condition and a max. load capacity of 4.00 kN. They have installation dimensions of 261 x 261 mm and a minimum installation height of 85 mm.

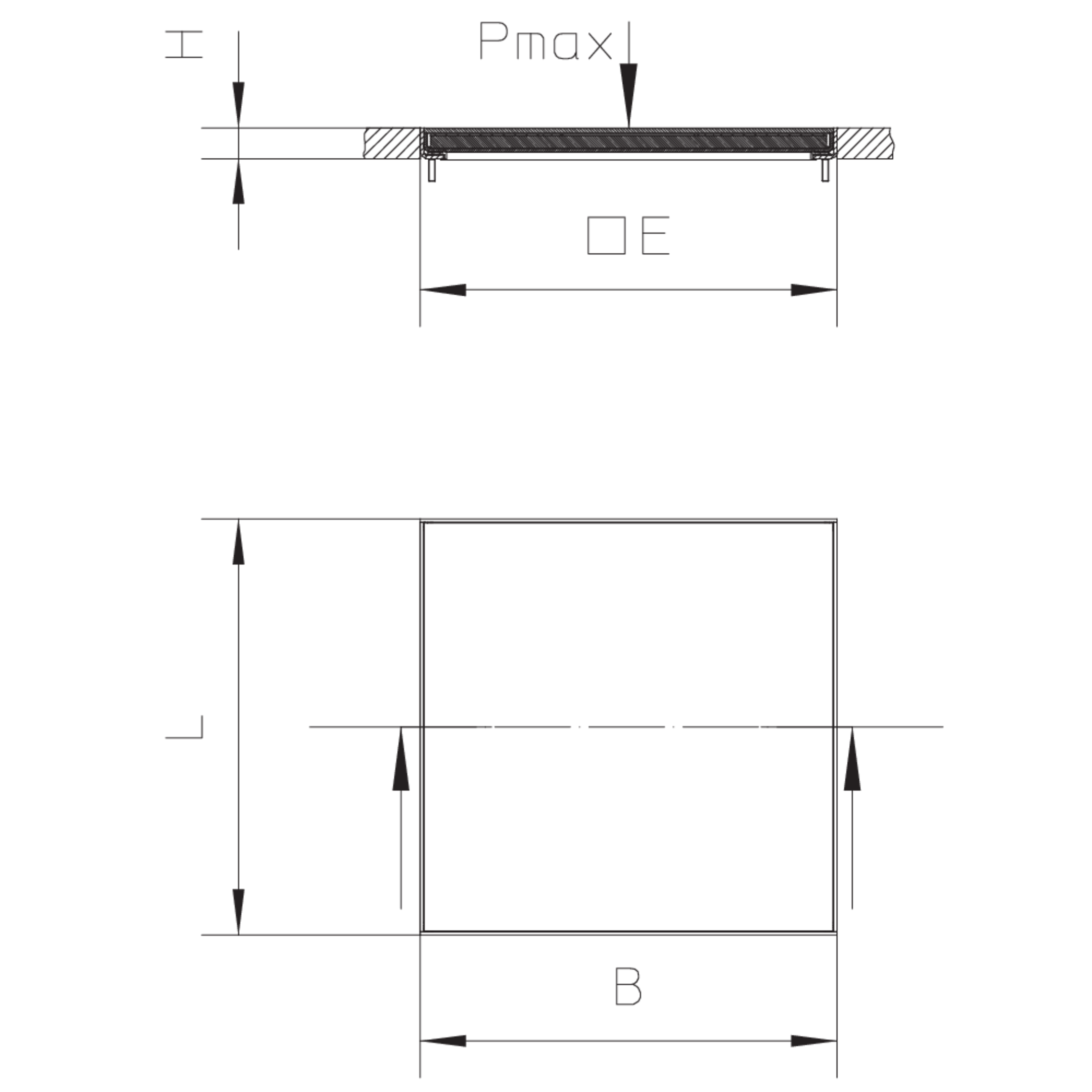

H
Höhe
Hmin
min. Einbauhöhe
B
Breite
L
Länge
Pmax
max. Belastung
E
Einbaumaß
IPn
IP-Schutzgrad im nicht genutzten Zustand
G
Gewicht je Lagermengeneinheit
