UEBD RP E

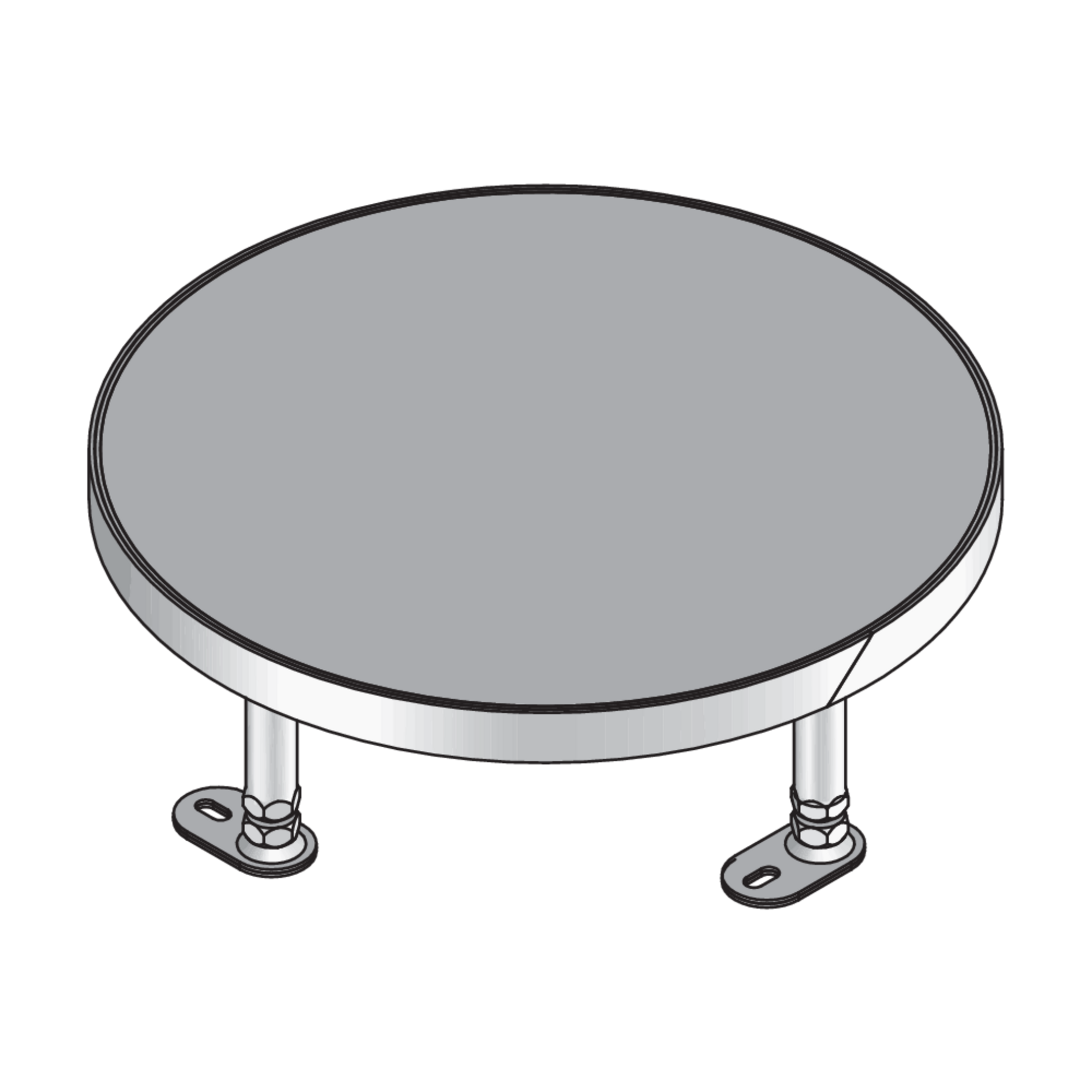

Stainless steel dummy cover unit, 3x, round, flat

UEBD RP E installation units are round dummy cover units with abutting edges. They can accommodate a maximum of three mounting boxes. They consist of height-adjustable mounting frames with a dummy insert cartridge and a rubber seal and are suitable for wet-cleaned rooms with office traffic loads. They are installed in assembly covers, floor sockets and raised or false floor openings. The components are made of stainless steel V2A and have a flat, blasted surface. They have an IP protection class of IP 54 in an unused condition, a max. load capacity of 4.00 kN, a levelling range of 55 mm and installation dimensions of 307 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Stainless steel, according to ASTM 304 / BS 304 S 3

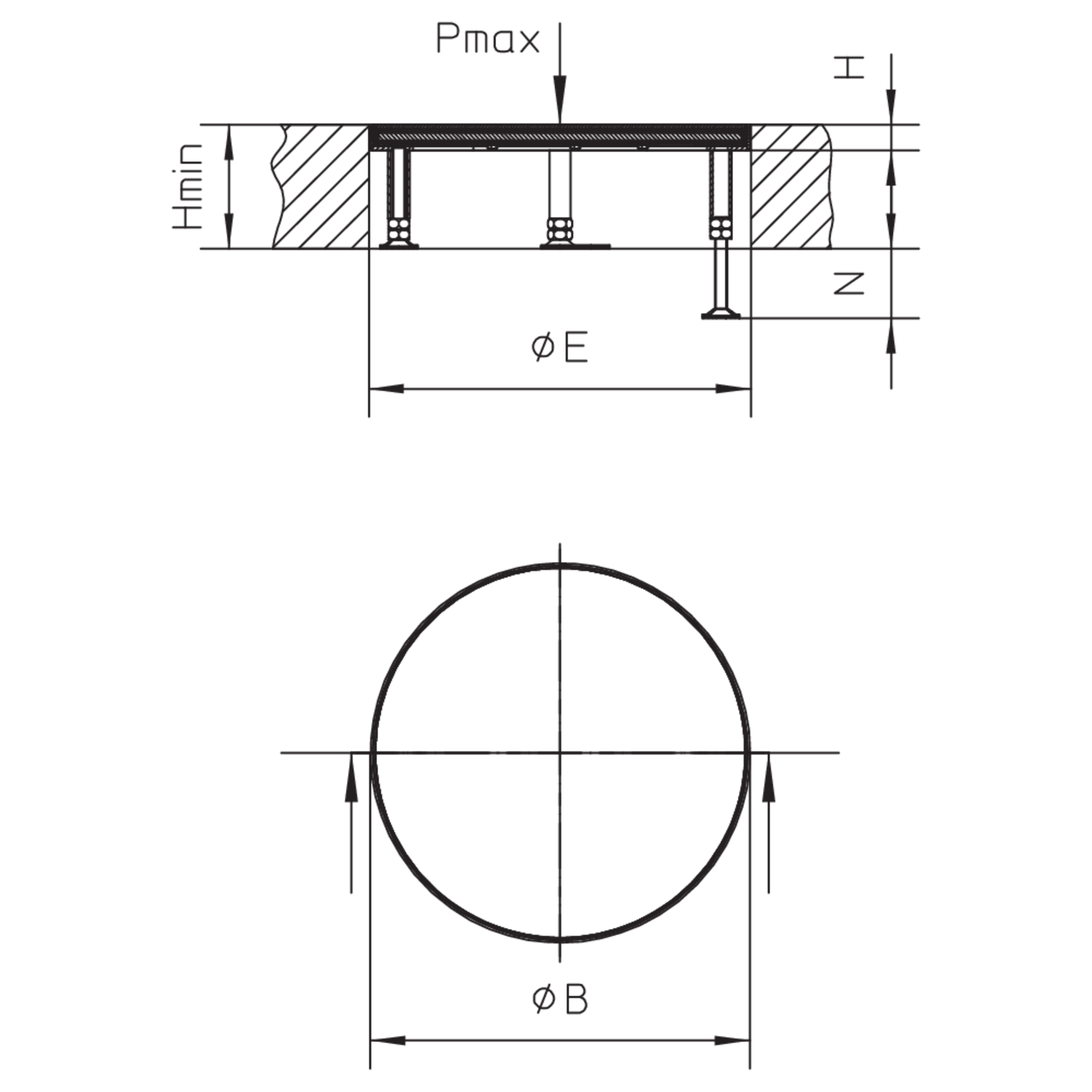

Article

H

height

Hmin

minimum installation height

N

levelling range

Pmax

maximum load

ØB

Installation diameter

ØE

fitting dimension

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit
  • UEBD 15-RP E
    cartridge unit,
    height
    19 mm
    minimum installation height
    100 mm
    levelling range
    55 mm
    maximum load
    4.00 kN
    Installation diameter
    304 mm
    fitting dimension
    307 mm
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    0 mm
    Weight per storage unit
    5.500 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
