UEBD R MR

Dummy cassette unit, machine cleaning, 3x, round, height-adjustable

UEBD R MR are 3x, round dummy cassette units with abutting edges. They are height-adjustable cassette installation frames with dummy insert cassettes and rubber seals. They are installed in floor sockets, installation covers and raised or false floor openings. The units are designed for rooms with office traffic loads and are suitable for wet-cleaned floors that are cleaned with floor cleaning machines. The cassette and the frame of the UEBD R MR are made of stainless steel V2A.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

Hmin

minimum installation height

N

levelling range

Pmax

maximum load

ØB

Installation diameter

ØE

fitting dimension

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit
  • UEBD 25-R-MR
    cartridge unit,
    height
    29 mm
    minimum installation height
    110 mm
    levelling range
    55 mm
    maximum load
    2.00 kN
    Installation diameter
    304 mm
    fitting dimension
    307 mm
    IP protection level in unused condition
    IP 66
    Depth of flooring recess
    22 mm
    Weight per storage unit
    2.735 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

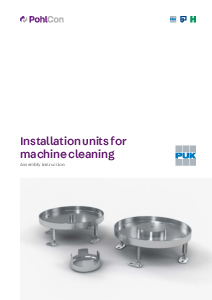

  • Installation units for machine cleaning

    Assembly instruction

    PDF, 309 KB

    de en

BIM- and CAD-Data

  • BIM Data Installation Boxes

    BIM Data Installation Boxes

    ZIP, 13 MB

    de en
