UEB3 V

Plastic dummy cover unit, 3x, angular

UEB3 V installation units are angular dummy cover units that are used in assembly covers, UBDHB floor sockets and raised or false floor openings. They act as a mounting frame for three mounting boxes and are suitable for dry-cleaned rooms with office traffic loads. The cover units have a carpet protection frame and are supplied with the universal fixing claws. The covers and frames are made of polyamide with matt surfaces in graphite black (RAL 9011) and iron grey (RAL 7011). They have an IP protection rating of IP 30 in an unused condition, a minimum installation height of 63 mm, installation dimensions of 260 x 260 and a maximum load of 2.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

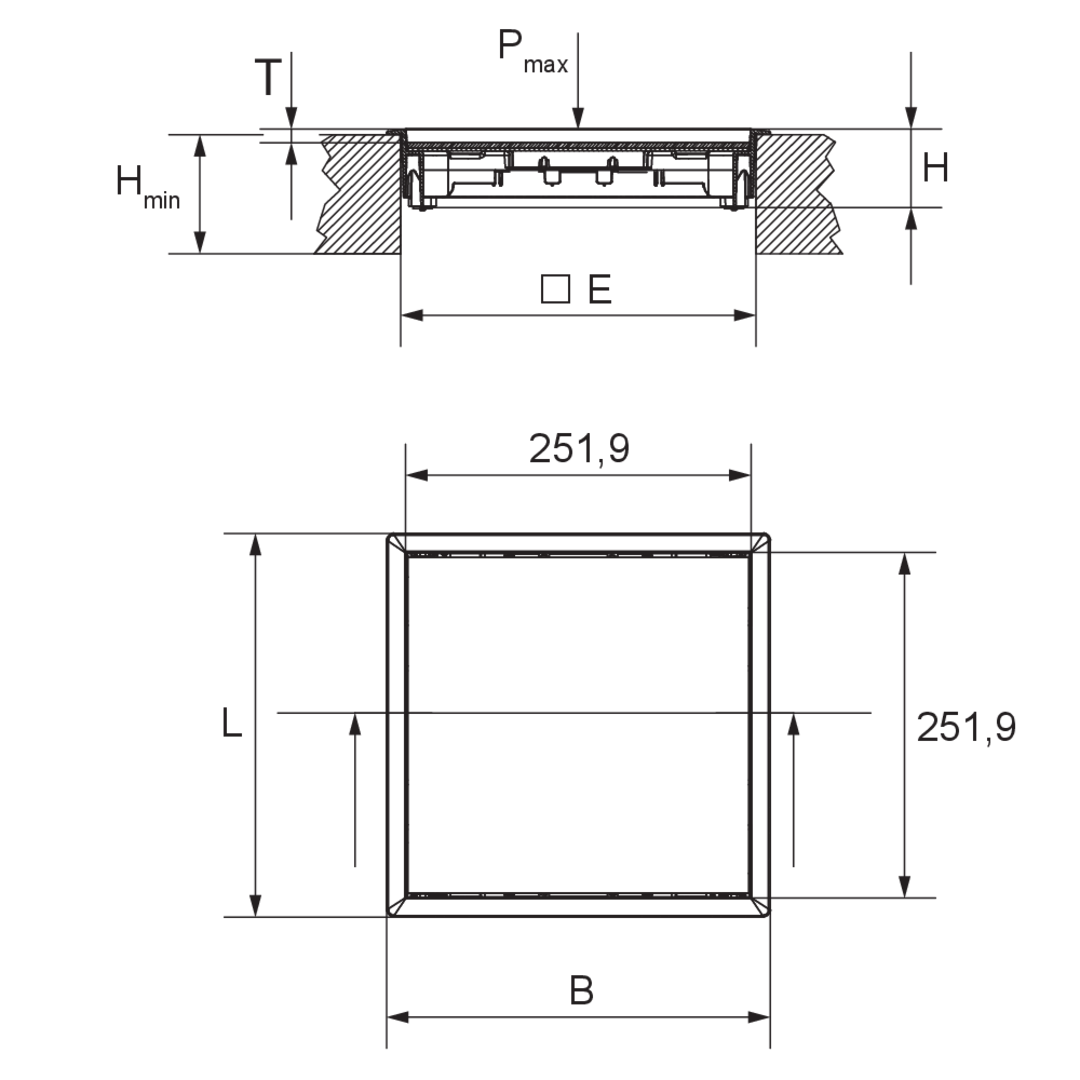

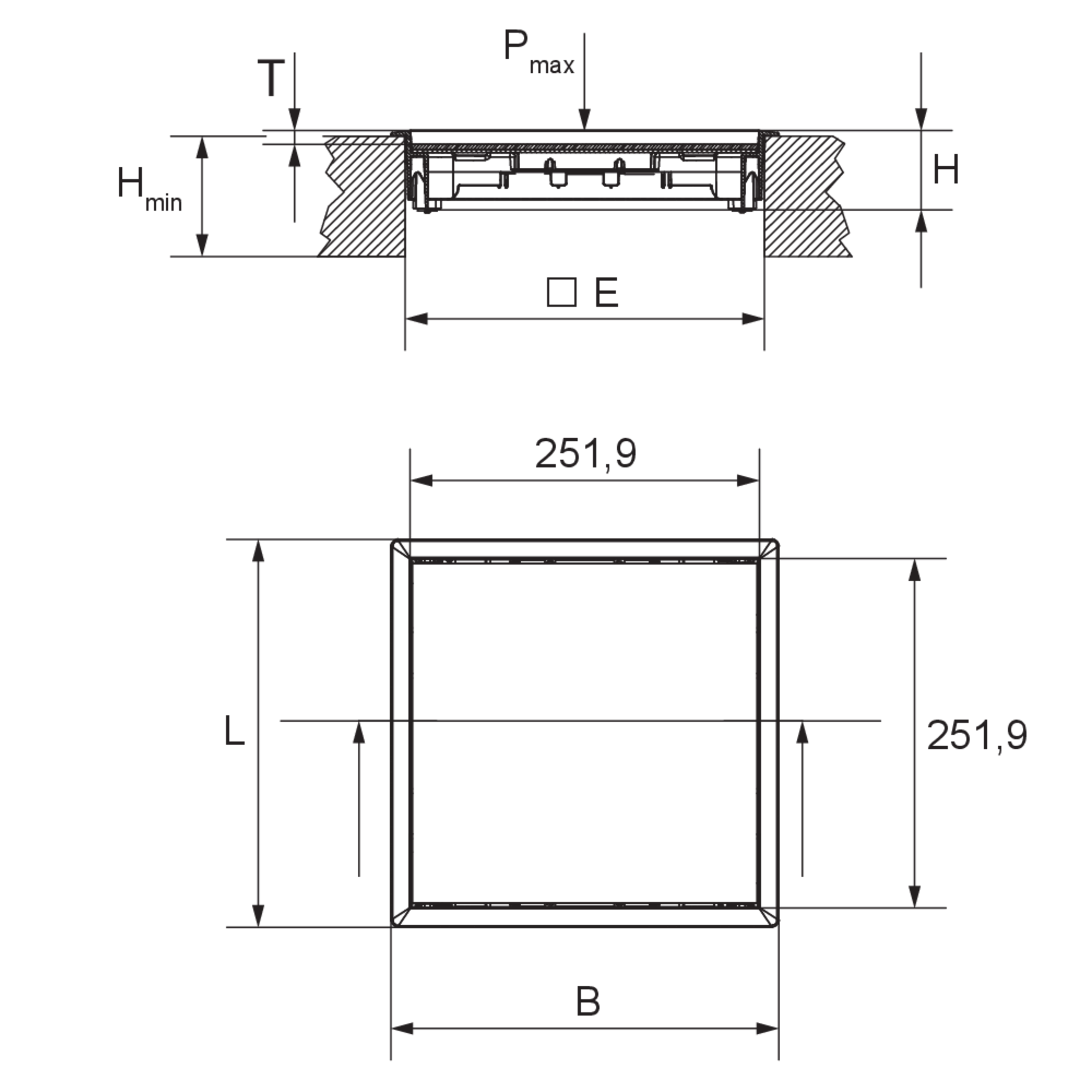

H

Höhe

Hmin

min. Einbauhöhe

B

Breite

L

Länge

Pmax

max. Belastung

E

Einbaumaß

Farbe

Farbe

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit

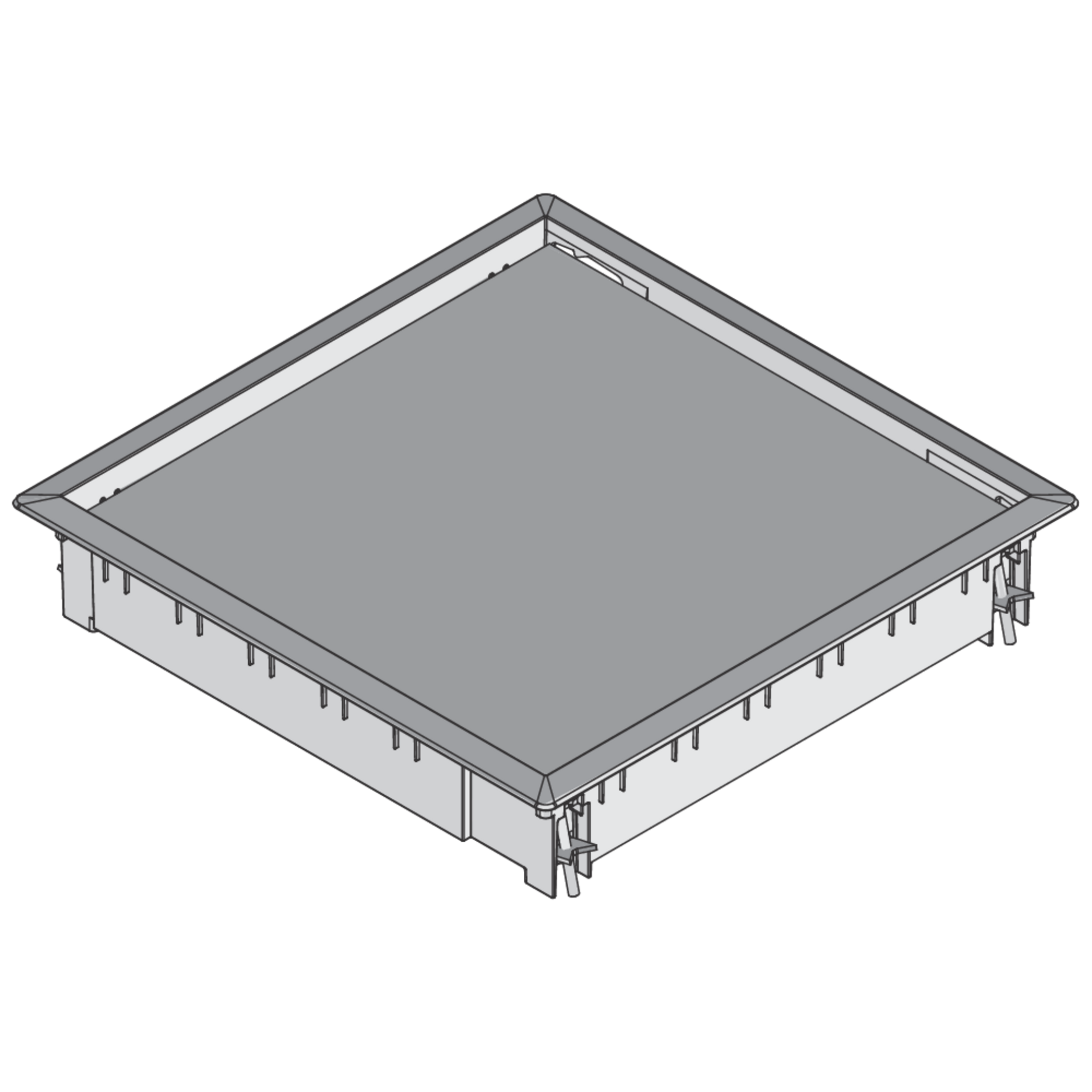

  • UEB3-V-G
    Einbaueinheit,
    Höhe
    58 mm
    min. Einbauhöhe
    63 mm
    Breite
    280 mm
    Länge
    280 mm
    max. Belastung
    2.00 kN
    Einbaumaß
    260 x 260 mm
    Farbe
    RAL 7011 (Eisengrau)
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    10 mm
    Gewicht je Lagermengeneinheit
    2.273 kg
    Included accessories
    More information

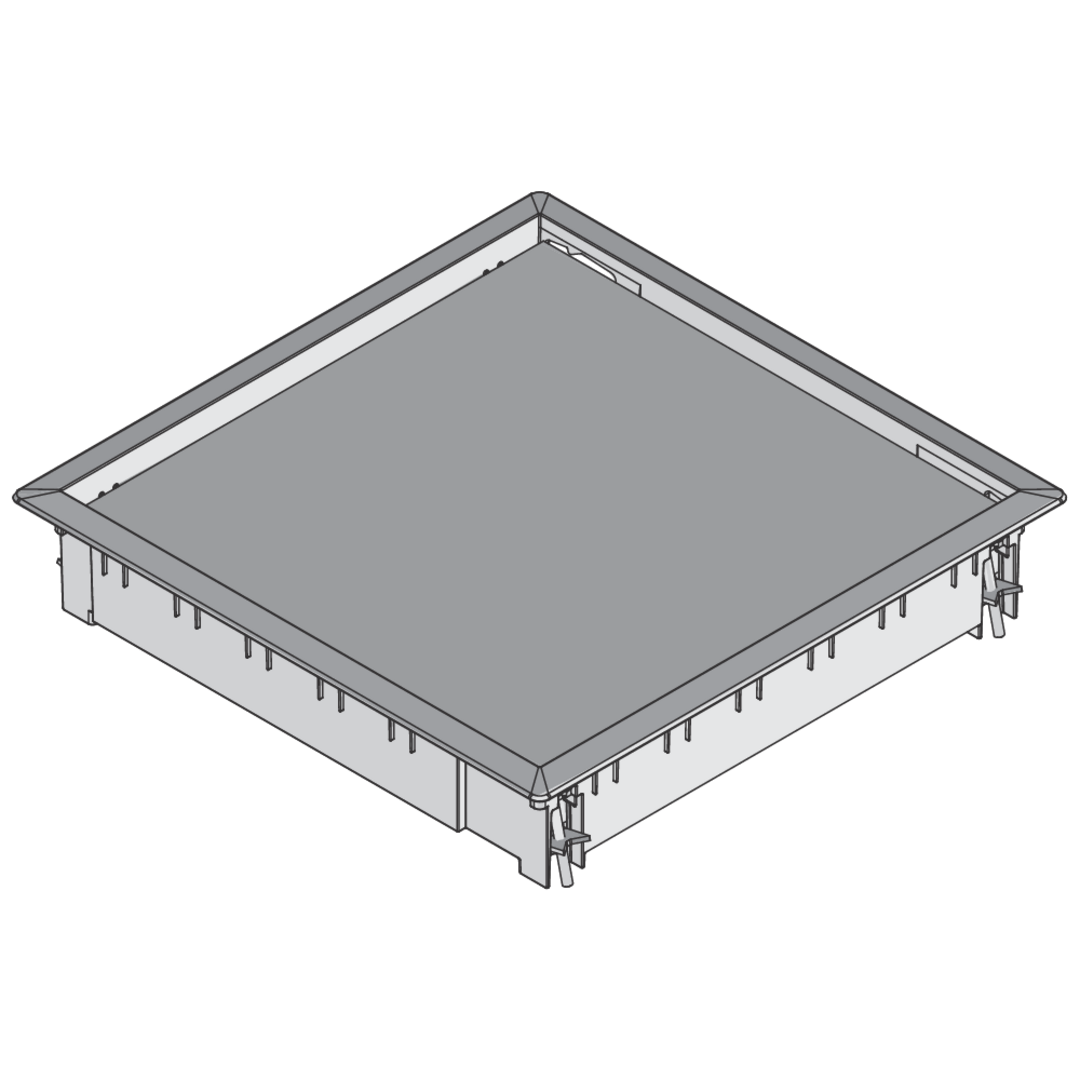

  • UEB3-V-S
    Einbaueinheit,
    Höhe
    58 mm
    min. Einbauhöhe
    63 mm
    Breite
    280 mm
    Länge
    280 mm
    max. Belastung
    2.00 kN
    Einbaumaß
    260 x 260 mm
    Farbe
    RAL 9011 (Graphitschwarz)
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    10 mm
    Gewicht je Lagermengeneinheit
    2.273 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
