RAEV 60

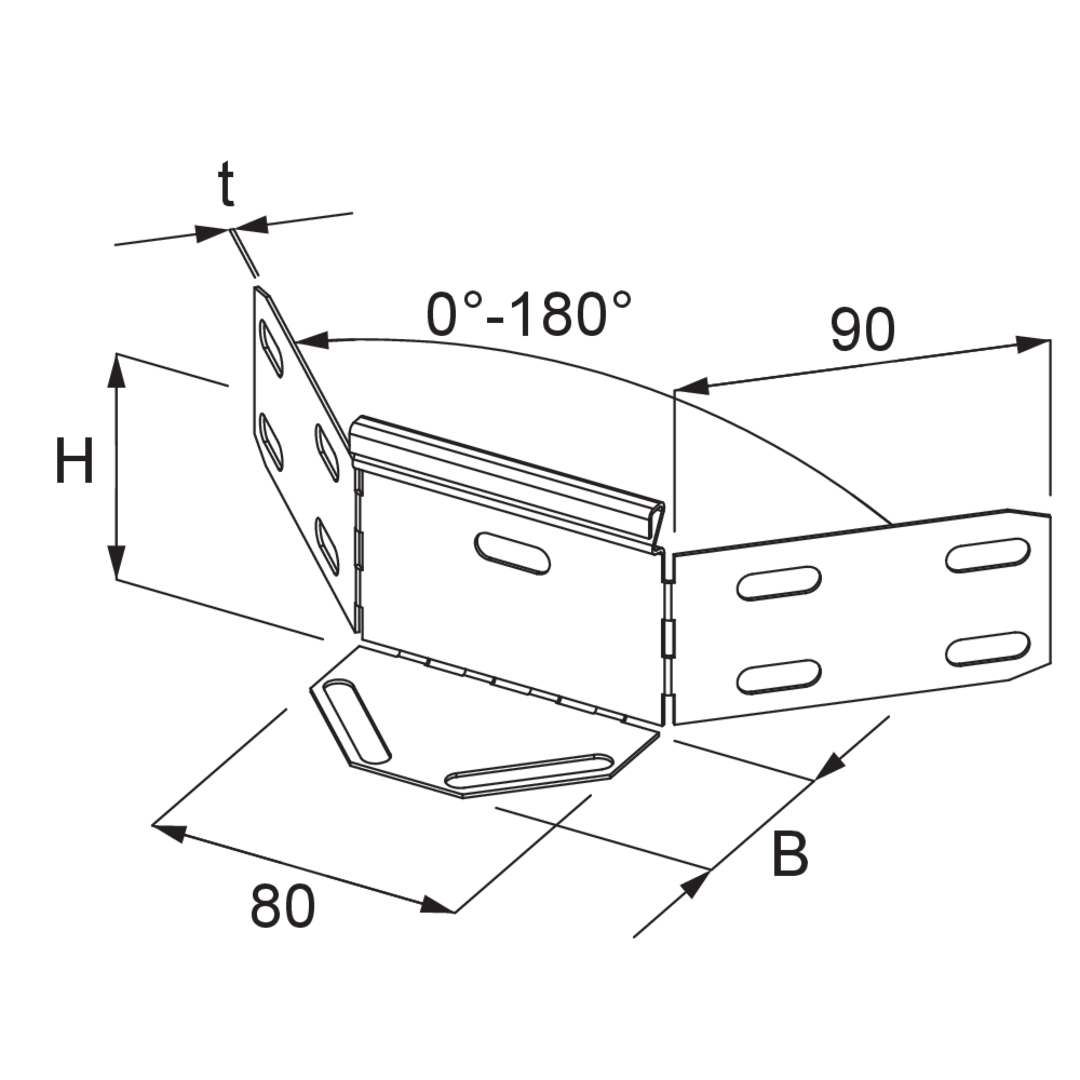

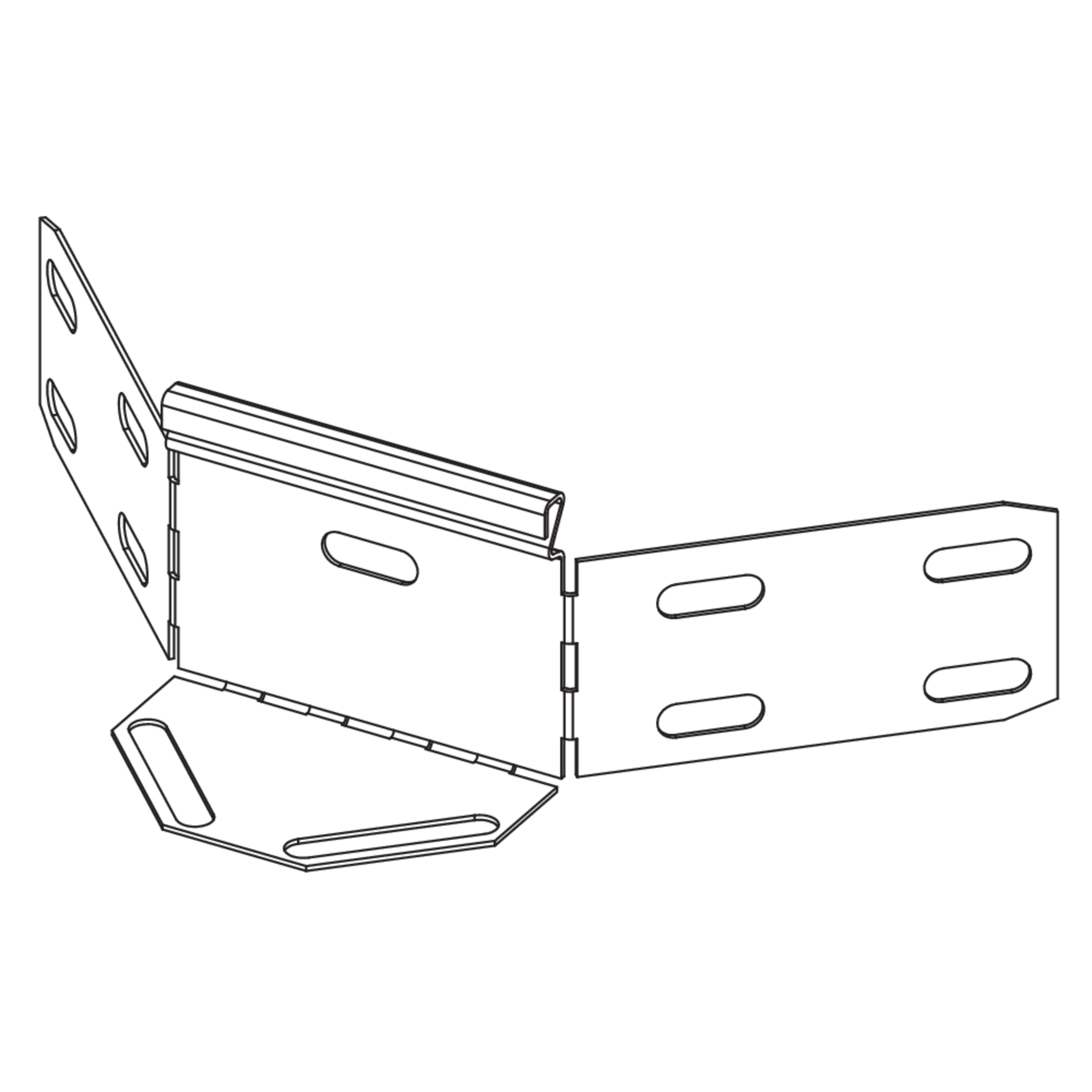

The variable cable tray attachment corners RAEV 60 allow the direction of cable routing to be changed horizontally in the form of a branch or customised tray bend. The side rail of the main cable tray is cut out at the point where the connection cable tray will branch off as specified in the installation instructions. The variable cable tray attachment corners RAEV are pushed into the cable tray and bolted in place. The VB floor connector and the connection cable tray can then be attached. They are suitable for cable trays with side heights of 60 mm. The variable cable tray attachment corner is delivered in a flat state. Various materials and surfaces ensure that the corrosion requirements of a wide range of applications are met.
