KHA 41

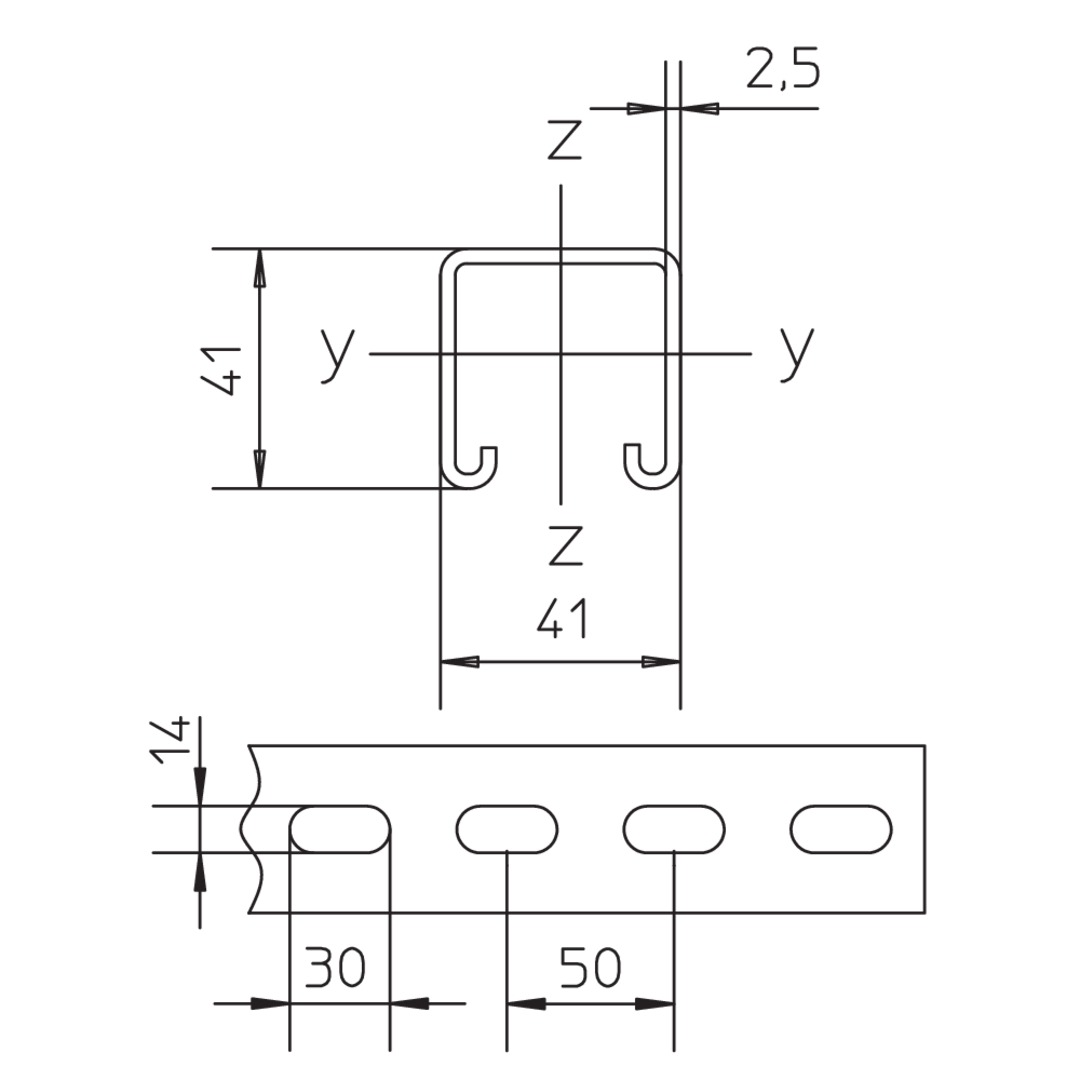

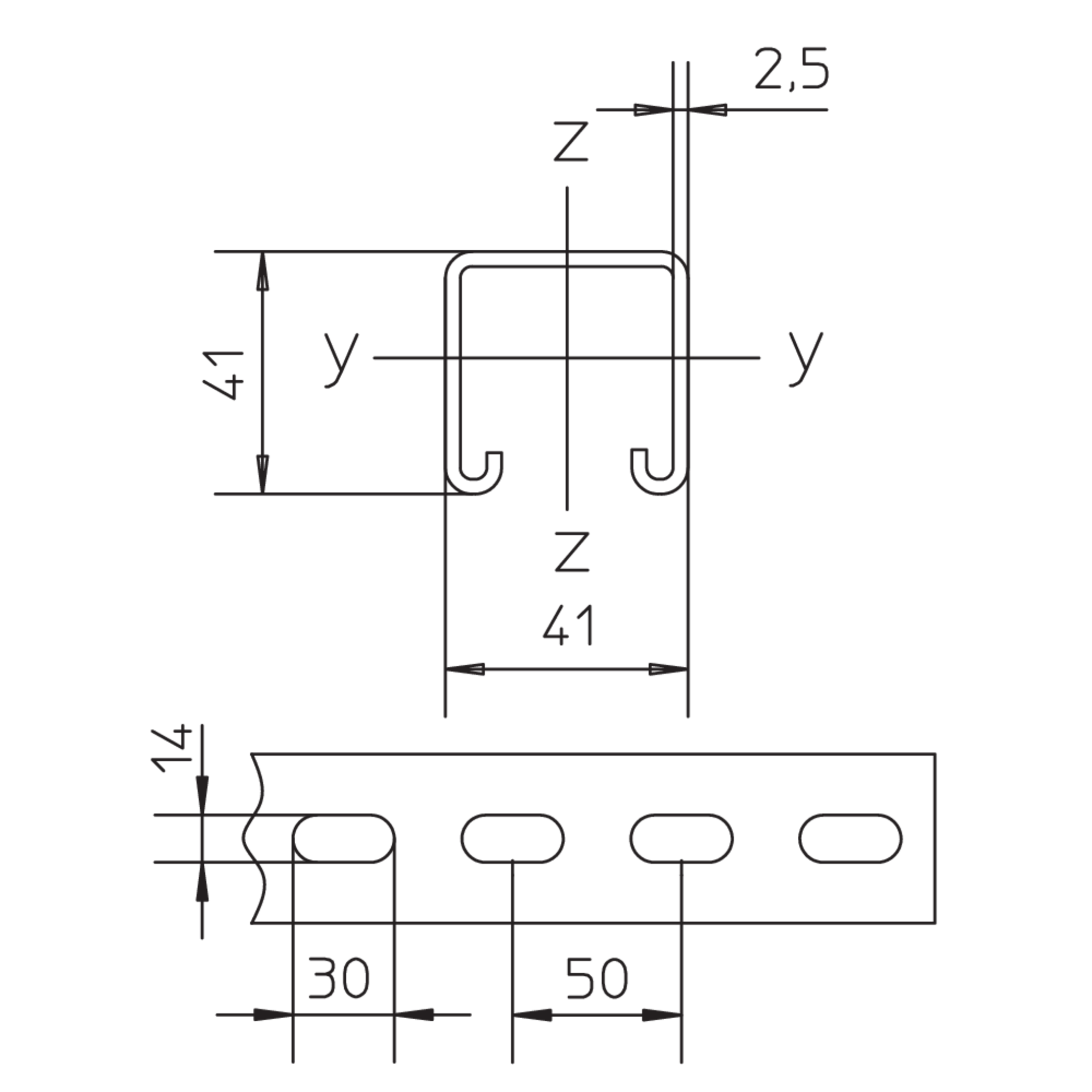

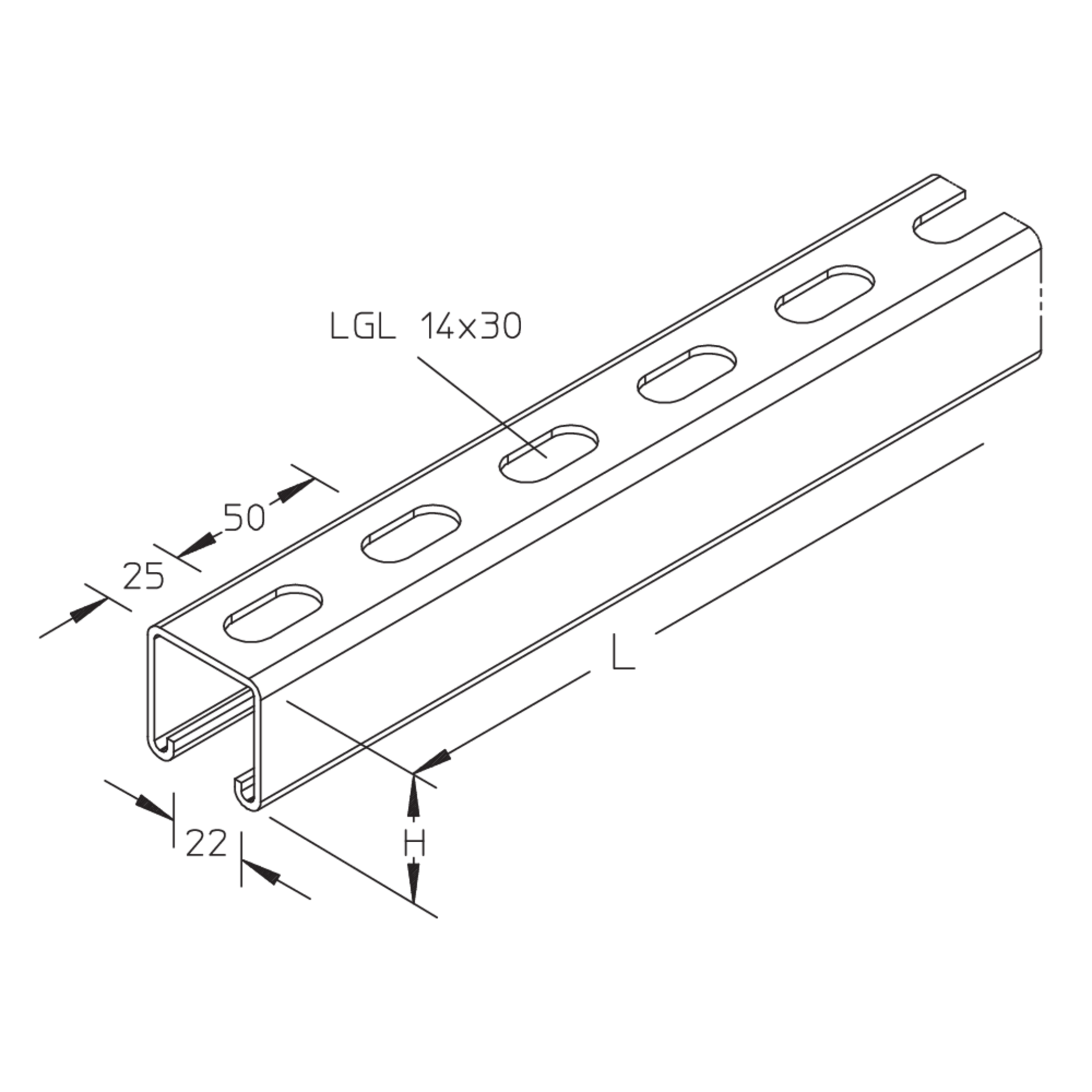

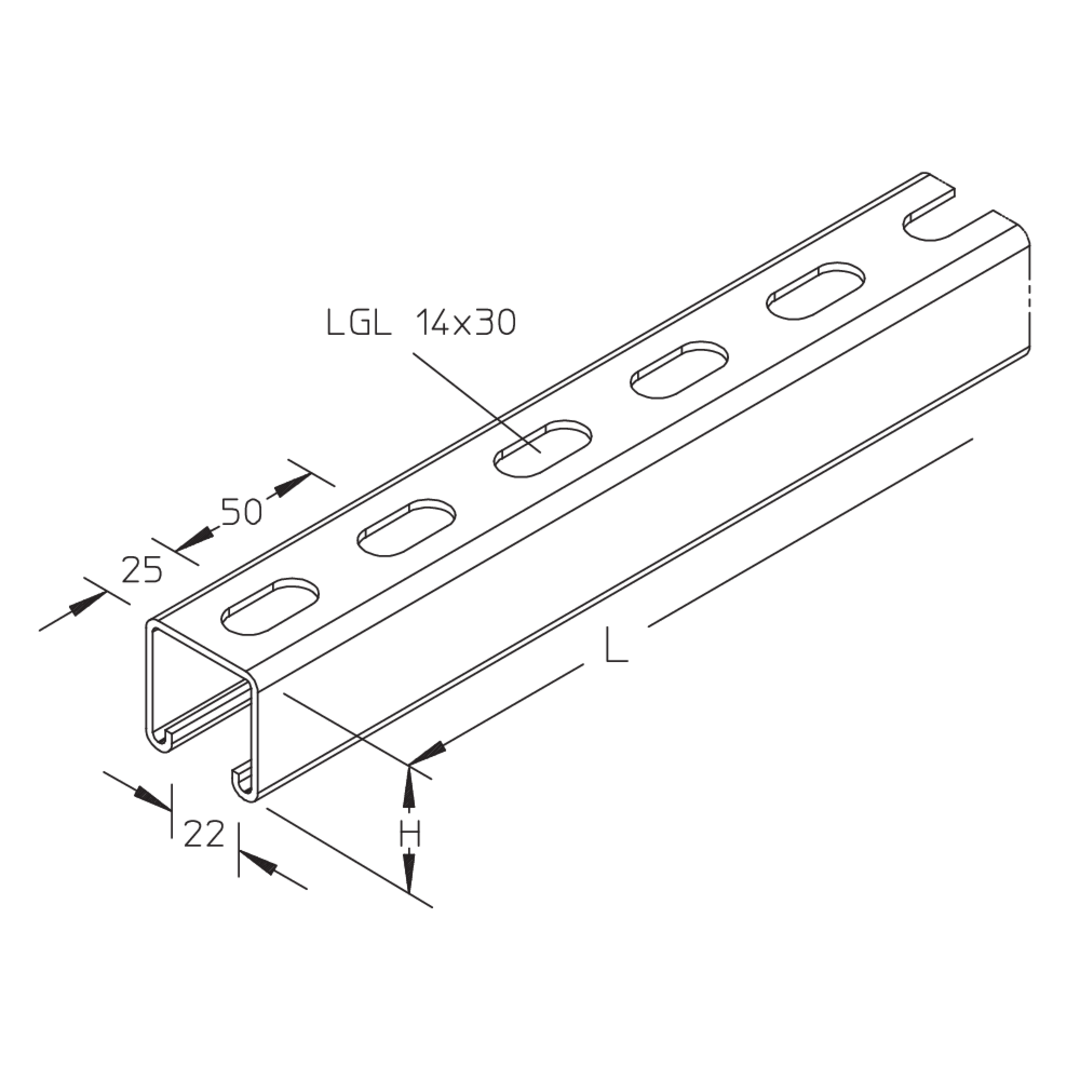

41x41 mm profile rail, perforated, maintenance of function

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

material thickness

t

Material strength

G

Weight per storage unit
  • KHA 41-01F
    Bracket support KHA 41-01F
    profile height
    41 mm
    profile width
    41 mm
    length
    100 mm
    material thickness
    2.50 mm
    Material strength
    2.5 mm
    Weight per storage unit
    0.260 kg
    More information
  • KHA 41-02F
    Bracket support KHA 41-02F
    profile height
    41 mm
    profile width
    41 mm
    length
    200 mm
    material thickness
    2.50 mm
    Material strength
    2.5 mm
    Weight per storage unit
    0.500 kg
    More information
  • KHA 41-03F
    Bracket support KHA 41-03F
    profile height
    41 mm
    profile width
    41 mm
    length
    300 mm
    material thickness
    2.50 mm
    Material strength
    2.5 mm
    Weight per storage unit
    0.700 kg
    More information
  • KHA 41-04F
    Bracket support KHA 41-04F
    profile height
    41 mm
    profile width
    41 mm
    length
    400 mm
    material thickness
    2.50 mm
    Material strength
    2.5 mm
    Weight per storage unit
    1.000 kg
    More information
  • KHA 41-05F
    Bracket support KHA 41-05F
    profile height
    41 mm
    profile width
    41 mm
    length
    500 mm
    material thickness
    2.50 mm
    Material strength
    2.5 mm
    Weight per storage unit
    1.300 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

Included accessories
