KFSC

Cable block, C-profile with protection mat

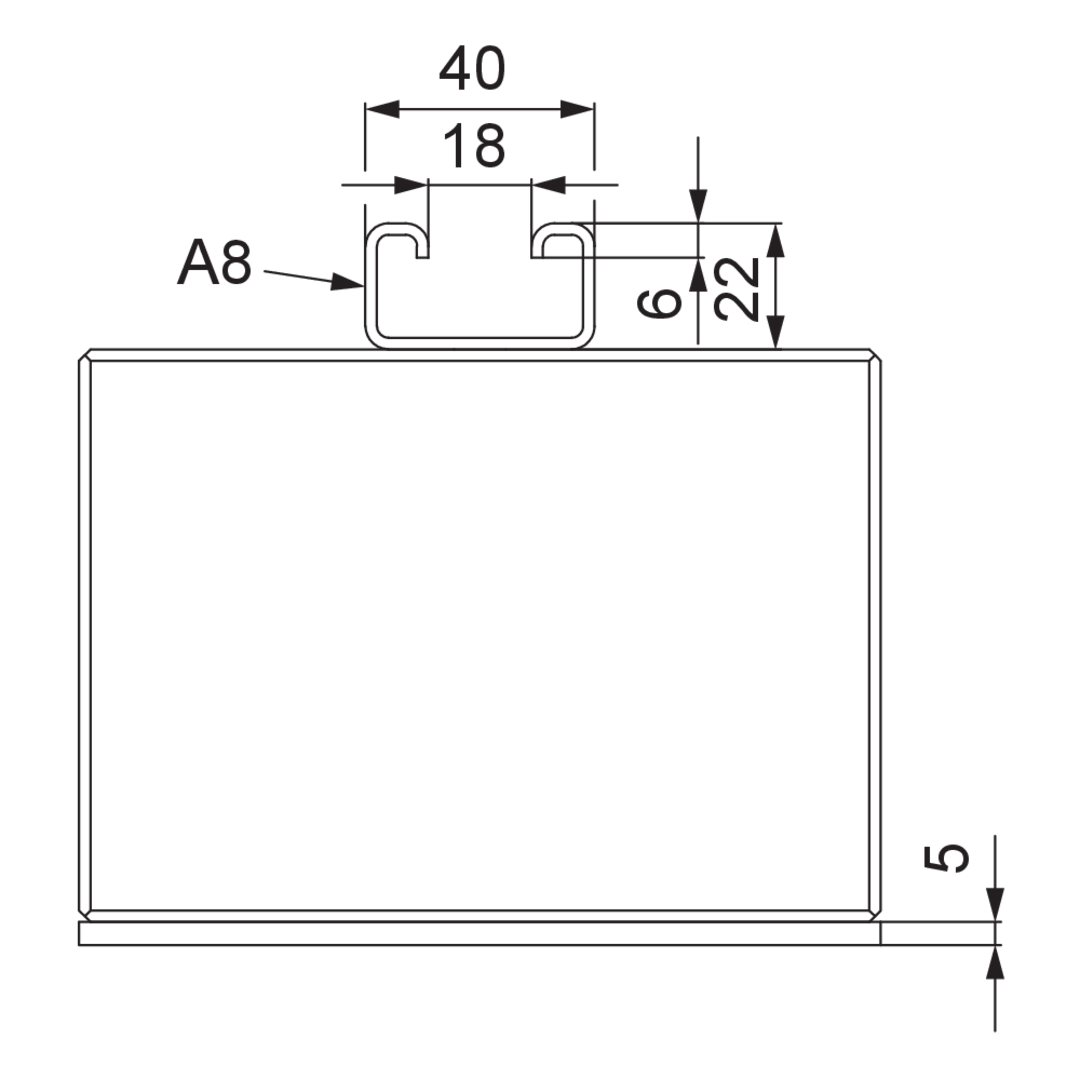

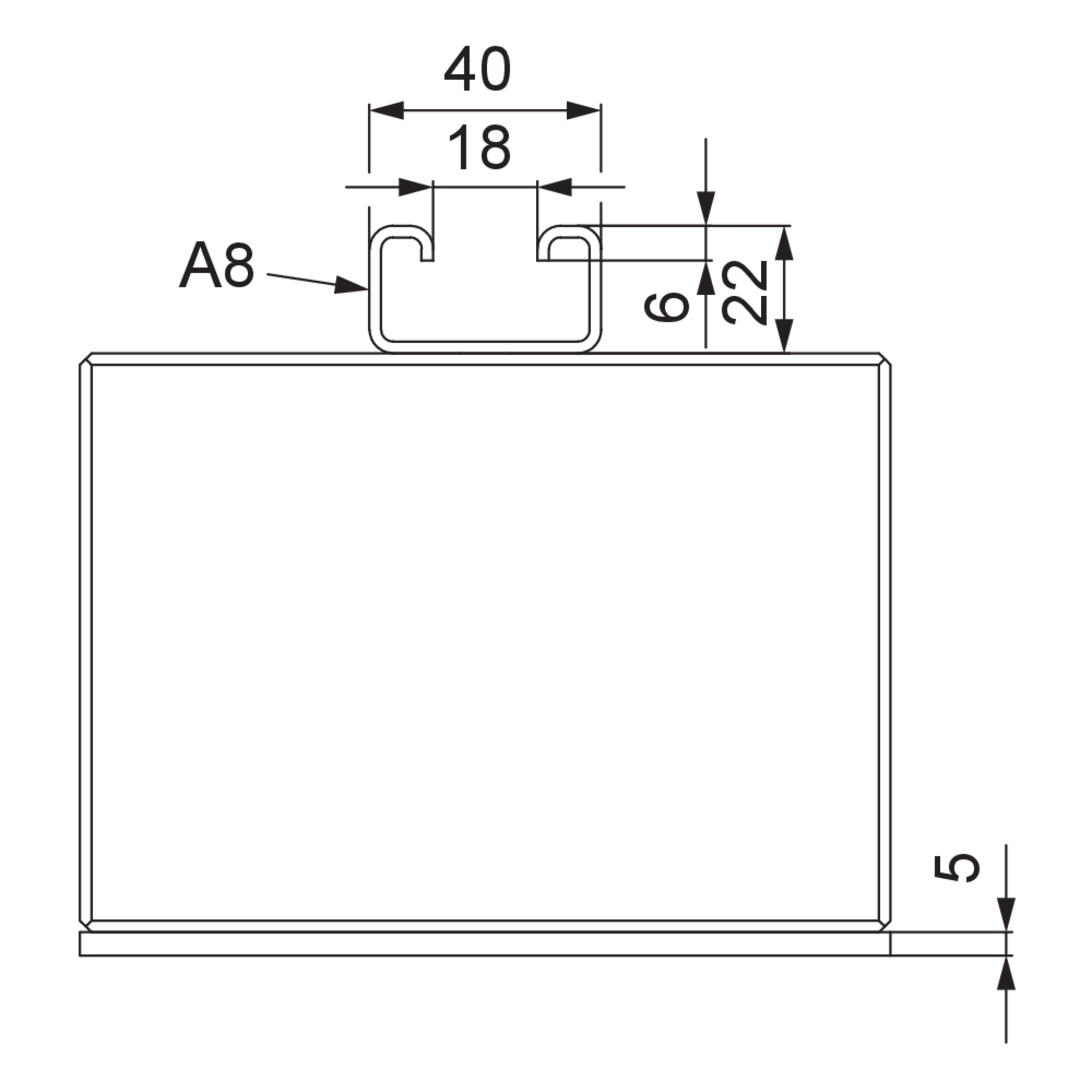

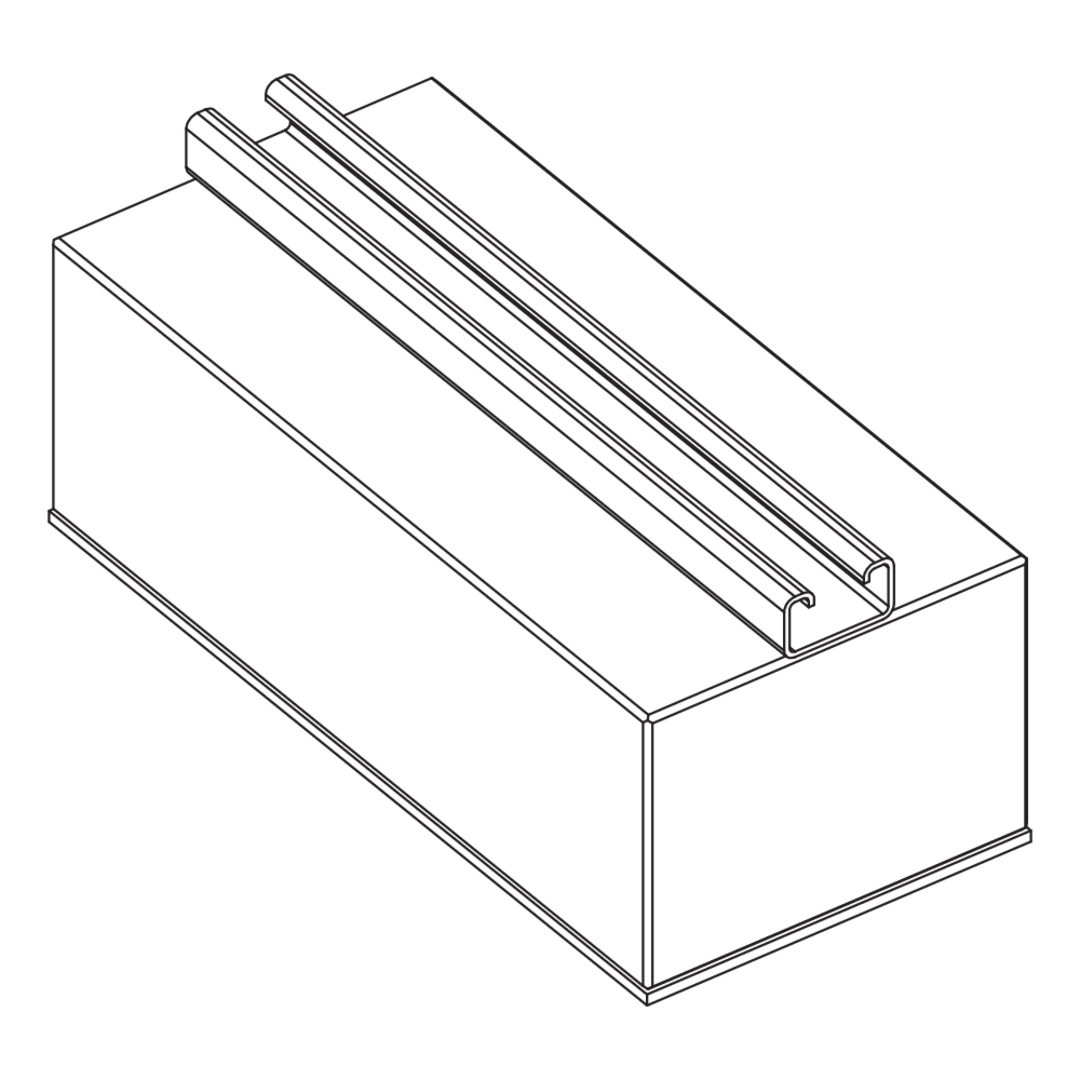

Cable block KFSC; roof tile with a batch/hot-dip galvanized C-channel (corresponds to A 8 profile rail) and protection mat. For laying cable trays, mesh cable trays, pipes, channels and cables using cable clamps. The installation is suitable for mounting on flat roof surfaces or on the ground, for example. The protection mat serves as a firm support surface and prevents damage to the existing roof covering. Roof-mounted installation should be agreed with the building owner or specialist planner with regard to possible additional loads depending on the installation location.

Get in touch Download datasheet

Variants

fiber reinforced concrete

Article

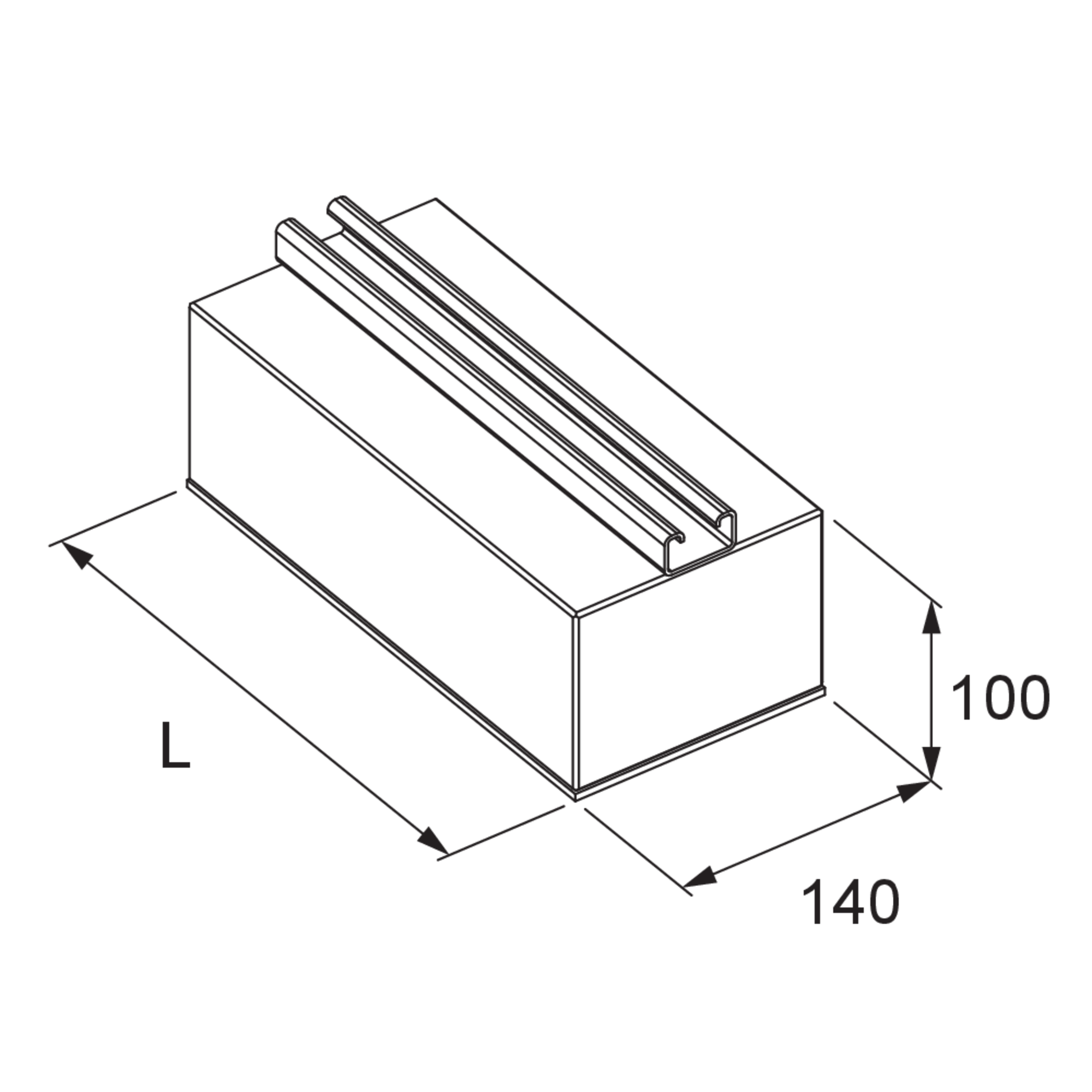

H

B

L

W

  • KFSC 030
    Shaped cable block 300 mm, with C-rail,
    100 mm
    140 mm
    300 mm
    10.000 kg
    More information
  • KFSC 050
    Shaped cable block 500 mm, with C-rail,
    100 mm
    140 mm
    500 mm
    16.000 kg
    More information
