KFSB

Cable block, blank with protection mat

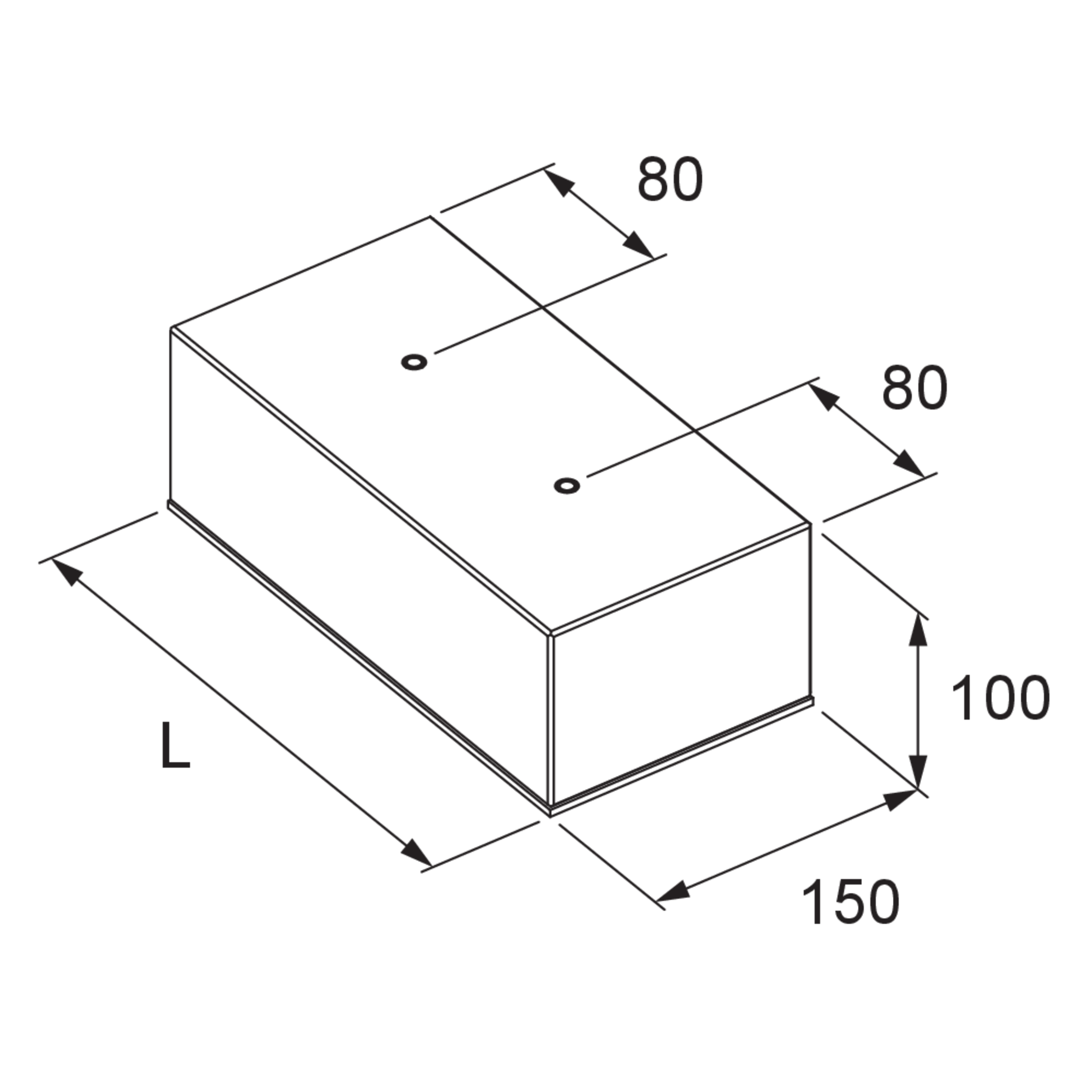

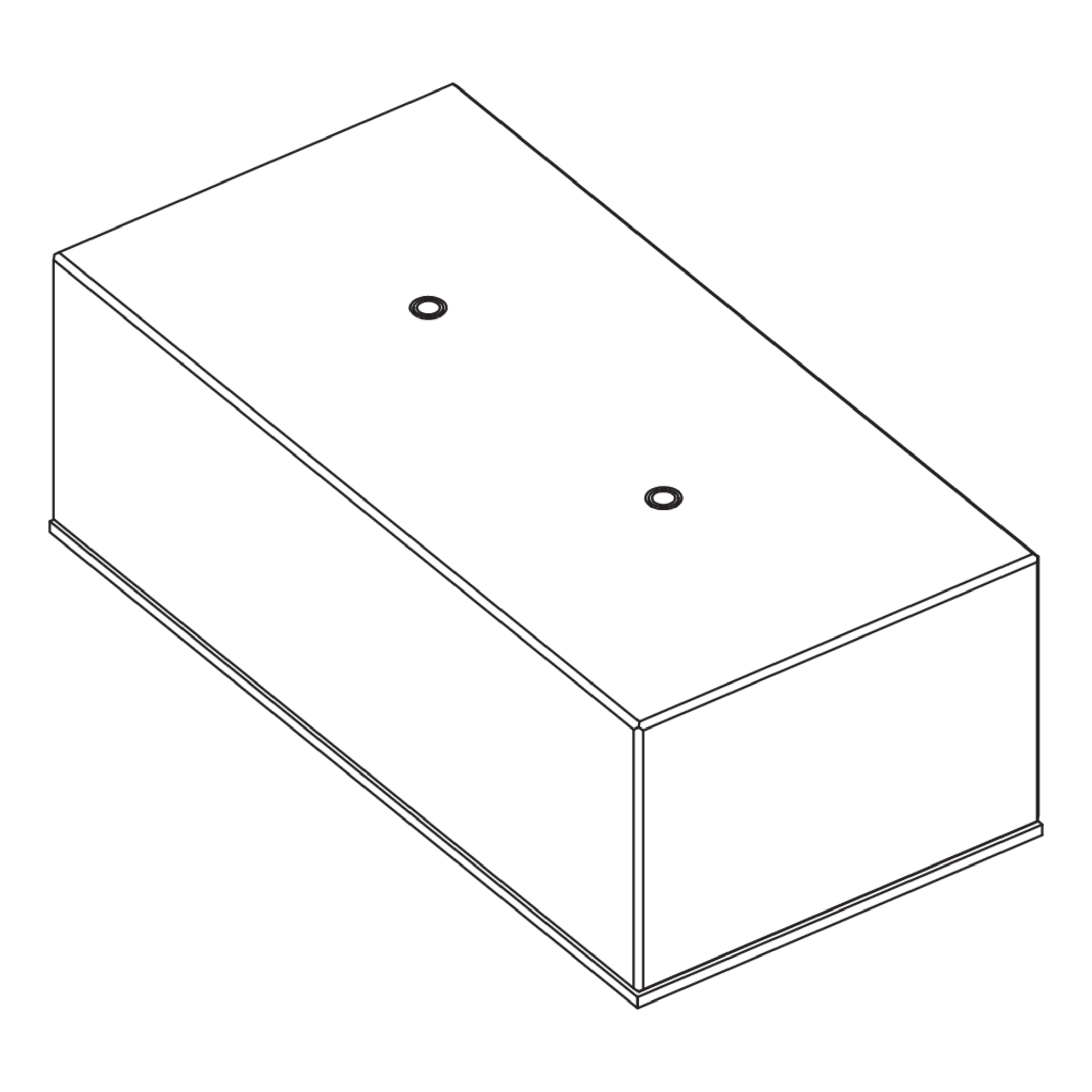

Cable block KFSB; roof tile with two U 6 plastic expansion dowels and protection mat. The dowels are compatible with chipboard/wood screws from 4.0 to 5.0 mm wide and a maximum length of 40 mm. Various profile rails with different surfaces/materials are available as optional accessories. The installation is suitable for mounting on flat roof surfaces or on the ground, for example. The protection mat serves as a firm support surface and prevents damage to the existing roof covering. Roof-mounted installation should be agreed with the building owner or specialist planner with regard to possible additional loads depending on the installation location.

Variants

Faserbeton

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • KFSB 030
    Kabelformstein 300 mm, ohne C-Schiene,
    Höhe
    100 mm
    Breite
    150 mm
    Länge
    300 mm
    Gewicht je Lagermengeneinheit
    9.500 kg
  • KFSB 050
    Kabelformstein 500 mm, ohne C-Schiene,
    Höhe
    100 mm
    Breite
    150 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    14.000 kg

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link


Downloads

    Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    • de

    • en


BIM- and CAD-Data

    BIM Data Cablele Support System Fastening Accessories (Revit)

    BIM Data

    • de

    • en


Included accessories
