JTA RT W 40/22

Anchor channel, hot-rolled, for fastening façades to ceiling tops

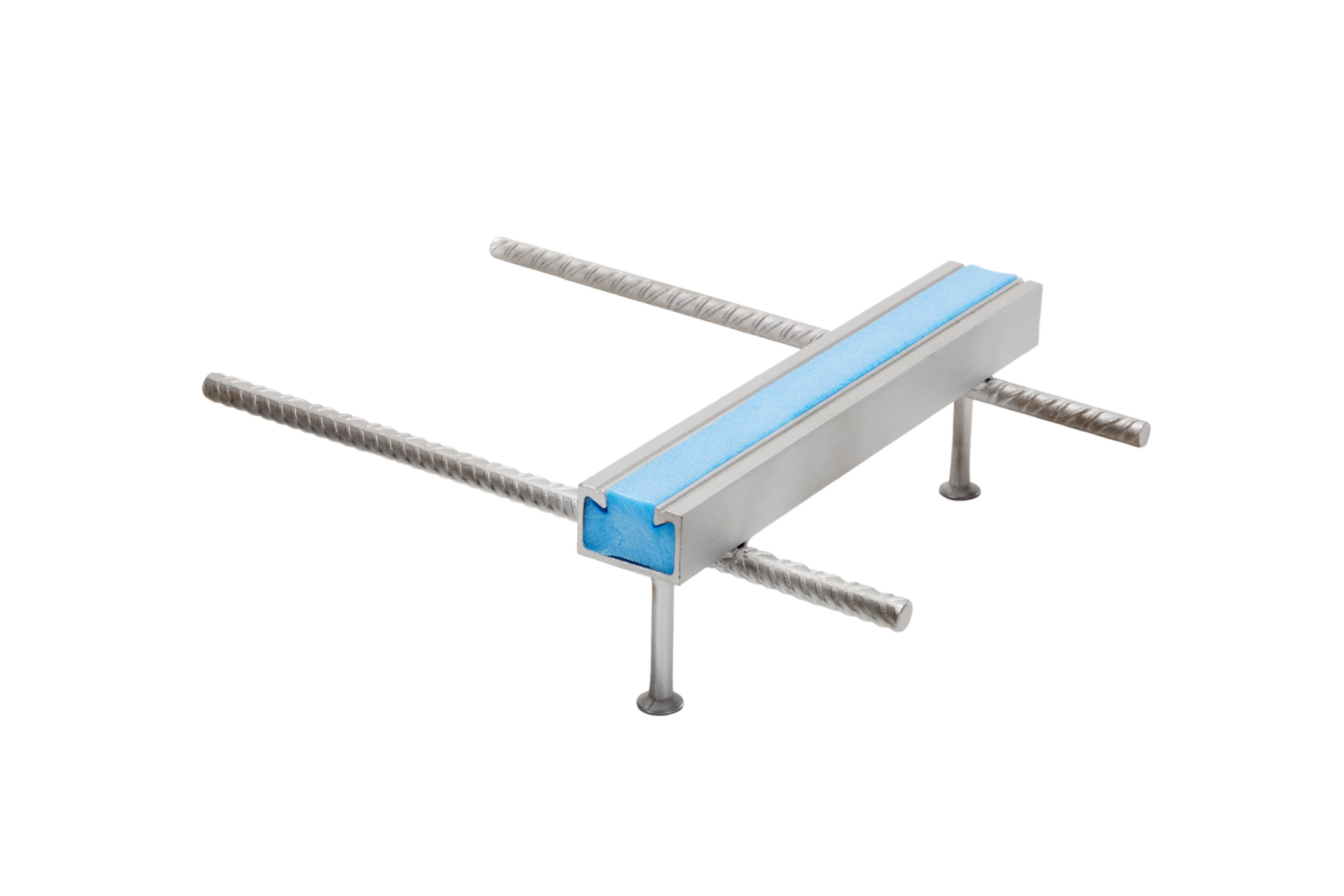

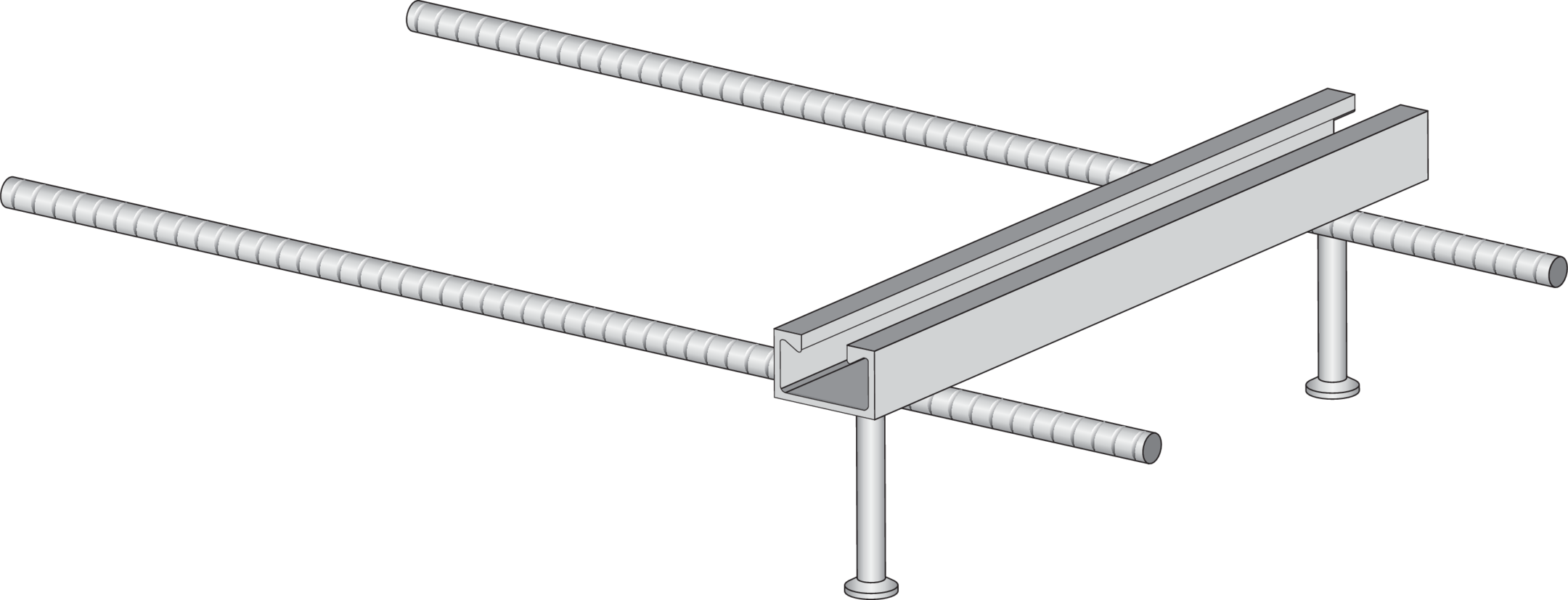

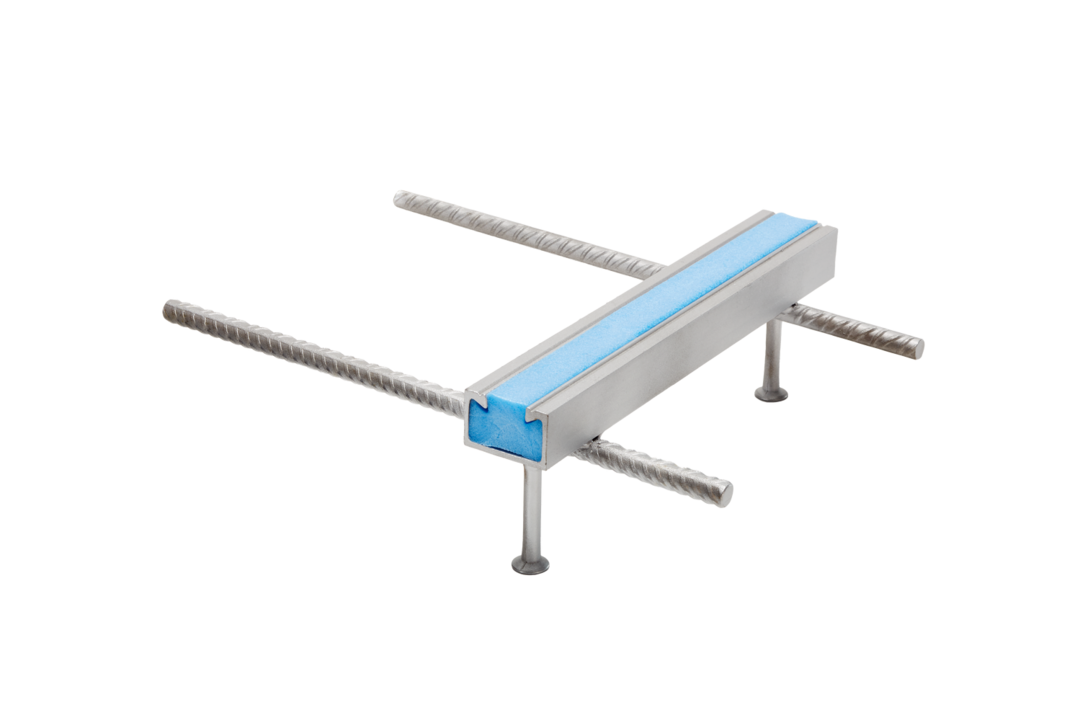

The anchor channel JTA RT W 40/22 is made of hot-dip galvanised steel (fv) or stainless steel (A4). The JTA RT W 40/22 has round anchors and reinforcing bars made of reinforcing steel. It is available in profile lengths from 150 to 550 mm and in several variants for the concrete cover and is paired with the bolts JC M10 - JC M16. The filling is made of polyethylene (PE).

Get in touchDownload datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit

  • JTARTW4022-0300-07-FVK
    JORDAHL Ankerschiene RT W40/22 Typ 07
    Höhe
    490 mm
    Breite
    40 mm
    Länge
    300 mm
    Gewicht je Lagermengeneinheit
    1.110 kg
    More information
  • JTARTW4022-0350-01-FVK
    JORDAHL Ankerschiene RT W40/22 Typ 01
    Höhe
    34 mm
    Breite
    40 mm
    Länge
    350 mm
    Gewicht je Lagermengeneinheit
    1.180 kg
    More information
  • JTARTW4022-0350-02-FVK
    JORDAHL Ankerschiene RT W40/22 Typ 02
    Höhe
    365 mm
    Breite
    40 mm
    Länge
    350 mm
    Gewicht je Lagermengeneinheit
    1.200 kg
    More information
  • JTARTW4022-0350-03-FVK
    JORDAHL Ankerschiene RT W40/22 Typ 03
    Höhe
    390 mm
    Breite
    40 mm
    Länge
    350 mm
    Gewicht je Lagermengeneinheit
    1.210 kg
    More information
  • JTARTW4022-0350-04-FVK
    JORDAHL Ankerschiene RT W40/22 Typ 04
    Höhe
    415 mm
    Breite
    40 mm
    Länge
    350 mm
    Gewicht je Lagermengeneinheit
    1.230 kg
    More information
  • JTARTW4022-0350-05-FVK
    JORDAHL Ankerschiene RT W40/22 Typ 05
    Höhe
    440 mm
    Breite
    40 mm
    Länge
    350 mm
    Gewicht je Lagermengeneinheit
    1.250 kg
    More information
  • JTARTW4022-0350-06-FVK
    JORDAHL Ankerschiene RT W40/22 Typ 06
    Höhe
    465 mm
    Breite
    40 mm
    Länge
    350 mm
    Gewicht je Lagermengeneinheit
    1.260 kg
    More information
  • JTARTW4022-0350-07-FVK
    JORDAHL Ankerschiene RT W40/22 Typ 07
    Höhe
    490 mm
    Breite
    40 mm
    Länge
    350 mm
    Gewicht je Lagermengeneinheit
    1.280 kg
    More information
