JSV38

Clamp connection for tension-resistant and pressure-resistant connection of concrete components

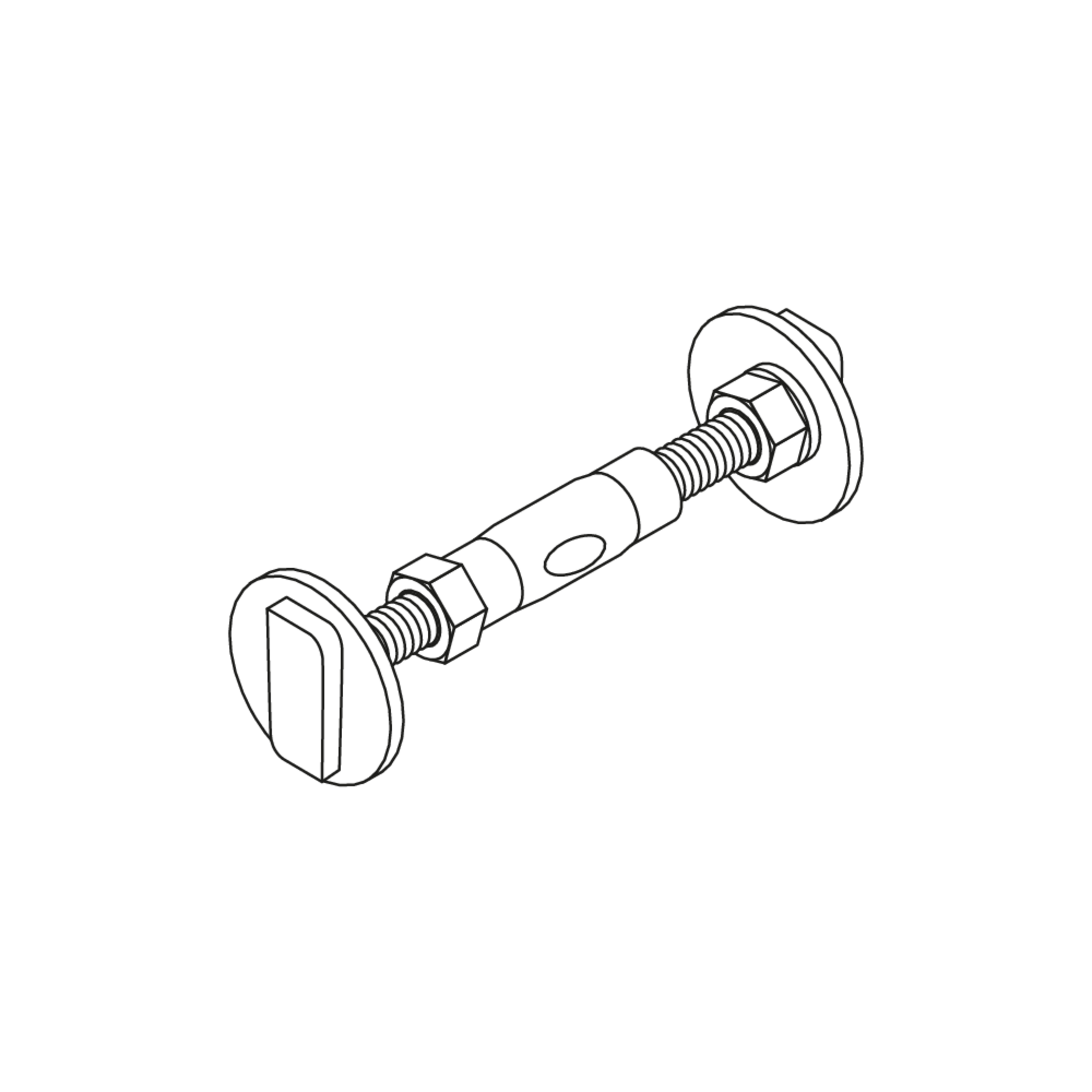

JSV38 stainless steel (A4) clamp connections create play-free, tension-resistant and compression-resistant connections between two components. The connection is made between a vertical and a horizontal anchor channel with a minimum length of 150 mm. This arrangement ensures an exact, continuously variable, three-dimensional alignment of the fastening. The JSV38 clamp connection consists of a clamp sleeve, bolts and nuts with left-hand and right-hand threads, a nut for countering the clamp sleeve and washers.

Get in touch Download datasheet

Variants

Article

H

height

B

width

L

length

G

Weight per storage unit
  • SV381250 A4
    JORDAHL clamp connection M12 JSV-38-1
    height
    16 mm
    width
    31 mm
    length
    115 mm
    Weight per storage unit
    0.241 kg
    More information
  • SV381280 A4
    JORDAHL clamp connection M12 JSV-38-2
    height
    16 mm
    width
    31 mm
    length
    155 mm
    Weight per storage unit
    0.266 kg
    More information
  • SV381280100 A4
    JORDAHL clamp connection M12 JSV-38-3
    height
    16 mm
    width
    31 mm
    length
    195 mm
    Weight per storage unit
    0.296 kg
    More information
  • SV381650 A4
    JORDAHL clamp connection M16 JSV-38-4
    height
    22 mm
    width
    31 mm
    length
    115 mm
    Weight per storage unit
    0.435 kg
    More information
  • SV381650100 A4
    JORDAHL clamp connection M16 JSV-38-6
    height
    22 mm
    width
    31 mm
    length
    175 mm
    Weight per storage unit
    0.540 kg
    More information
  • SV381680 A4
    JORDAHL clamp connection M16 JSV-38-5
    height
    22 mm
    width
    31 mm
    length
    195 mm
    Weight per storage unit
    0.513 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Technical information Channels and Accessories

    Technical information

    PDF, 14 MB

    de en
