JML K 41/41

Mounting channels, cold-formed, perforated

The mounting channel JML K 41/41 has environmental product declaration EPD-JDL-20200260-IBB1-DE and is made of hot-dip galvanised steel (fv), stainless steel (A4) or rolled plain steel (wb). It has a static load-bearing capacity of the normal force (NRd) of 11.2 kN. The mounting channel is available in lengths of 100 to 6000 mm and is paired with the bolts - . The profile is 41 mm wide and 41 mm high.

Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
Get in touch Download datasheet

Variants

Stahl, blank

Article

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

A

Querschnittsfläche

G

Gewicht je Lagermengeneinheit
  • LSK4141 R-6000
    JORDAHL Lochschiene K41/41
    Profilhöhe
    41 mm
    Profilbreite
    41 mm
    Länge
    6000 mm
    Materialstärke
    2.5 mm
    Querschnittsfläche
    3.041 cm2
    Gewicht je Lagermengeneinheit
    13.338 kg
    More information

Stahl, stück-/tauchfeuerverzinkt

Article

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

A

Querschnittsfläche

G

Gewicht je Lagermengeneinheit
  • LSK4141 FV-6000
    JORDAHL Lochschiene K41/41
    Profilhöhe
    41 mm
    Profilbreite
    41 mm
    Länge
    6000 mm
    Materialstärke
    2.5 mm
    Querschnittsfläche
    3.041 cm2
    Gewicht je Lagermengeneinheit
    14.820 kg
    More information

Details

  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Technical information Channels and Accessories

    Technical information

    PDF, 14 MB

    de en

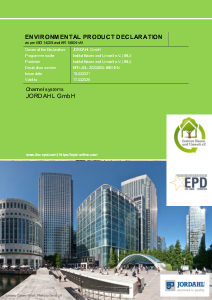

  • EPD Environmental Product Declaration Channel Systems

    Erklärung

    PDF, 2 MB

    de en

BIM- and CAD-Data

  • CAD Details for Perforated Mounting Channels JML

    CAD Details for Perforated Mounting Channels JML

    ZIP, 144 KB

    de en
