JAM

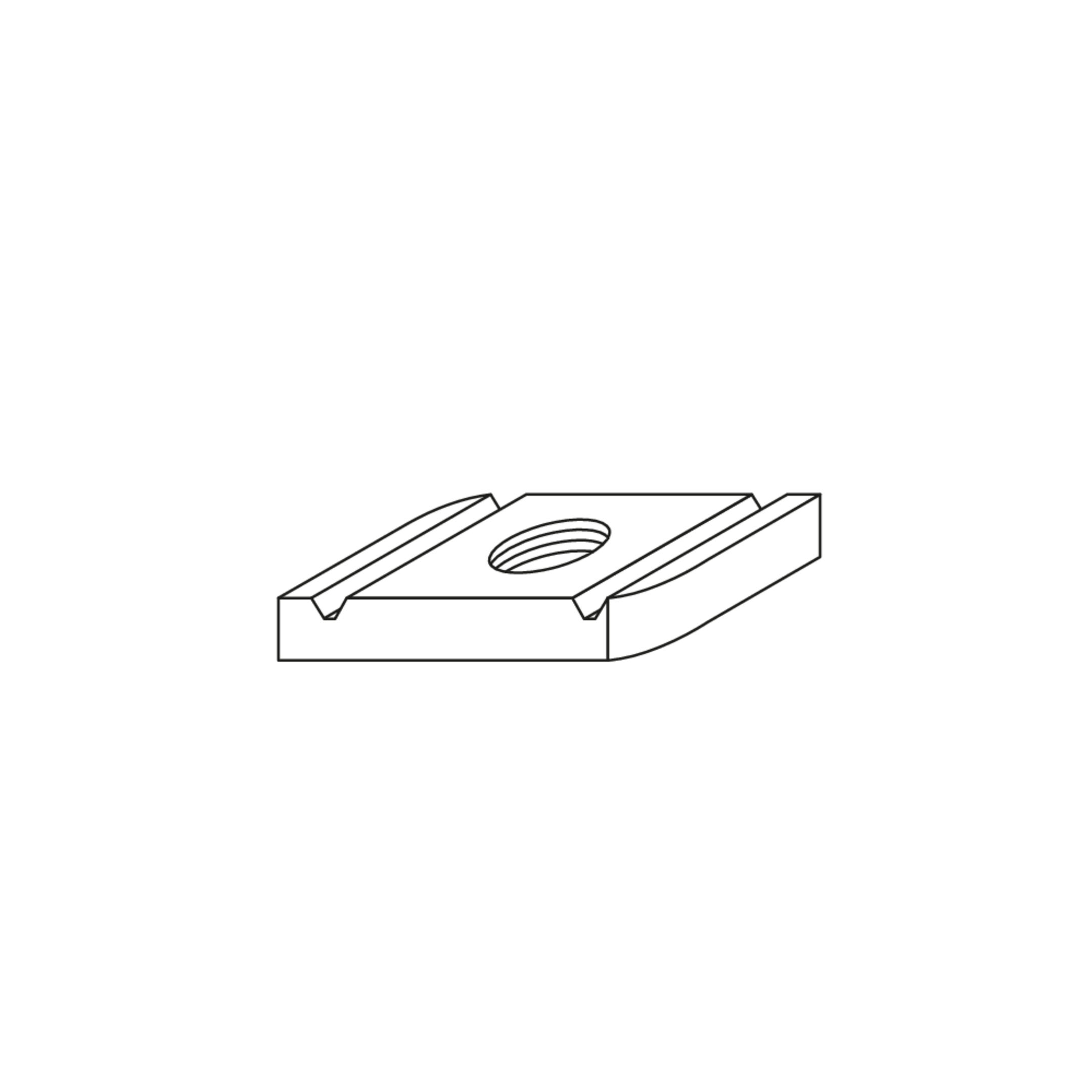

Channel nut, with or without spring

JAM channel nuts, also known as locking plates, are threaded plates that can be inserted at any point in the corresponding rail. The threaded hole is centred by turning the nut 90° after inserting or tipping in the nut. Locking plates are primarily used for spaced mounting in conjunction with long bolts or threaded rods. The galvanised or hot-dip galvanised channel nuts are available in M6, M8, M10 and M12 threads with or without springs and fit the cold-formed rails K 41/41.

Get in touchDownload datasheet

Variants

Article

B

width

L

length

MG

thread size (metric)

G

Weight per storage unit

  • AM2210 FV
    JORDAHL channel nuts 22 M10
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M10
    Weight per storage unit
    0.035 kg
    More information
  • AM2210 GV
    JORDAHL channel nuts 22 M10
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M10
    Weight per storage unit
    0.033 kg
    More information
  • AM2212 GV
    JORDAHL channel nuts 22 M12
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M12
    Weight per storage unit
    0.042 kg
    More information
  • AM226 FV
    JORDAHL channel nuts 22 M6
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M6
    Weight per storage unit
    0.028 kg
    More information
  • AM226 GV
    JORDAHL channel nuts 22 M6
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M6
    Weight per storage unit
    0.026 kg
    More information
  • AM228 FV
    JORDAHL channel nuts 22 M8
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M8
    Weight per storage unit
    0.026 kg
    More information
  • AM228 GV
    JORDAHL channel nuts 22 M8
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M8
    Weight per storage unit
    0.024 kg
    More information
  • AMF2210 FV
    JORDAHL channel nuts 22 with spring M10
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M10
    Weight per storage unit
    0.037 kg
    More information
  • AMF2210 GV
    JORDAHL channel nuts 22 with spring M10
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M10
    Weight per storage unit
    0.035 kg
    More information
  • AMF2212 FV
    JORDAHL channel nuts 22 with spring M12
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M12
    Weight per storage unit
    0.047 kg
    More information
  • AMF2212 GV
    JORDAHL channel nuts 22 with spring M12
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M12
    Weight per storage unit
    0.044 kg
    More information
  • AMF226 FV
    JORDAHL channel nuts 22 with spring M6
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M6
    Weight per storage unit
    0.030 kg
    More information
  • AMF226 GV
    JORDAHL channel nuts 22 with spring M6
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M6
    Weight per storage unit
    0.028 kg
    More information
  • AMF228 FV
    JORDAHL channel nuts 22 with spring M8
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M8
    Weight per storage unit
    0.028 kg
    More information
  • AMF228 GV
    JORDAHL channel nuts 22 with spring M8
    width
    20 mm
    length
    35 mm
    thread size (metric)
    M8
    Weight per storage unit
    0.026 kg
    More information
