JM W 72/48

Mounting channels, hot-rolled

The mounting channel JM W 72/48 is approved throughout Europe by ETA-15/0386. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE and is made of hot-dip galvanised steel (fv), stainless steel (A4) and rolled plain steel (wb). This mounting channel has a static load-bearing capacity of the normal force (NRd) of 66.1 kN and shear force (VRd) of 65.8 kN. It is available with a total length of 6000 mm and is paired with the bolts JA M20 - JA M30. The profile is 72 mm wide and 48 mm high.

Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
European Technical Assessment: ETA-15/0386
Get in touch Download datasheet

Variants

steel, bright

Article

HP

profile height

BP

profile width

L

length

t

Material strength

A

cross section area

G

Weight per storage unit
  • JMW7248 R-6000

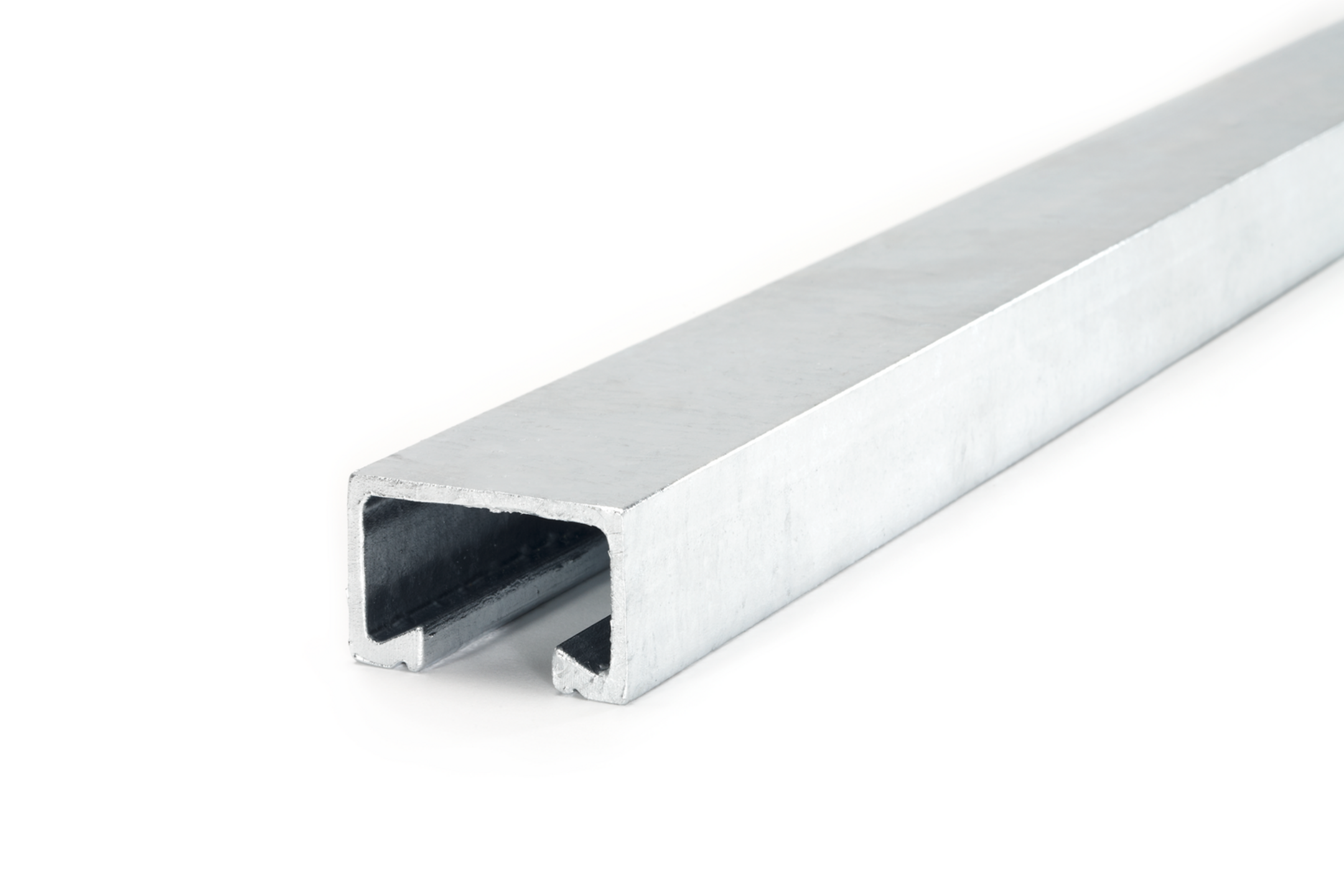

    JORDAHL mounting channel W72/48
    profile height
    48 mm
    profile width
    72 mm
    length
    6000 mm
    Material strength
    5 mm
    cross section area
    11.265 cm2
    Weight per storage unit
    54.803 kg
    More information

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

Material strength

A

cross section area

G

Weight per storage unit
  • JMW7248 FV-6000
    JORDAHL mounting channel W72/48
    profile height
    48 mm
    profile width
    72 mm
    length
    6000 mm
    Material strength
    5 mm
    cross section area
    11.265 cm2
    Weight per storage unit
    58.362 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

HP

profile height

BP

profile width

L

length

t

Material strength

A

cross section area

G

Weight per storage unit
  • JMW7248 A4-6000
    JORDAHL mounting channel W72/48
    profile height
    48 mm
    profile width
    72 mm
    length
    6000 mm
    Material strength
    5 mm
    cross section area
    11.265 cm2
    Weight per storage unit
    54.072 kg
    More information

Details

  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
  • European Technical Assessment: ETA-15/0386

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

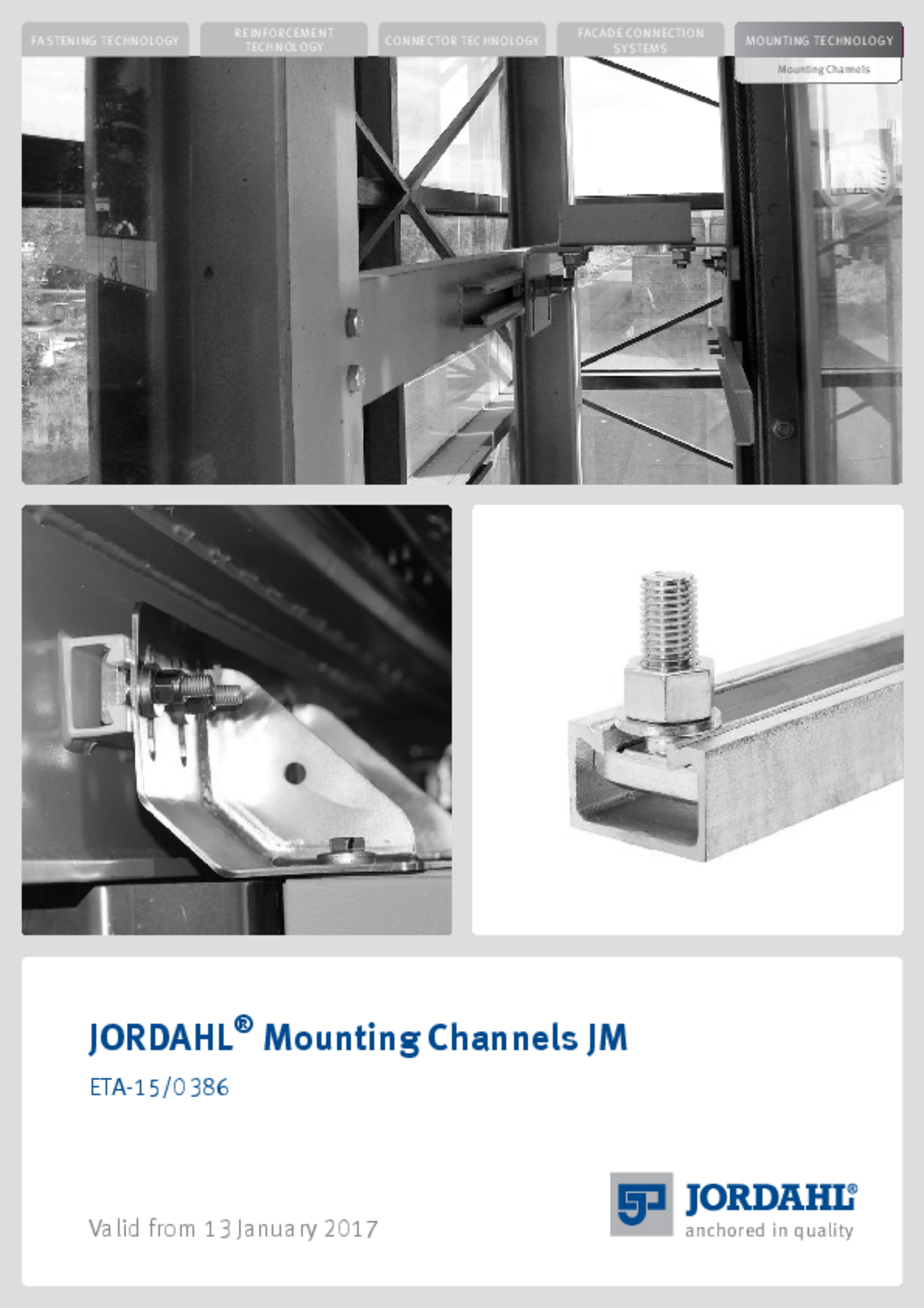

  • Technical information Channels and Accessories
