JGB K 38/17 DA

Railing fastening channel for secure fastening of railing posts

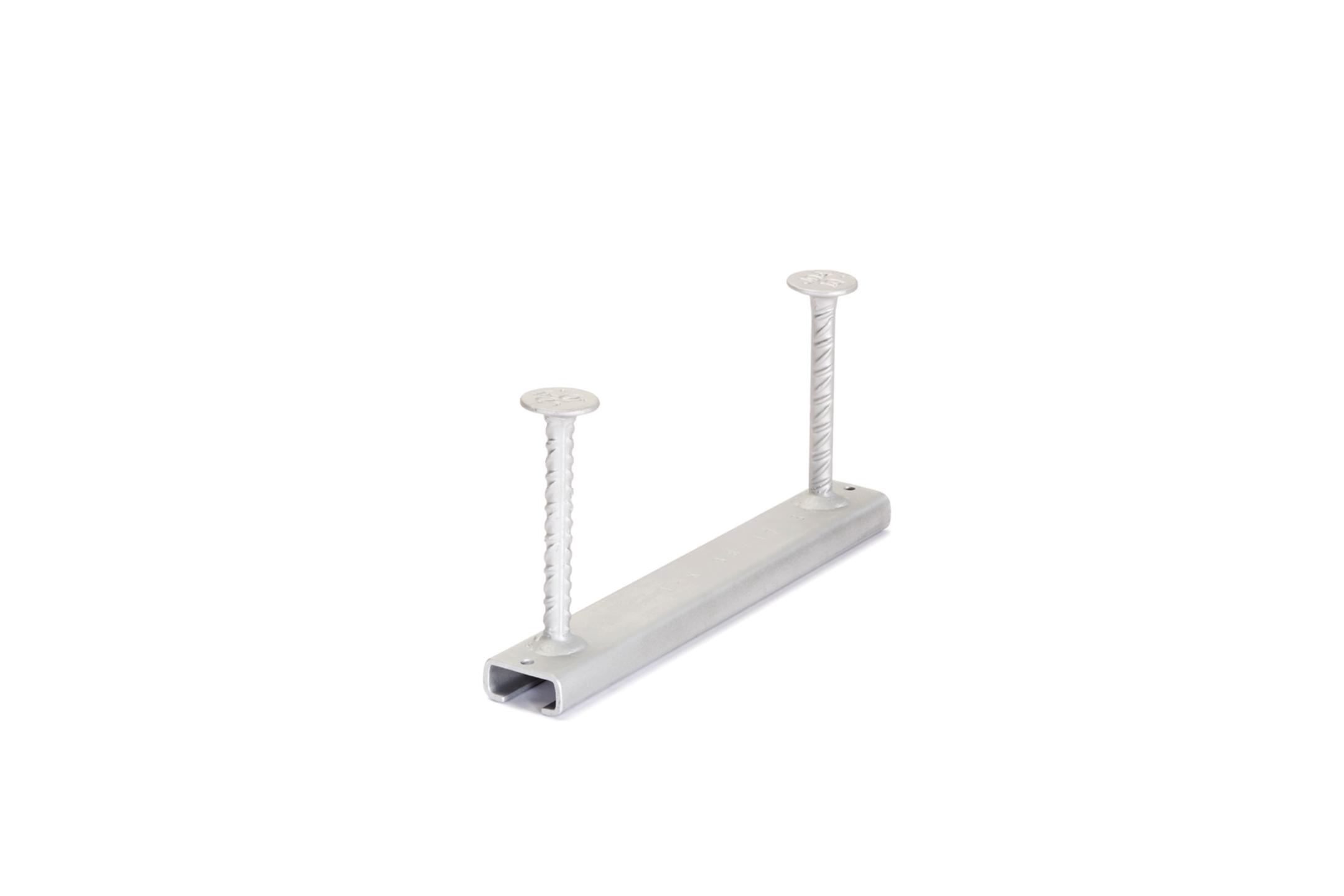

The railing fastening channel JGB K 38/17 DA has general building authority approval and is made of hot-dip galvanised steel (fv) for indoor use or stainless steel (A4) for outdoor use. The railing fastening channel has a static load-bearing capacity of the normal force (NRd) of 10 kN and transverse force (VRd) of 10 kN. It is available in lengths of 100 to 250 mm and is paired with the bolts JH M12 - JH M16. The profile is 38 mm wide and 17 mm high. The filling is made of polyethylene (PE).

General building approval: Z-21.4-1913
Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

Material strength

Number of anchors

G

Weight per storage unit
  • JGBK3817DA FVK-0100
    JORDAHL railing fastening K38/17
    profile height
    17 mm
    profile width
    38 mm
    length
    100 mm
    Material strength
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.351 kg
    More information
  • JGBK3817DA FVK-0120
    JORDAHL railing fastening K38/17
    profile height
    17 mm
    profile width
    38 mm
    length
    120 mm
    Material strength
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.499 kg
    More information
  • JGBK3817DA FVK-0150
    JORDAHL railing fastening K38/17
    profile height
    17 mm
    profile width
    38 mm
    length
    150 mm
    Material strength
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    1.703 kg
    More information
  • JGBK3817DA FVK-0200
    JORDAHL railing fastening K38/17
    profile height
    17 mm
    profile width
    38 mm
    length
    200 mm
    Material strength
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.563 kg
    More information
  • JGBK3817DA FVK-0220
    JORDAHL railing fastening K38/17
    profile height
    17 mm
    profile width
    38 mm
    length
    220 mm
    Material strength
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.629 kg
    More information
  • JGBK3817DA FVK-0250
    JORDAHL railing fastening K38/17
    profile height
    17 mm
    profile width
    38 mm
    length
    250 mm
    Material strength
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.634 kg
    More information

Details

  • General building approval: Z-21.4-1913

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Technical information Channels and Accessories

    Technical information

    PDF, 14 MB

    de en

  • Installation Instruction Railing Attachment JGB

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • General building approval Z-21.4-1913 Railing Attachment JGB
