GVR 4.0

Mesh cable tray snap-in connector

The mesh cable tray snap-in connector GVR 4.0 connects U-shaped mesh cable trays of types G 50 and G 100 and is suitable for G 50 trays 100, 200 and 300 mm wide as well as G 100 trays 100 and 200 mm wide. The wire spacing must be 100 mm. The snap-in connector can be used universally for side or bottom connections and is designed for wires 4 mm thick. It is fitted and removed without bolts. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Variants

Stahl, band-/sendzimirverzinkt

Article

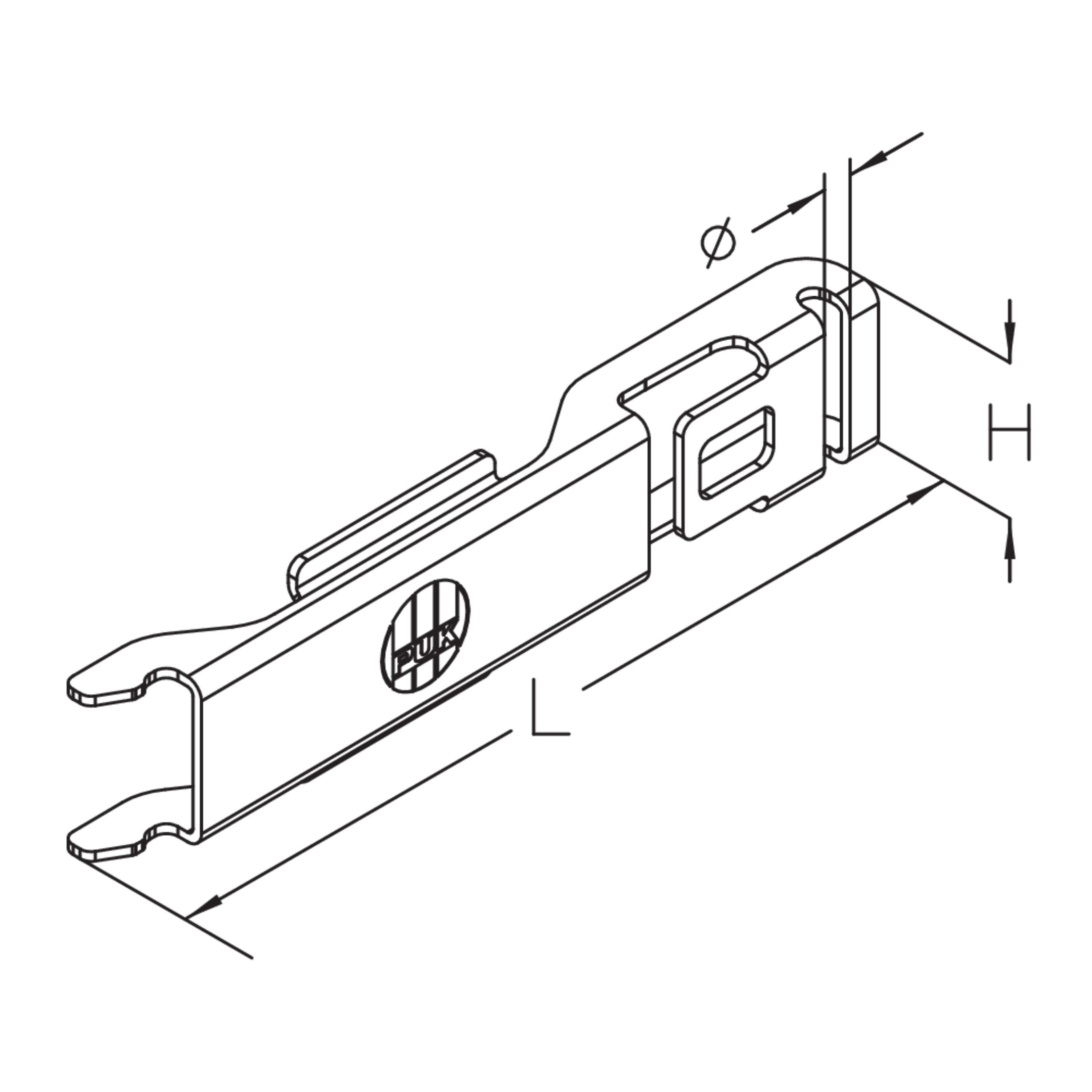

H

Höhe

L

Länge

Ø

Geeignet für Drahtstärke

G

Gewicht je Lagermengeneinheit

  • GVR 4.0S
    Gitterbahnrastverbinder
    Höhe
    26 mm
    Länge
    131 mm
    Geeignet für Drahtstärke
    4 mm
    Gewicht je Lagermengeneinheit
    0.053 kg

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

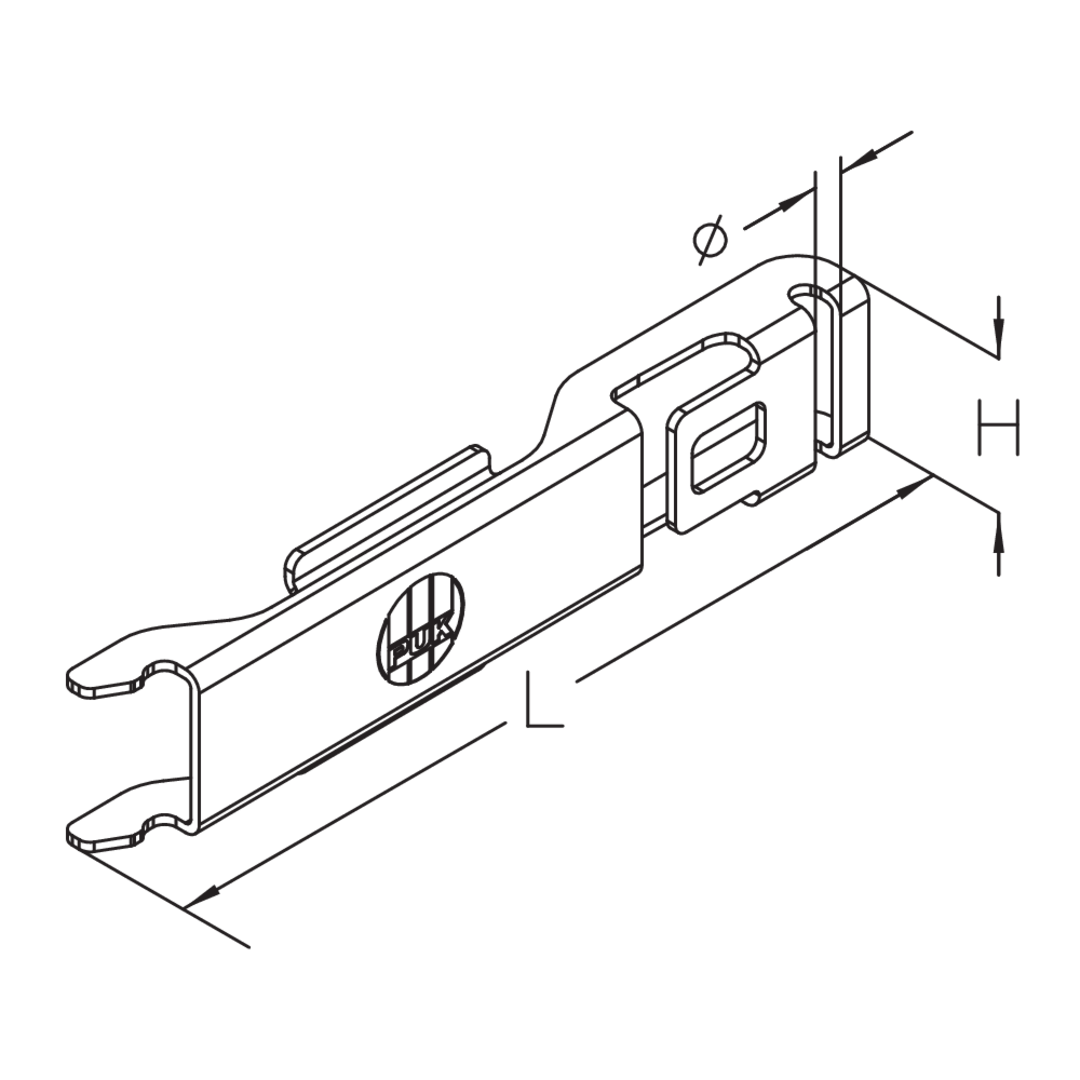

H

Höhe

L

Länge

Ø

Geeignet für Drahtstärke

G

Gewicht je Lagermengeneinheit

  • GVR 4.0E
    Gitterbahnrastverbinder
    Höhe
    26 mm
    Länge
    131 mm
    Geeignet für Drahtstärke
    4 mm
    Gewicht je Lagermengeneinheit
    0.053 kg

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

L

Länge

Ø

Geeignet für Drahtstärke

G

Gewicht je Lagermengeneinheit

  • GVR 4.0E4
    Gitterbahnrastverbinder
    Höhe
    26 mm
    Länge
    131 mm
    Geeignet für Drahtstärke
    4 mm
    Gewicht je Lagermengeneinheit
    0.054 kg

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

    Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    • de

    • en

    Cable trays - Assembly instructions

    • de

    • en

    Mesh cable trays - Technical information

    • de

    • en

    PDF, 532.66 KB

    • de

    Download

    Electrical conductivity (G 50)

    Certificate, according to DIN EN 61537 Pkt. 11.1

    • de

    • en
