GTR 50

Mesh cable tray divider, height = 33 mm

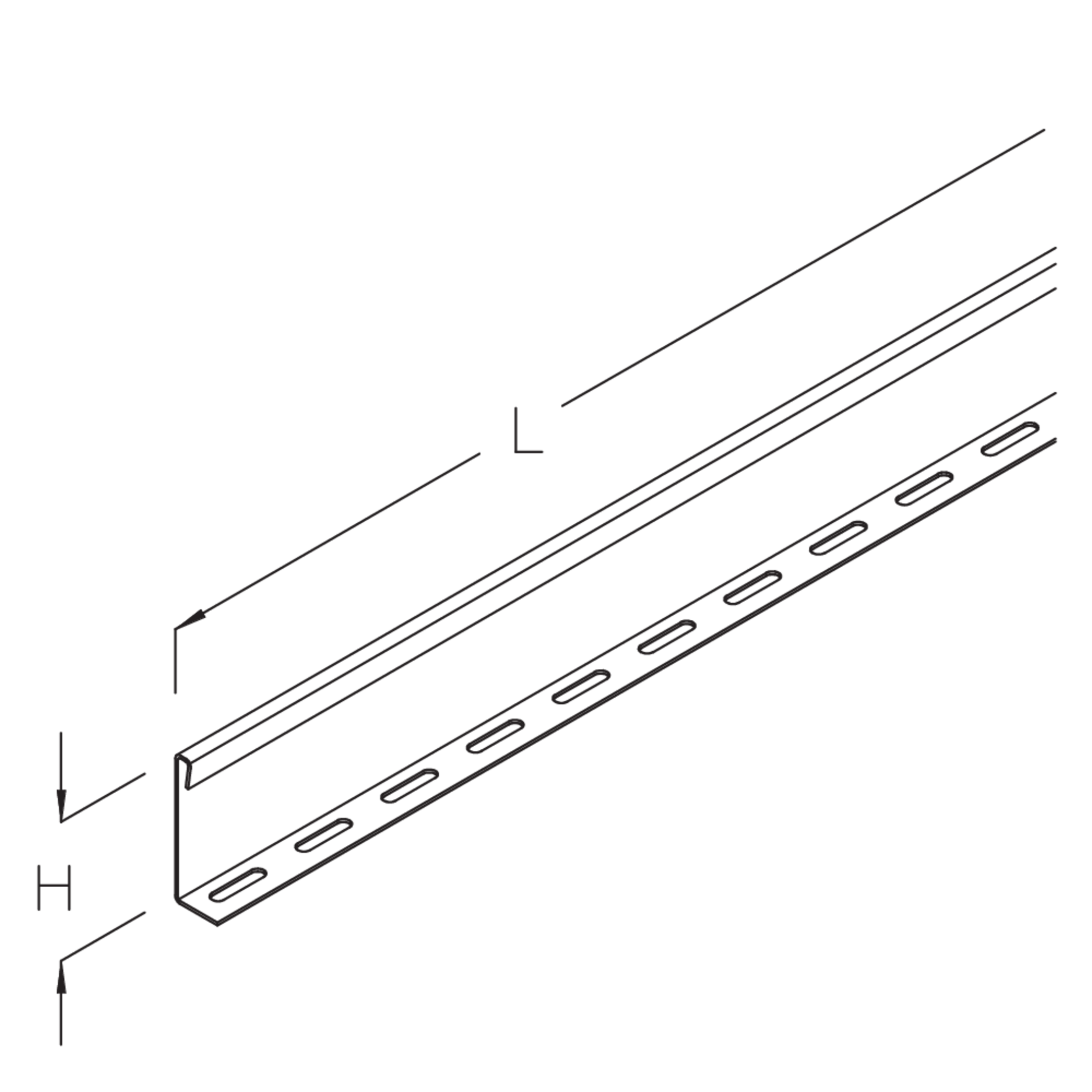

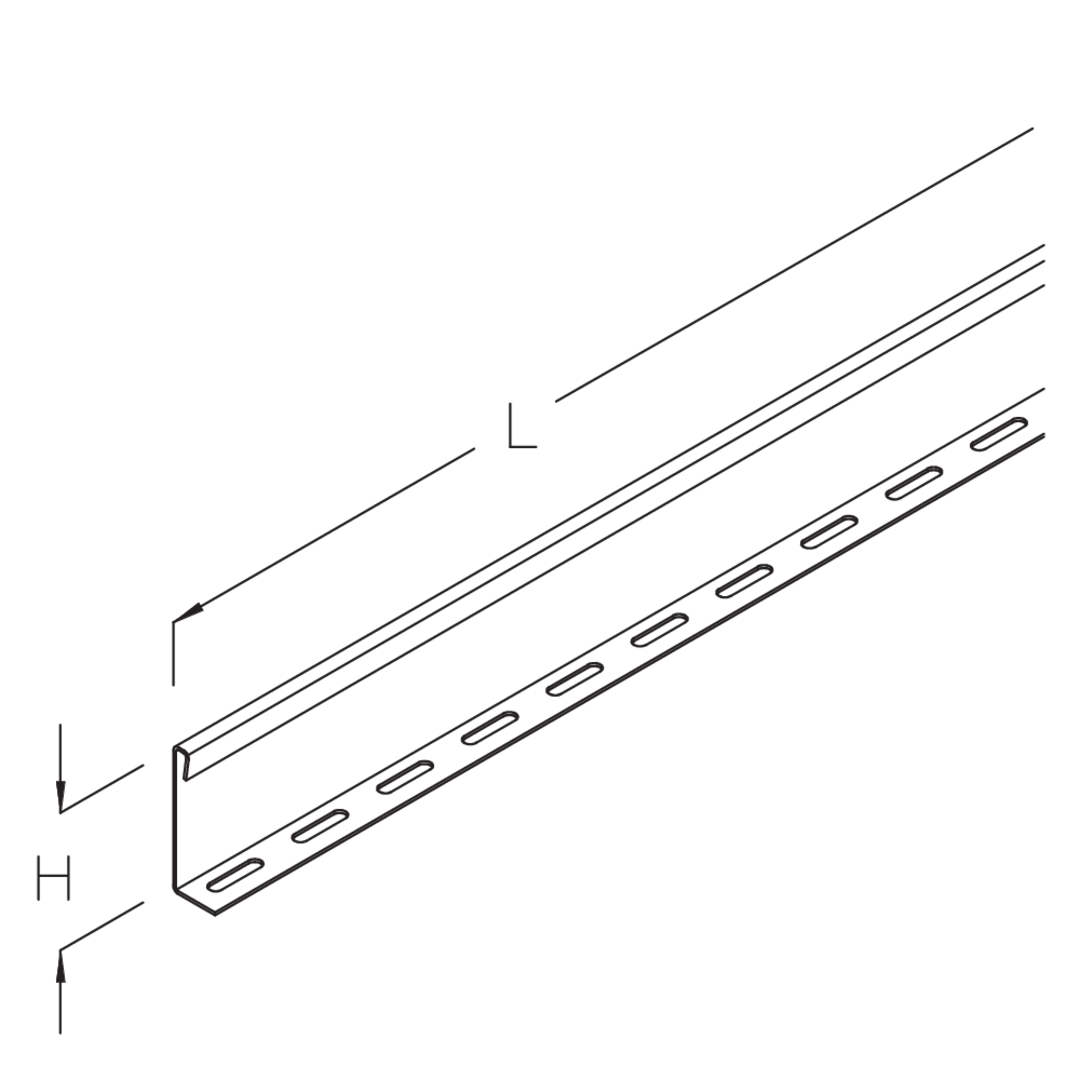

Cables and lines with different functions or voltages can be routed separately from one another in the same mesh cable tray using the mesh cable tray separating strip GTR 50. The separating strip is mounted on the mesh cable tray with three KLU clamp fasteners: two KLU each 100 mm from the separating strip end, one KLU in the middle. The mesh cable tray separating strip GTR 50 is 33 mm high and 3000 mm long. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

L

Länge

G

Gewicht je Lagermengeneinheit

  • GTR 50S
    Trennsteg für Gitterbahn
    33 mm
    3000 mm
    1.240 kg
    Included accessories

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

L

Länge

G

Gewicht je Lagermengeneinheit

  • GTR 50F
    Trennsteg für Gitterbahn
    33 mm
    3000 mm
    1.752 kg
    Included accessories

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

L

Länge

G

Gewicht je Lagermengeneinheit

  • GTR 50E
    Trennsteg für Gitterbahn
    33 mm
    3000 mm
    1.639 kg
    Included accessories

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

L

Länge

G

Gewicht je Lagermengeneinheit

  • GTR 50E4
    Trennsteg für Gitterbahn
    33 mm
    3000 mm
    1.659 kg
    Included accessories

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
