Art.-Nr. GIDR 12S

Wire-mesh tray cover with rotary bolt

Mesh cable tray cover with turning bolts

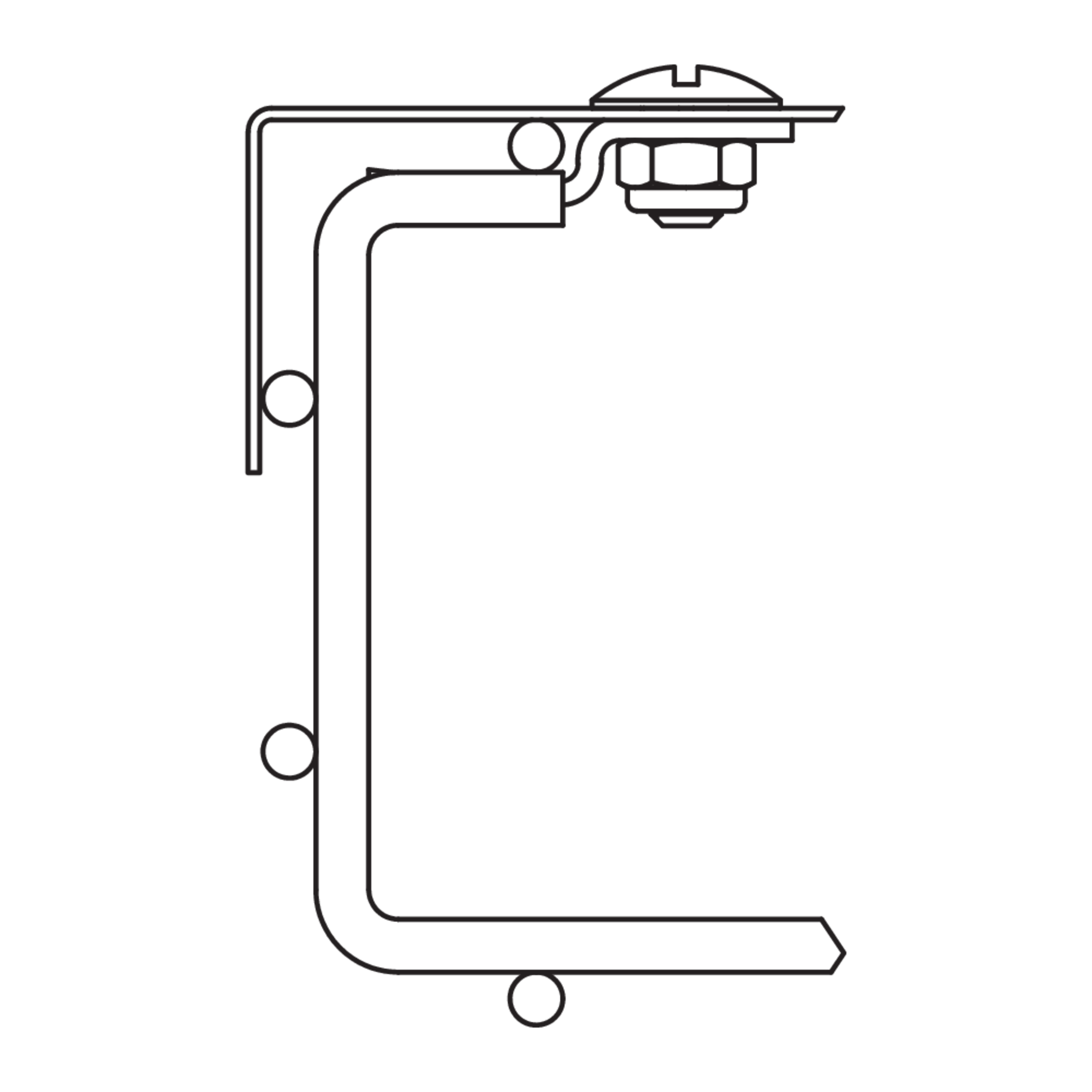

The mesh cable tray covers GIDR with turning bolts are suitable for mesh cable tray GI and protect it from dirt, contact and moisture. They are placed on top of the mesh cable trays If the covers are to be used outdoors, additional securing brackets to protect against wind are required. In this case, the twist lock alone is not sufficient as a retaining element. The mesh cable tray covers are 60 to 300 mm wide and have a standard length of 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Art.-Nr.
GIDR 12S
width
137 mm
length
3000 mm
material thickness
1.00 mm
Weight per storage unit
4.770 kg

Variants

Stahl, band-/sendzimirverzinkt

Article

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • GIDR 06S
    Gitterbahn-Deckel mit Drehriegel
    79 mm
    3000 mm
    1.00 mm
    3.361 kg
  • GIDR 12S
    Gitterbahn-Deckel mit Drehriegel
    137 mm
    3000 mm
    1.00 mm
    4.770 kg
  • GIDR 20S
    Gitterbahn-Deckel mit Drehriegel
    217 mm
    3000 mm
    1.00 mm
    6.660 kg
  • GIDR 30S
    Gitterbahn-Deckel mit Drehriegel
    317 mm
    3000 mm
    1.00 mm
    9.020 kg

Stahl, stück-/tauchfeuerverzinkt

Article

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • GIDR 06F
    Gitterbahn-Deckel mit Drehriegel
    79 mm
    3000 mm
    1.00 mm
    3.588 kg
  • GIDR 12F
    Gitterbahn-Deckel mit Drehriegel
    137 mm
    3000 mm
    1.00 mm
    5.100 kg
  • GIDR 20F
    Gitterbahn-Deckel mit Drehriegel
    217 mm
    3000 mm
    1.00 mm
    7.110 kg
  • GIDR 30F
    Gitterbahn-Deckel mit Drehriegel
    317 mm
    3000 mm
    1.00 mm
    9.640 kg

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • GIDR 06E
    Gitterbahn-Deckel mit Drehriegel
    79 mm
    3000 mm
    1.00 mm
    3.382 kg
  • GIDR 12E
    Gitterbahn-Deckel mit Drehriegel
    137 mm
    3000 mm
    1.00 mm
    4.800 kg
  • GIDR 20E
    Gitterbahn-Deckel mit Drehriegel
    217 mm
    3000 mm
    1.00 mm
    6.700 kg
  • GIDR 30E
    Gitterbahn-Deckel mit Drehriegel
    317 mm
    3000 mm
    1.00 mm
    9.070 kg

Details

  • Protects mesh cable trays against dirt, moisture, contact and UV radiation
  • Quick and easy installation using a slotted screwdriver
  • Suitable for indoor and outdoor use (when using the storm protection bracket)
