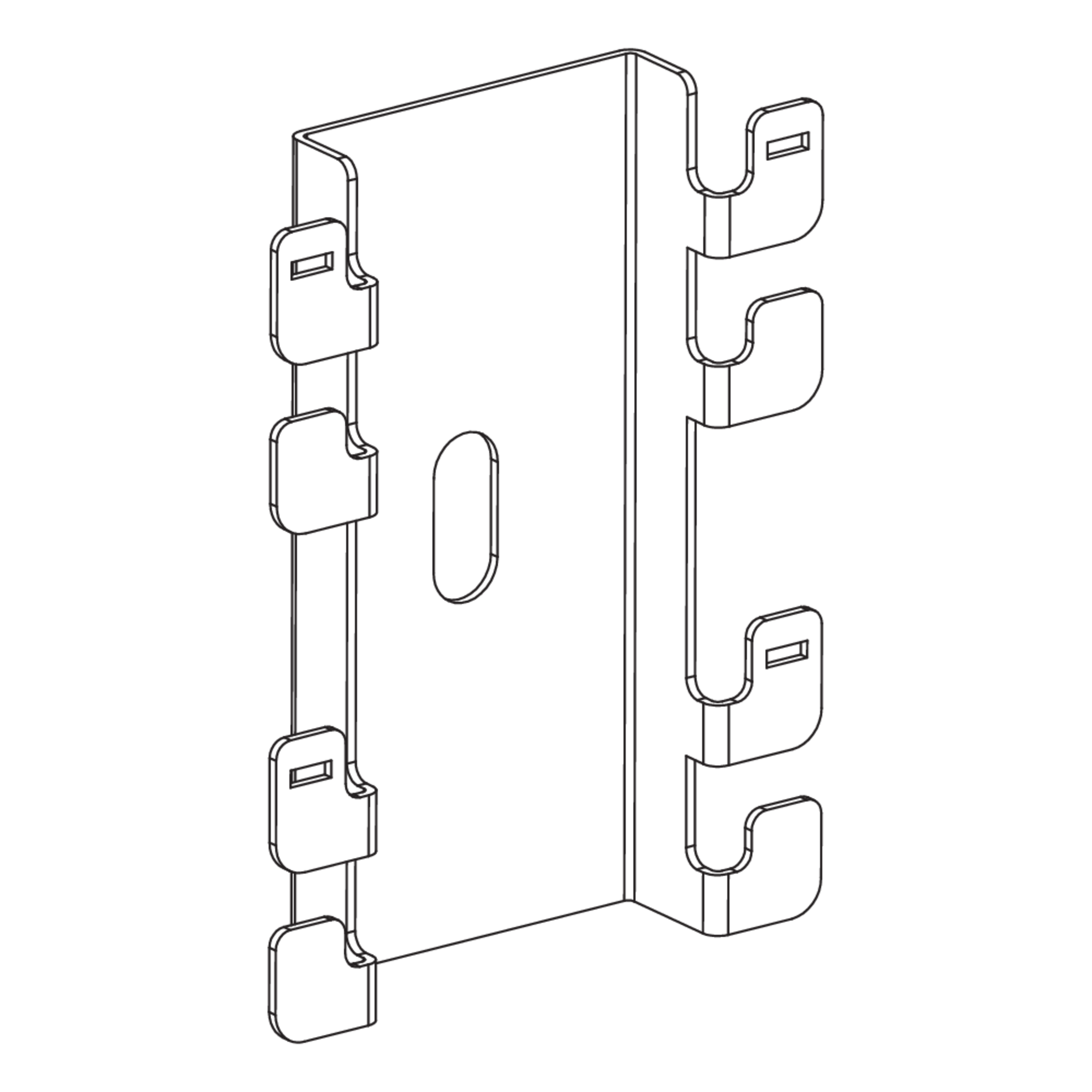

GBHK 50

Short spacer bracket for mesh cable tray grid size 30

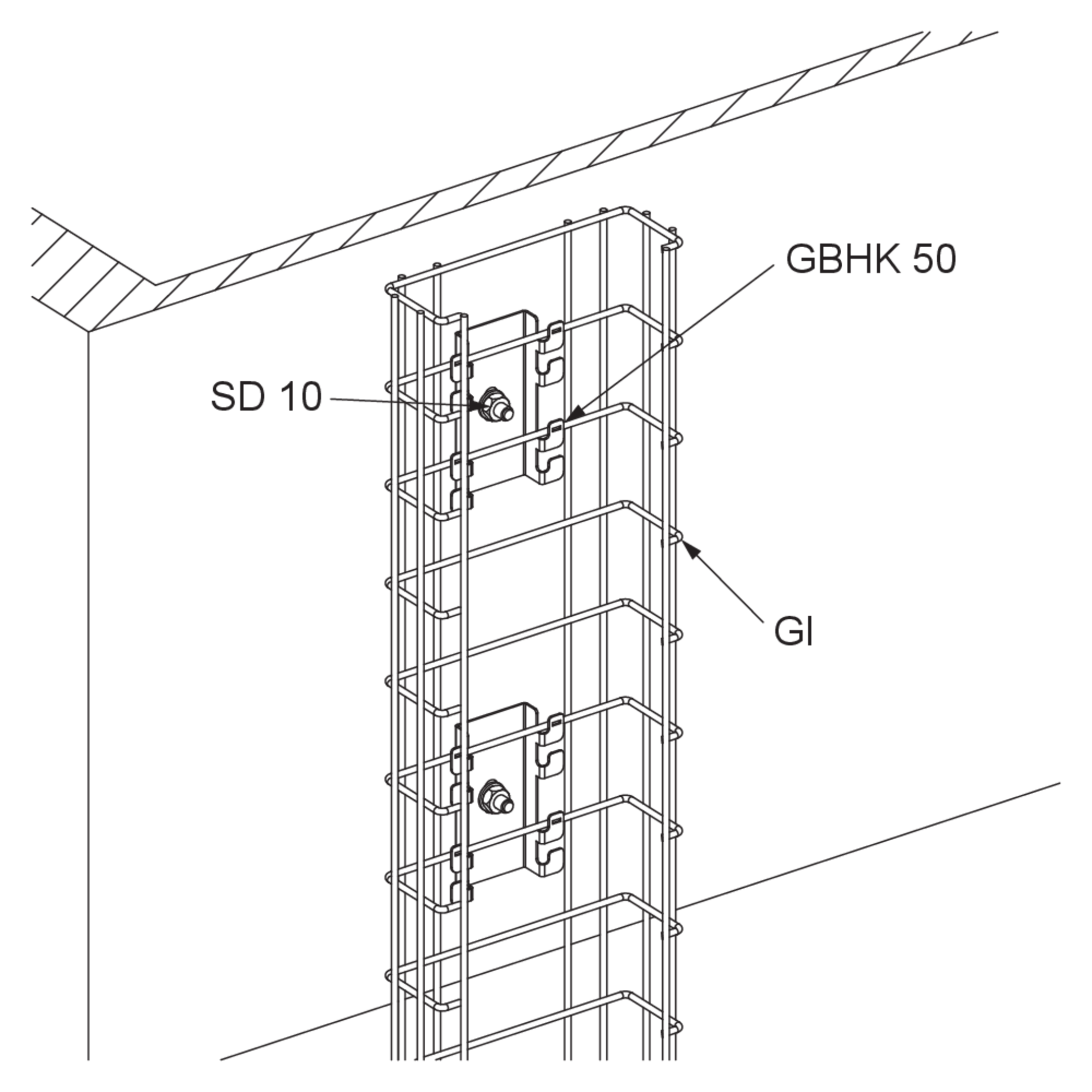

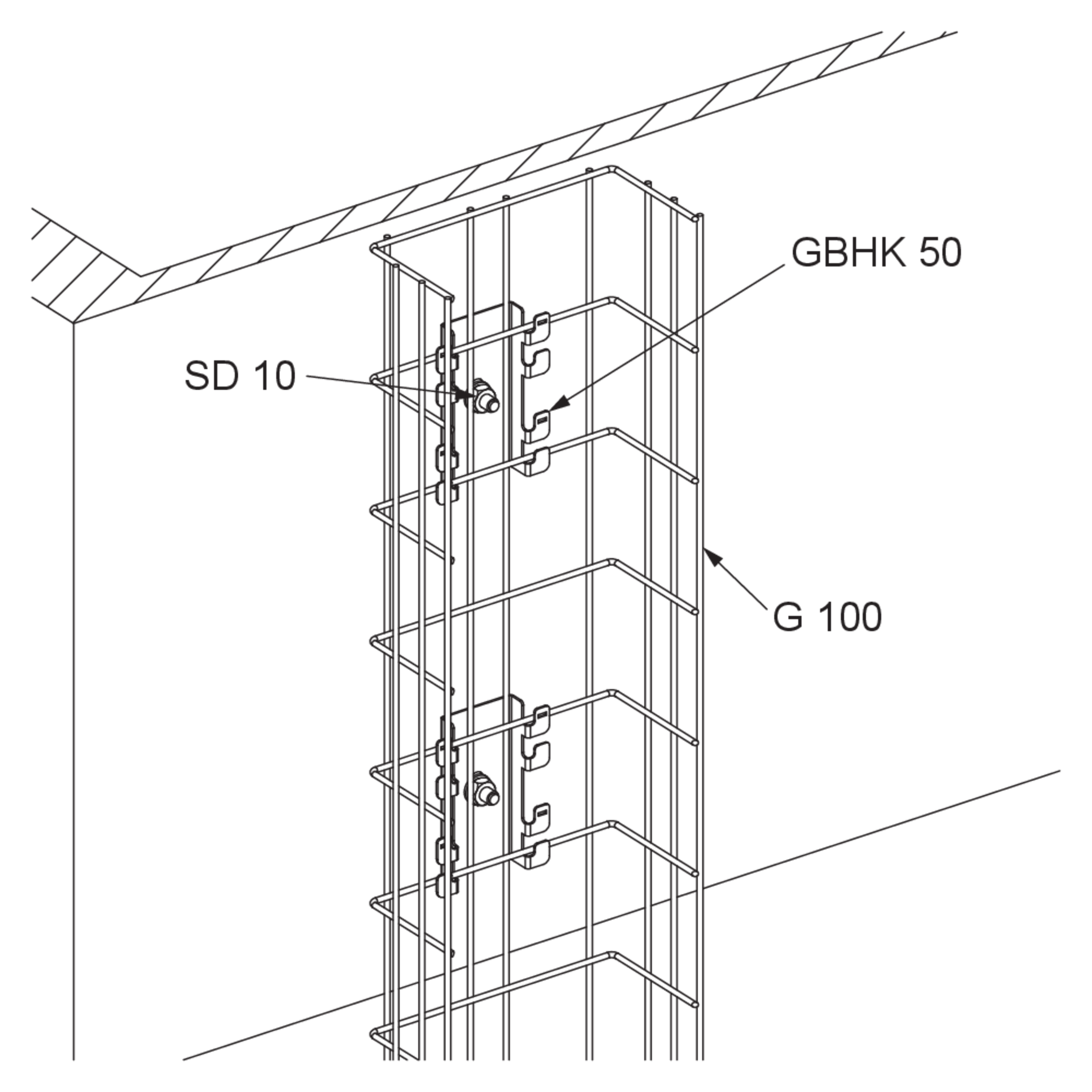

Mesh cable trays G and GI can be mounted vertically on the longitudinal wires of the mesh cable tray base at a short distance from the wall using the spacer bracket GBHK 50. For larger mesh cable tray widths, two spacer brackets are required, arranged next to each other. The spacer bracket GBHK 50 is suitable for a mesh cable tray grid size (wire spacing) of 50/75/100 mm and support spacings of up to 1500 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

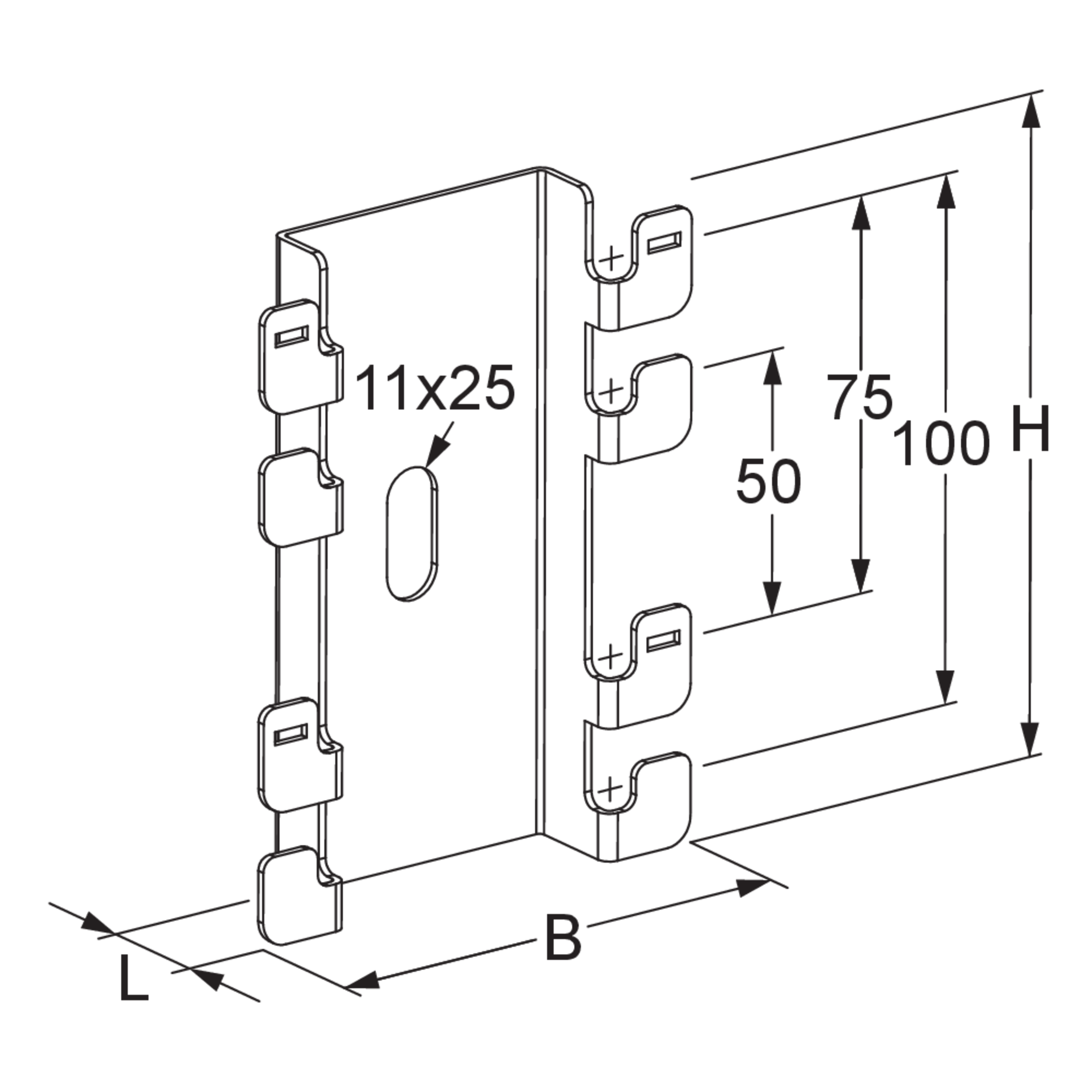

H

B

L

a

W

  • GBHK 50S
    Wire mesh tray holder short
    125 mm
    94 mm
    21 mm
    50/75/100 mm
    0.150 kg
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

B

L

a

W

  • GBHK 50E
    Wire mesh tray holder short
    125 mm
    94 mm
    21 mm
    50/75/100 mm
    0.156 kg
    More information
