BODO NAT-W

On-floor tube outlet with one socket

BODO NAT-W components are round on-floor tube outlets that can be closed using a bayonet catch and are equipped with a black Schuko socket and a black snap-in connector. The outlets can only be used in conjunction with a dummy cable outlet and can be supplemented with an additional 45x45 mm installation device or a tube outlet pre-assembled by Wieland or WAGO. They can be installed in screed and raised or false floor openings in wet-cleaned or dry-cleaned rooms with high traffic loads. The tube outlets are made of aluminium with a black finish and have an IP protection rating of IP 66 in an unused condition and IP 20 when used.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

Höhe

ØB

Einbaudurchmesser

Farbe

Farbe

Farbe Snap-in

IPg

IP-Schutzgrad im genutzten Zustand

G

Gewicht je Lagermengeneinheit

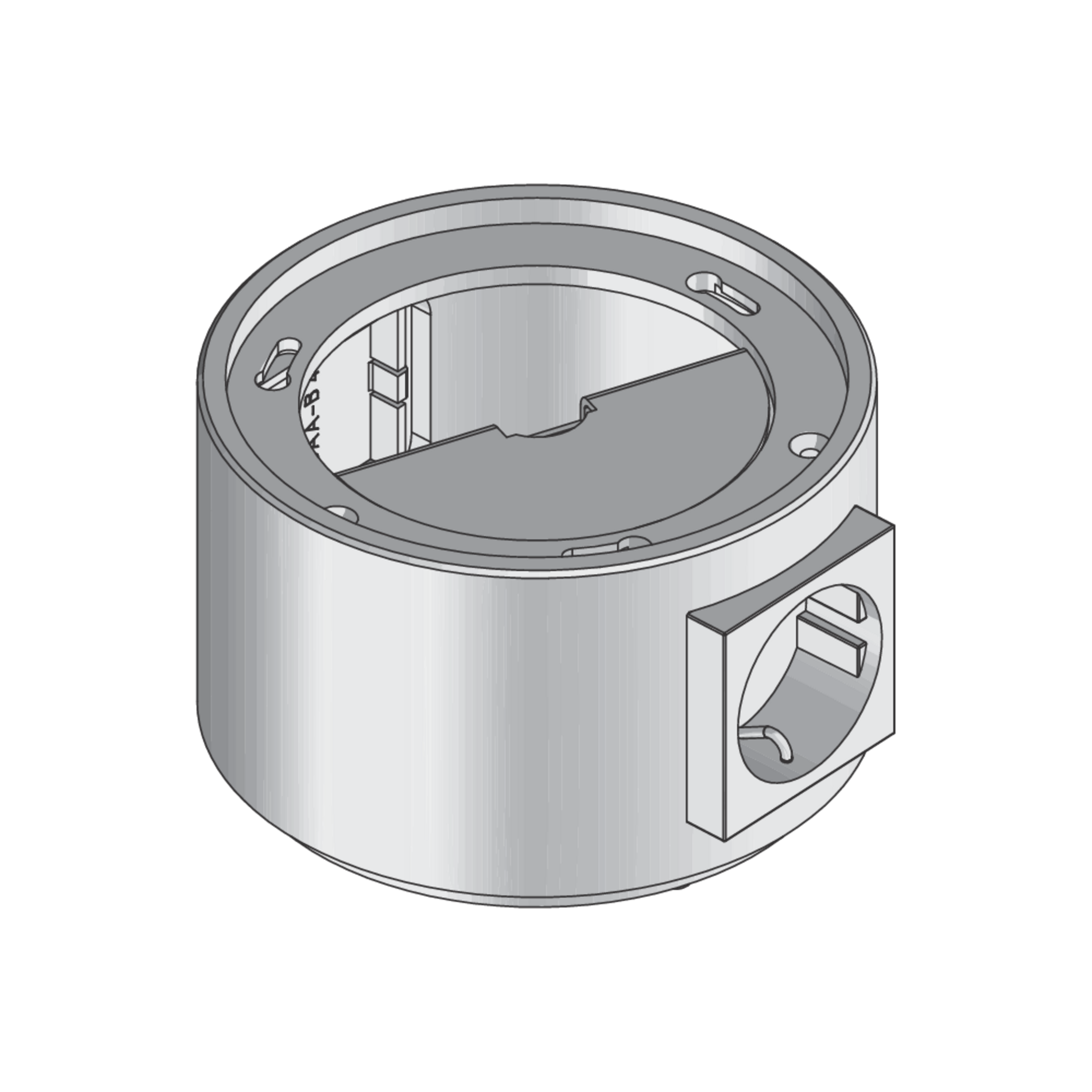

  • BODO NAT-WA
    Aufboden-Tubusauslass vormontiert,
    Höhe
    70 mm
    Einbaudurchmesser
    120 mm
    Farbe
    Aluminium
    Farbe Snap-in
    schwarz
    IP-Schutzgrad im genutzten Zustand
    IP 20
    Gewicht je Lagermengeneinheit
    0.867 kg
    More information

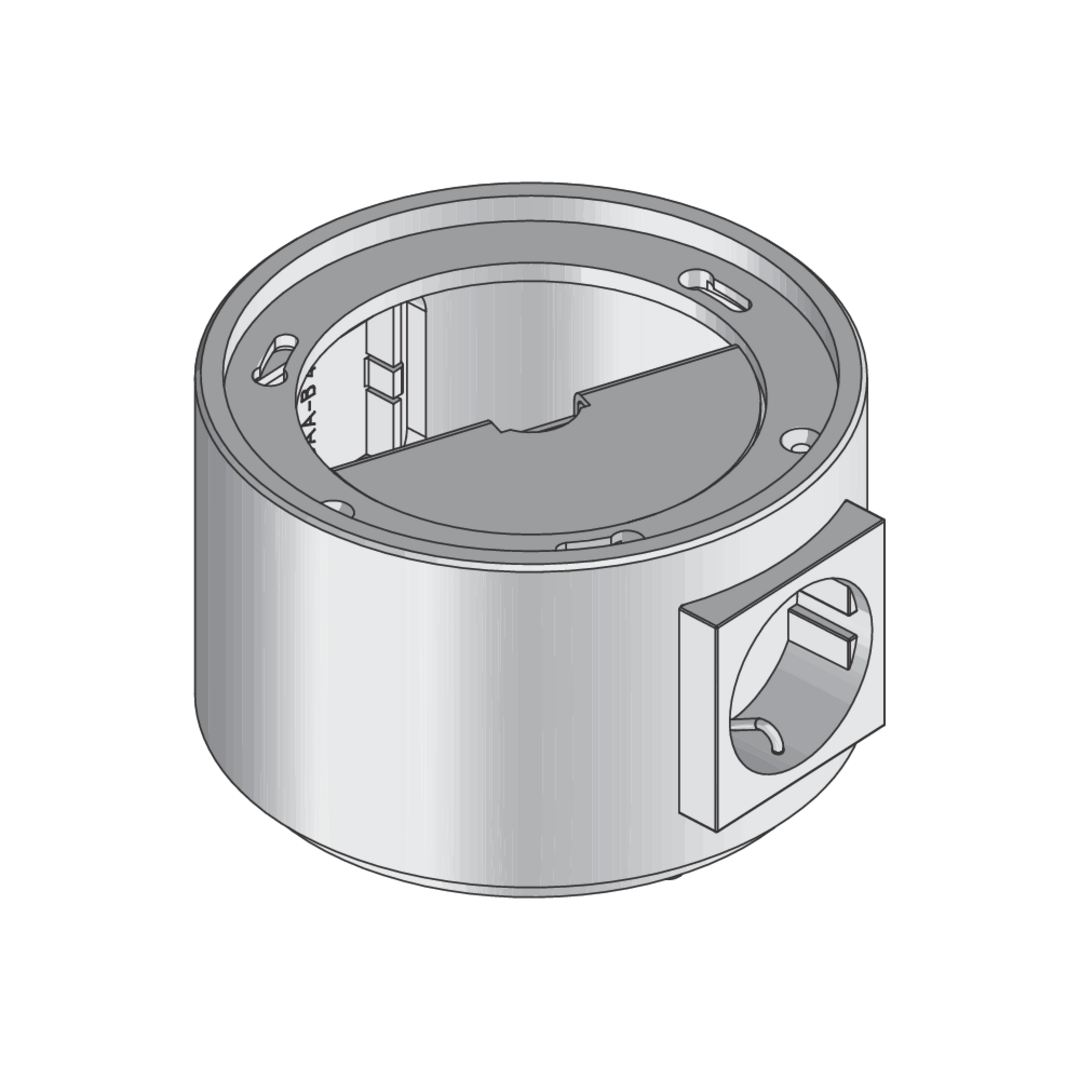

  • BODO NAT-WI
    Aufboden-Tubusauslass vormontiert,
    Höhe
    70 mm
    Einbaudurchmesser
    120 mm
    Farbe
    Aluminium
    Farbe Snap-in
    schwarz
    IP-Schutzgrad im genutzten Zustand
    IP 20
    Gewicht je Lagermengeneinheit
    0.878 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

  • VDE Certificate 40035721 BODO

    Zertifikat

    PDF, 254 KB

    de
    Download

  • Installation Instructions BODO-NA

    Montageanleitung

    PDF, 397 KB

    de en
