BKK 110

Floor duct crossing, height = 110 mm

The floor duct crossing BKK 110 with integrated connectors is a formed part for horizontally crossing floor ducts. It is 110 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The crossing is pushed into the floor ducts and then bolted in place.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

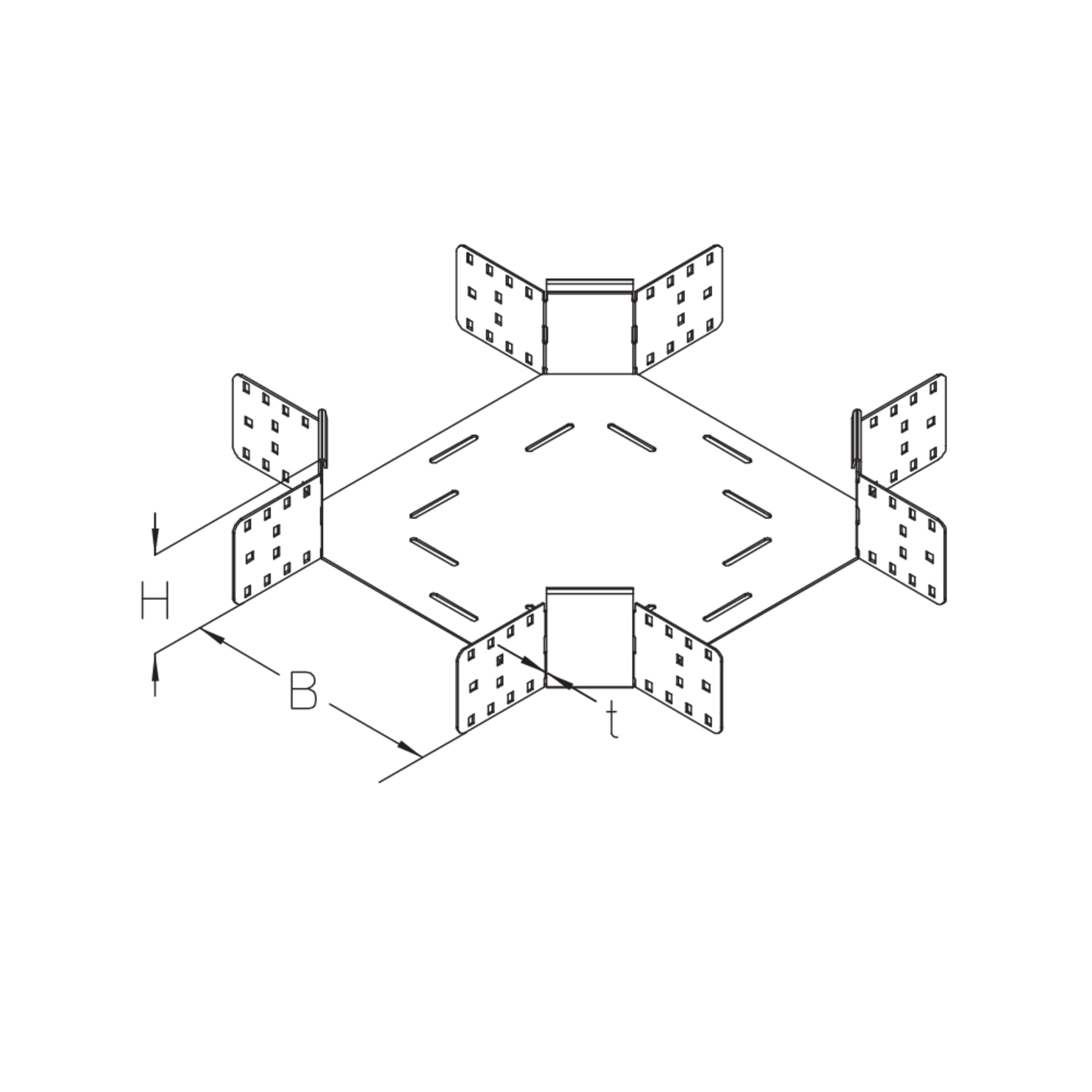

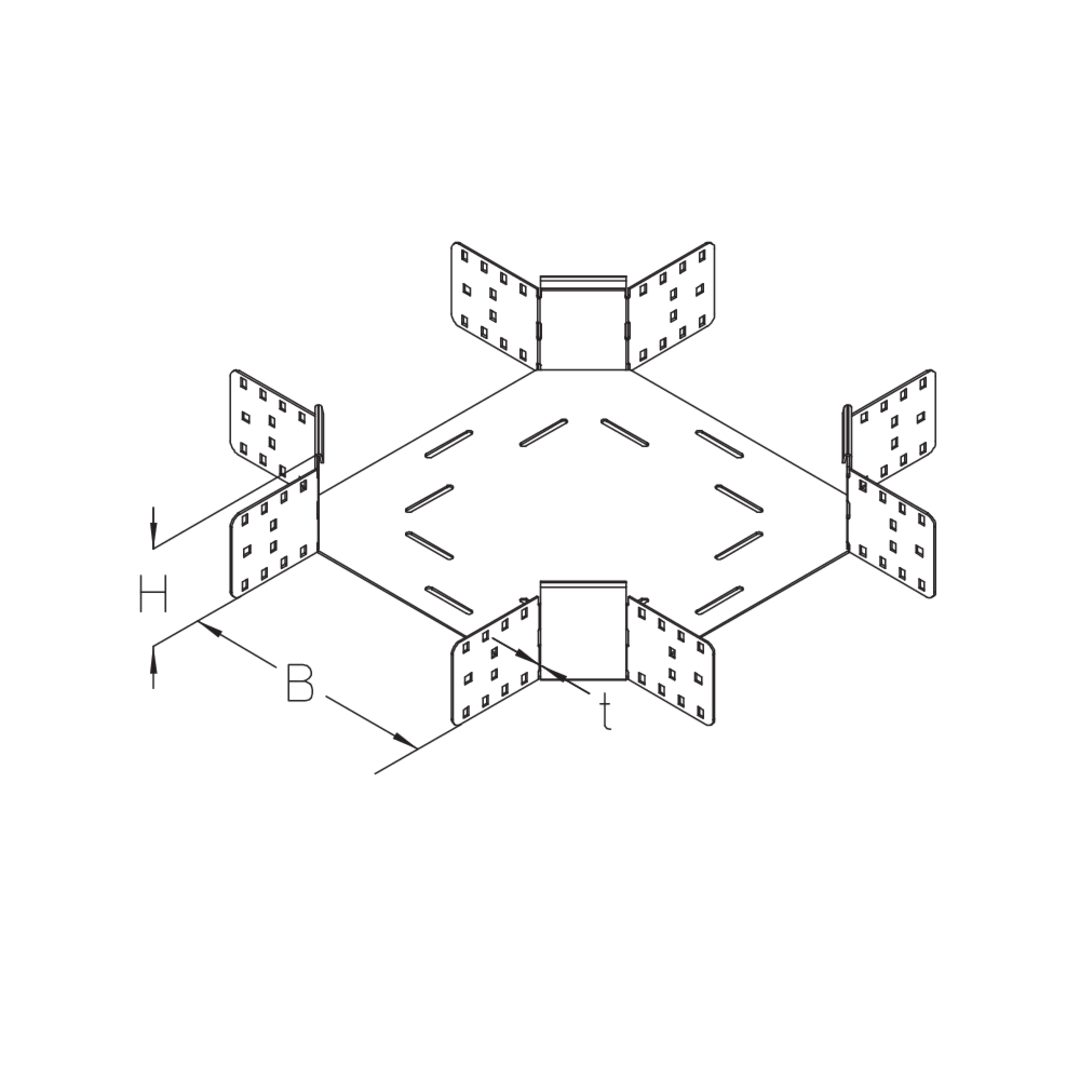

H

Höhe

B

Breite

t

Materialstärke

G

Gewicht je Lagermengeneinheit
  • BKK 110-10S
    Bodenkanal-Kreuzung,
    Höhe
    110 mm
    Breite
    100 mm
    Materialstärke
    2.00 mm
    Gewicht je Lagermengeneinheit
    3.602 kg
    Included accessories
    More information
  • BKK 110-15S
    Bodenkanal-Kreuzung,
    Höhe
    110 mm
    Breite
    150 mm
    Materialstärke
    2.00 mm
    Gewicht je Lagermengeneinheit
    3.982 kg
    Included accessories
    More information
  • BKK 110-20S
    Bodenkanal-Kreuzung,
    Höhe
    110 mm
    Breite
    200 mm
    Materialstärke
    2.00 mm
    Gewicht je Lagermengeneinheit
    4.442 kg
    Included accessories
    More information
  • BKK 110-30S
    Bodenkanal-Kreuzung,
    Höhe
    110 mm
    Breite
    300 mm
    Materialstärke
    2.00 mm
    Gewicht je Lagermengeneinheit
    5.512 kg
    Included accessories
    More information
  • BKK 110-40S
    Bodenkanal-Kreuzung,
    Höhe
    110 mm
    Breite
    400 mm
    Materialstärke
    2.00 mm
    Gewicht je Lagermengeneinheit
    6.972 kg
    Included accessories
    More information
  • BKK 110-50S
    Bodenkanal-Kreuzung,
    Höhe
    110 mm
    Breite
    500 mm
    Materialstärke
    2.00 mm
    Gewicht je Lagermengeneinheit
    8.732 kg
    Included accessories
    More information
  • BKK 110-60S
    Bodenkanal-Kreuzung,
    Höhe
    110 mm
    Breite
    600 mm
    Materialstärke
    2.00 mm
    Gewicht je Lagermengeneinheit
    10.822 kg
    Included accessories
    More information

Details

  • Creates horizontal change of cable routing in four directions
  • Cable-friendly guide
